Model # 103761630 Official Kenmore gas range
Here are the diagrams and repair parts for Official Kenmore 103761630 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for103761630 Ranges
- #84A

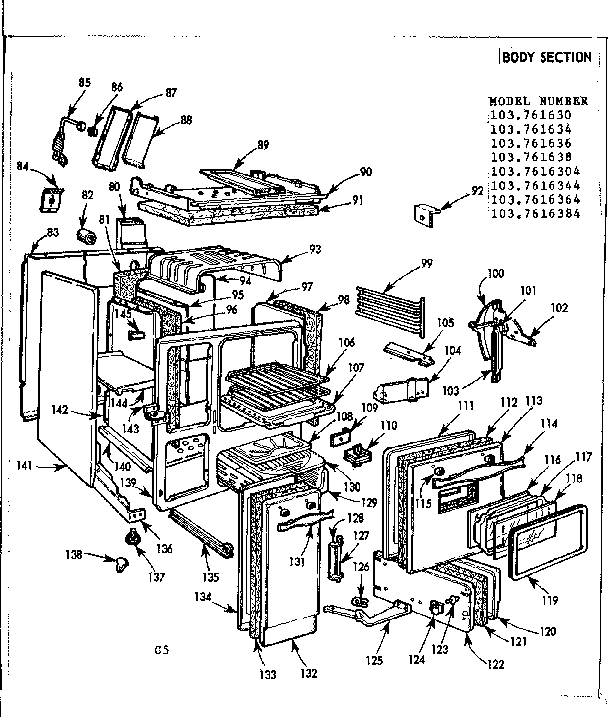

Body section diagram
Lamp bulbPart #65973
Replaced by #40A15
?Manufacturer substitutionThis part replaces 65973. Substitute parts can look different from the original.$14.03 |12% OFF Phone Price : $16.03In Stock - #65

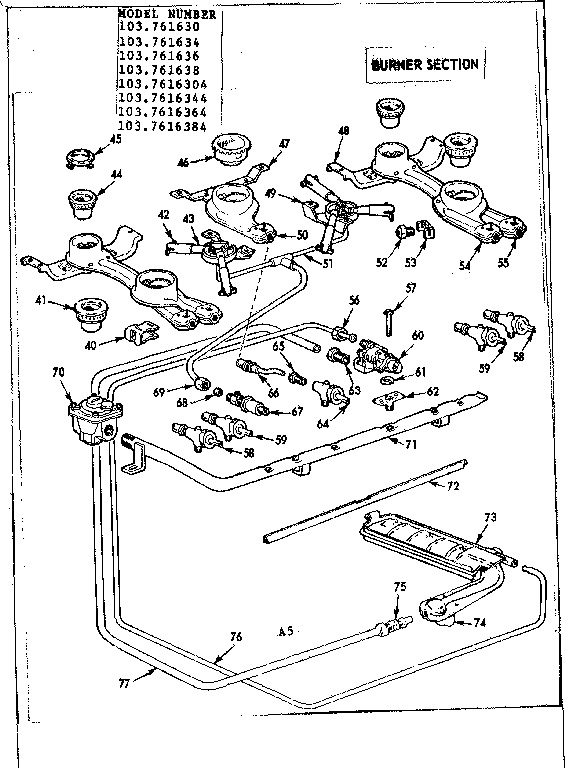

Burner section diagram
Loxit nutPart #79719
Replaced by #100108370
?Manufacturer substitutionThis part replaces 79719. Substitute parts can look different from the original.$64.56Back Order - #135A
Body section diagram
Drawer guidePart #97820
This item is not returnable$3.99In Stock - #8

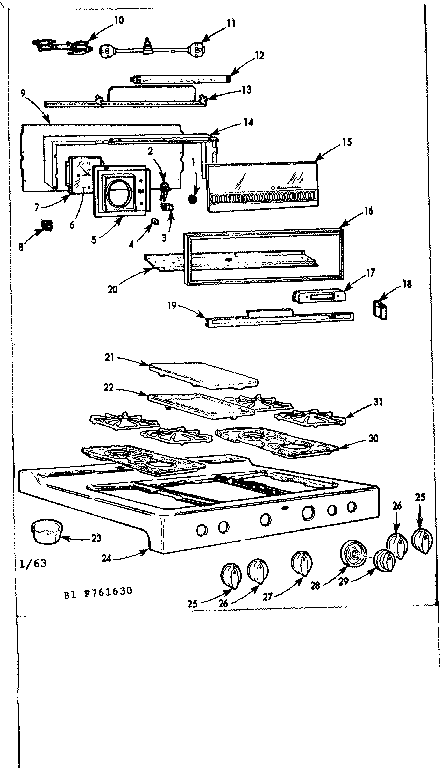

Backguard & maintop section diagram
Trim clipPart #70588
Replaced by #WB2X9573
?Manufacturer substitutionThis part replaces 70588. Substitute parts can look different from the original.$7.40 |12% OFF Phone Price : $8.40In Stock - #104
Body section diagram
SupportPart #98380
The manufacturer no longer makes this part, and there's no substitute part
- #113A
Body section diagram
Door panelPart #103713
The manufacturer no longer makes this part, and there's no substitute part
- #151A

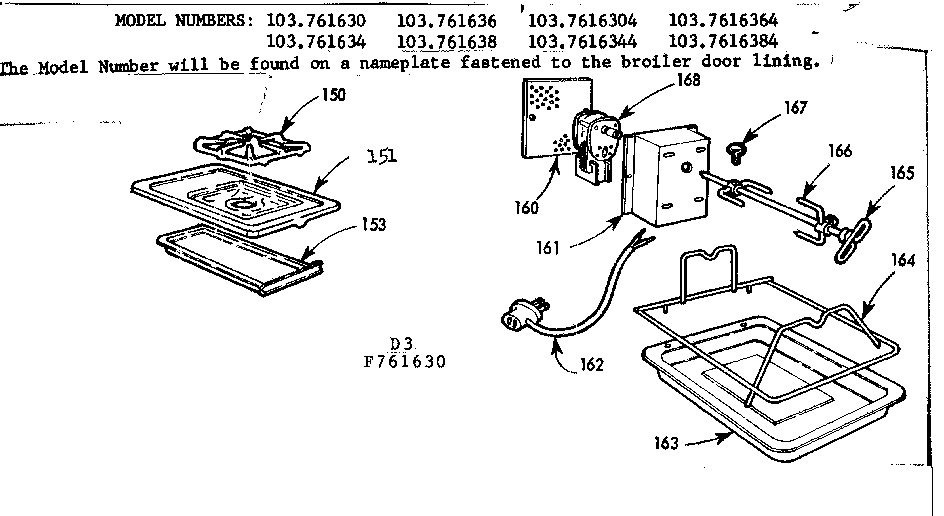

Fifth burners & oven rotisserie diagram
Burner bowlPart #100227
The manufacturer no longer makes this part, and there's no substitute part
- #91
Body section diagram
InsulationPart #102201
The manufacturer no longer makes this part, and there's no substitute part
- #96
Body section diagram
InsulationPart #102199
The manufacturer no longer makes this part, and there's no substitute part
- #116
Body section diagram
Door glassPart #87001
The manufacturer no longer makes this part, and there's no substitute part
