Model # 919679500 Official Craftsman generator

Here are the diagrams and repair parts for Official Craftsman 919679500 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

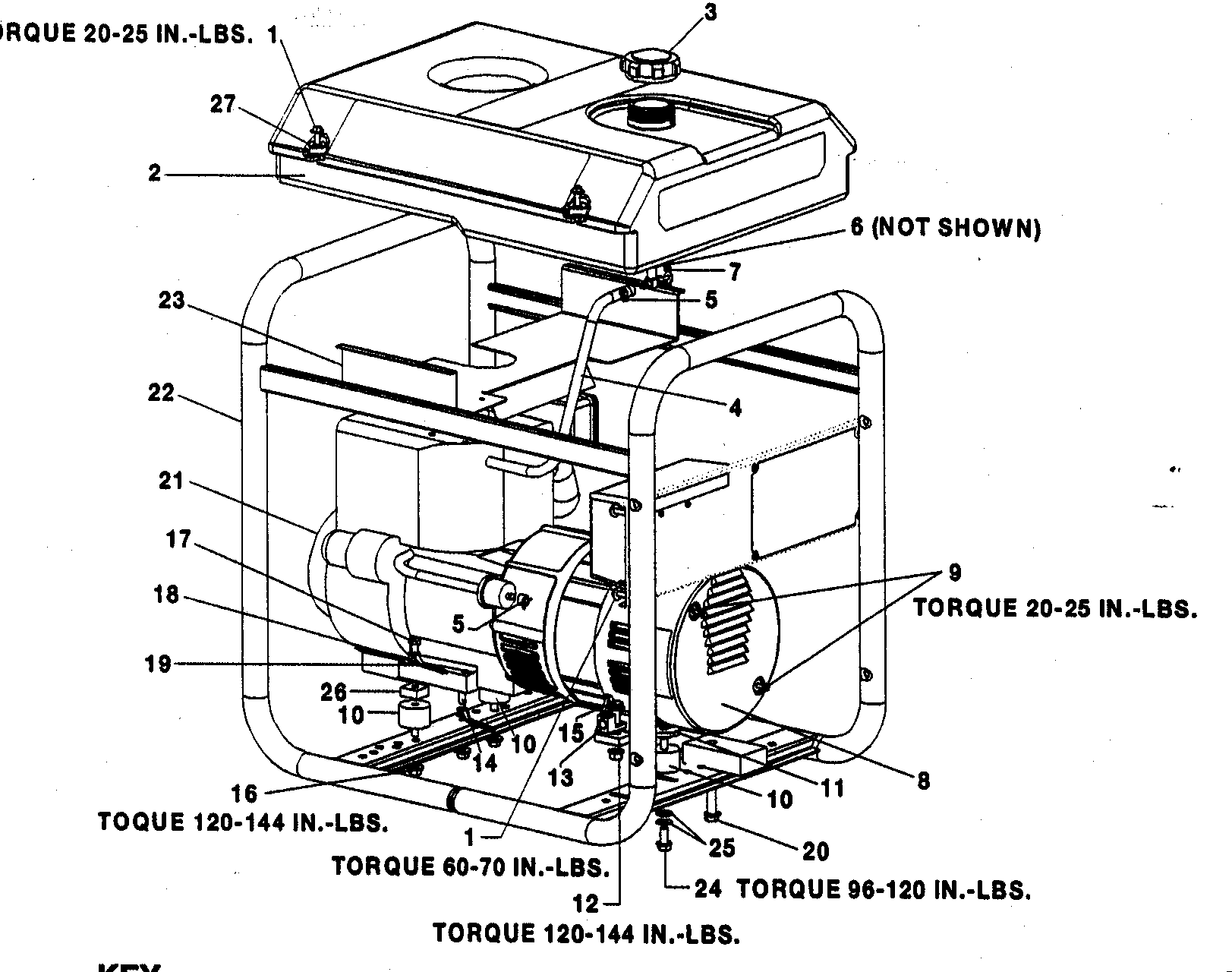

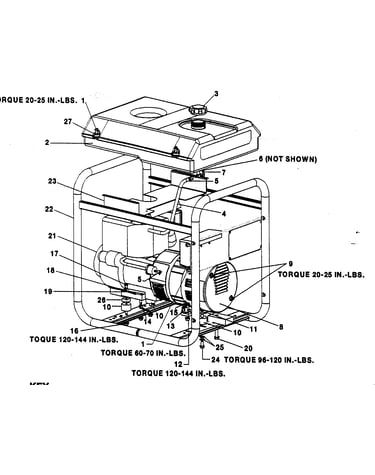

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Generator Screw, #10-24 X 9/16-in SSF-553-1
#9

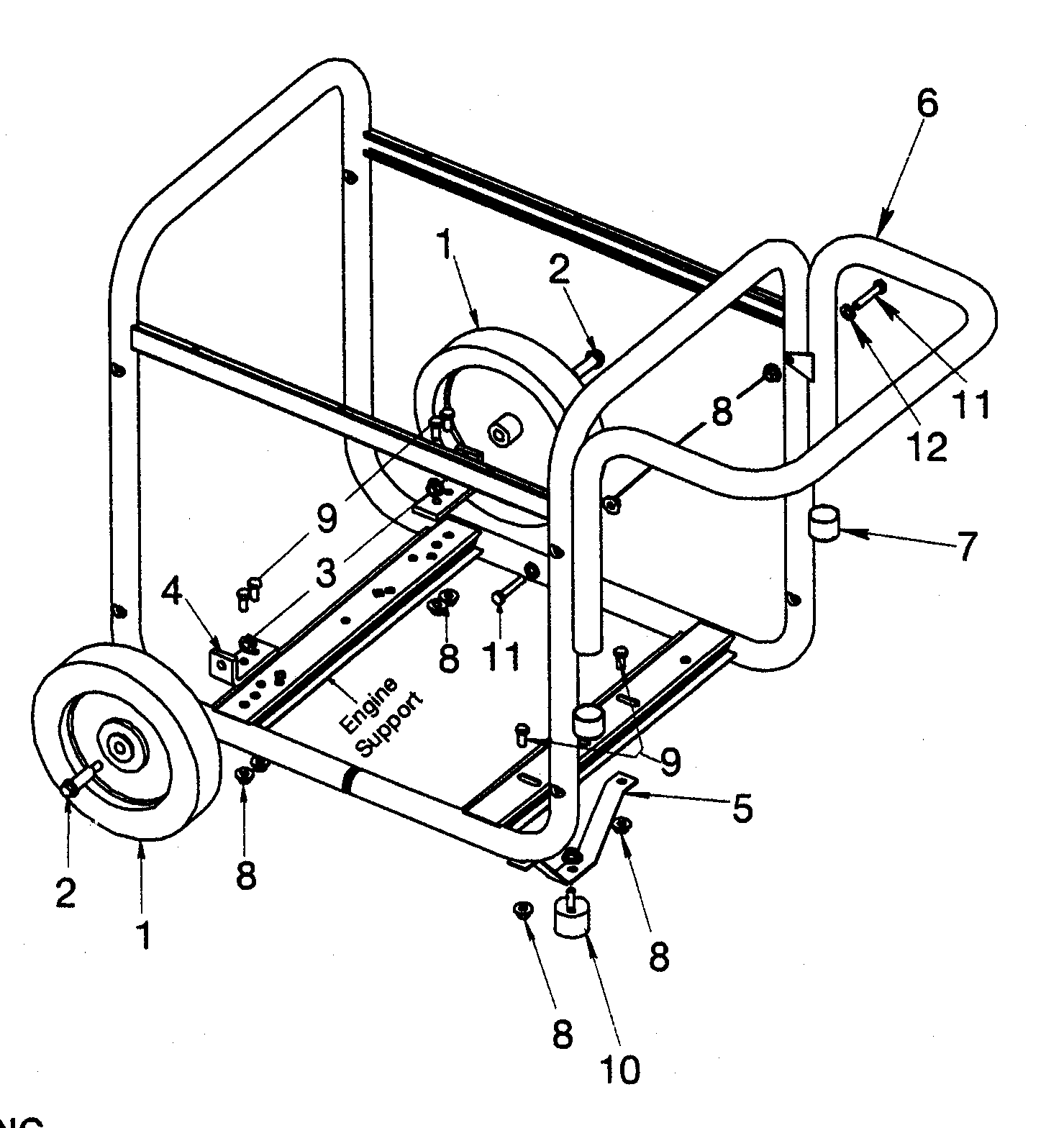

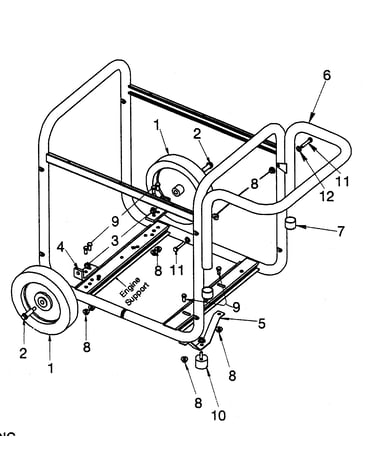

Wheel kit diagram

Generator screw, #10-24 x 9/16-in

Part #SSF-553-1

The manufacturer no longer makes this part, and there's no substitute part

Clamp GS-0227
#5

Wheel kit diagram

Clamp

Part #GS-0227

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Generator Fuel Tank Cap GS-0443
#3

Wheel kit diagram

Porter cable generator fuel tank cap

Part #GS-0443

The manufacturer no longer makes this part, and there's no substitute part

Devilbiss Bolt GS-0640
#30

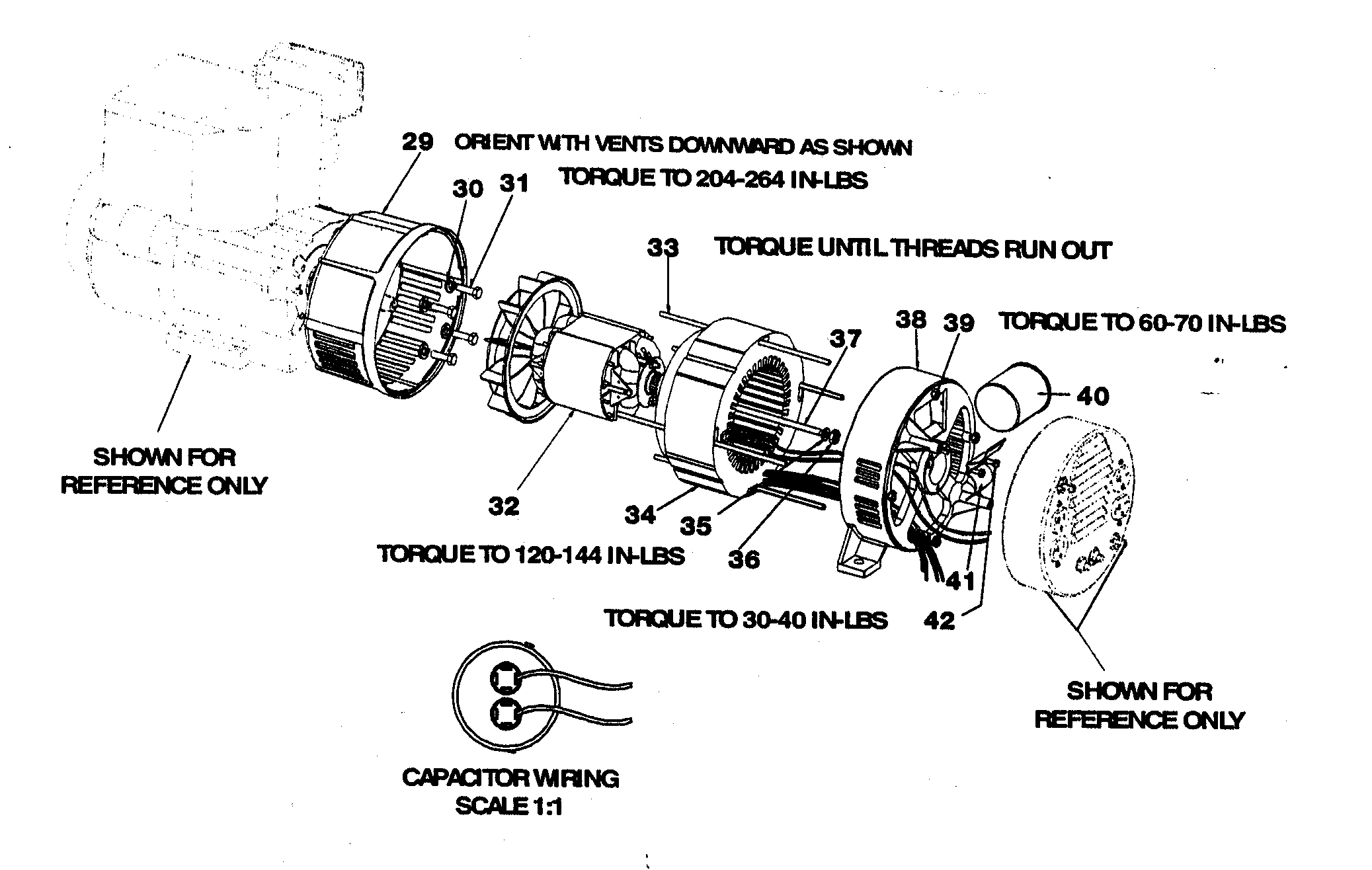

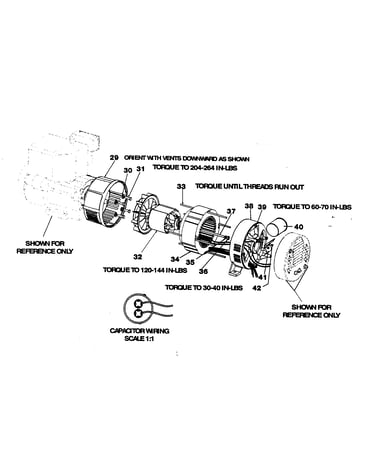

Elec motor assy diagram

Devilbiss bolt

Part #GS-0640

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Outlet GS-0021
#51

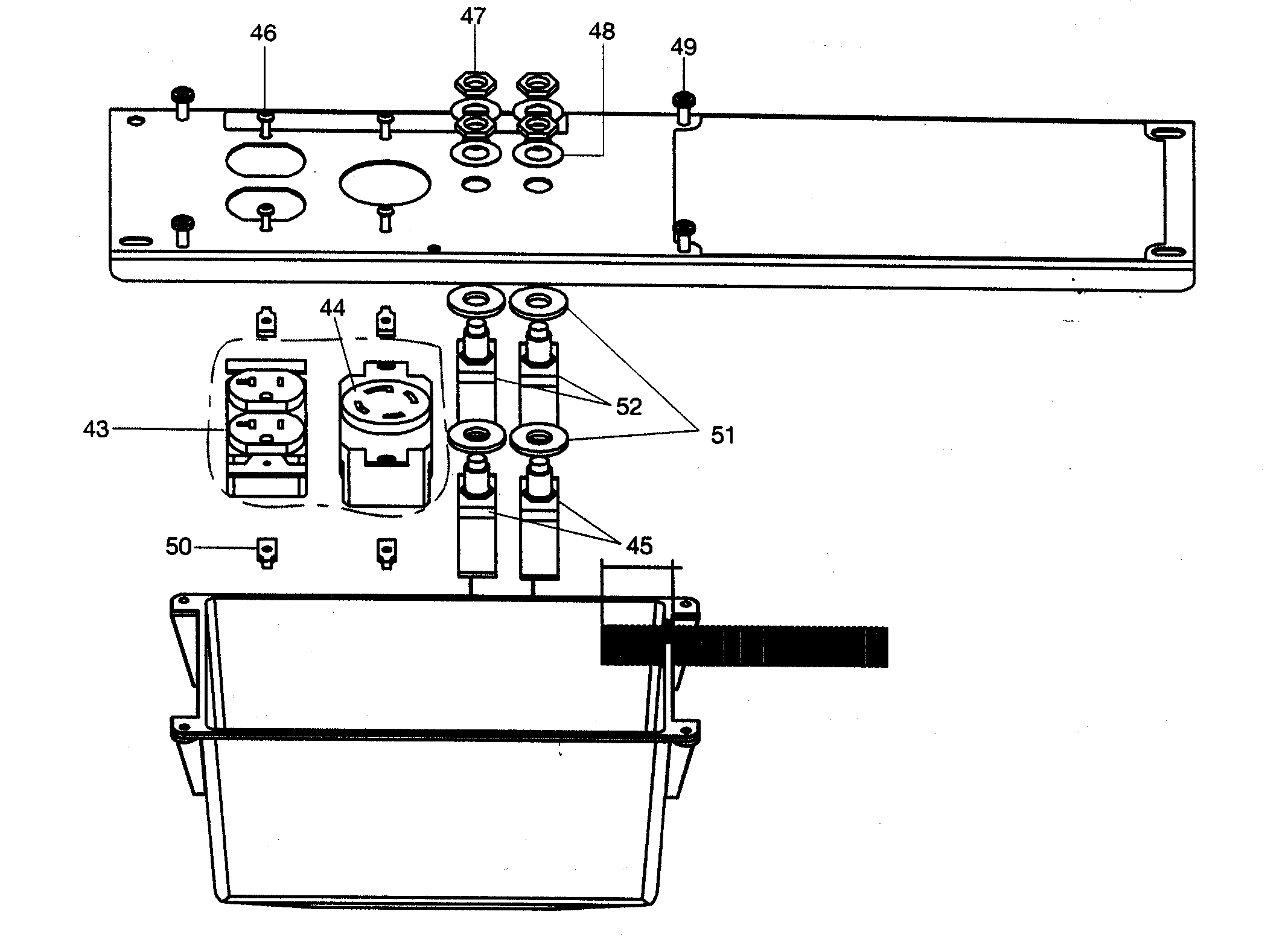

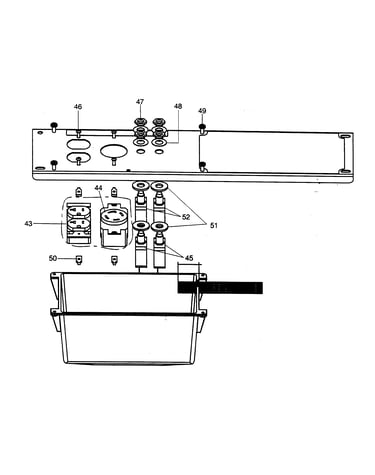

Control assy diagram

Porter cable outlet

Part #GS-0021

The manufacturer no longer makes this part, and there's no substitute part

Washer SSN-632
#12

Wheel kit diagram

Washer

Part #SSN-632

The manufacturer no longer makes this part, and there's no substitute part

Washer SSN-619
#27

Elec motor assy diagram

Washer

Part #SSN-619

The manufacturer no longer makes this part, and there's no substitute part

Switch GS-0045
#44

Control assy diagram

Switch

Part #GS-0045

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Generator Run Capacitor GS-0592
#37

Elec motor assy diagram

Porter cable generator run capacitor

Part #GS-0592

The manufacturer no longer makes this part, and there's no substitute part

Receptacle GS-0806
#46

Control assy diagram

Receptacle

Part #GS-0806

The manufacturer no longer makes this part, and there's no substitute part
