GE
Upright Freezer

Model # FUF17DLREWW Official GE freezer

Here are the diagrams and repair parts for Official GE FUF17DLREWW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

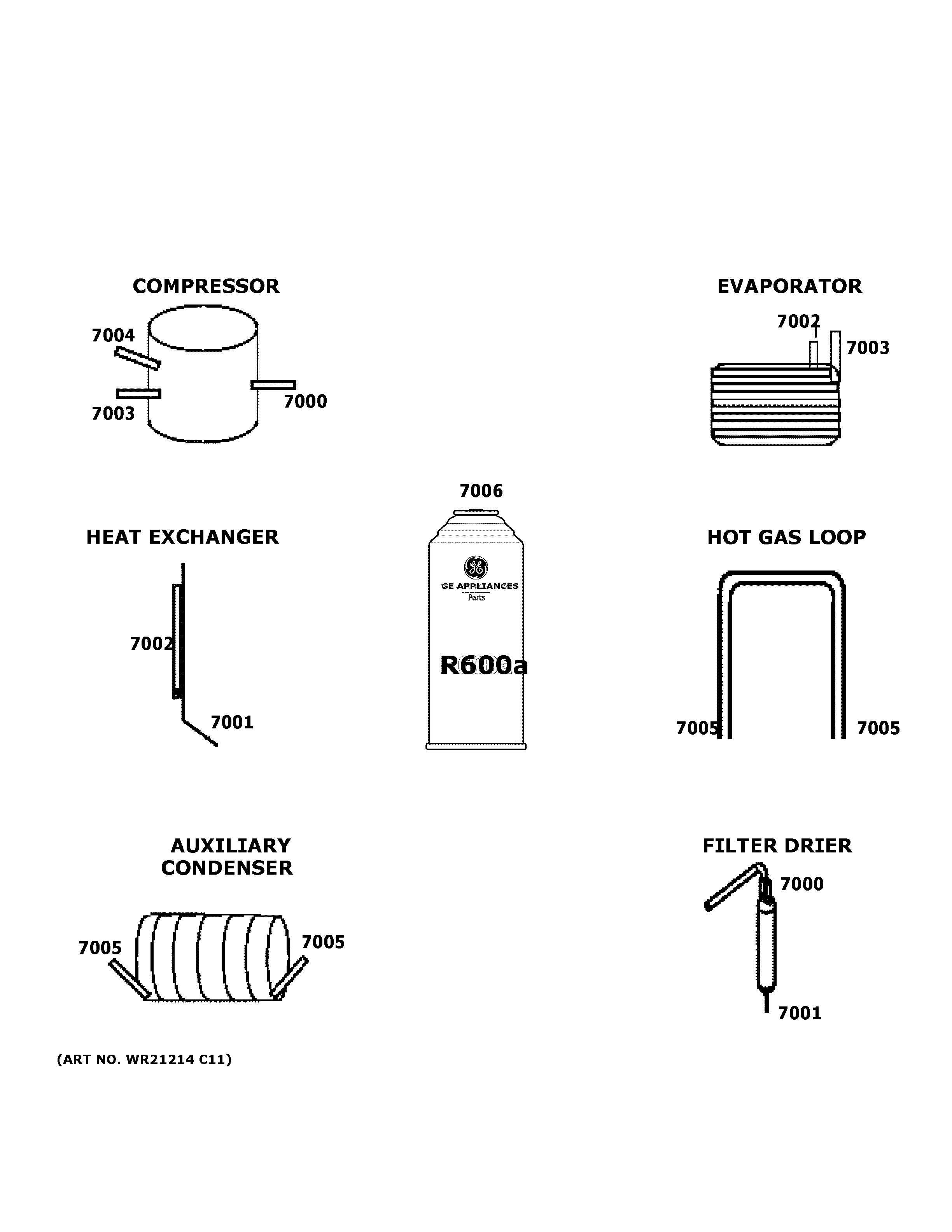

R600 Drier W/ Red Cap WR87X30875
R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Thermal Protector WR08X25647
Thermal protector

Part #WR08X25647

Replaced by #WR09X27095

?
Manufacturer substitution
This part replaces WR08X25647. Substitute parts can look different from the original.
$82.19 |
7% OFF Phone Price : $88.19
In Stock
Cplg1/4-5/32 WR97X10033
Cplg1/4-5/32

Part #WR97X10033

$31.76
In Stock

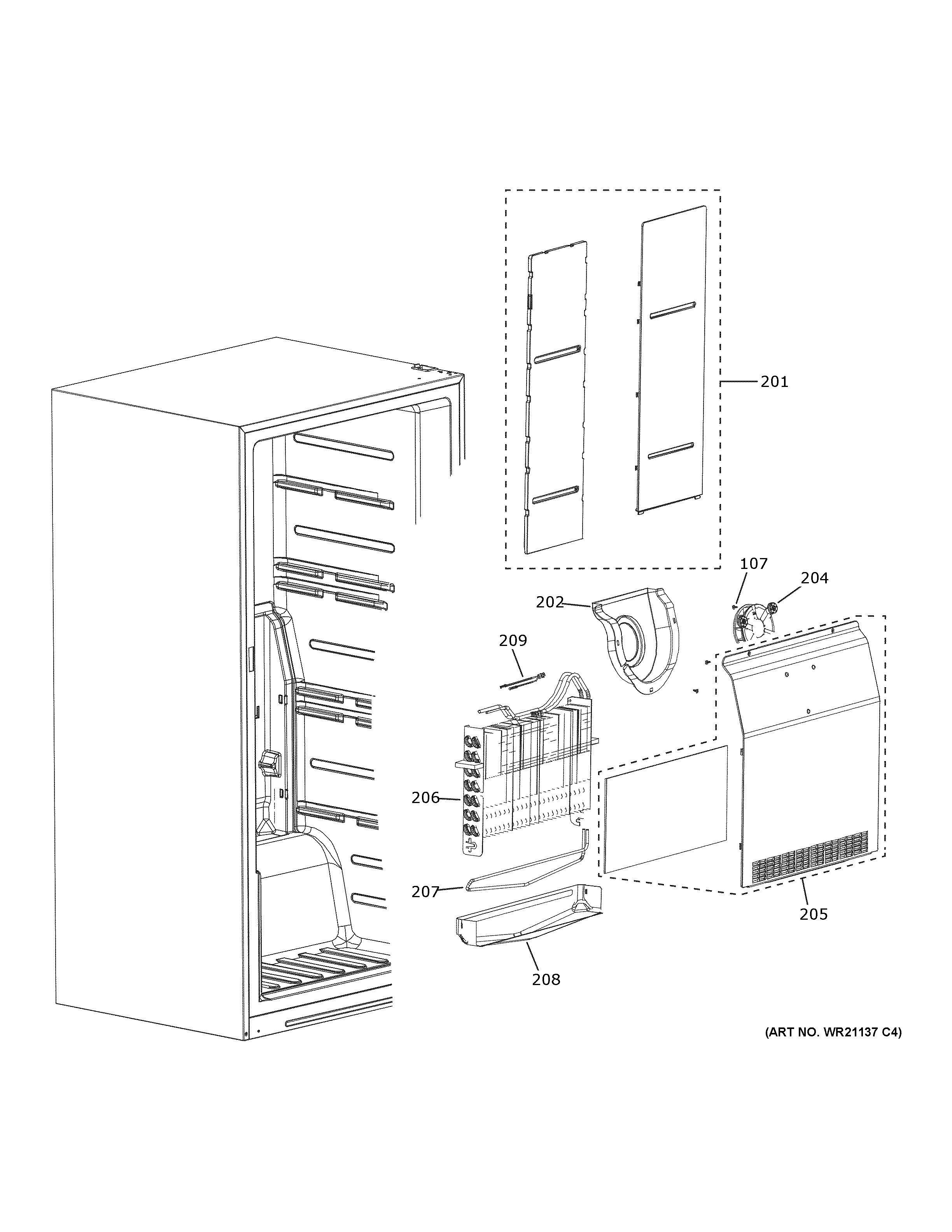

Evaporator WR87X31030
Evaporator

Part #WR87X31030

$270.53
In Stock

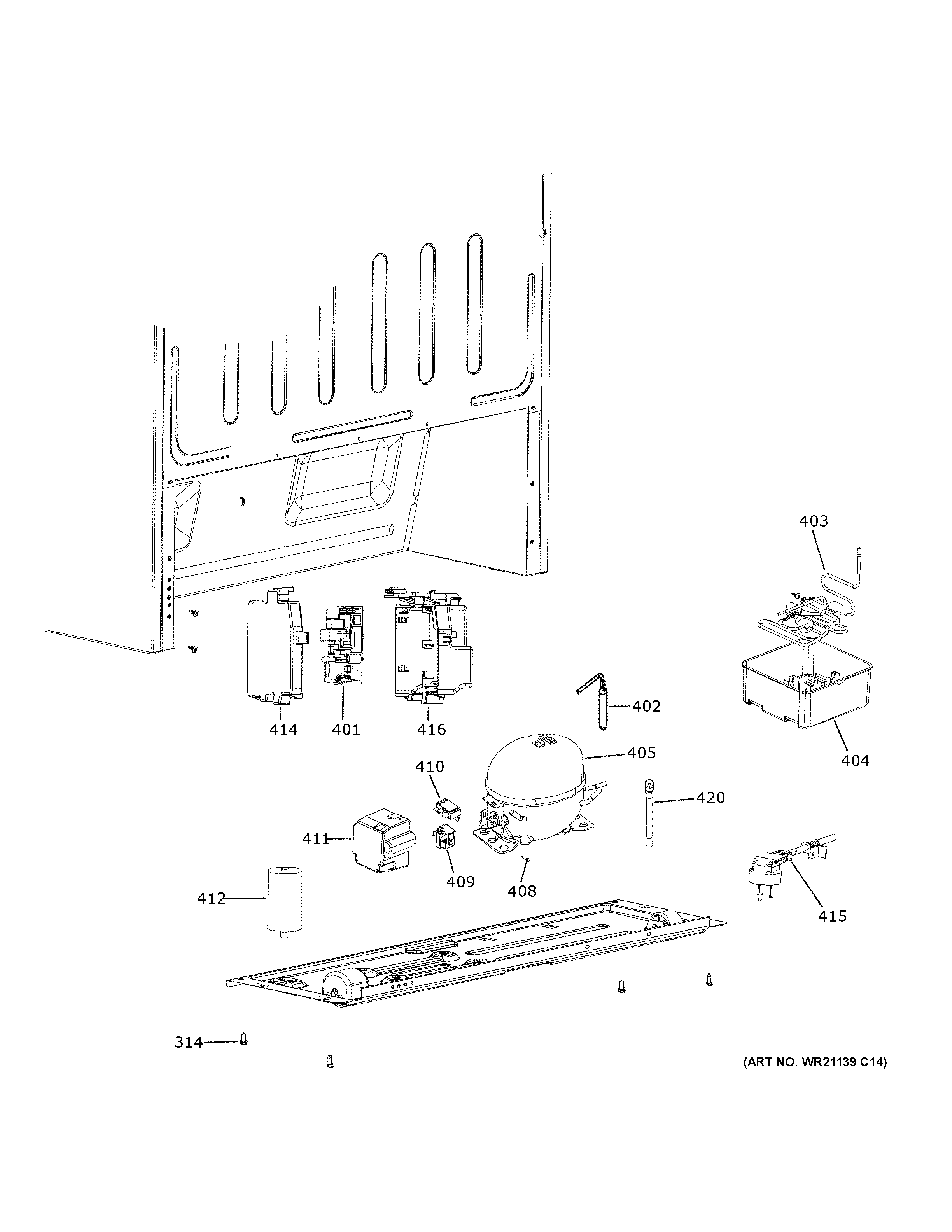

Freezer Temperature Sensor WR55X27914
Freezer temperature sensor

Part #WR55X27914

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Freezer Door Handle (white) WR12X27215
Freezer door handle (white)

Part #WR12X27215

$290.17 |
$12.00 OFF Phone Price : $302.17
In Stock
Clpg5/16-1/4 WR97X10036
Clpg5/16-1/4

Part #WR97X10036

$28.31
In Stock

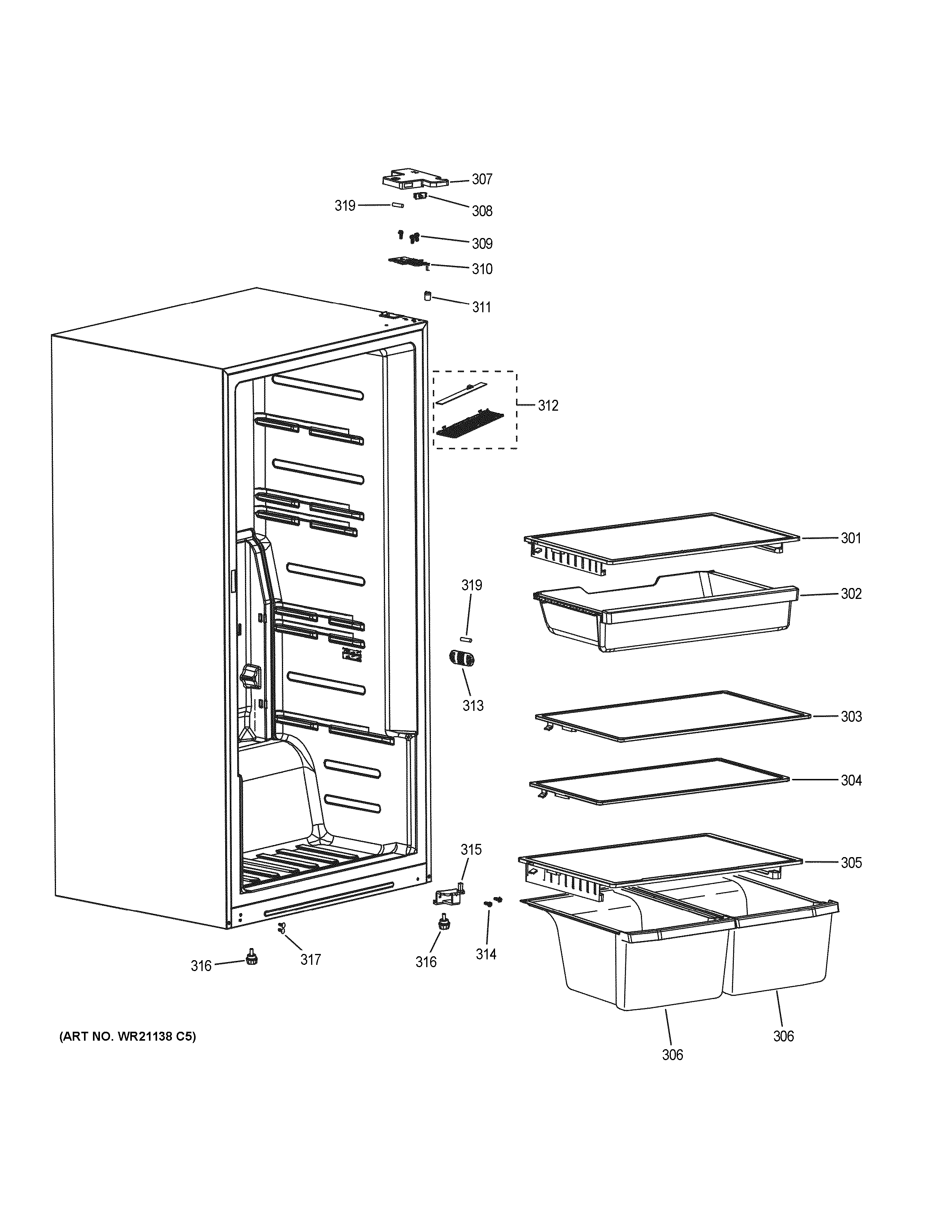

Refrigerator Freezer Drawer Cover, Upper WR71X27253
Refrigerator freezer drawer cover, upper

Part #WR71X27253

$140.24 |
8% OFF Phone Price : $152.24
In Stock
Freezer Drawer Cover Assembly WR71X27254
Freezer drawer cover assembly

Part #WR71X27254

$140.24 |
8% OFF Phone Price : $152.24
In Stock
