Model # 587771611 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 587771611 portable dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
587771611 Portable Dishwasher
Nut 806834
#24

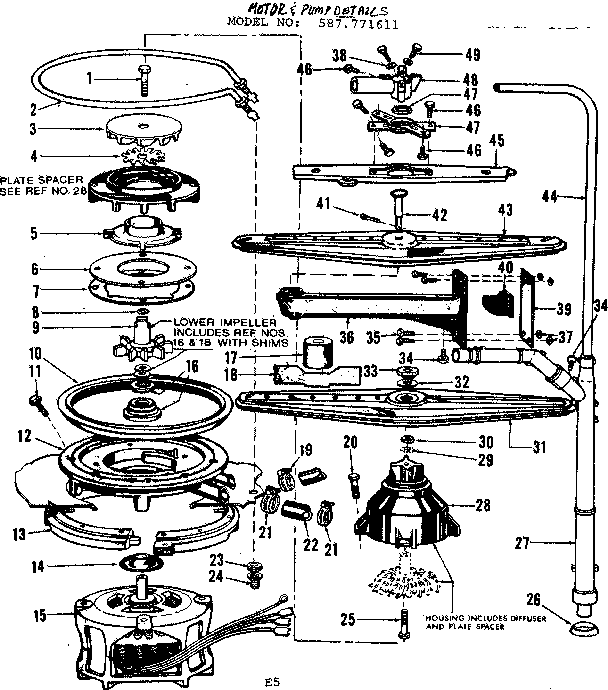

Motor & pump details diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
BEST SELLER
$7.76 |
11% OFF Phone Price : $8.76
In Stock
Silverware Basket 807856
#2

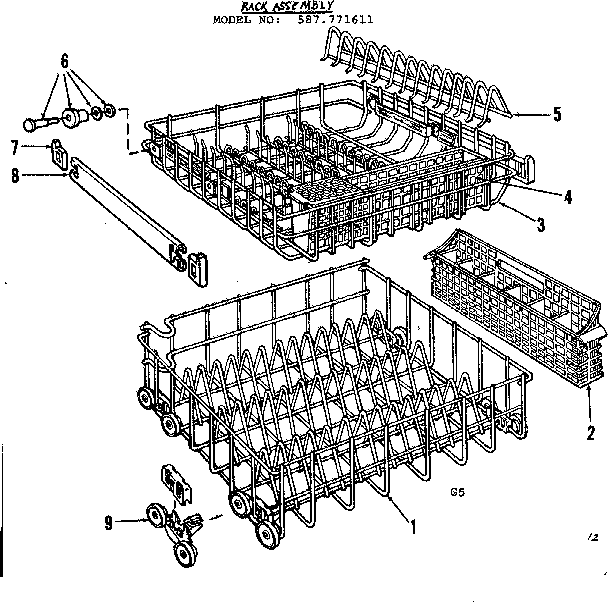

Rack assembly diagram

Silverware basket

Part #807856

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 807856. Substitute parts can look different from the original.
This item is not returnable
$32.58 |
16% OFF Phone Price : $38.58
In Stock
Washer 800787
#8

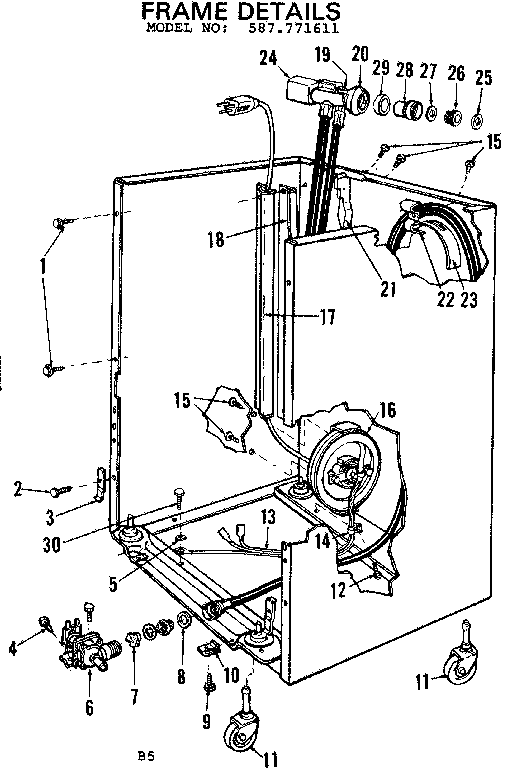

Frame details diagram

Washer

Part #800787

Replaced by #5303161296

?
Manufacturer substitution
This part replaces 800787. Substitute parts can look different from the original.
This item is not returnable
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Nut 804527
#30

Motor & pump details diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$60.56
In Stock
Screw 806890
#6

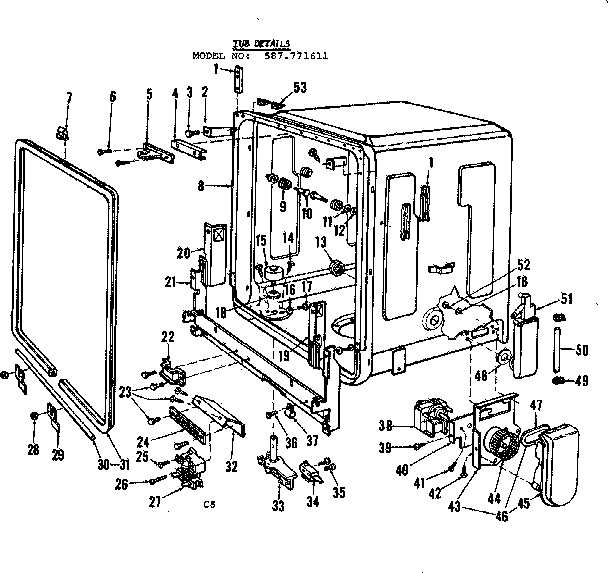

Tub details diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Arm Assembly 805681
#35

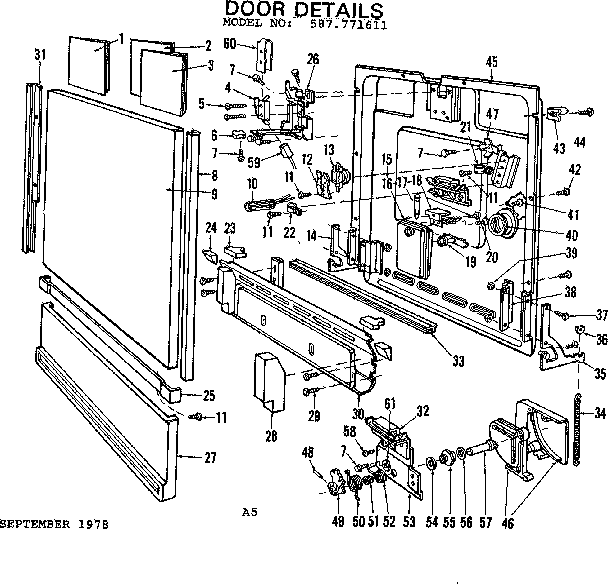

Door details diagram

Arm assembly

Part #805681

Replaced by #5300805681

?
Manufacturer substitution
This part replaces 805681. Substitute parts can look different from the original.
$82.22
In Stock
Washer 807373
#5

Frame details diagram

Washer

Part #807373

Replaced by #5300807373

?
Manufacturer substitution
This part replaces 807373. Substitute parts can look different from the original.
This item is not returnable
$7.37
In Stock
Screw 806967
#42

Door details diagram

Screw

Part #806967

Replaced by #5300806967

?
Manufacturer substitution
This part replaces 806967. Substitute parts can look different from the original.
This item is not returnable
$5.20
In Stock
Gasket 807709
#7

Motor & pump details diagram

Gasket

Part #807709

Replaced by #5300807709

?
Manufacturer substitution
This part replaces 807709. Substitute parts can look different from the original.
$63.42 |
9% OFF Phone Price : $69.42
In Stock
Screw 804895
#42

Tub details diagram

Screw

Part #804895

Replaced by #5300807501

?
Manufacturer substitution
This part replaces 804895. Substitute parts can look different from the original.
This item is not returnable
$3.80
In Stock
