Model # 917242484 Official Craftsman 8-hp tiller attachment

Here are the diagrams and repair parts for Official Craftsman 917242484 8-hp tiller attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

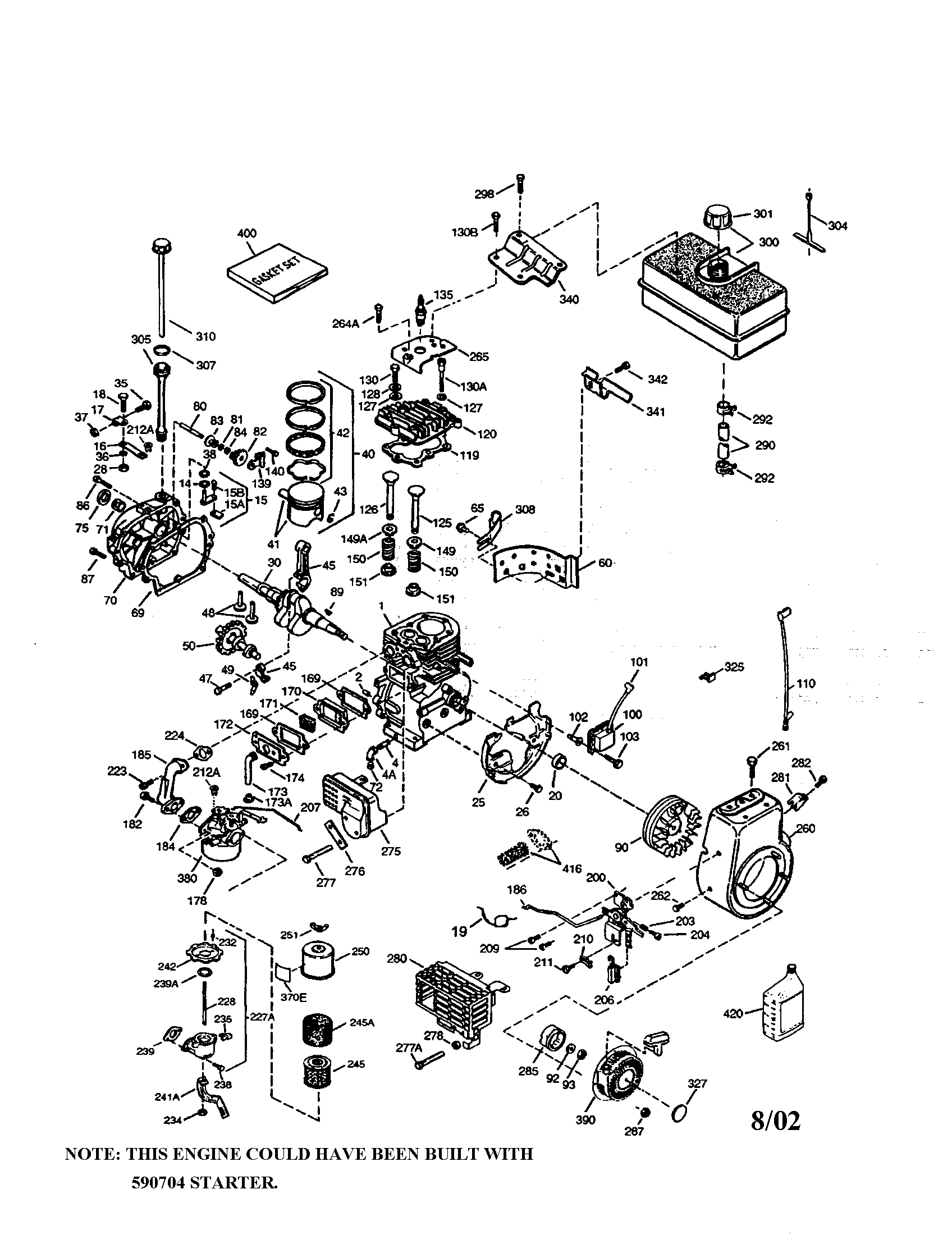

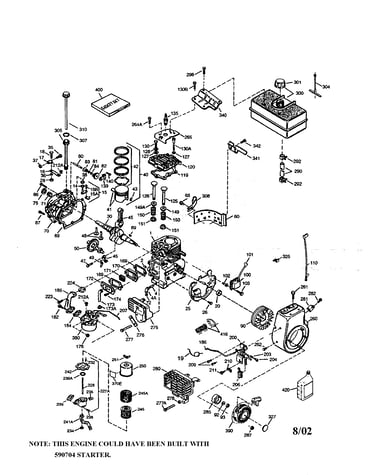

  View engine

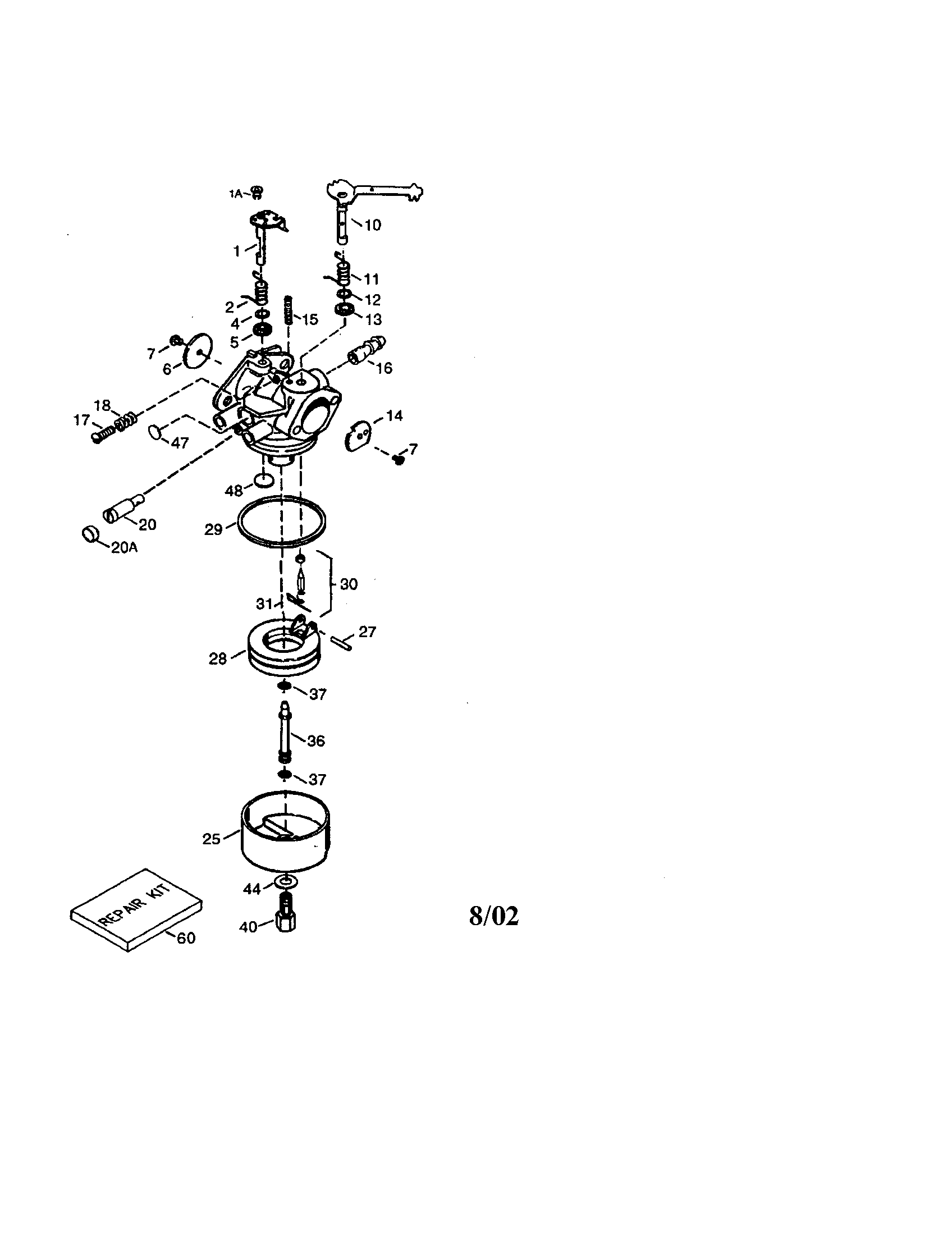

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 287 parts  |
Spring Retainer 3146R
#27

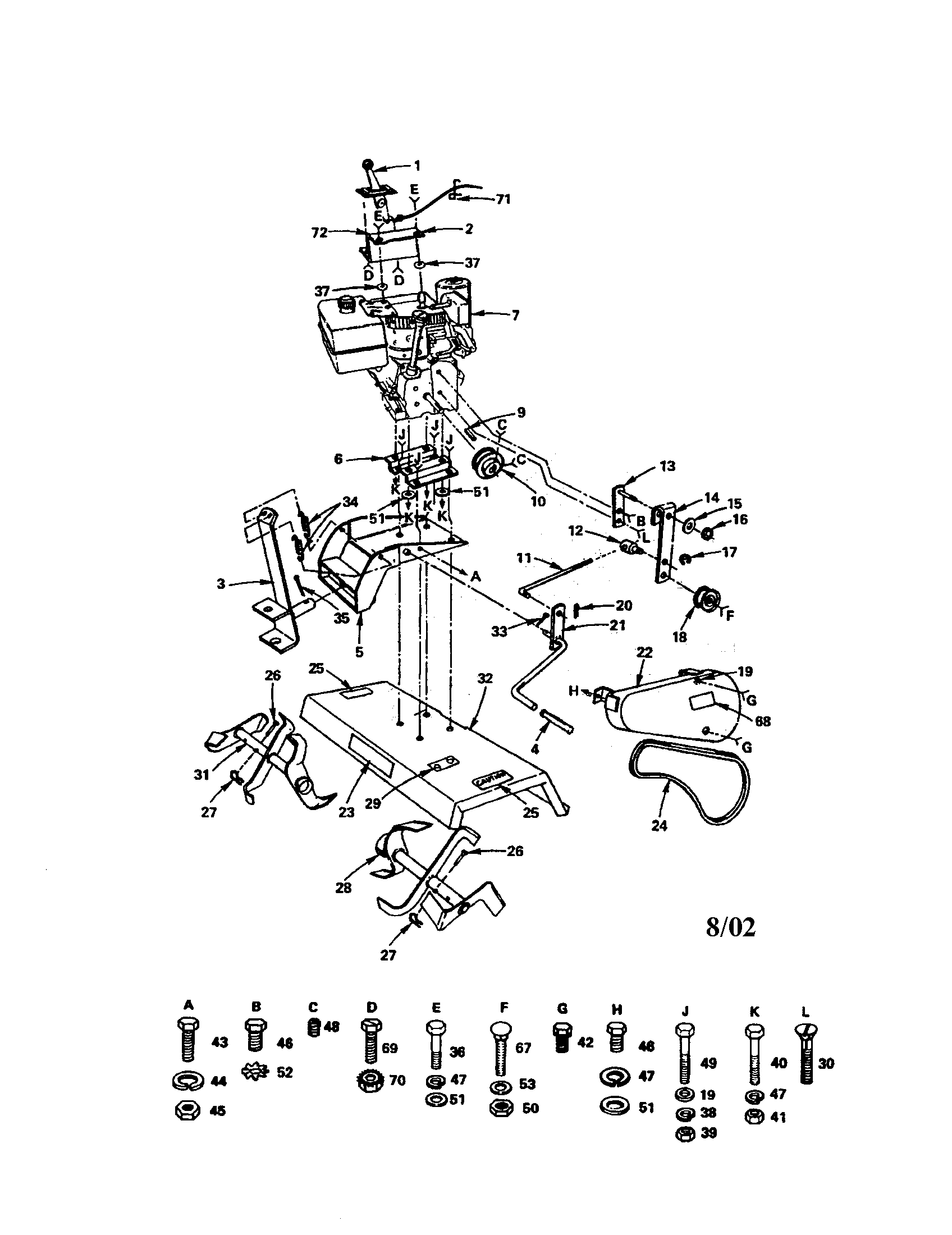

Engine and tines diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Shldr Bolt 4898H
#7

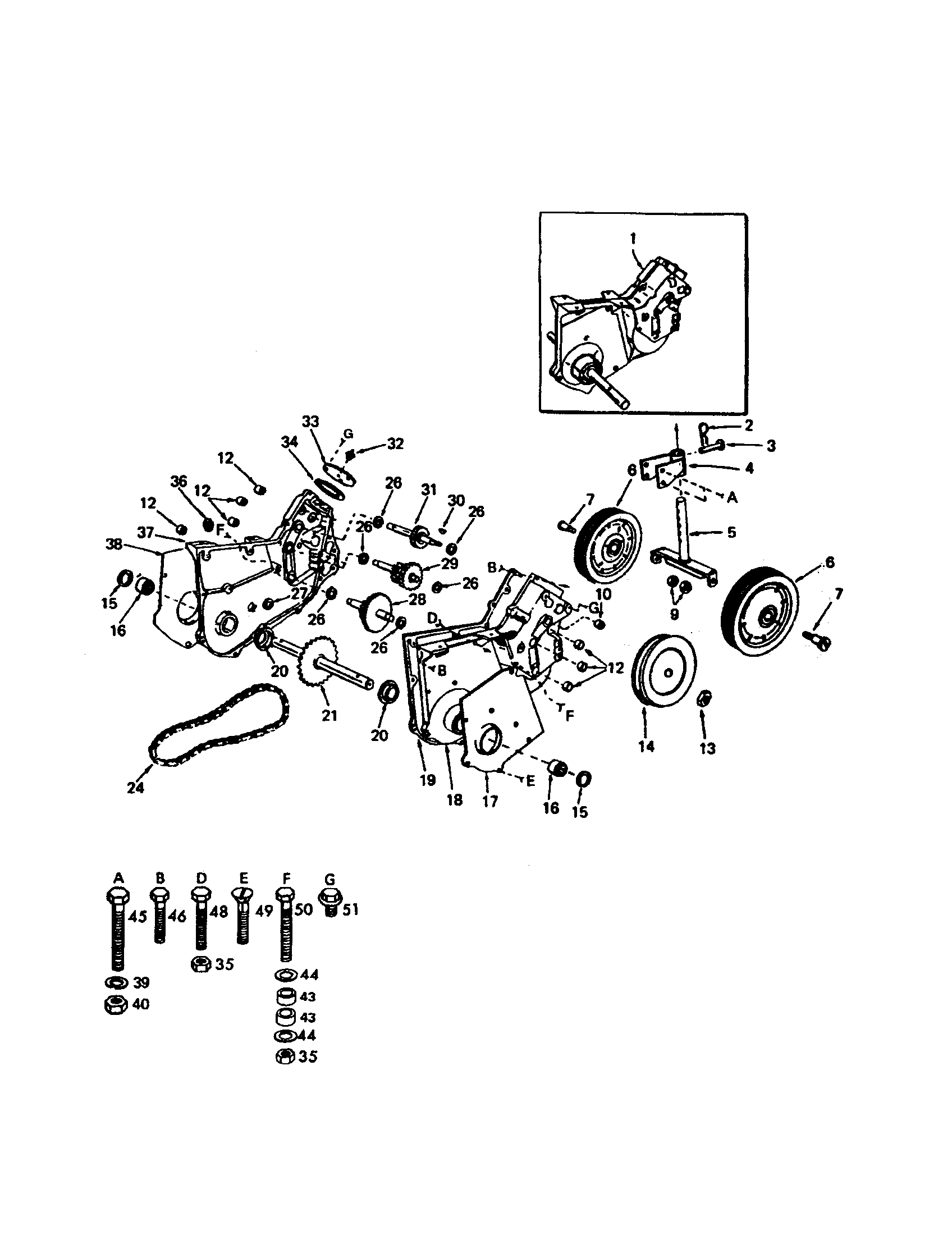

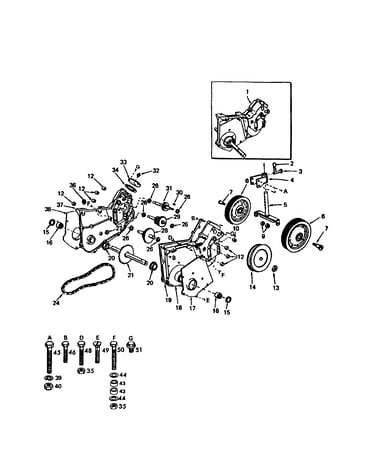

Transmission/gauge wheels diagram

Shldr bolt

Part #4898H

Replaced by #596434402

?
Manufacturer substitution
This part replaces 4898H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Thrust Bearing 1370H
#26

Transmission/gauge wheels diagram

Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Needle 5020J
#10

Transmission/gauge wheels diagram

Needle

Part #5020J

Replaced by #532005020

?
Manufacturer substitution
This part replaces 5020J. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Needle Brg 4895H
#12

Transmission/gauge wheels diagram

Needle brg

Part #4895H

Replaced by #532004895

?
Manufacturer substitution
This part replaces 4895H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
Spring 8905R
#34

Engine and tines diagram

Spring

Part #8905R

Replaced by #532008905

?
Manufacturer substitution
This part replaces 8905R. Substitute parts can look different from the original.
$33.31
In Stock
Bolt STD533717
#67

Engine and tines diagram

Bolt

Part #STD533717

Replaced by #STD533717

?
Manufacturer substitution
This part replaces STD533717. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Idler Pulley 4933H
#18

Engine and tines diagram

Idler pulley

Part #4933H

Replaced by #583768601

?
Manufacturer substitution
This part replaces 4933H. Substitute parts can look different from the original.
$25.69
In Stock
Tractor Accessories Tiller Clevis Pin (replaces 138078, 326j, 326j500, 43023, 502498, 506028, 506538, 511606, 518015, 5297h, 532004929, 6202j, 711-0599, L-5042, L-5069, L-5078) 4929H
Tractor accessories tiller clevis pin (replaces 138078, 326j, 326j500, 43023, 502498, 506028, 506538, 511606, 518015, 5297h, 532004929, 6202j, 711-0599, l-5042, l-5069, l-5078)

Part #4929H

Replaced by #532004929

?
Manufacturer substitution
This part replaces 4929H. Substitute parts can look different from the original.
$10.26
In Stock
Gripco Nut 1685H
#35

Transmission/gauge wheels diagram

Gripco nut

Part #1685H

The manufacturer no longer makes this part, and there's no substitute part
