Model # NE59J3420SB/AA-04 Official Samsung electric freestanding range

Here are the diagrams and repair parts for Official Samsung NE59J3420SB-AA-04 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Range Oven Temperature Sensor (replaces Dg32-00002a) DG32-00002B
#36

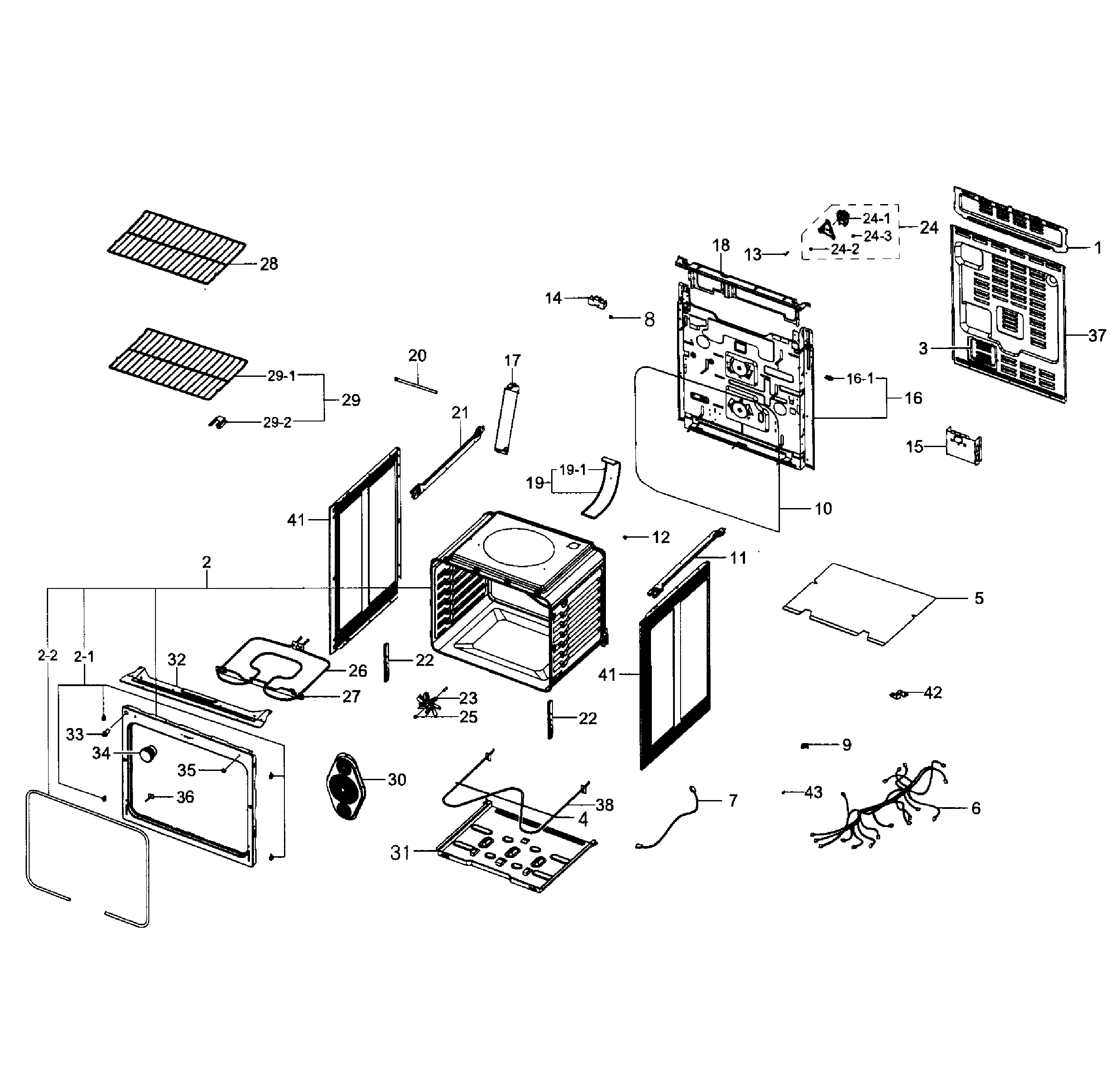

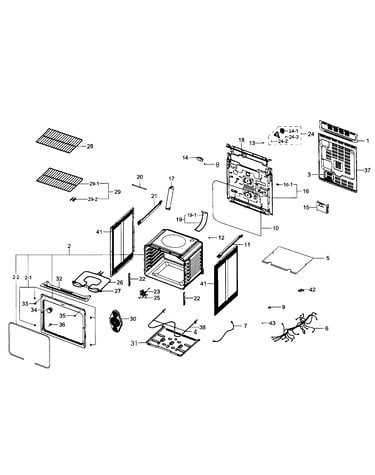

Main section diagram

Range oven temperature sensor (replaces dg32-00002a)

Part #DG32-00002B

BEST SELLER
$96.18 |
11% OFF Phone Price : $108.18
Back Order
Samsung Range Surface Element Control Switch DG44-01002A
#1-7

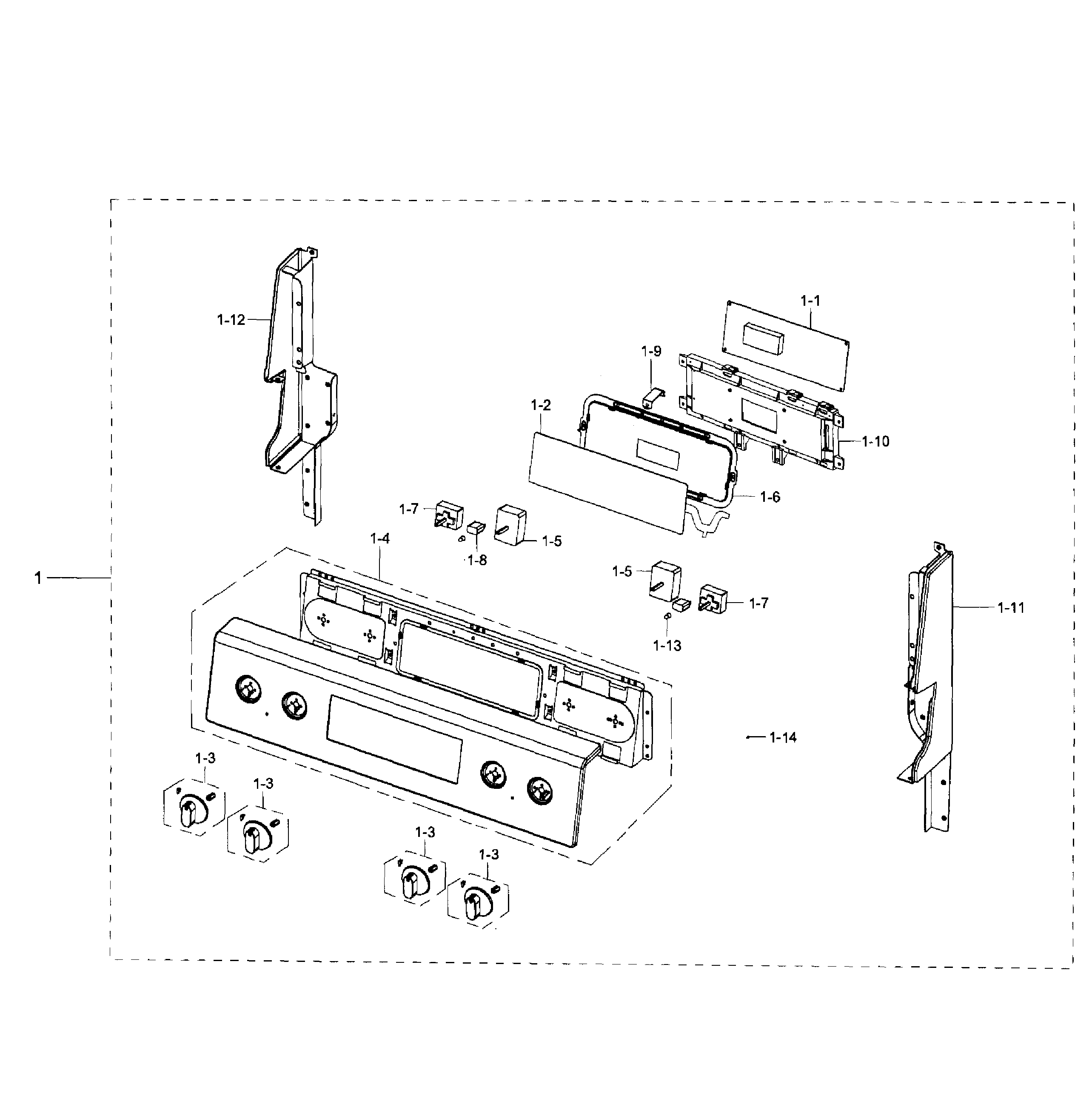

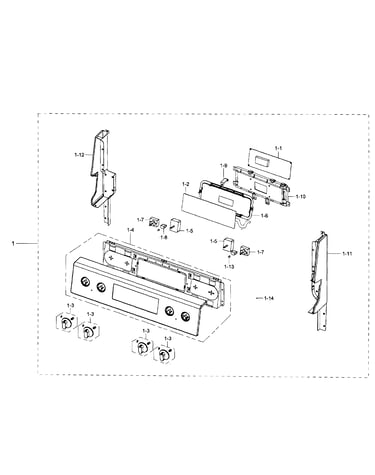

Control panel diagram

Samsung range surface element control switch

Part #DG44-01002A

BEST SELLER
$115.21 |
9% OFF Phone Price : $127.21
In Stock
Range Bake Element (replaces Dg47-00038a) DG47-00038B
#38

Main section diagram

Range bake element (replaces dg47-00038a)

Part #DG47-00038B

BEST SELLER
$112.55 |
10% OFF Phone Price : $124.55
Back Order
Range Terminal Block (replaces Dg65-00003a) DG96-00173A
#14

Main section diagram

Range terminal block (replaces dg65-00003a)

Part #DG96-00173A

BEST SELLER
$59.23 |
9% OFF Phone Price : $65.23
In Stock
Range Convection Fan Blade Nut 6021-001211
#25

Main section diagram

Range convection fan blade nut

Part #6021-001211

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Range Dual Radiant Surface Element DG47-00043B
#1-3

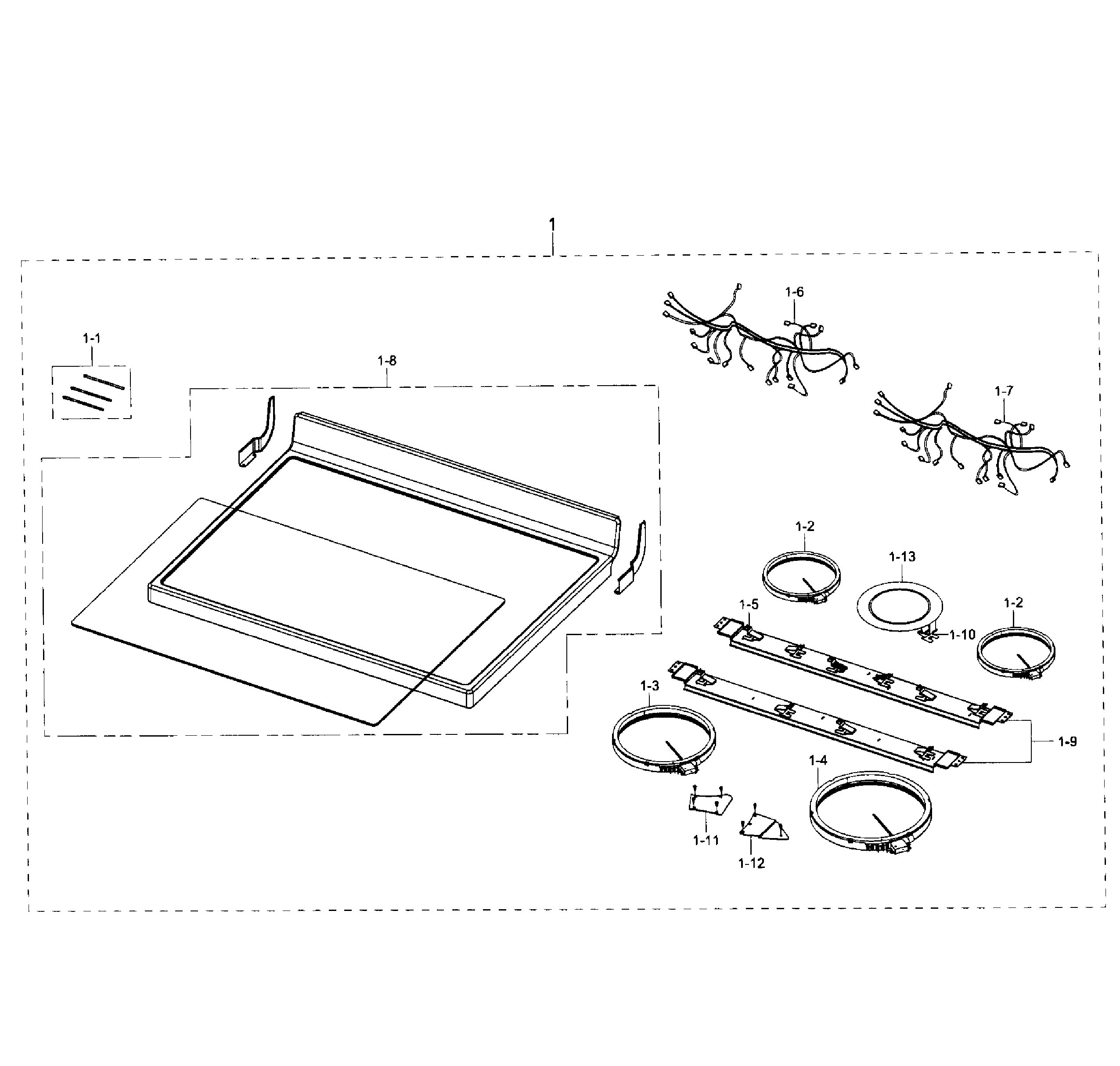

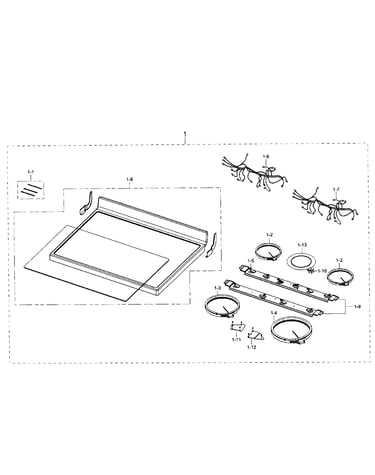

Cook top section diagram

Range dual radiant surface element

Part #DG47-00043B

BEST SELLER
$246.94 |
5% OFF Phone Price : $258.94
In Stock
Cooktop Indicator Light Lens DG67-00022A
#1-13

Control panel diagram

Cooktop indicator light lens

Part #DG67-00022A

This item is not returnable
$2.71
In Stock
Range Indicator Light DG64-00131A
#1-8

Control panel diagram

Range indicator light

Part #DG64-00131A

$29.71 |
17% OFF Phone Price : $35.71
In Stock
Range Radiant Surface Element, 6-in DG47-00023A
#1-2

Cook top section diagram

Range radiant surface element, 6-in

Part #DG47-00023A

$118.96 |
9% OFF Phone Price : $130.96
In Stock
Range Screw 6001-002701
#43

Main section diagram

Range screw

Part #6001-002701

This item is not returnable
$2.16
In Stock
