Maytag
Washer

Model # 3RMTW4905TW0 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag 3RMTW4905TW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |
Agitator Dog 3366877
#7

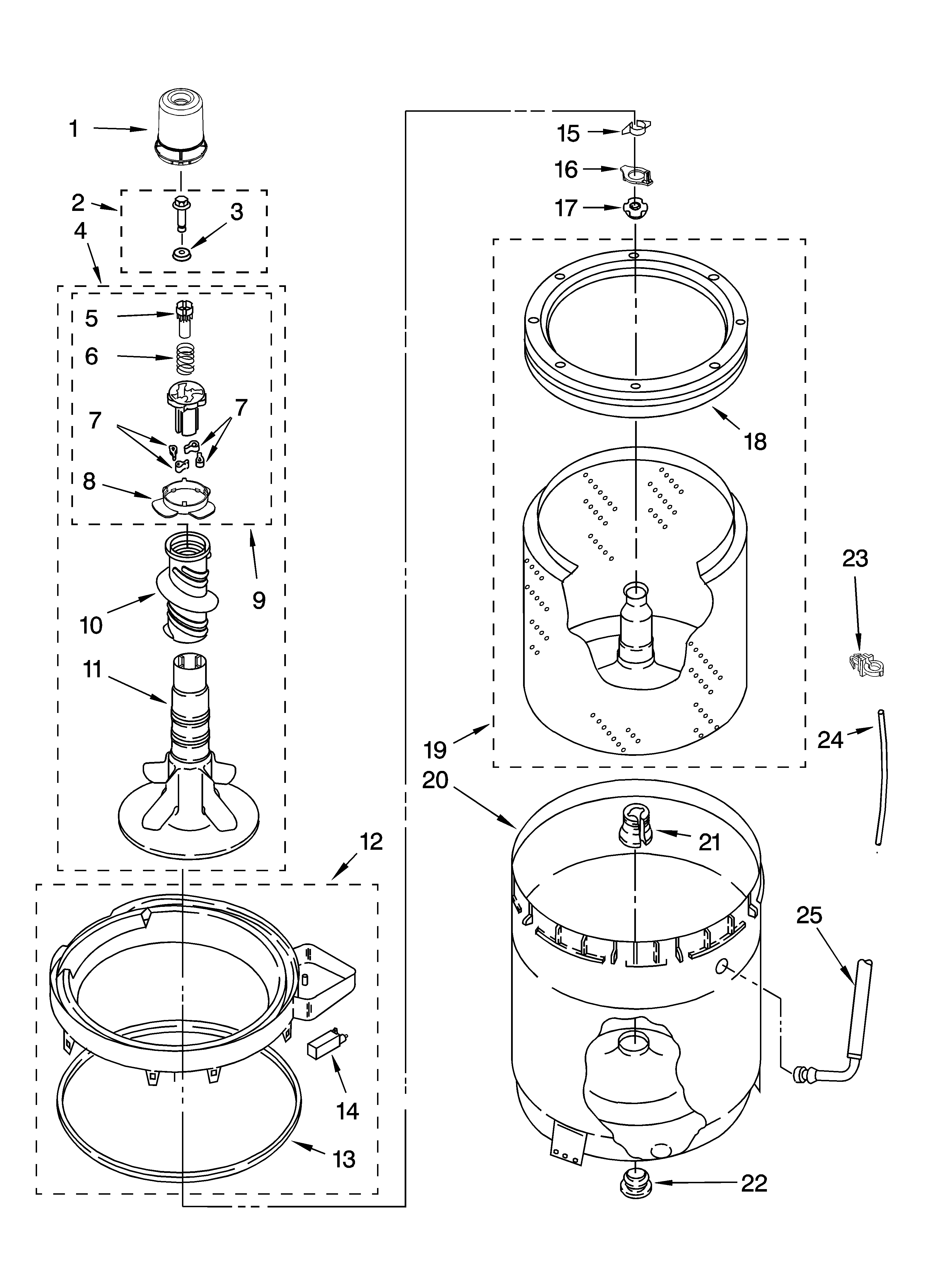

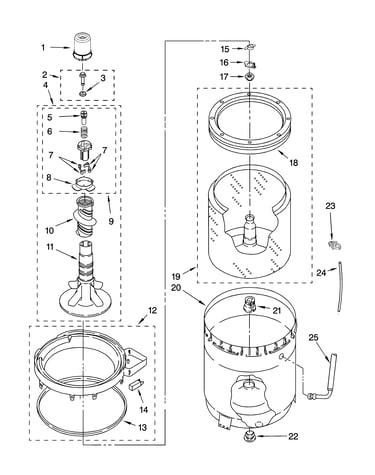

Agitator, basket and tub parts diagram

Agitator dog

Part #3366877

Replaced by #80040

?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.94 |
17% OFF Phone Price : $5.94
In Stock
Washer Drain Pump 3363394
#22

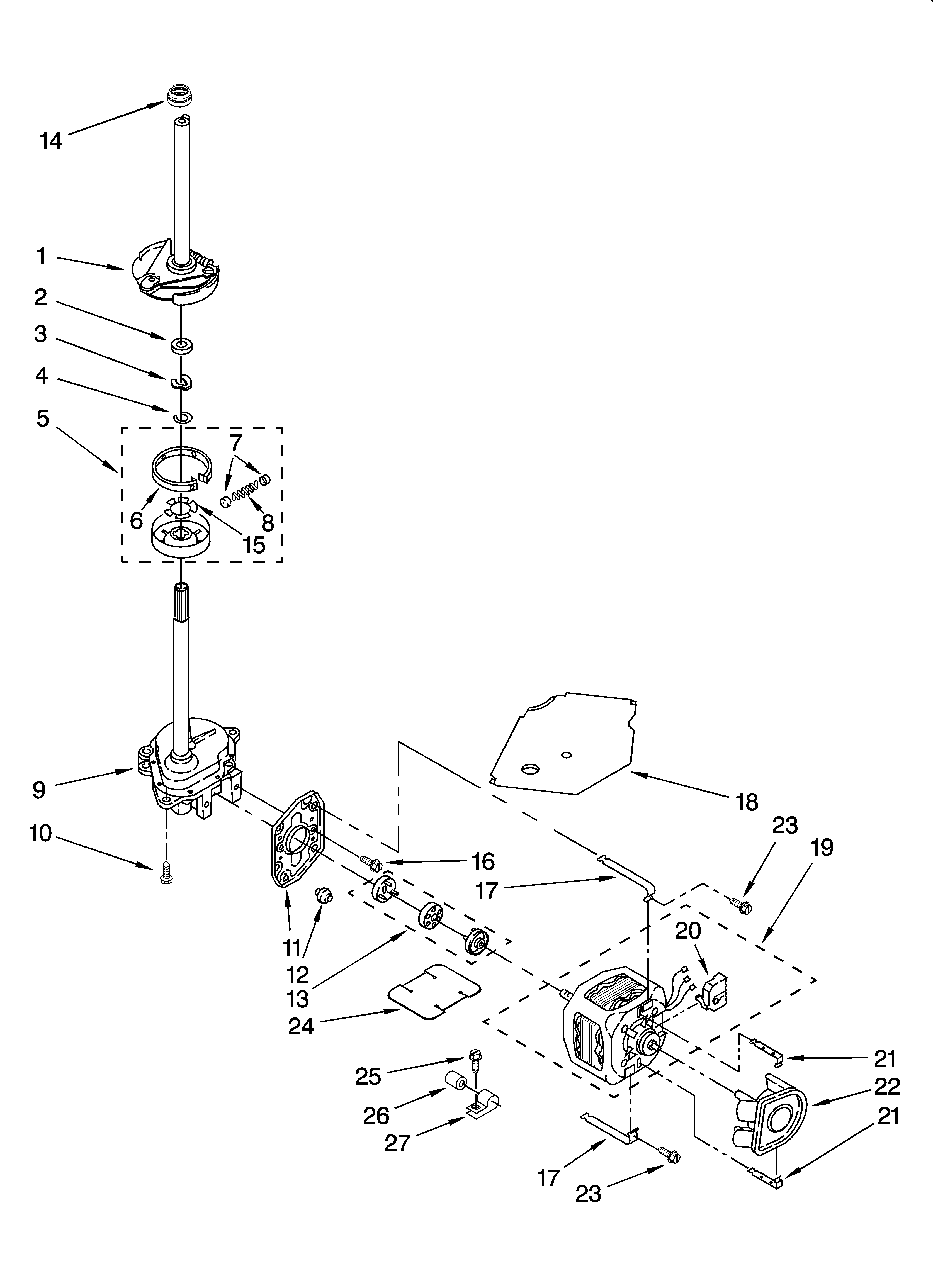

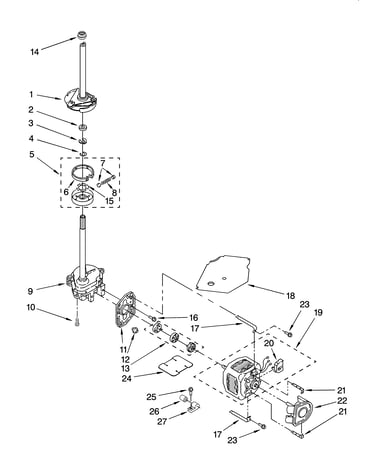

Brake, clutch, gearcase, motor and pump parts diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$32.85 |
15% OFF Phone Price : $38.85
In Stock
Washer Drive Block 389140
#21

Agitator, basket and tub parts diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$24.66 |
20% OFF Phone Price : $30.66
In Stock
Washer Lid Switch Assembly 8318084
#14

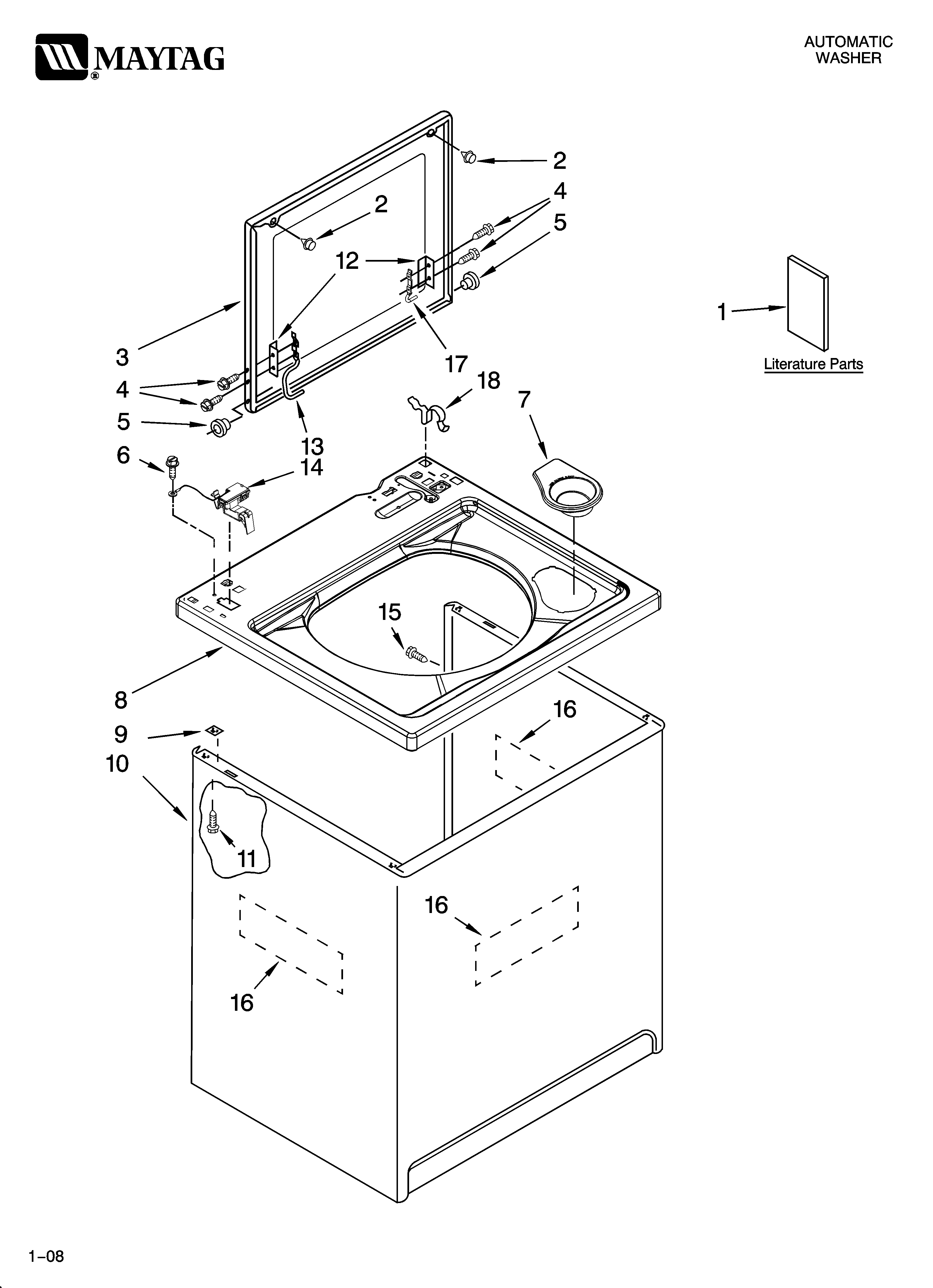

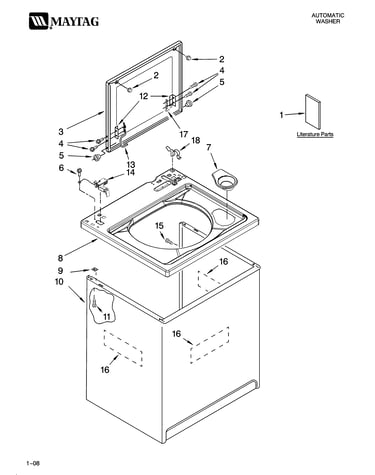

Top and cabinet parts diagram

Washer lid switch assembly

Part #8318084

Replaced by #WP8318084

?
Manufacturer substitution
This part replaces 8318084. Substitute parts can look different from the original.
BEST SELLER
$30.31 |
17% OFF Phone Price : $36.31
In Stock
Washer Tub Gasket 383727
#22

Agitator, basket and tub parts diagram

Washer tub gasket

Part #383727

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 383727. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Washer Suspension Spring 63907
#3

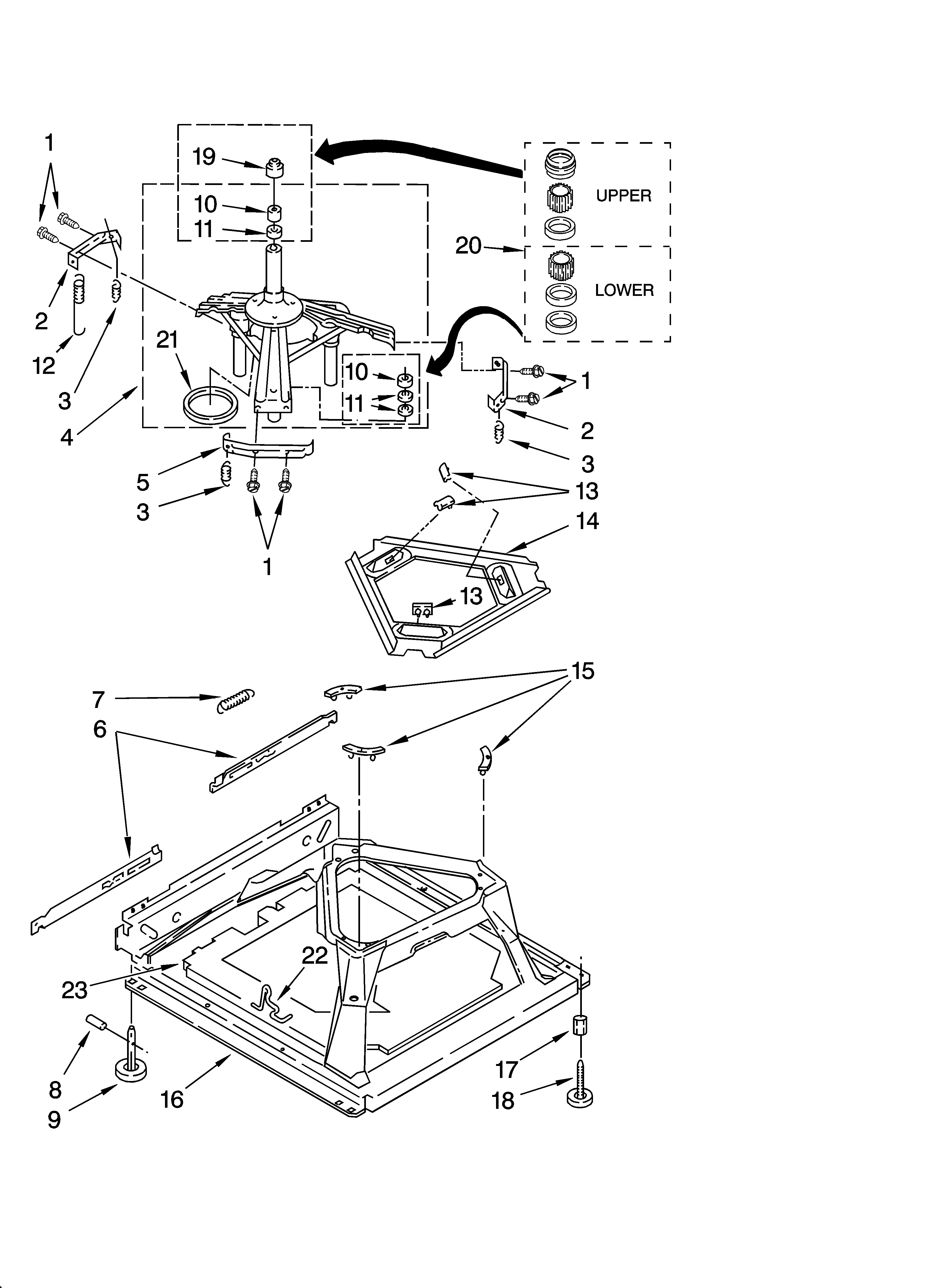

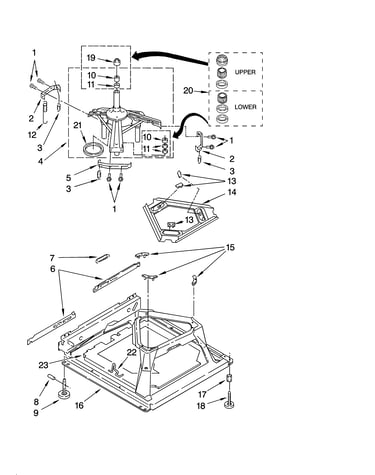

Machine base parts diagram

Washer suspension spring

Part #63907

Replaced by #WP63907

?
Manufacturer substitution
This part replaces 63907. Substitute parts can look different from the original.
BEST SELLER
$7.16 |
12% OFF Phone Price : $8.16
In Stock
Washer Screw W10003790
#2

Agitator, basket and tub parts diagram

Washer screw

Part #W10003790

Replaced by #W10772621

?
Manufacturer substitution
This part replaces W10003790. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Counterweight Spring (red) 388492
#12

Machine base parts diagram

Counterweight spring (red)

Part #388492

Replaced by #WPW10250667

?
Manufacturer substitution
This part replaces 388492. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.81 |
21% OFF Phone Price : $4.81
In Stock
Clamp W10117299
#21

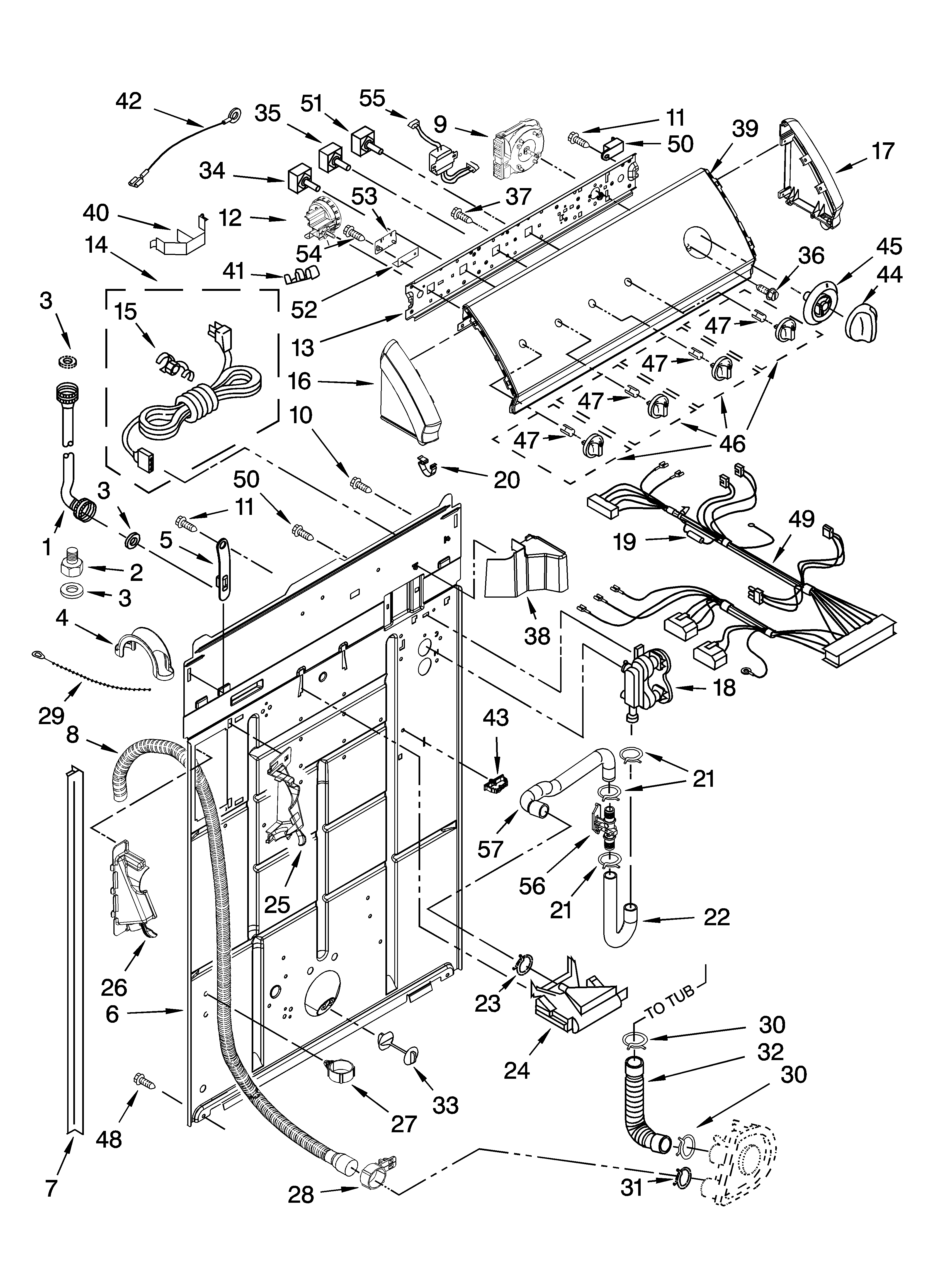

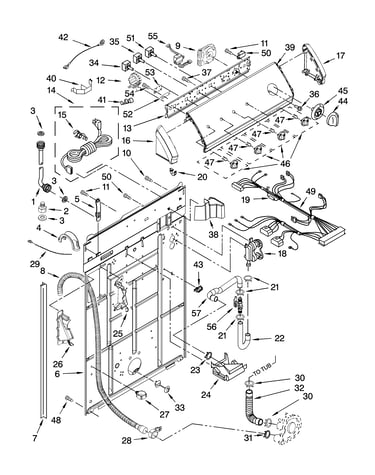

Controls and rear panel parts diagram

Clamp

Part #W10117299

Replaced by #WP596669

?
Manufacturer substitution
This part replaces W10117299. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp W10117298
#23

Controls and rear panel parts diagram

Clamp

Part #W10117298

Replaced by #WP596669

?
Manufacturer substitution
This part replaces W10117298. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
