Jenn-Air
Gas Cooktop

Model # CG205W Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air CG205W gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Range Downdraft Vent Grease Filter 707929
#25

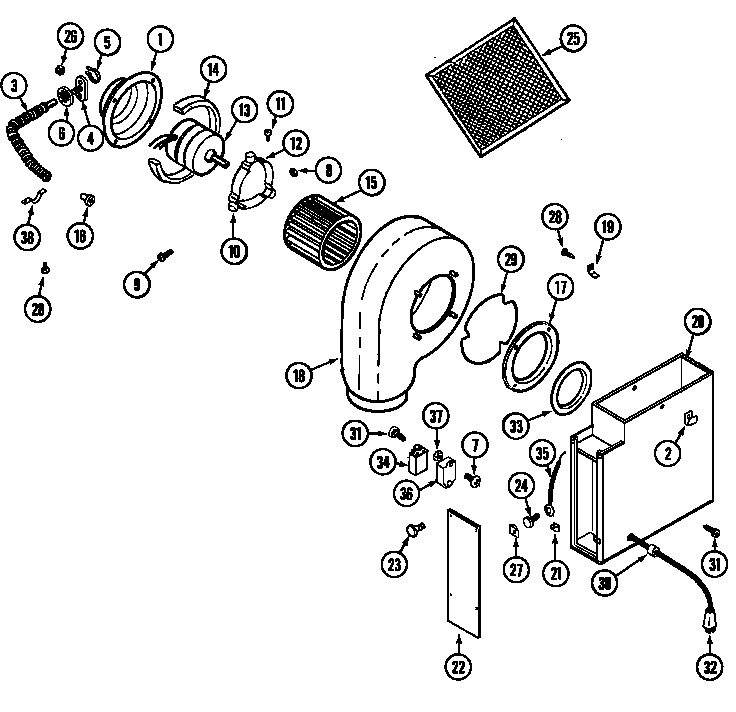

Blower assembly-plenum diagram

Range downdraft vent grease filter

Part #707929

Replaced by #WP707929

?
Manufacturer substitution
This part replaces 707929. Substitute parts can look different from the original.
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Blower Wheel 707985
#15

Blower assembly-plenum diagram

Blower wheel

Part #707985

Replaced by #WPY707985

?
Manufacturer substitution
This part replaces 707985. Substitute parts can look different from the original.
$71.68 |
8% OFF Phone Price : $77.68
In Stock
Gas Valve 04100188
#7A

Control assembly diagram

Gas valve

Part #04100188

Replaced by #WPY04100188

?
Manufacturer substitution
This part replaces 04100188. Substitute parts can look different from the original.
$90.88 |
6% OFF Phone Price : $96.88
In Stock
Rear Burner 705317
#2

Burner/manifold assembly diagram

Rear burner

Part #705317

Replaced by #74005189

?
Manufacturer substitution
This part replaces 705317. Substitute parts can look different from the original.
$157.98 |
7% OFF Phone Price : $169.98
Back Order
Ignitor, Spa 704535
#6

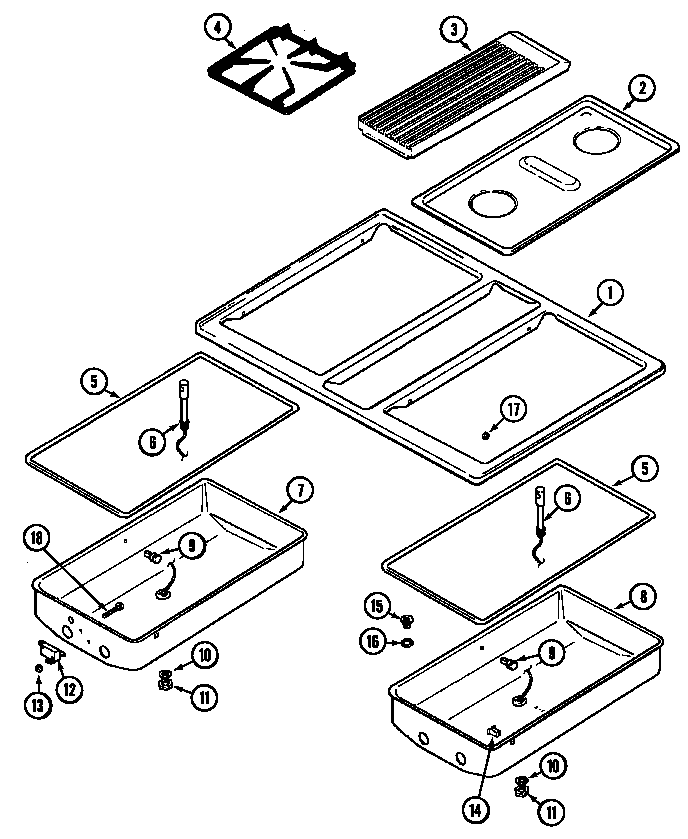

Top assembly diagram

Ignitor, spa

Part #704535

Replaced by #WP71002179

?
Manufacturer substitution
This part replaces 704535. Substitute parts can look different from the original.
$111.14 |
10% OFF Phone Price : $123.14
In Stock
Screw 707172
#23

Blower assembly-plenum diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 707113
#12A

Burner box diagram

Screw

Part #707113

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707113. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Pressure Regulator 704545
#10

Control assembly diagram

Pressure regulator

Part #704545

Replaced by #W11106948

?
Manufacturer substitution
This part replaces 704545. Substitute parts can look different from the original.
$107.45 |
10% OFF Phone Price : $119.45
In Stock
Washer 702592
#2A

Burner box diagram

Washer

Part #702592

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 702592. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Switch 704513
#6

Control assembly diagram

Valve switch

Part #704513

Replaced by #WPY704513

?
Manufacturer substitution
This part replaces 704513. Substitute parts can look different from the original.
$93.45 |
6% OFF Phone Price : $99.45
In Stock
