Model # JVM2052SN1SS Official GE microwave
Here are the diagrams and repair parts for Official GE JVM2052SN1SS microwave, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

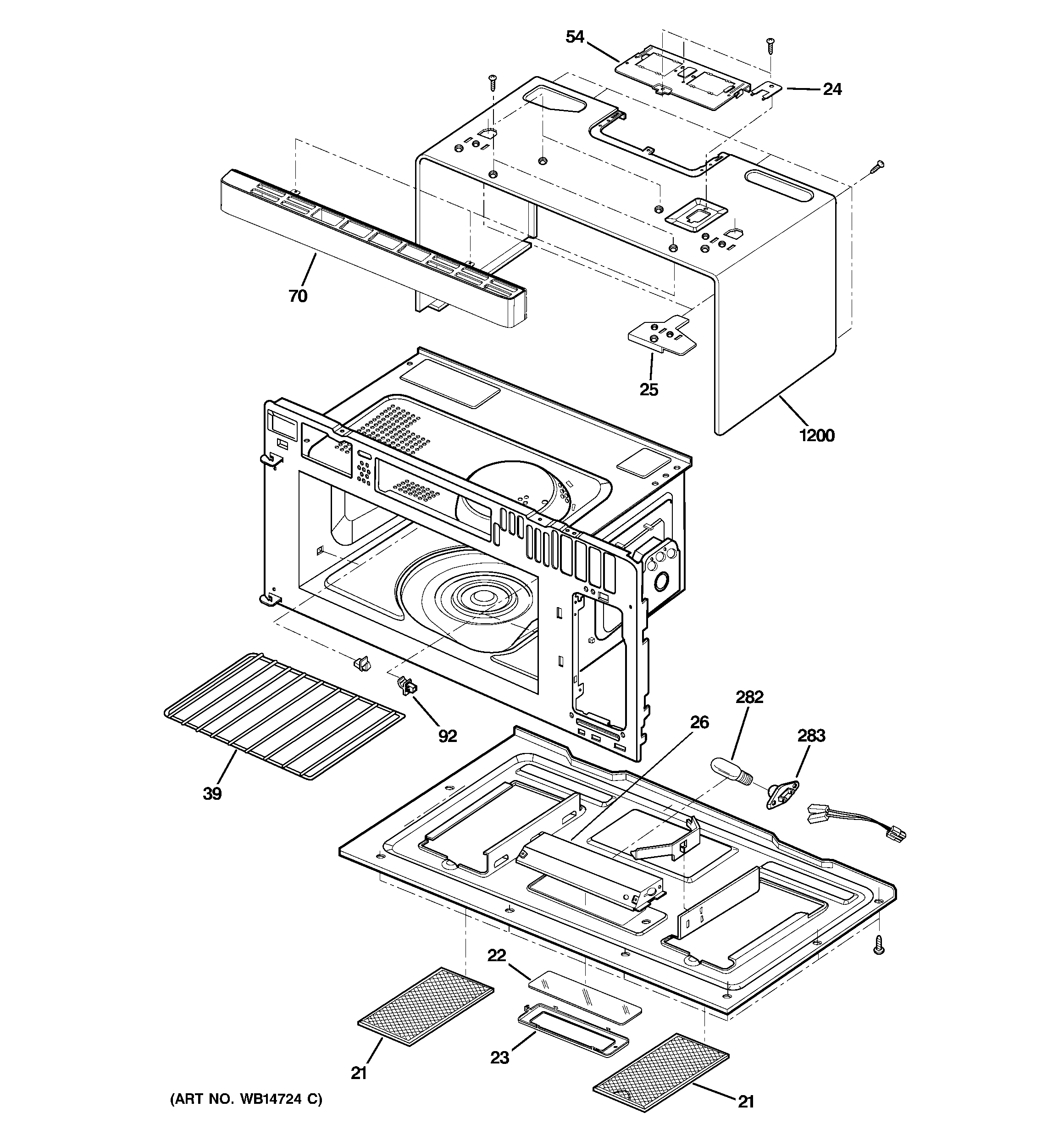

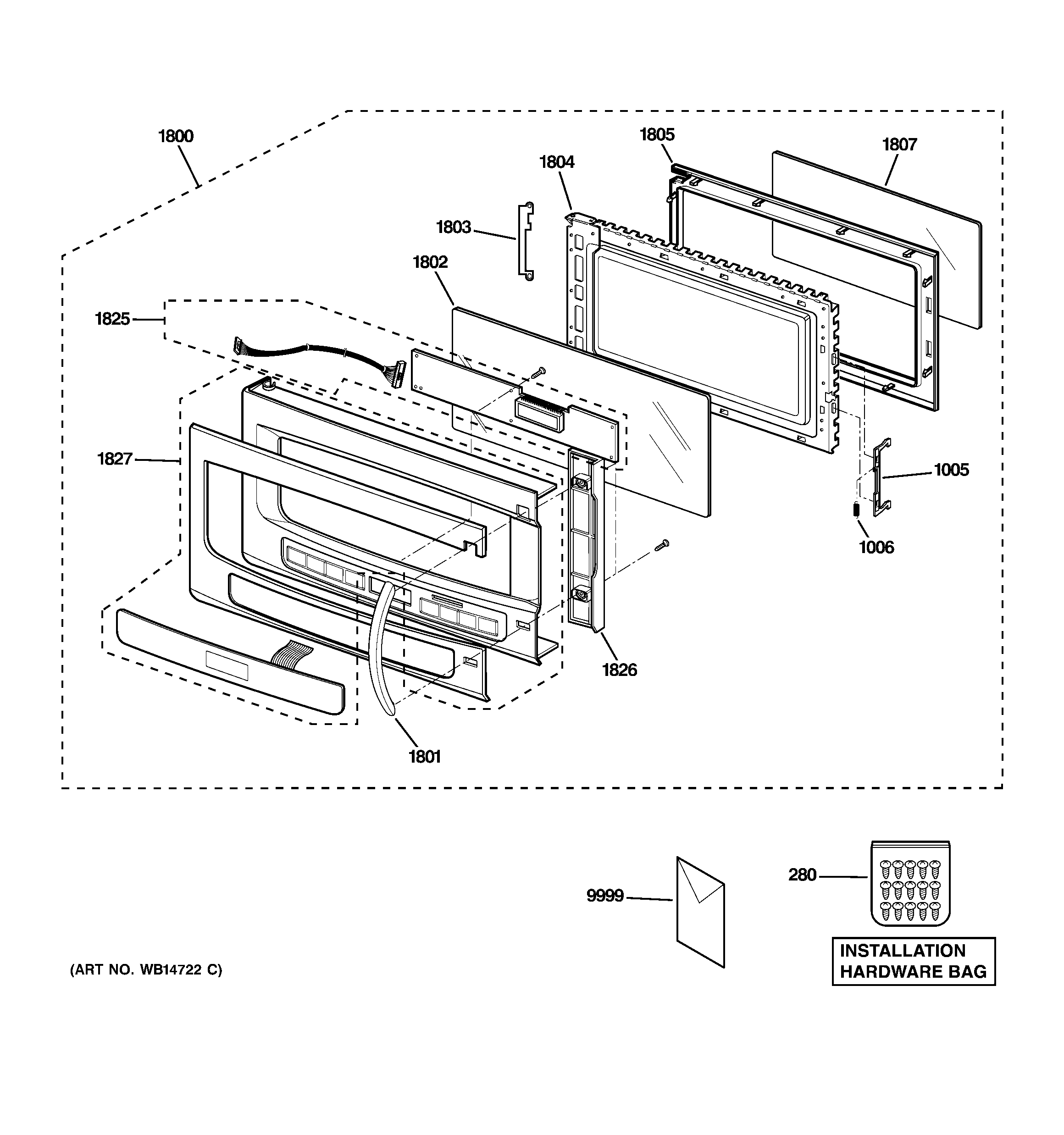

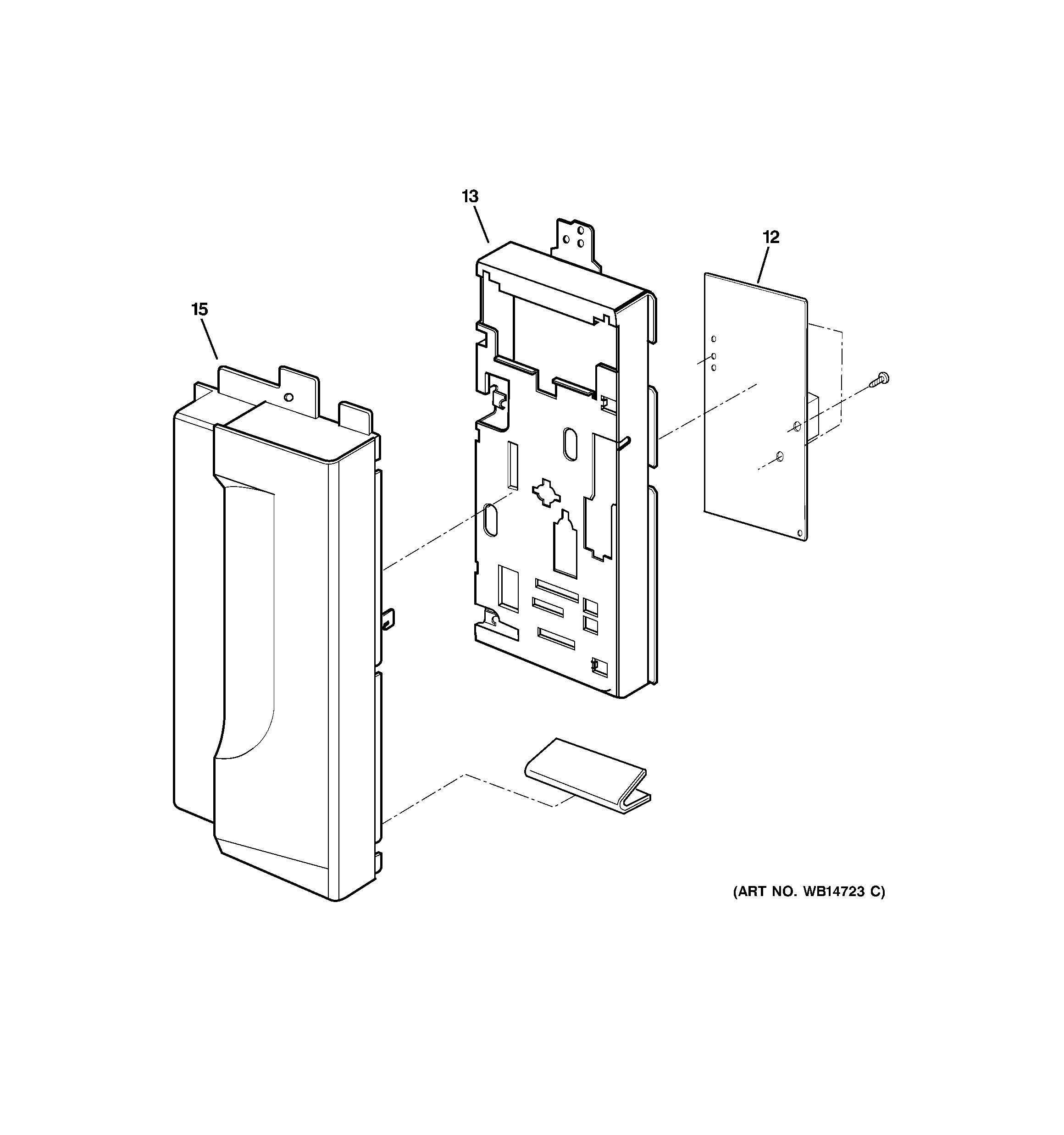

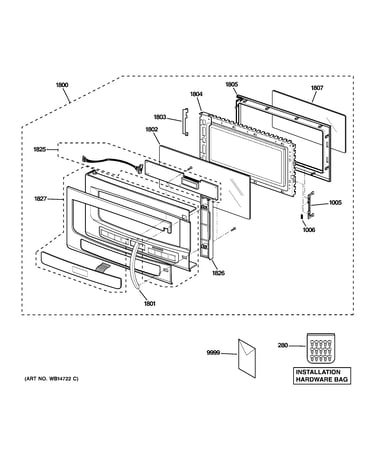

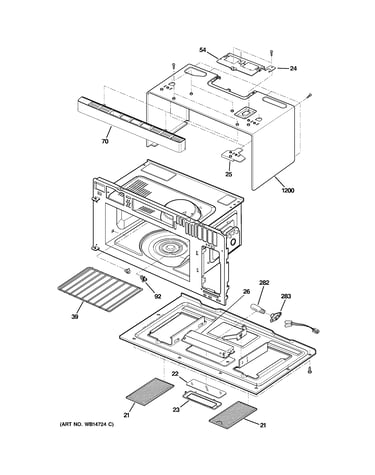

SELECT DIAGRAM
Browse Parts for
JVM2052SN1SS Microwave
#47

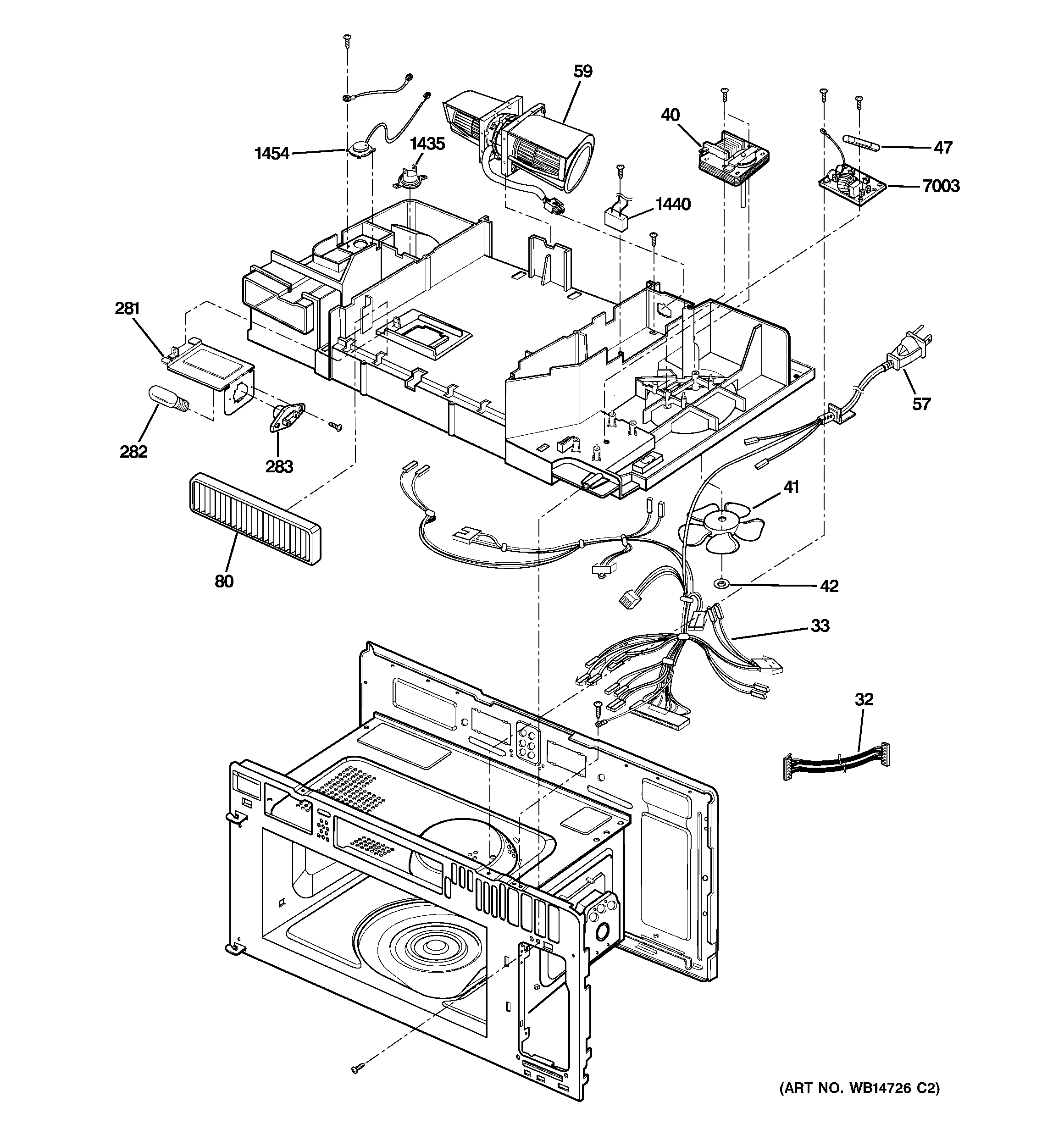

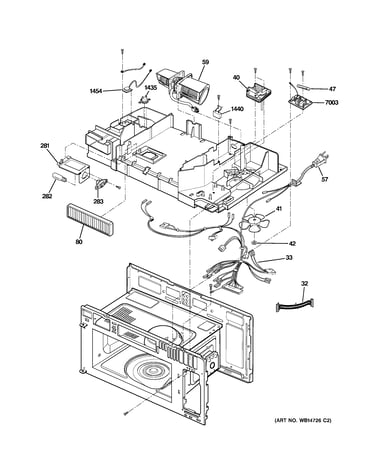

Interior parts (2) diagram
Microwave fuse (replaces wb27x10388)
Part #WB27X10928
$11.95 |
14% OFF Phone Price : $13.95
In Stock
#1446
Latch board parts diagram
Microwave primary interlock switch (replaces wb24x10029, wb24x10113)
Part #WB24X10047
$35.32 |
15% OFF Phone Price : $41.32
In Stock
#50

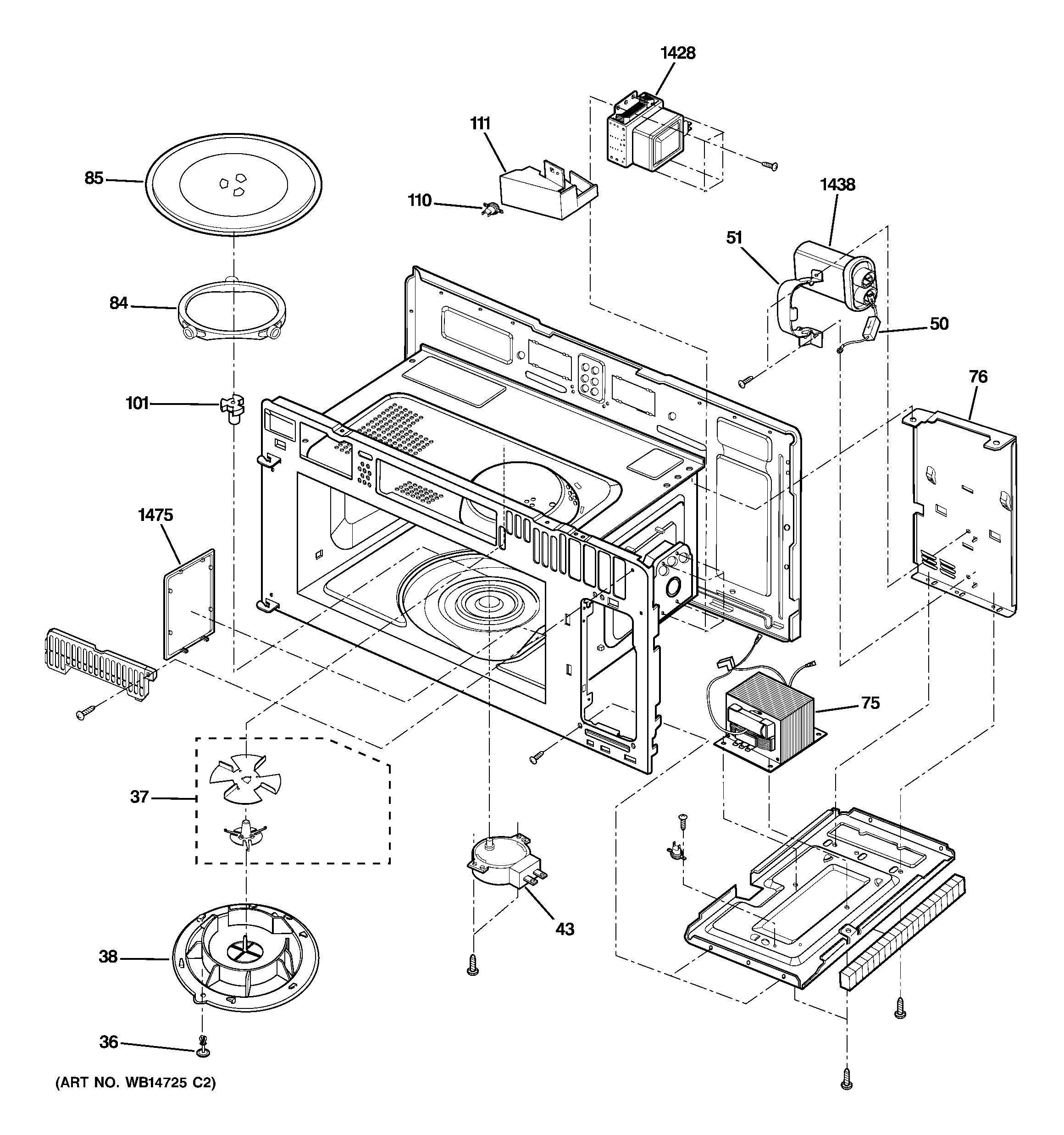

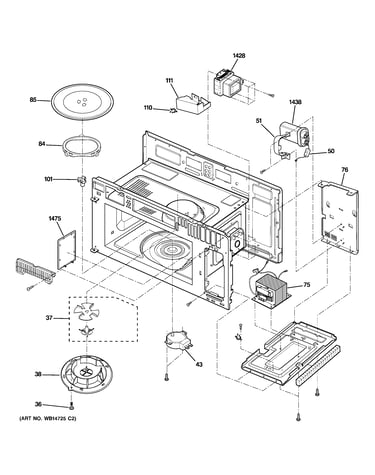

Interior parts (1) diagram
Diode
Part #WB27X10892
Replaced by #WB27X35382
?
Manufacturer substitution
This part replaces WB27X10892. Substitute parts can look different from the original.
$37.63
In Stock
#1445
Latch board parts diagram
Monitor switch
Part #WB24X0817
Replaced by #WB24X25397
?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$28.49 |
17% OFF Phone Price : $34.49
In Stock
#110
Interior parts (1) diagram
Microwave thermal cut-off (replaces wb27x10788)
Part #WB21X10148
$24.91 |
19% OFF Phone Price : $30.91
In Stock
#43
Interior parts (1) diagram
Motor
Part #WB26X10226
$33.92 |
15% OFF Phone Price : $39.92
In Stock
#1454
Interior parts (2) diagram
Microwave humidity sensor
Part #WB27X10857
$96.12 |
11% OFF Phone Price : $108.12
In Stock
#9001

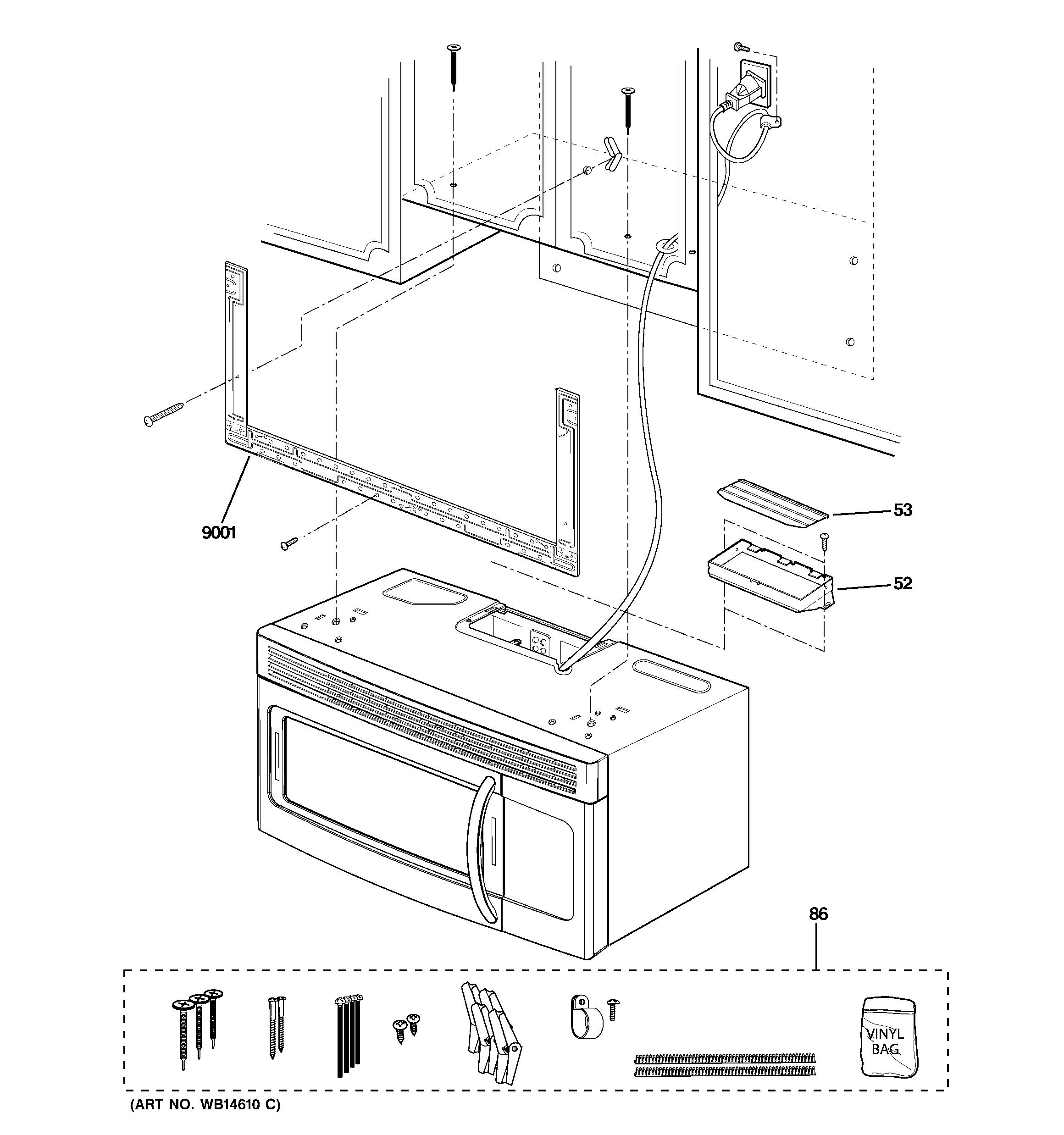

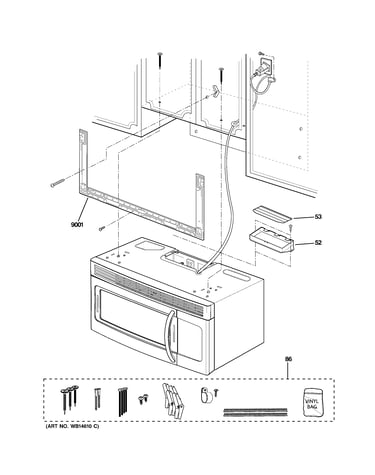

Installation parts diagram
Microwave mounting plate (replaces wb56x10204)
Part #WB56X10669
Replaced by #WB56X35363
?
Manufacturer substitution
This part replaces WB56X10669. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
22% OFF Phone Price : $26.80
In Stock
Drawing lamp
Part #WB36X10292
Replaced by #WB36X10328
?
Manufacturer substitution
This part replaces WB36X10292. Substitute parts can look different from the original.
$22.95 |
21% OFF Phone Price : $28.95
In Stock
#1475
Interior parts (1) diagram
Microwave waveguide cover
Part #WB06X10305
Replaced by #WB06X10764
?
Manufacturer substitution
This part replaces WB06X10305. Substitute parts can look different from the original.
$10.73 |
16% OFF Phone Price : $12.73
In Stock
