Model # SHV863WD3N/10 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHV863WD3N-10 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

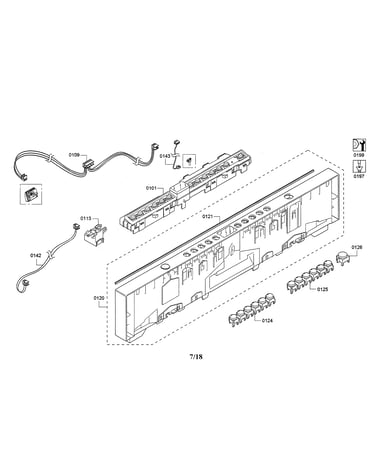

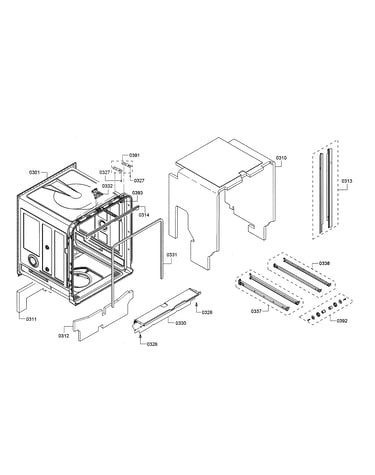

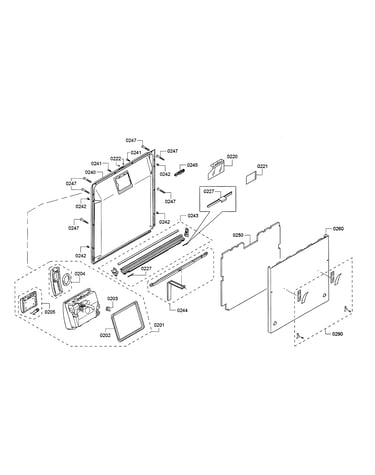

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Dishwasher Circulation Pump With Heater 12008381
#450

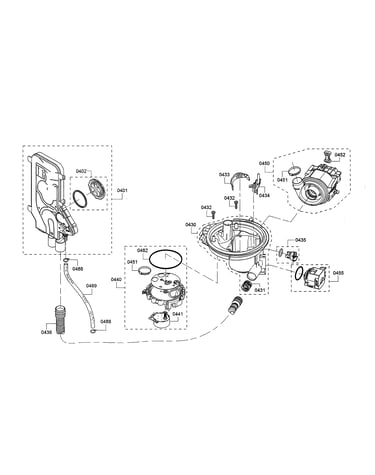

Water inlet/heat pump/sump diagram

Dishwasher circulation pump with heater

Part #12008381

BEST SELLER
$111.40 |
10% OFF Phone Price : $123.40
In Stock
Dishwasher Water Inlet Valve (replaces 628334) 00628334
#544

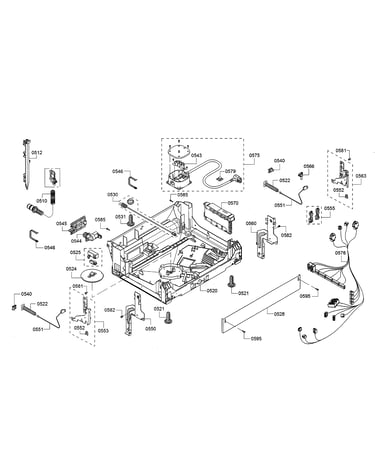

Base/power cord diagram

Dishwasher water inlet valve (replaces 628334)

Part #00628334

Replaced by #10023852

?
Manufacturer substitution
This part replaces 00628334. Substitute parts can look different from the original.
BEST SELLER
$26.44 |
18% OFF Phone Price : $32.44
In Stock
Dishwasher Diverter Assembly (replaces 751950) 00751950
#440

Water inlet/heat pump/sump diagram

Dishwasher diverter assembly (replaces 751950)

Part #00751950

BEST SELLER
$49.82 |
11% OFF Phone Price : $55.82
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#451

Water inlet/heat pump/sump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Spray Arm, Upper (replaces 745856) 00745856
#603

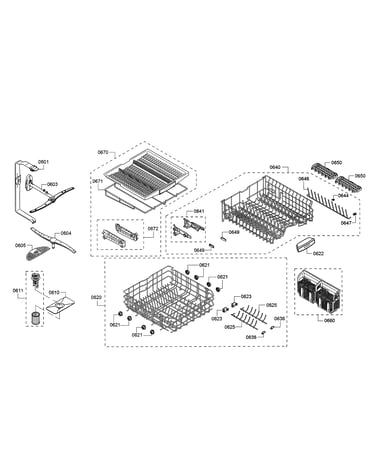

Spray arms/racks diagram

Dishwasher spray arm, upper (replaces 745856)

Part #00745856

BEST SELLER
$27.51 |
18% OFF Phone Price : $33.51
In Stock
Dishwasher Fill Funnel Assembly (replaces 744882) 00744882
#401

Water inlet/heat pump/sump diagram

Dishwasher fill funnel assembly (replaces 744882)

Part #00744882

BEST SELLER
$34.58 |
15% OFF Phone Price : $40.58
In Stock
Dishwasher Float Switch Assembly (replaces 751391) 00751391
#525

Base/power cord diagram

Dishwasher float switch assembly (replaces 751391)

Part #00751391

BEST SELLER
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Dishwasher Sump 00752078
#430

Water inlet/heat pump/sump diagram

Dishwasher sump

Part #00752078

Replaced by #00668102

?
Manufacturer substitution
This part replaces 00752078. Substitute parts can look different from the original.
BEST SELLER
$71.79 |
8% OFF Phone Price : $77.79
In Stock
Dishwasher Door Cable Roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835) 00623536
#555

Base/power cord diagram

Dishwasher door cable roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835)

Part #00623536

BEST SELLER
$20.16 |
23% OFF Phone Price : $26.16
In Stock
Basket 00775828
#640

Spray arms/racks diagram

Basket

Part #00775828

Replaced by #00779033

?
Manufacturer substitution
This part replaces 00775828. Substitute parts can look different from the original.
BEST SELLER
$109.59 |
10% OFF Phone Price : $121.59
Back Order
