KitchenAid
Dishwasher

Model # KDPM704KPS3 Official KitchenAid dishwasher

Here are the diagrams and repair parts for Official KitchenAid KDPM704KPS3 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

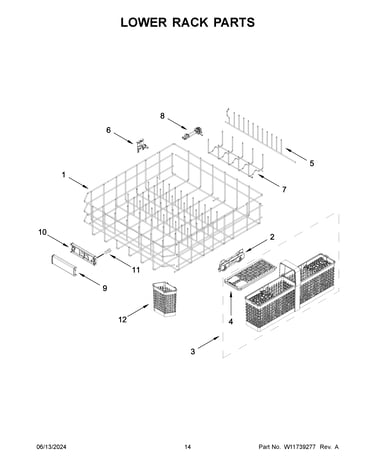

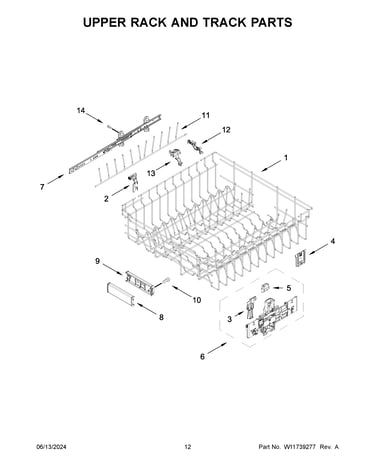

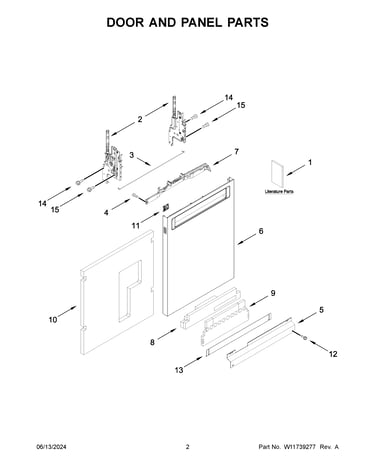

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Fill Valve Assembly W11025970
#23

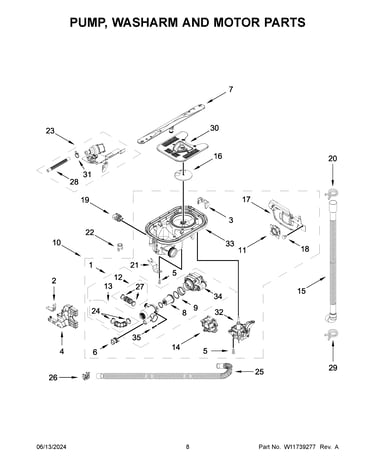

Pump, washarm and motor parts diagram

Fill valve assembly

Part #W11025970

Replaced by #W11434044

?
Manufacturer substitution
This part replaces W11025970. Substitute parts can look different from the original.
BEST SELLER
$34.18 |
15% OFF Phone Price : $40.18
In Stock
Sump/motor A W11345228
#10

Pump, washarm and motor parts diagram

Sump/motor a

Part #W11345228

Replaced by #W11416362

?
Manufacturer substitution
This part replaces W11345228. Substitute parts can look different from the original.
BEST SELLER
$208.10 |
5% OFF Phone Price : $220.10
In Stock
Heater Element Assembly W11536143
#25

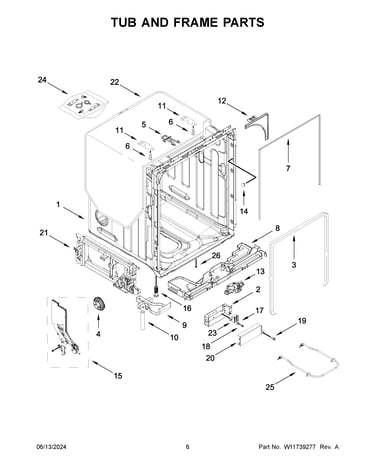

Tub and frame parts diagram

Heater element assembly

Part #W11536143

Replaced by #W11537778

?
Manufacturer substitution
This part replaces W11536143. Substitute parts can look different from the original.
BEST SELLER
$45.25 |
12% OFF Phone Price : $51.25
In Stock
Dishwasher Manifold And Spray Arm Assembly W11174340
#4

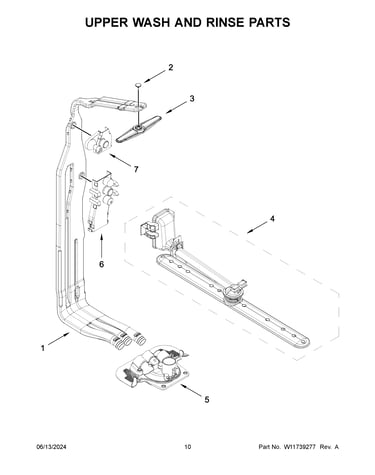

Upper wash and rinse parts diagram

Dishwasher manifold and spray arm assembly

Part #W11174340

Replaced by #W11545334

?
Manufacturer substitution
This part replaces W11174340. Substitute parts can look different from the original.
BEST SELLER
$38.48 |
13% OFF Phone Price : $44.48
In Stock
Mp-sp,120/60 W11035709
#14

Pump, washarm and motor parts diagram

Mp-sp,120/60

Part #W11035709

Replaced by #W11412291

?
Manufacturer substitution
This part replaces W11035709. Substitute parts can look different from the original.
BEST SELLER
$63.60 |
9% OFF Phone Price : $69.60
In Stock
Dishwasher Mounting Bracket 8269145
#11

Tub and frame parts diagram

Dishwasher mounting bracket

Part #8269145

Replaced by #WP8269145

?
Manufacturer substitution
This part replaces 8269145. Substitute parts can look different from the original.
BEST SELLER
$16.80 |
11% OFF Phone Price : $18.80
In Stock
Water Inlet W11429970
#15

Tub and frame parts diagram

Water inlet

Part #W11429970

Replaced by #W11535094

?
Manufacturer substitution
This part replaces W11429970. Substitute parts can look different from the original.
BEST SELLER
$38.24 |
14% OFF Phone Price : $44.24
In Stock
Latch Assembly (includes Switch) W11091934
#5

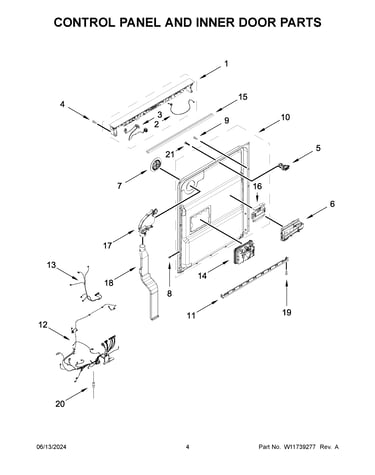

Control panel and inner door parts diagram

Latch assembly (includes switch)

Part #W11091934

Replaced by #W11412299

?
Manufacturer substitution
This part replaces W11091934. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$16.10 |
11% OFF Phone Price : $18.10
In Stock
Dishwasher Third-level Spray Tube Bracket, Front W10830577
#10

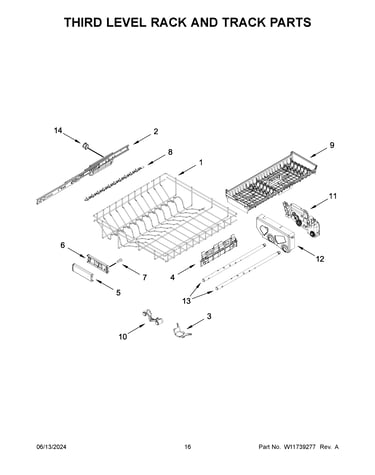

Third level rack and track parts diagram

Dishwasher third-level spray tube bracket, front

Part #W10830577

Replaced by #W11568642

?
Manufacturer substitution
This part replaces W10830577. Substitute parts can look different from the original.
BEST SELLER
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Dispenser As W11092649
#14

Control panel and inner door parts diagram

Dispenser as

Part #W11092649

Replaced by #W11412300

?
Manufacturer substitution
This part replaces W11092649. Substitute parts can look different from the original.
BEST SELLER
$73.15 |
8% OFF Phone Price : $79.15
In Stock
