Model # 281839190 Official Kenmore electronic air cleaner

Here are the diagrams and repair parts for Official Kenmore 281839190 electronic air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Pre-filter F825-0171
#2

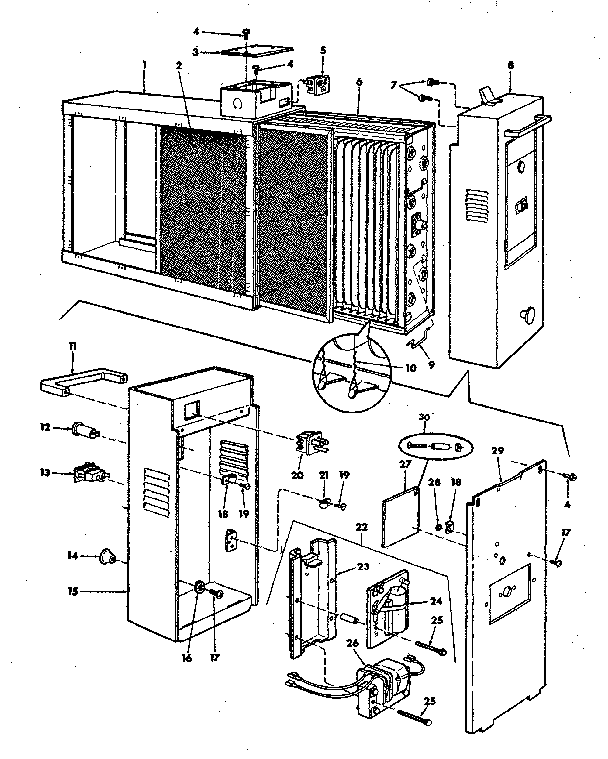

Replacement parts diagram

Pre-filter

Part #F825-0171

Replaced by #F825-0173

?
Manufacturer substitution
This part replaces F825-0171. Substitute parts can look different from the original.
$98.41
11% OFF Phone Price : $110.41
In Stock
Cell Assembly F811-0183
#6

Replacement parts diagram

Cell assembly

Part #F811-0183

Replaced by #F811-0183

?
Manufacturer substitution
This part replaces F811-0183. Substitute parts can look different from the original.
In Stock
Connector F818-0058
#5

Replacement parts diagram

Connector

Part #F818-0058

Replaced by #F818-0053

?
Manufacturer substitution
This part replaces F818-0058. Substitute parts can look different from the original.
In Stock
Circuit Board F859-0269
#24

Replacement parts diagram

Circuit board

Part #F859-0269

The manufacturer no longer makes this part, and there's no substitute part

Power Supply F858-0598
#22

Replacement parts diagram

Power supply

Part #F858-0598

The manufacturer no longer makes this part, and there's no substitute part

Cover F820-0224
#3

Replacement parts diagram

Cover

Part #F820-0224

The manufacturer no longer makes this part, and there's no substitute part

Cover F820-0091
#29

Replacement parts diagram

Cover

Part #F820-0091

The manufacturer no longer makes this part, and there's no substitute part

Power Pack F858-0670
#8

Replacement parts diagram

Power pack

Part #F858-0670

The manufacturer no longer makes this part, and there's no substitute part

Switch F859-0248
#27

Replacement parts diagram

Switch

Part #F859-0248

The manufacturer no longer makes this part, and there's no substitute part

Screw F867-0033
#17

Replacement parts diagram

Screw

Part #F867-0033

The manufacturer no longer makes this part, and there's no substitute part
