Craftsman
Front-Engine Lawn Tractor

Model # 91725590 Official Craftsman riding lawn tractor - 10xl

Here are the diagrams and repair parts for Official Craftsman 91725590 riding lawn tractor - 10xl, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

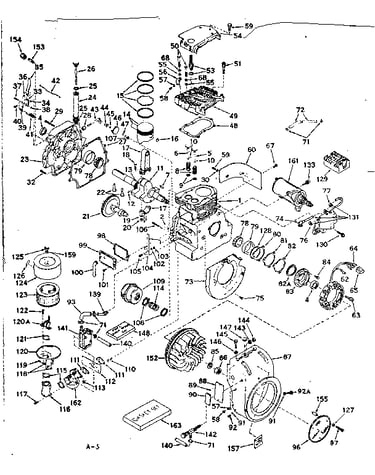

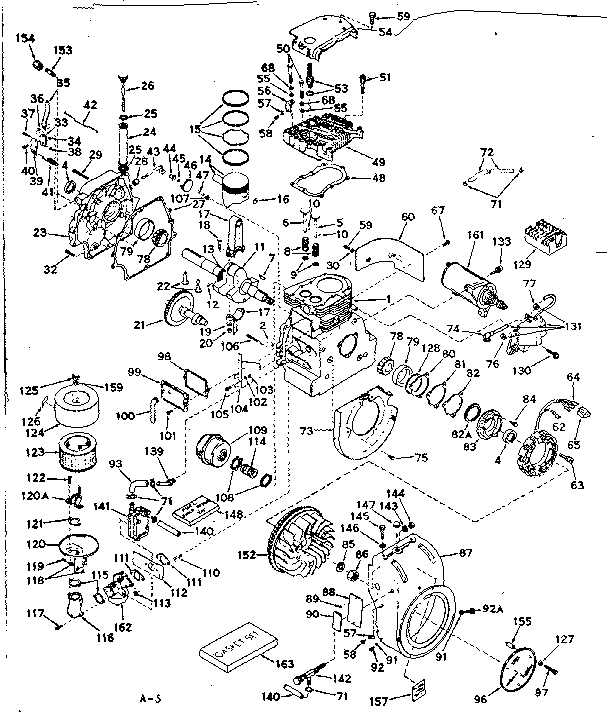

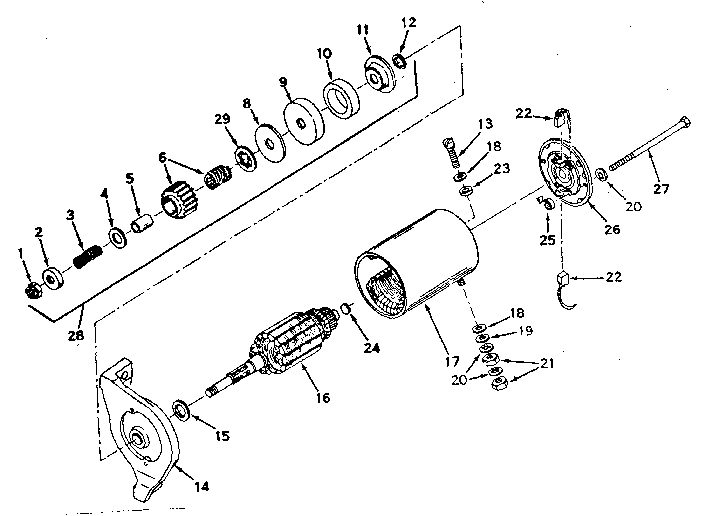

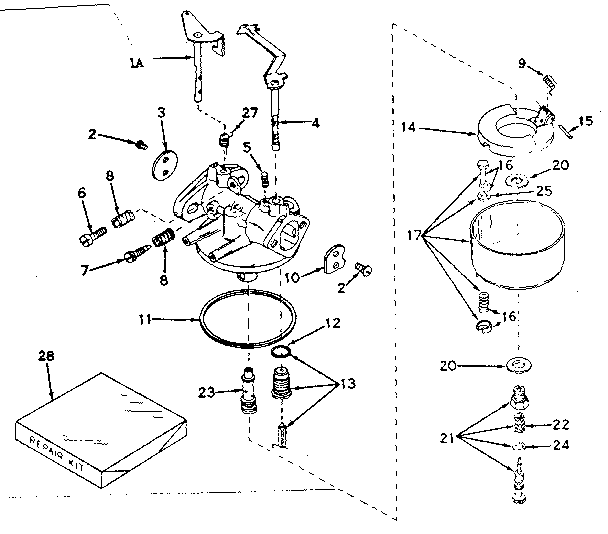

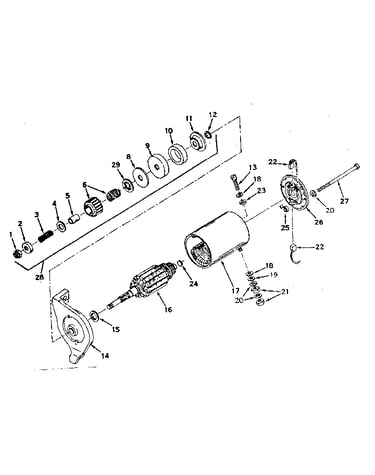

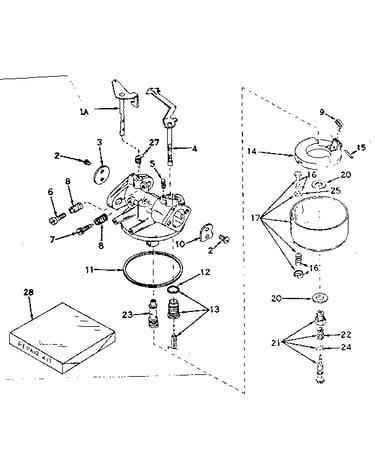

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 469 parts  |
Thrust Bearing 1370H
#59

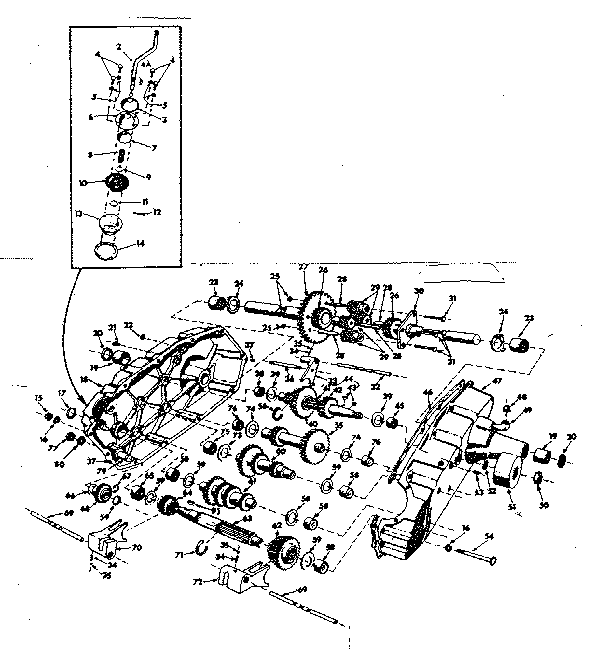

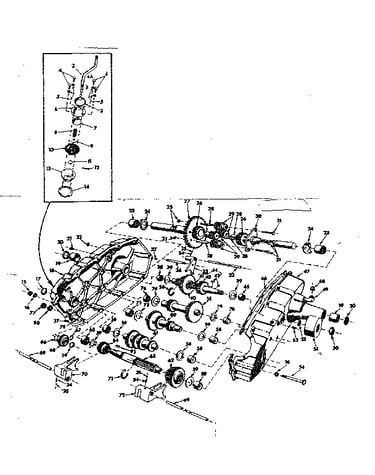

Transaxle diagram

Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Hub Bolt 1304H
#68

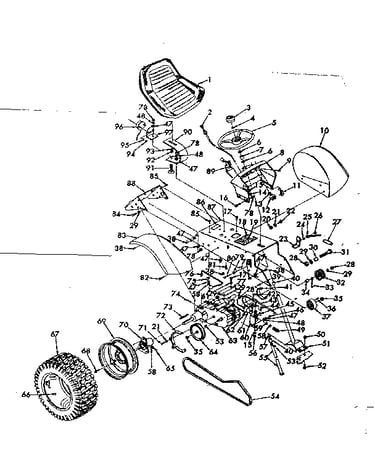

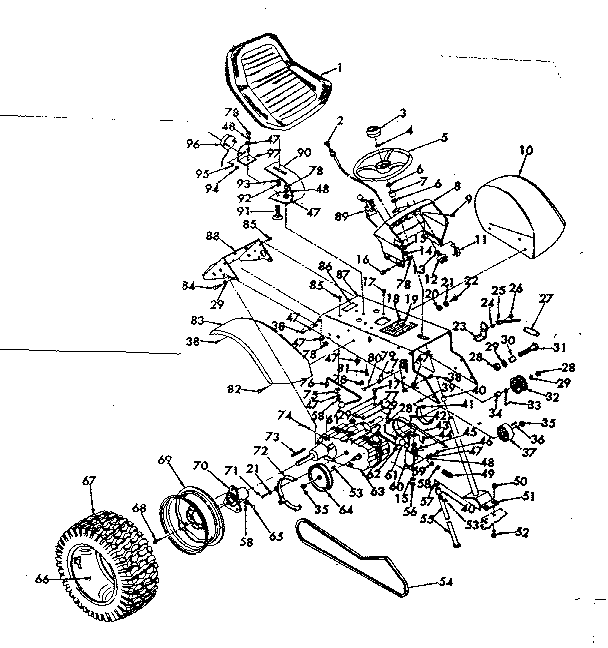

Rear section diagram

Hub bolt

Part #1304H

Replaced by #596218701

?
Manufacturer substitution
This part replaces 1304H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Ball 7392M
#35

Transaxle diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Ground Strap 5114H
#18

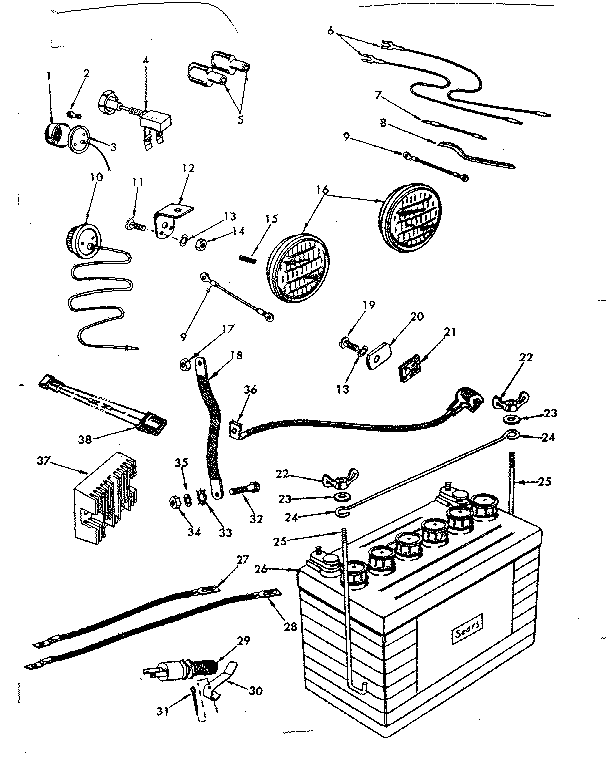

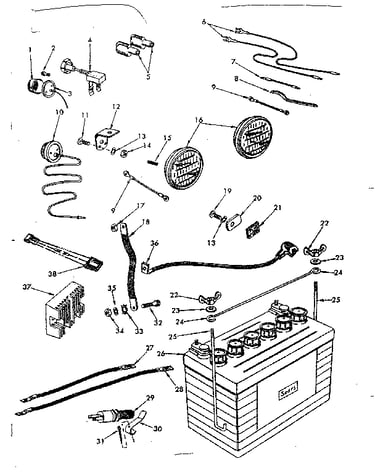

Electrical system diagram

Ground strap

Part #5114H

Replaced by #532004207

?
Manufacturer substitution
This part replaces 5114H. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Washer 1552P
Washer

Part #1552P

Replaced by #532121749

?
Manufacturer substitution
This part replaces 1552P. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Flat Idler 6635H
#32

Rear section diagram

Flat idler

Part #6635H

Replaced by #583772001

?
Manufacturer substitution
This part replaces 6635H. Substitute parts can look different from the original.
This item is not returnable
$34.98 |
15% OFF Phone Price : $40.98
In Stock
Hex Fin Bolt 3034P
#17

Rear section diagram

Hex fin bolt

Part #3034P

Replaced by #596238601

?
Manufacturer substitution
This part replaces 3034P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Gripco Nut 7810H
#25

Transaxle diagram

Gripco nut

Part #7810H

Replaced by #596322601

?
Manufacturer substitution
This part replaces 7810H. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Hex Fin Bolt 3035P
#84

Rear section diagram

Hex fin bolt

Part #3035P

Replaced by #874780720

?
Manufacturer substitution
This part replaces 3035P. Substitute parts can look different from the original.
$10.26
In Stock
Wizard Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#77

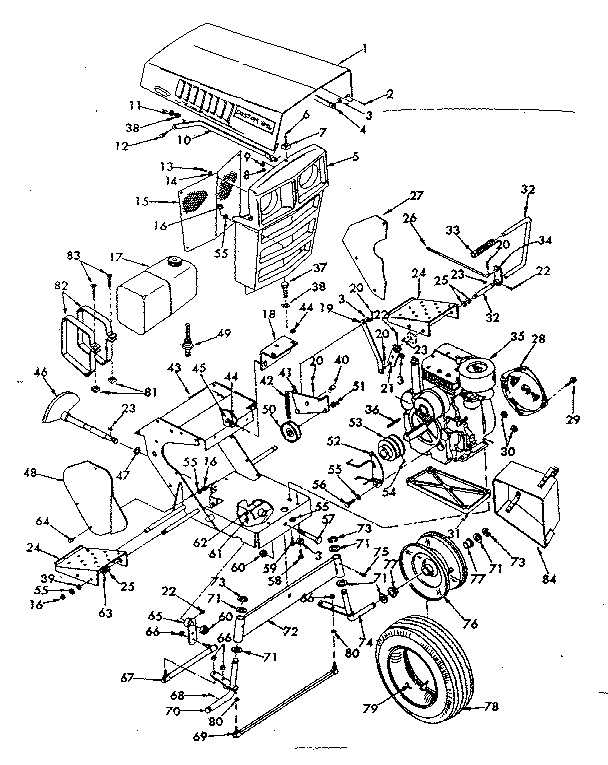

Front section diagram

Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

Replaced by #532009040

?
Manufacturer substitution
This part replaces 9040H. Substitute parts can look different from the original.
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
