Model # DLB3600SBLAD Official Hotpoint dryer

Here are the diagrams and repair parts for Official Hotpoint DLB3600SBLAD dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

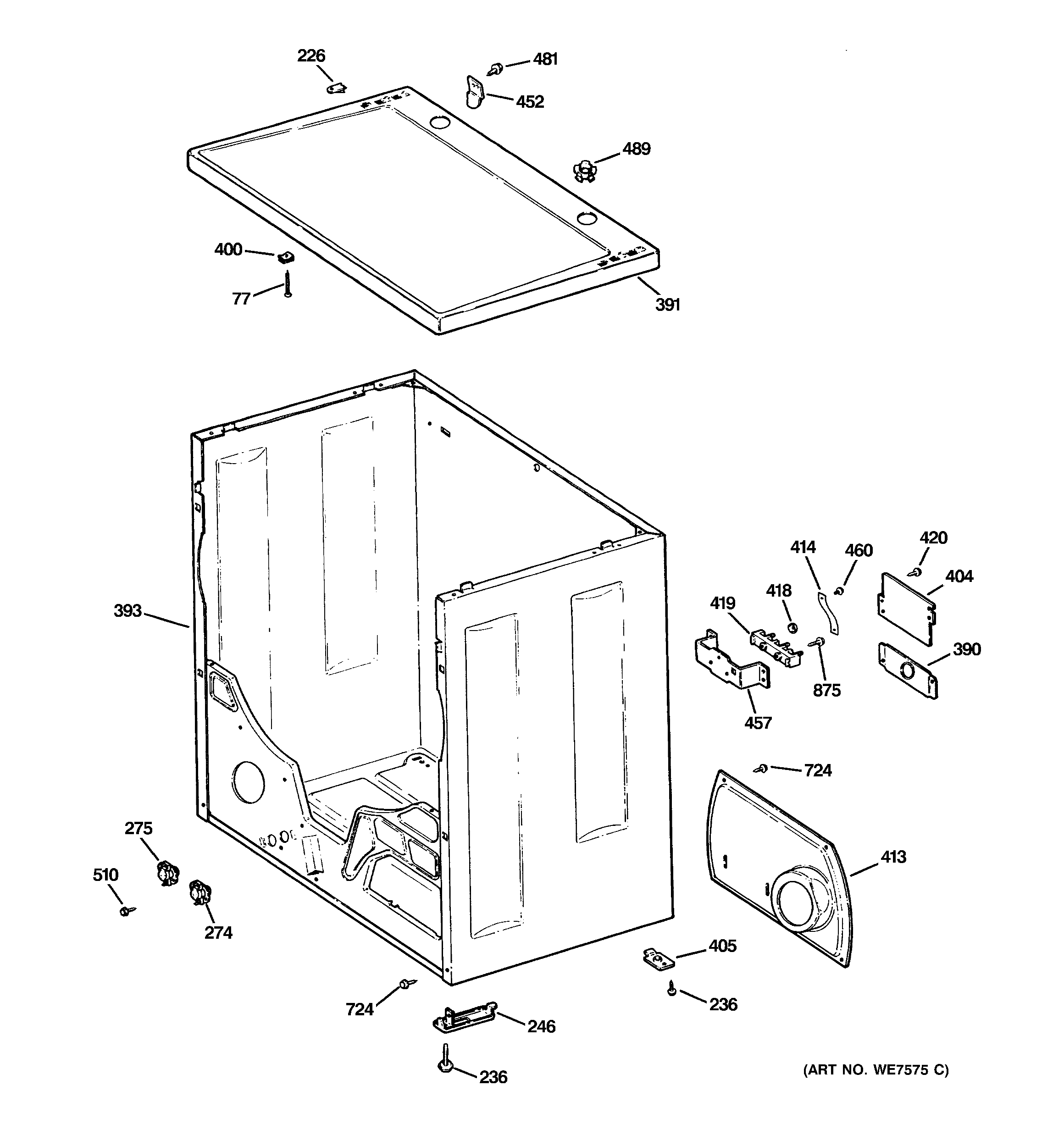

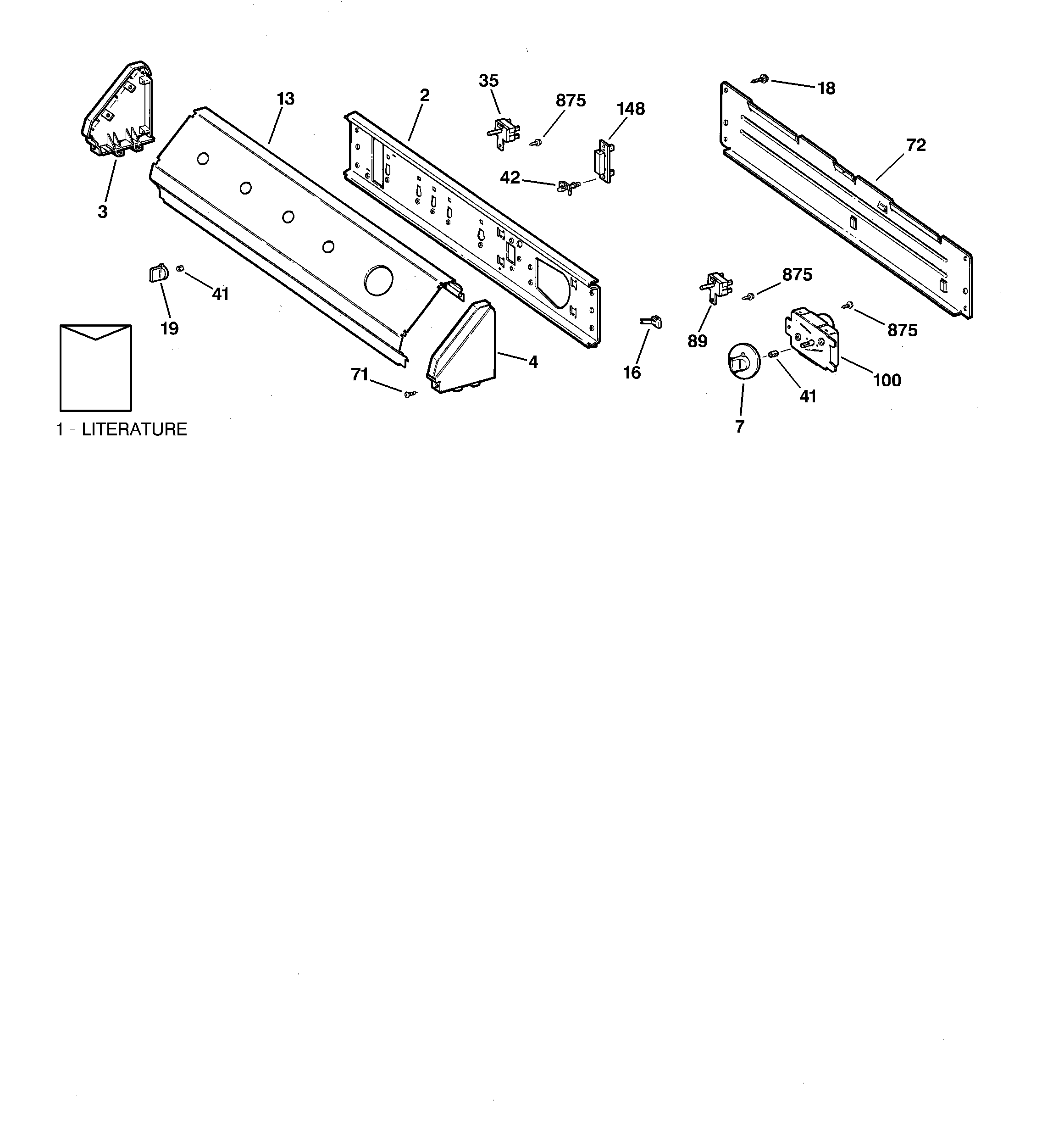

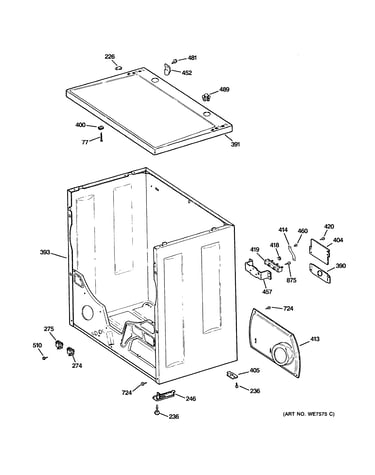

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Idler Pulley WE12X0092
#216

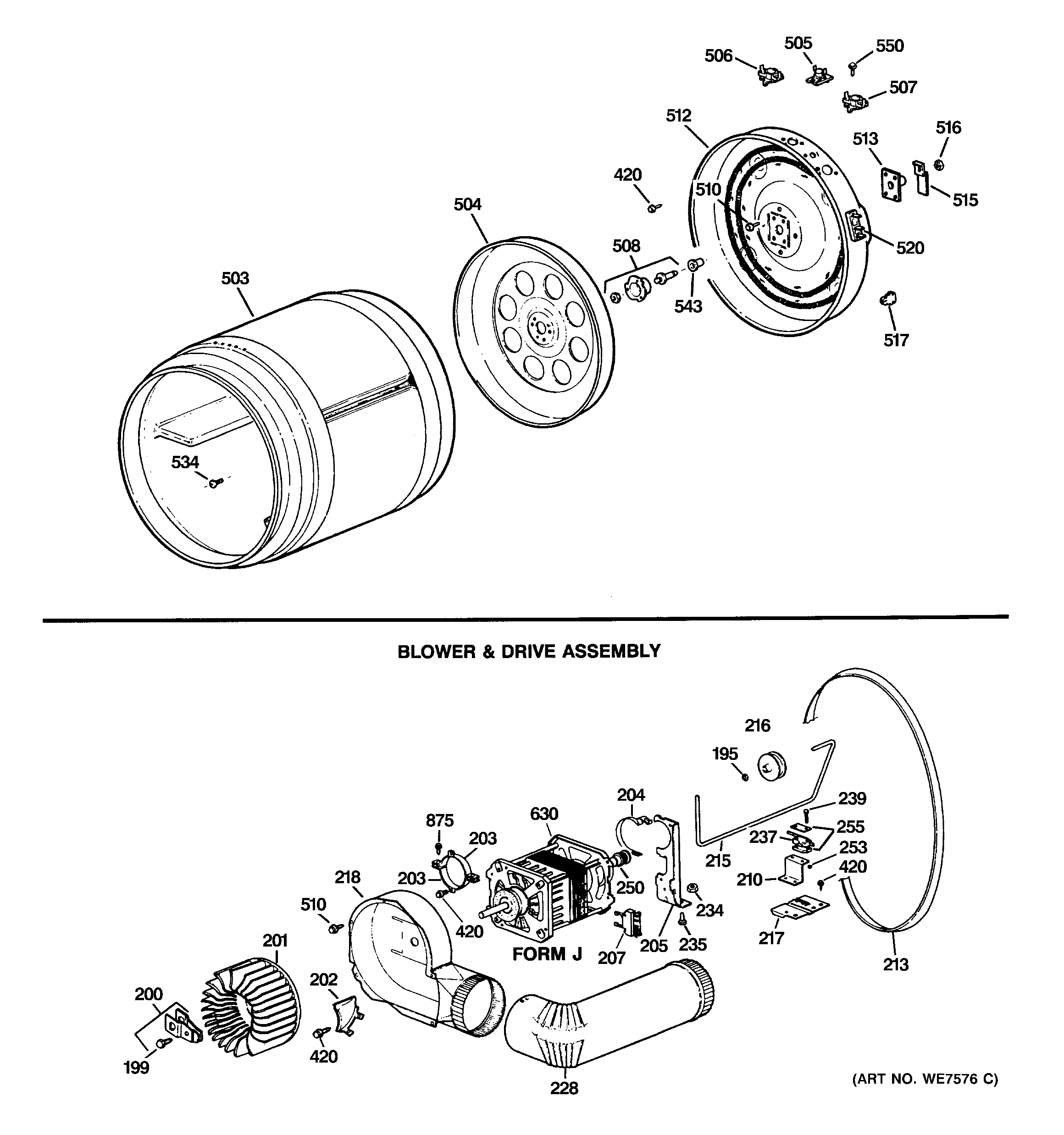

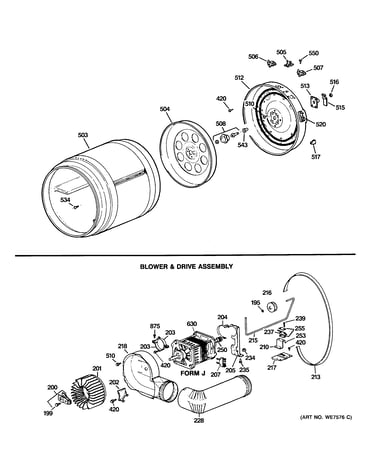

Drum, blower & drive assembly diagram

Idler pulley

Part #WE12X0092

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12X0092. Substitute parts can look different from the original.
BEST SELLER
$25.35 |
19% OFF Phone Price : $31.35
In Stock
Shft-brkt As WE03X0039
#508

Drum, blower & drive assembly diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Lamp WE04X0718
#314

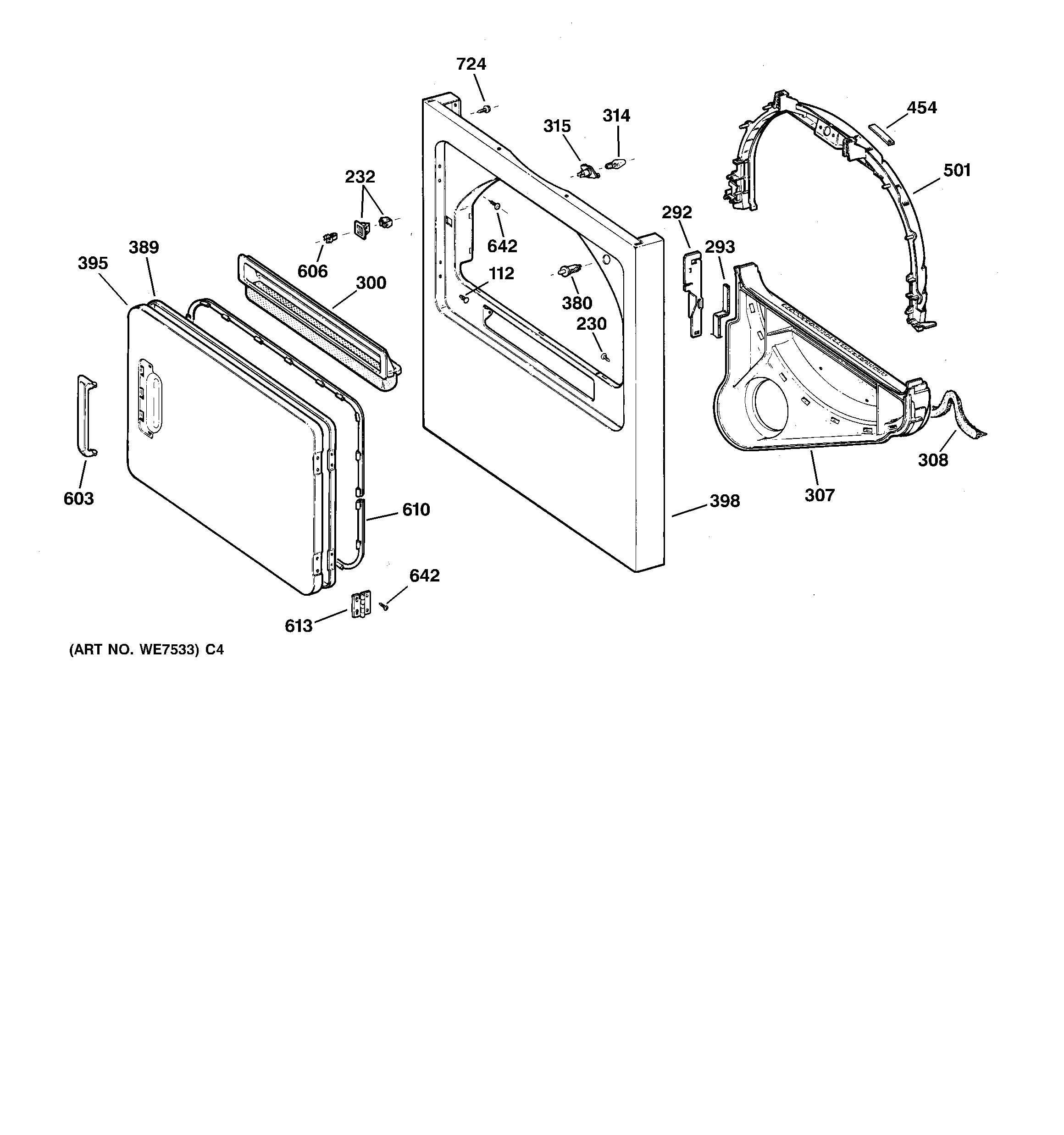

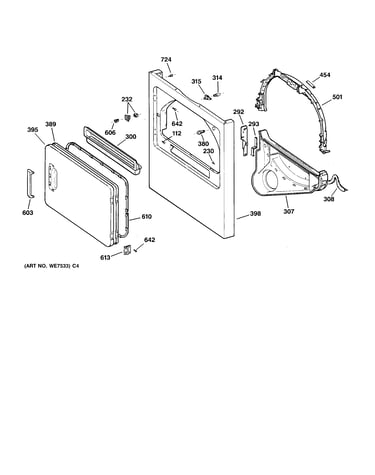

Front panel & door diagram

Lamp

Part #WE04X0718

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE04X0718. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Motor WE17X0032
#630

Drum, blower & drive assembly diagram

Motor

Part #WE17X0032

Replaced by #WE17X10010

?
Manufacturer substitution
This part replaces WE17X0032. Substitute parts can look different from the original.
BEST SELLER
$223.60 |
5% OFF Phone Price : $235.60
In Stock
Dryer Blower Wheel WE16X0017
#201

Drum, blower & drive assembly diagram

Dryer blower wheel

Part #WE16X0017

Replaced by #WE16M15

?
Manufacturer substitution
This part replaces WE16X0017. Substitute parts can look different from the original.
BEST SELLER
$60.14 |
9% OFF Phone Price : $66.14
In Stock
Latch Clip WE01X1032
#232

Front panel & door diagram

Latch clip

Part #WE01X1032

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE01X1032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.55 |
16% OFF Phone Price : $12.55
In Stock
Door Strike WE01X1192
#606

Front panel & door diagram

Door strike

Part #WE01X1192

Replaced by #WE1X1192

?
Manufacturer substitution
This part replaces WE01X1192. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Slide Bearing WE03X0084
#454

Front panel & door diagram

Slide bearing

Part #WE03X0084

Replaced by #WE3X87

?
Manufacturer substitution
This part replaces WE03X0084. Substitute parts can look different from the original.
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Slide Bearing WE03X0083
#454

Front panel & door diagram

Slide bearing

Part #WE03X0083

Replaced by #WE3X87

?
Manufacturer substitution
This part replaces WE03X0083. Substitute parts can look different from the original.
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Hndl Door Ad WE01X1201
#603

Front panel & door diagram

Hndl door ad

Part #WE01X1201

Replaced by #WE01X20580

?
Manufacturer substitution
This part replaces WE01X1201. Substitute parts can look different from the original.
This item is not returnable
$10.85 |
16% OFF Phone Price : $12.85
In Stock
