Model # WDSS4120A0WW Official GE washer

Here are the diagrams and repair parts for Official GE WDSS4120A0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

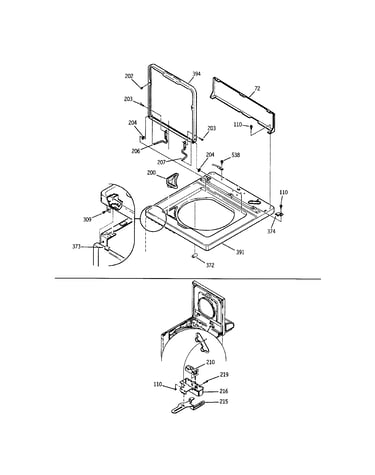

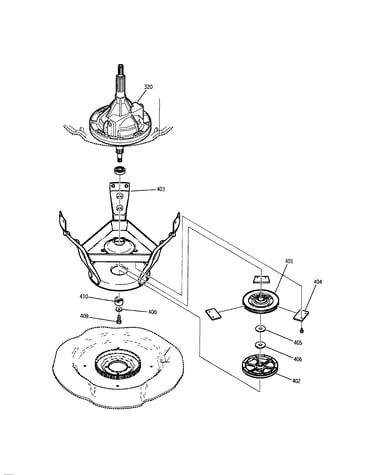

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Ge Water Hose WH41X10069
#808

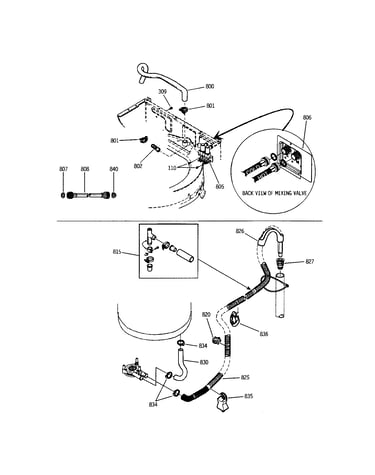

Mixing valve/hoses diagram

Ge water hose

Part #WH41X10069

$31.99
In Stock
Stand, Hose WH01X10166
#835

Mixing valve/hoses diagram

Stand, hose

Part #WH01X10166

The manufacturer no longer makes this part, and there's no substitute part

Cap, End Rh WE19X10047
#4

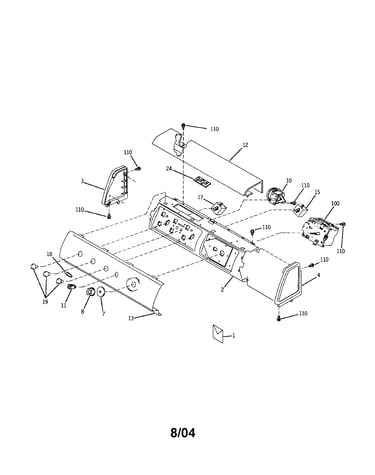

Control panel diagram

Cap, end rh

Part #WE19X10047

The manufacturer no longer makes this part, and there's no substitute part

Outer Cover WH44X10094
#329

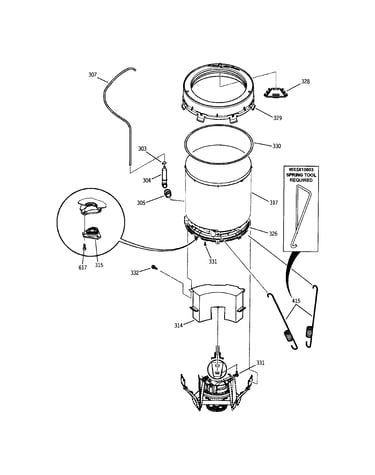

Outer tub/pressure tube diagram

Outer cover

Part #WH44X10094

The manufacturer no longer makes this part, and there's no substitute part

Panel Support WH16X10043
#2

Control panel diagram

Panel support

Part #WH16X10043

The manufacturer no longer makes this part, and there's no substitute part

Screw,10-16x WH02X10115
#656

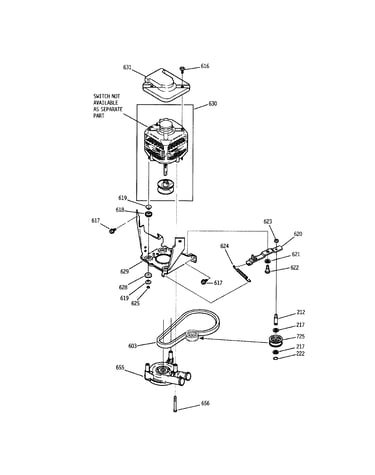

Motor/belt/pump/idler diagram

Screw,10-16x

Part #WH02X10115

The manufacturer no longer makes this part, and there's no substitute part

Selector Bracket WH16X10045
#422

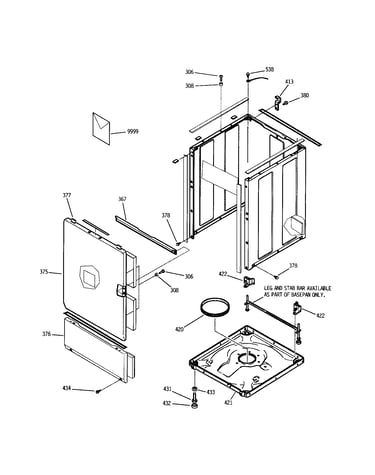

Base/cabinet, front/special tools diagram

Selector bracket

Part #WH16X10045

The manufacturer no longer makes this part, and there's no substitute part

Assy, Pressu WH41X10064
#304

Outer tub/pressure tube diagram

Assy, pressu

Part #WH41X10064

The manufacturer no longer makes this part, and there's no substitute part

Hub Assembly WH01X10151
#311

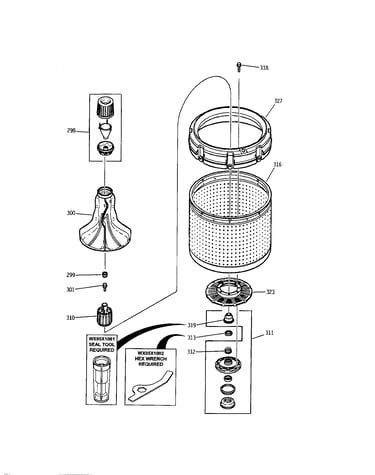

Agitator/drive bell/washtub/hub diagram

Hub assembly

Part #WH01X10151

The manufacturer no longer makes this part, and there's no substitute part

Screw, 5/6-1 WH02X10121
Screw, 5/6-1

Part #WH02X10121

The manufacturer no longer makes this part, and there's no substitute part
