Gas Cooktop

Model # VGSU160 Official Viking Range gas cooktop

Here are the diagrams and repair parts for Official Viking Range VGSU160 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Knob Black PA010021
#62

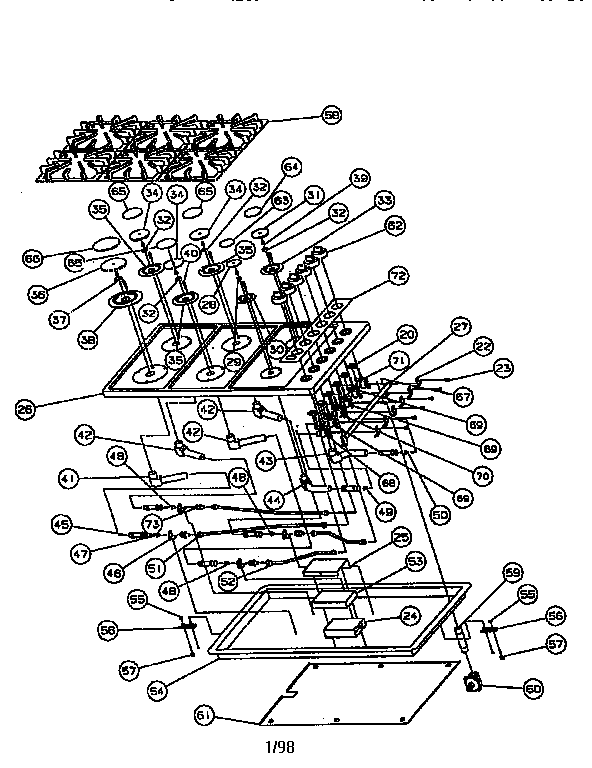

Main top section diagram

Knob black

Part #PA010021

Replaced by #G5003075BK

?
Manufacturer substitution
This part replaces PA010021. Substitute parts can look different from the original.
$64.99
In Stock
Valves (right Front) PG230001
#68

Main top section diagram

Valves (right front)

Part #PG230001

The manufacturer no longer makes this part, and there's no substitute part

Bushing (power Cord Strain Relief) PG200004

#NI

All parts diagram

Bushing (power cord strain relief)

Part #PG200004

The manufacturer no longer makes this part, and there's no substitute part

Power Connector-neutral (rear-center Burner PG220011

#NI

All parts diagram

Power connector-neutral (rear-center burner

Part #PG220011

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug Cable (front-right Burner) PG220015

#NI

All parts diagram

Spark plug cable (front-right burner)

Part #PG220015

The manufacturer no longer makes this part, and there's no substitute part

Control Panel With "viking" Logo (bk, Wh) PG210009
#72

Main top section diagram

Control panel with "viking" logo (bk, wh)

Part #PG210009

The manufacturer no longer makes this part, and there's no substitute part

Burner Head-6000 Btu (right Front) PG230016
#28

Main top section diagram

Burner head-6000 btu (right front)

Part #PG230016

The manufacturer no longer makes this part, and there's no substitute part

Burner Venturi 90 Degree (center Front And Rear, Left Rear) PG230025
#42

Main top section diagram

Burner venturi 90 degree (center front and rear, left rear)

Part #PG230025

The manufacturer no longer makes this part, and there's no substitute part

Burner Base (center Front And Rear, Left Rear) PG230022
#35

Main top section diagram

Burner base (center front and rear, left rear)

Part #PG230022

The manufacturer no longer makes this part, and there's no substitute part

Burner Grate Grey (matt Finish) PA060021
#58A

Main top section diagram

Burner grate grey (matt finish)

Part #PA060021

The manufacturer no longer makes this part, and there's no substitute part
