Model # 1106910900 Official Kenmore electric combination washer/dryer

Here are the diagrams and repair parts for Official Kenmore 1106910900 electric combination washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

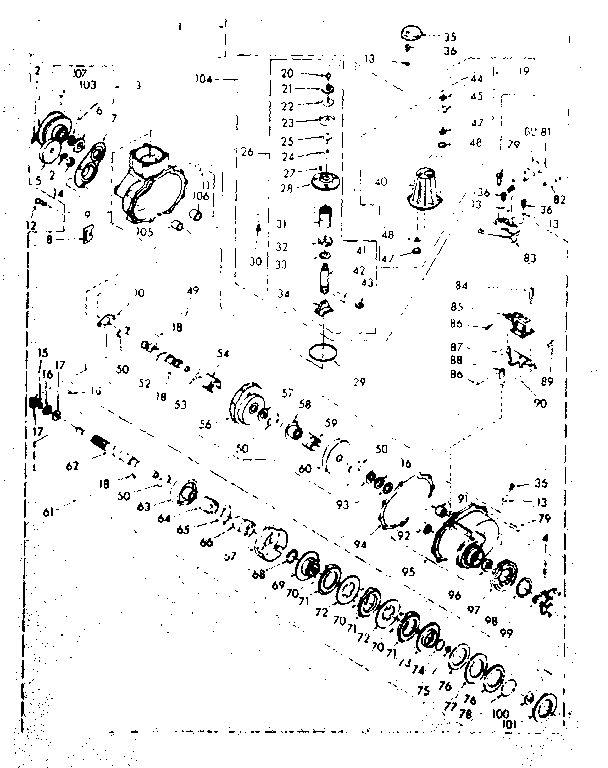

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 550 parts  |
Door Strike 236876
#32

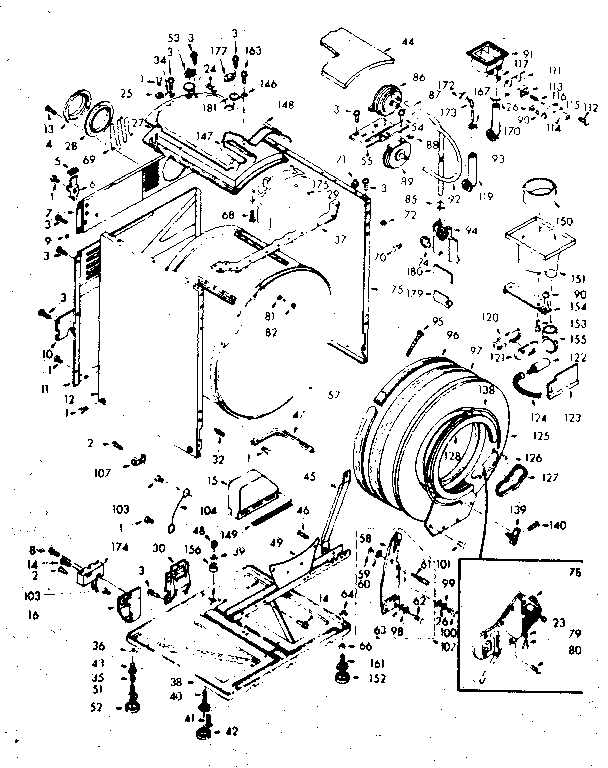

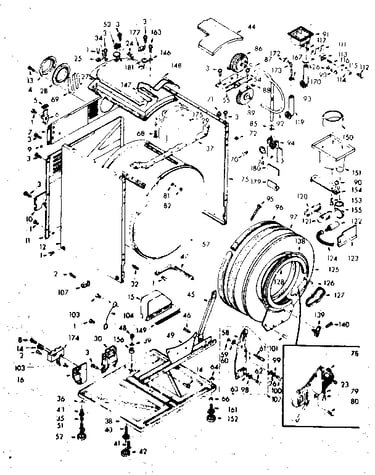

Base & tank assembly diagram

Door strike

Part #236876

Replaced by #279570

?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Door Catch 291949
#88

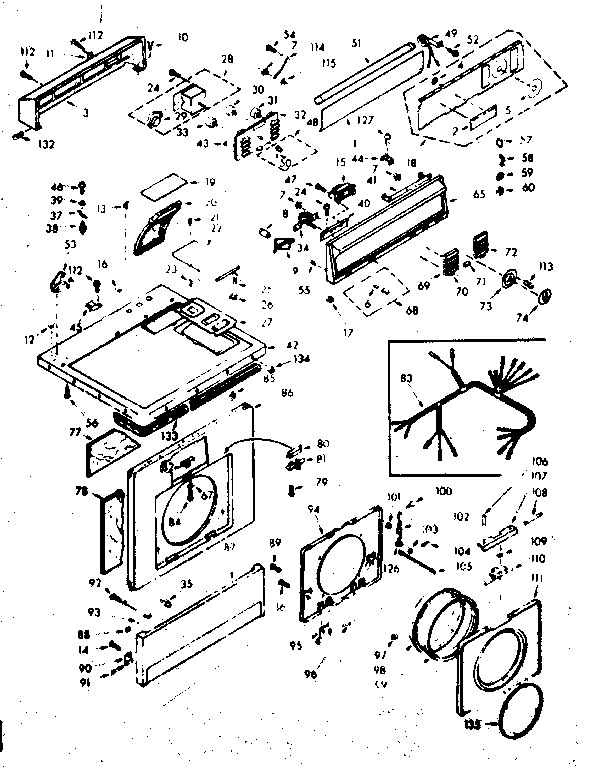

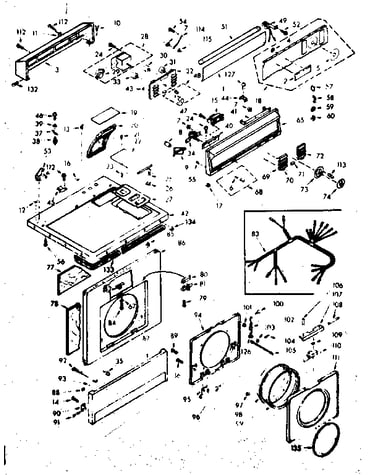

Top & front assembly diagram

Door catch

Part #291949

Replaced by #279570

?
Manufacturer substitution
This part replaces 291949. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Dispenser Tube 21503
#92

Base & tank assembly diagram

Dispenser tube

Part #21503

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 21503. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Hose 287664
#87

Base & tank assembly diagram

Hose

Part #287664

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 287664. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Thermostat 291824
#18

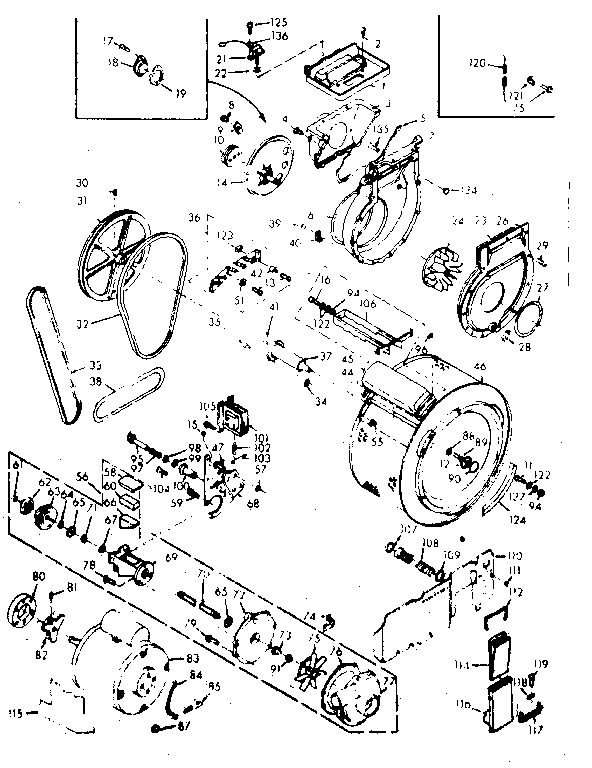

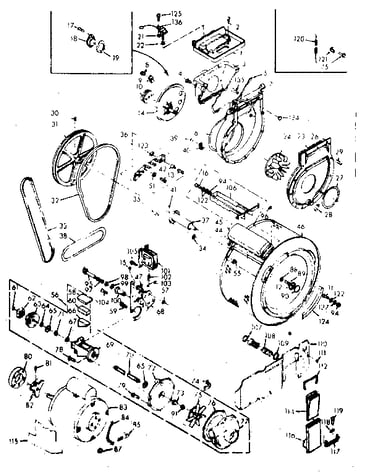

Blwr, cylndr, pump & mtr diagram

Thermostat

Part #291824

Replaced by #WP694674

?
Manufacturer substitution
This part replaces 291824. Substitute parts can look different from the original.
BEST SELLER
$55.47 |
10% OFF Phone Price : $61.47
In Stock
Tap Screw 90767
#54

Base & tank assembly diagram

Tap screw

Part #90767

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screen 85484
#11

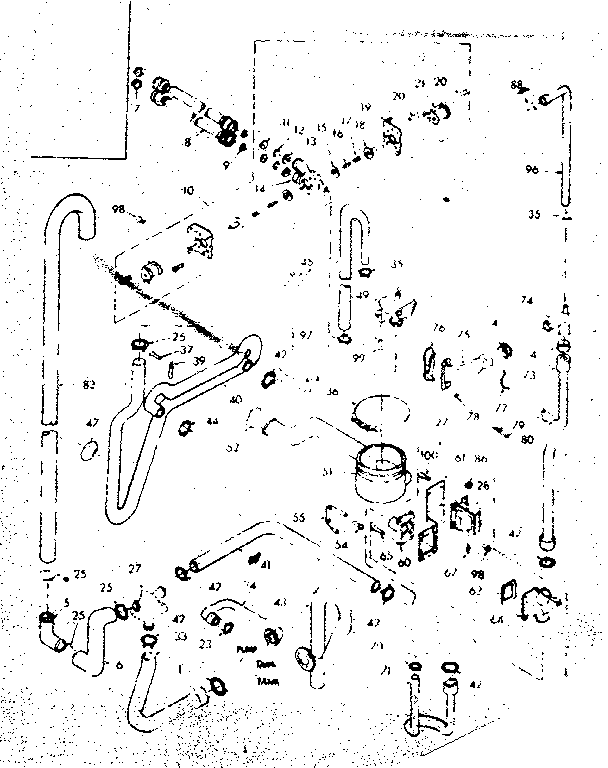

Water system diagram

Screen

Part #85484

Replaced by #WP96160

?
Manufacturer substitution
This part replaces 85484. Substitute parts can look different from the original.
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Screw 352520
#20

Water system diagram

Screw

Part #352520

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 352520. Substitute parts can look different from the original.
$13.06
In Stock
Screw 84174
#132

Top & front assembly diagram

Screw

Part #84174

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 84174. Substitute parts can look different from the original.
$13.06
In Stock
Washing Machine Washer 16123
#9

Water system diagram

Washing machine washer

Part #16123

Replaced by #WP16123

?
Manufacturer substitution
This part replaces 16123. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
