Gas Line Trimmer

Model # 2090R Official Ryobi trimmer

Here are the diagrams and repair parts for Official Ryobi 2090R trimmer, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for2090R Line Trimmers

  • Rope 181742
    #40

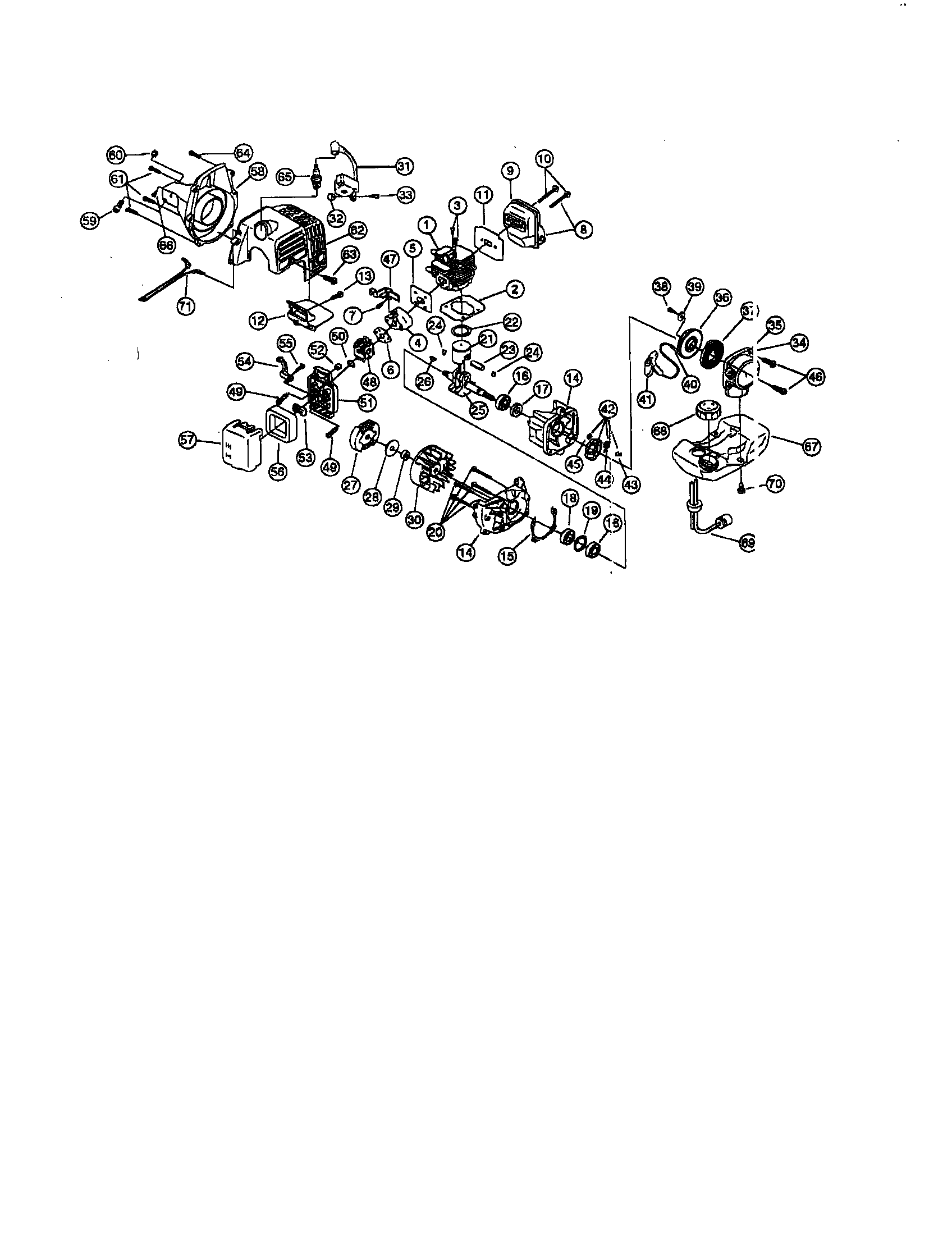

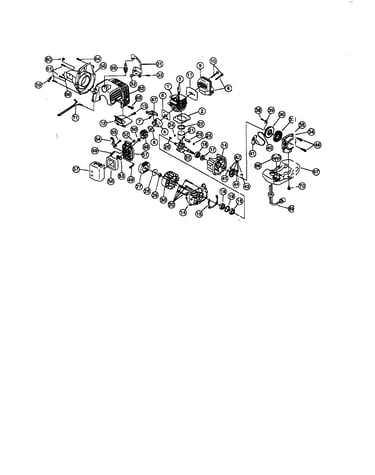

    Engine diagram

    Rope

    Part #181742

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 181710
    #7

    Engine diagram

    Screw

    Part #181710

    The manufacturer no longer makes this part, and there's no substitute part

  • Service Assembly 181717
    #14

    Engine diagram

    Service assembly

    Part #181717

    The manufacturer no longer makes this part, and there's no substitute part

  • Retainer 612026
    #36

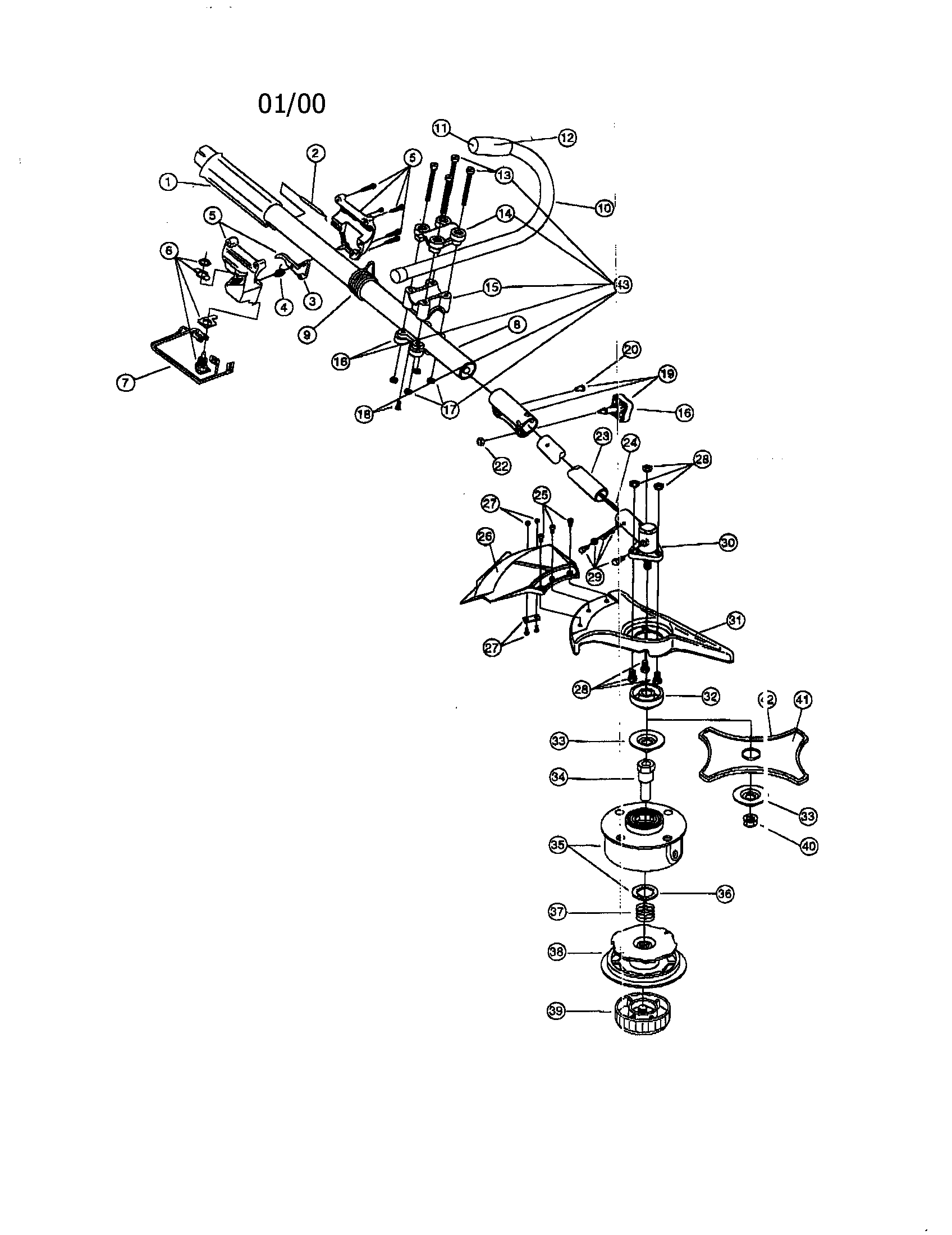

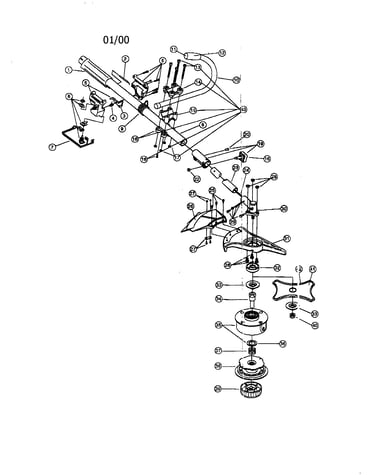

    Boom and trimmer diagram

    Retainer

    Part #612026

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate 181754
    #53

    Engine diagram

    Plate

    Part #181754

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring 610836
    #37

    Boom and trimmer diagram

    Spring

    Part #610836

    The manufacturer no longer makes this part, and there's no substitute part

  • Lead Wire 181769
    #71

    Engine diagram

    Lead wire

    Part #181769

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 181811
    #13

    Boom and trimmer diagram

    Screw

    Part #181811

    The manufacturer no longer makes this part, and there's no substitute part

  • Upper Hand 181812
    #14

    Boom and trimmer diagram

    Upper hand

    Part #181812

    The manufacturer no longer makes this part, and there's no substitute part

  • Gearbox 147488
    #30

    Boom and trimmer diagram

    Gearbox

    Part #147488

    The manufacturer no longer makes this part, and there's no substitute part
