GE
Bottom-Mount Refrigerator

Model # TCX22PACBWW Official GE refrigerator - c series

Here are the diagrams and repair parts for Official GE TCX22PACBWW refrigerator - c series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

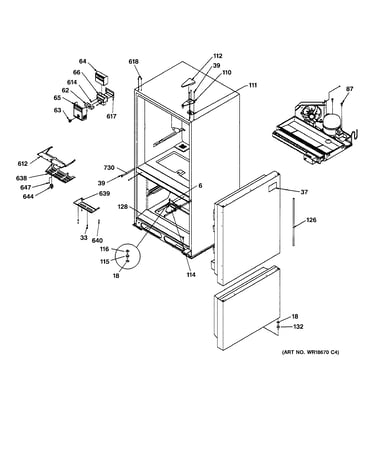

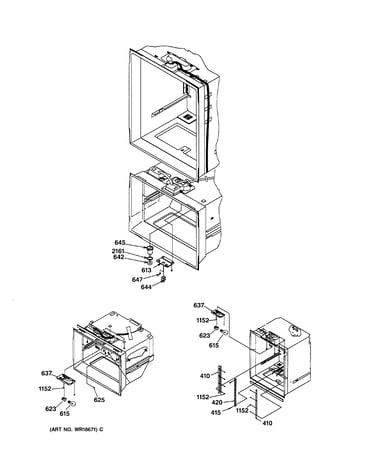

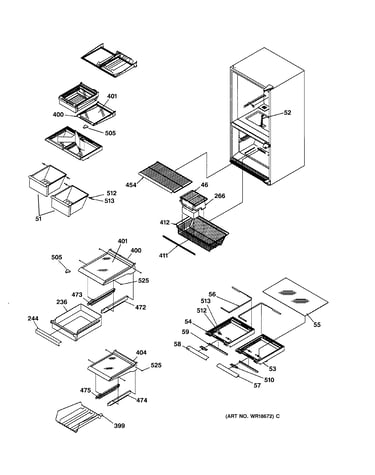

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Dryer Filter WR86X0096
#740

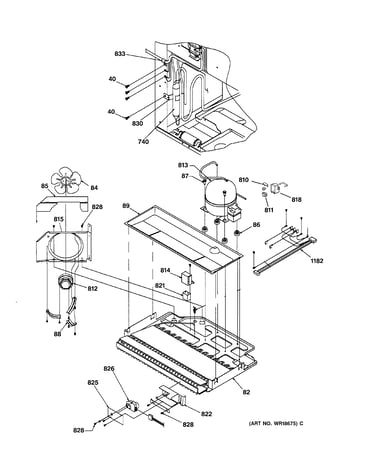

Machine compartment assembly diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Power Cord WR23X10077
#1730

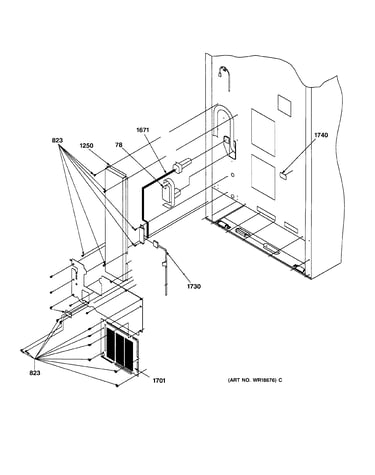

Cabinet back diagram

Refrigerator power cord

Part #WR23X10077

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X10077. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Control Wiring Harness WR23X10079
#1671

Cabinet back diagram

Refrigerator control wiring harness

Part #WR23X10079

$95.99
In Stock
Refrigerator Door Gasket WR24X10020
#25

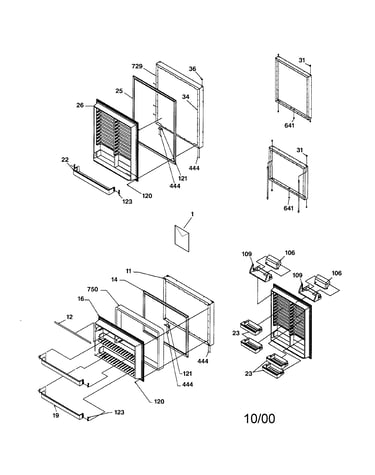

Door assemblies diagram

Refrigerator door gasket

Part #WR24X10020

$79.49
In Stock
Egg Bucket WR32X10089
#216

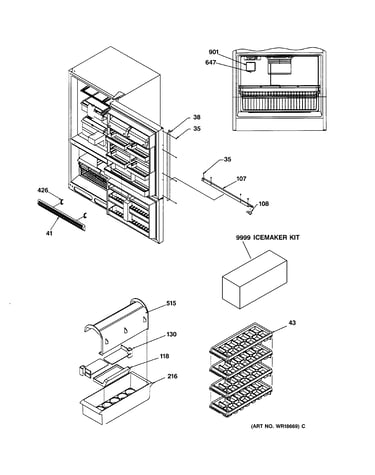

Door handles & accessories diagram

Egg bucket

Part #WR32X10089

Replaced by #WR32X1435

?
Manufacturer substitution
This part replaces WR32X10089. Substitute parts can look different from the original.
$25.91 |
19% OFF Phone Price : $31.91
In Stock
Refrigerator Screw WR01X5593
#40

Machine compartment assembly diagram

Refrigerator screw

Part #WR01X5593

Replaced by #WE02X10011

?
Manufacturer substitution
This part replaces WR01X5593. Substitute parts can look different from the original.
$23.71
In Stock
Refrigerator Control WR09X0594
#826

Machine compartment assembly diagram

Refrigerator control

Part #WR09X0594

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0594. Substitute parts can look different from the original.
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Refrigerator Button Plug WR02X10342
#108

Door handles & accessories diagram

Refrigerator button plug

Part #WR02X10342

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Relay Protector WR07X0245
#811

Machine compartment assembly diagram

Refrigerator relay protector

Part #WR07X0245

The manufacturer no longer makes this part, and there's no substitute part

Duct Ret Air WR17X3272
#727

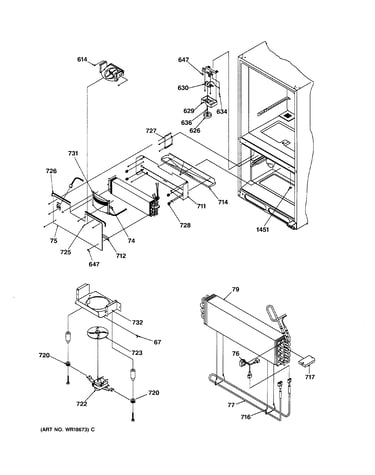

Evaporator & freezer control assemb diagram

Duct ret air

Part #WR17X3272

The manufacturer no longer makes this part, and there's no substitute part
