Tappan
Gas Range

Model # TGO336BGW1 Official Tappan gas over/under range

Here are the diagrams and repair parts for Official Tappan TGO336BGW1 gas over/under range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

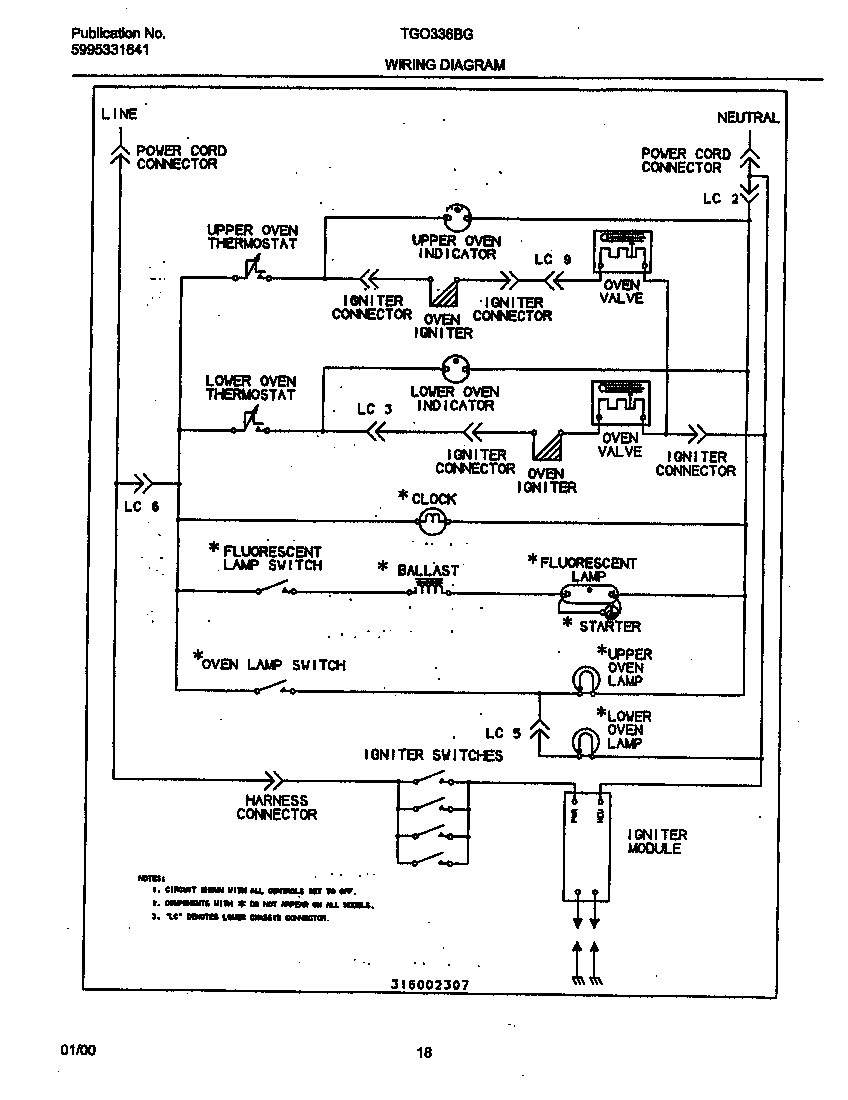

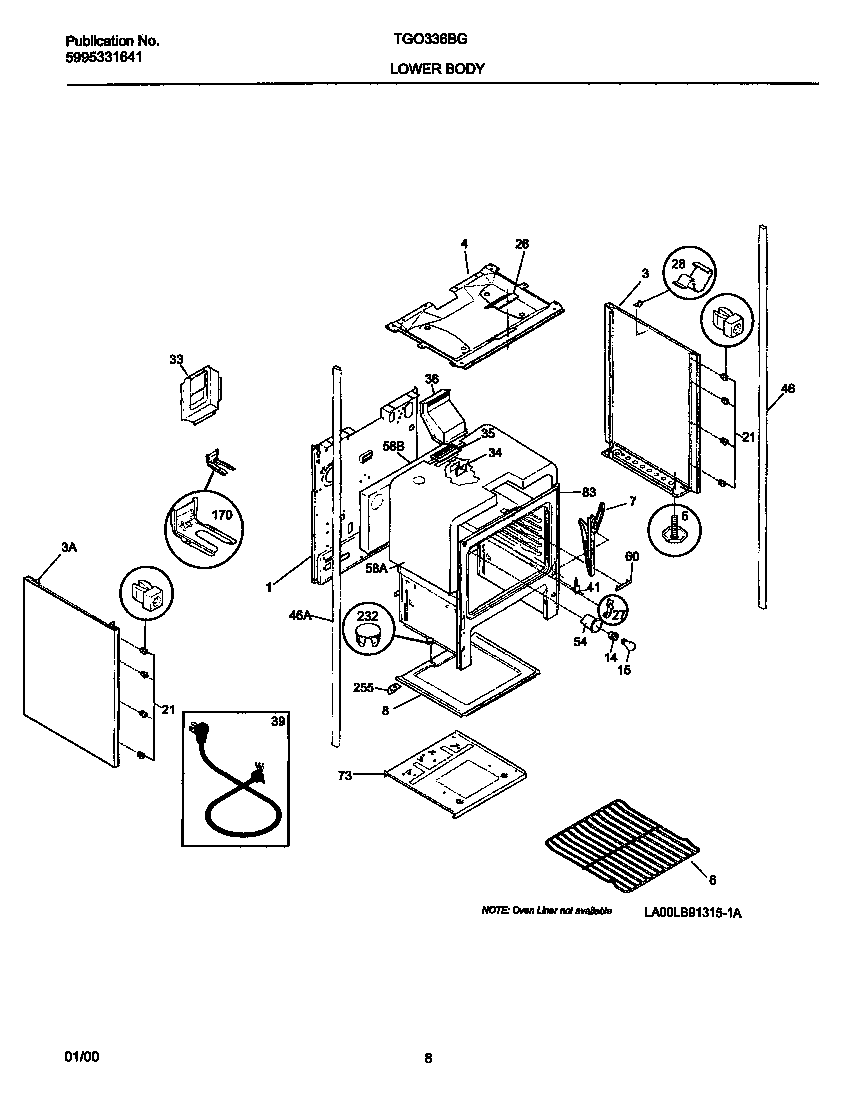

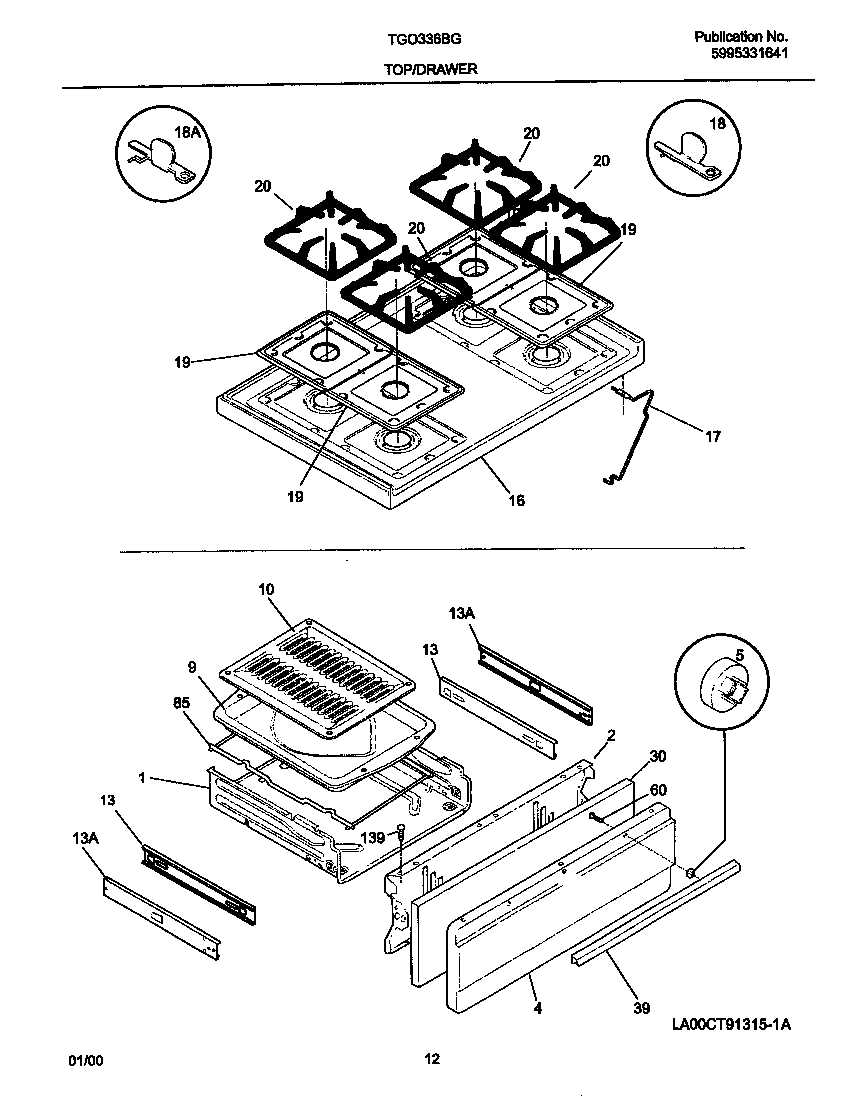

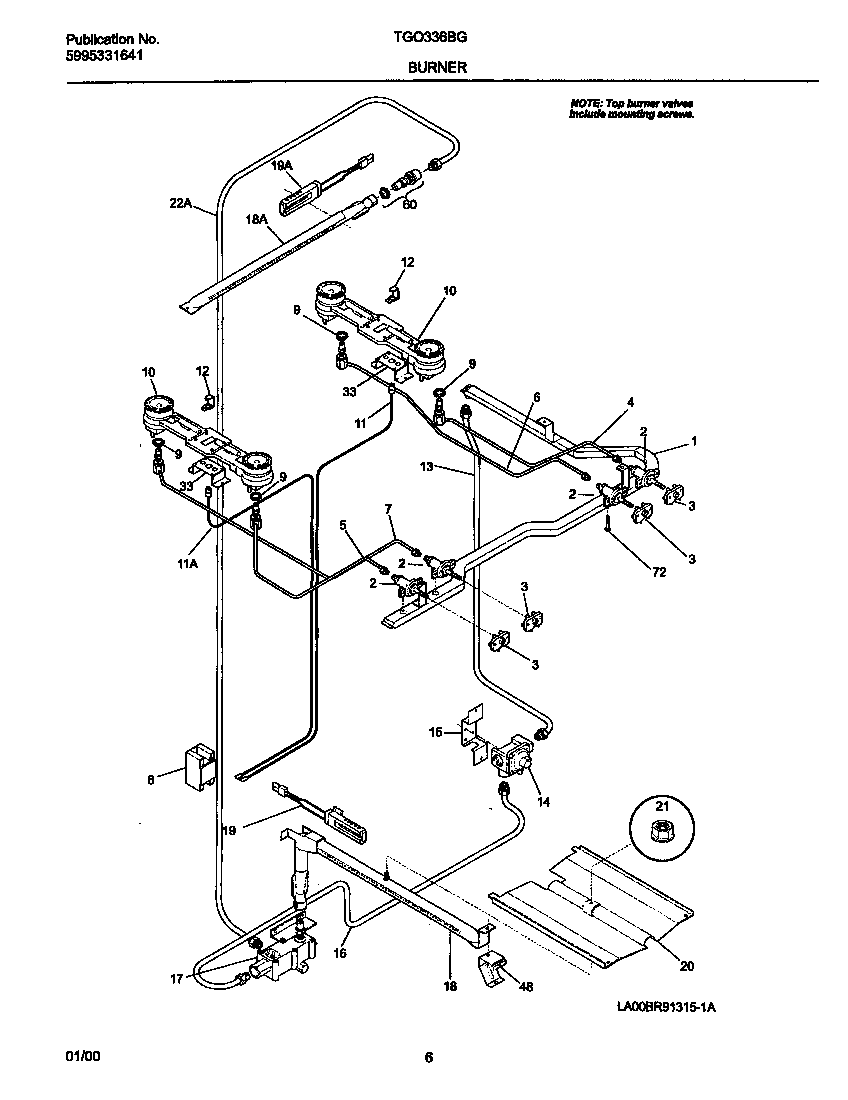

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Bulb 3201908
#18

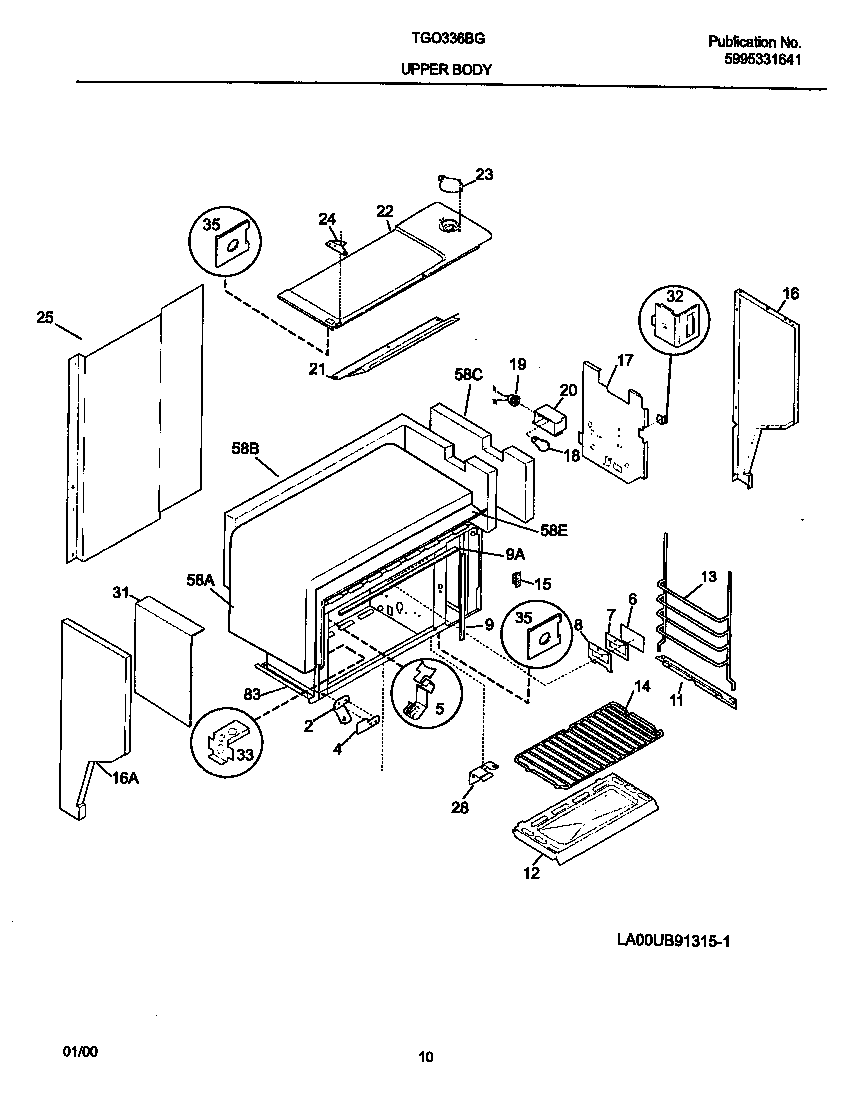

Upper body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Receptacle 5308011085
#19

Upper body diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Hex Nut 5303013272
Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Nut 3201885
#5

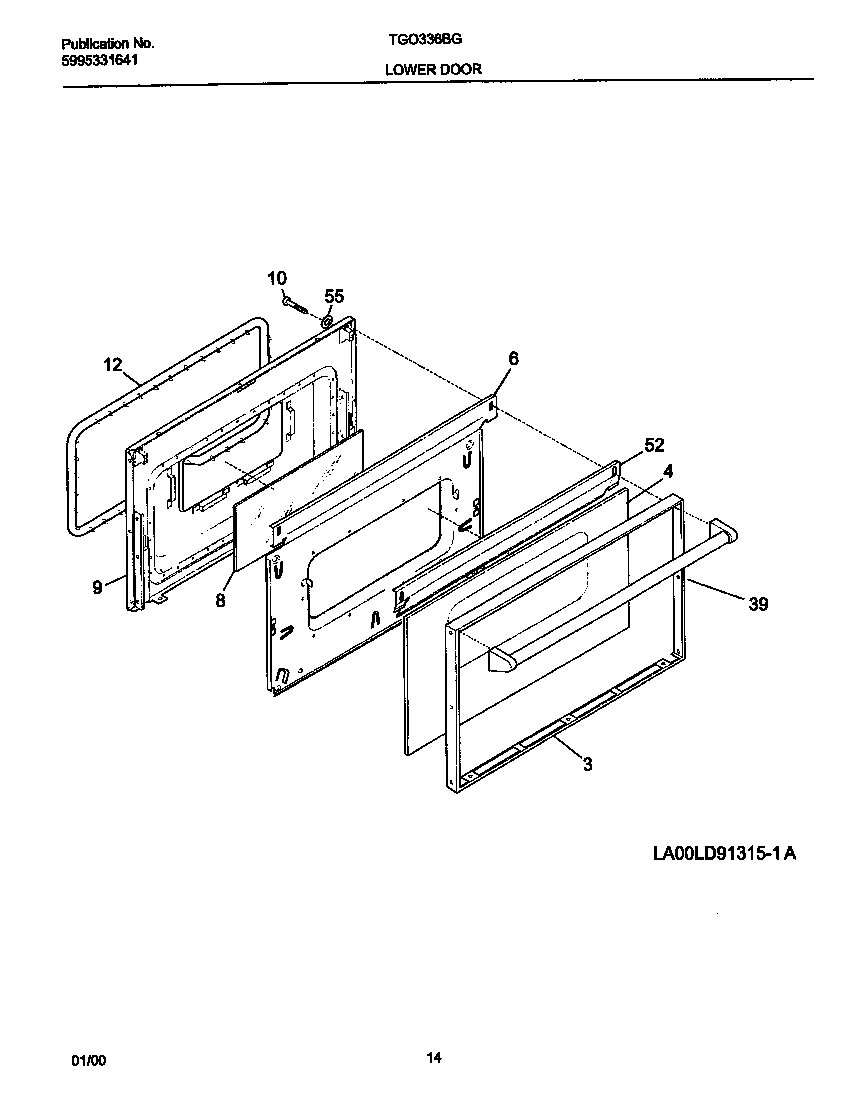

Lower door diagram

Nut

Part #3201885

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3201885. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
#5

Upper body diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Fastener 5303290119
#35

Upper body diagram

Fastener

Part #5303290119

This item is not returnable
$2.16
In Stock
Gasket 3200506
#7

Upper body diagram

Gasket

Part #3200506

$9.45
In Stock
Range Rocker Switch 5308015487
#24

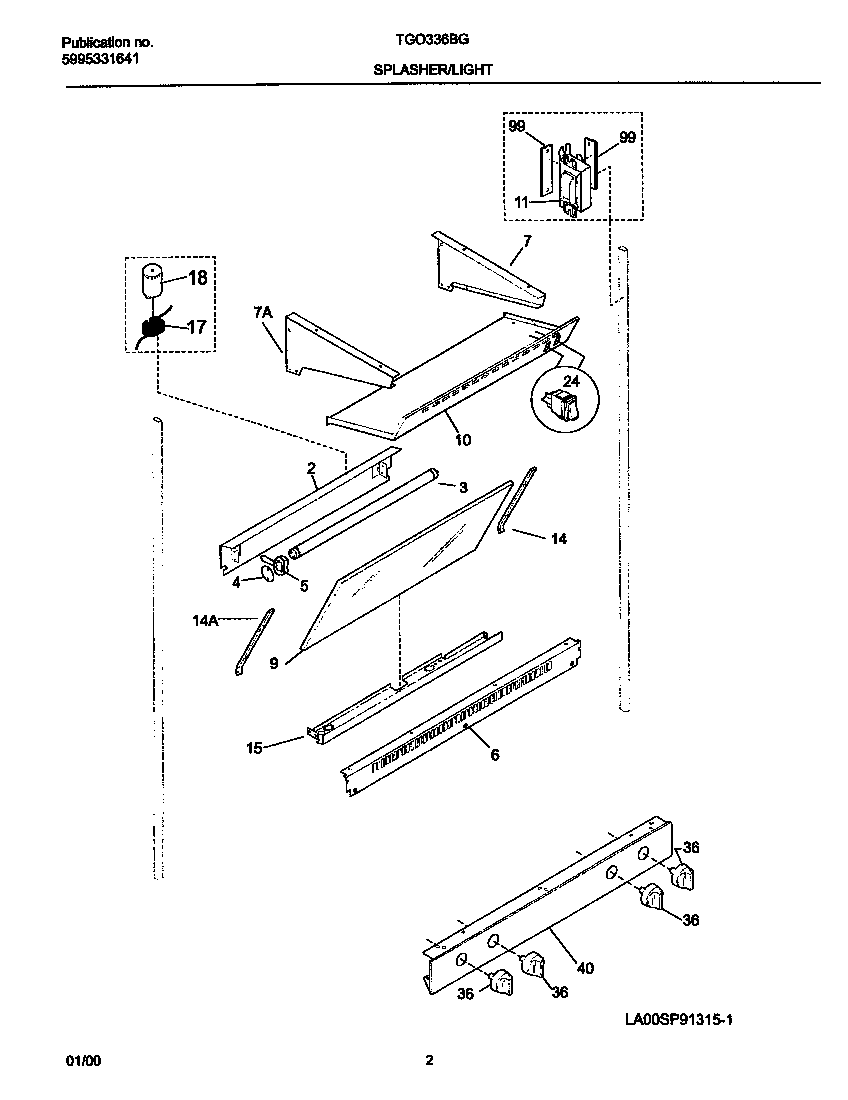

Splasher diagram

Range rocker switch

Part #5308015487

$49.40 |
11% OFF Phone Price : $55.40
In Stock
Range Screw 5303300265

#NI

All parts diagram

Range screw

Part #5303300265

This item is not returnable
$16.63
In Stock
Door Latch 318090300
#15

Upper body diagram

Door latch

Part #318090300

Replaced by #318090310

?
Manufacturer substitution
This part replaces 318090300. Substitute parts can look different from the original.
This item is not returnable
$35.36
In Stock
