Model # MAV551EEWW Official Maytag washer/dryer
Here are the diagrams and repair parts for Official Maytag MAV551EEWW washer/dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
MAV551EEWW Washer/Dryer
#1

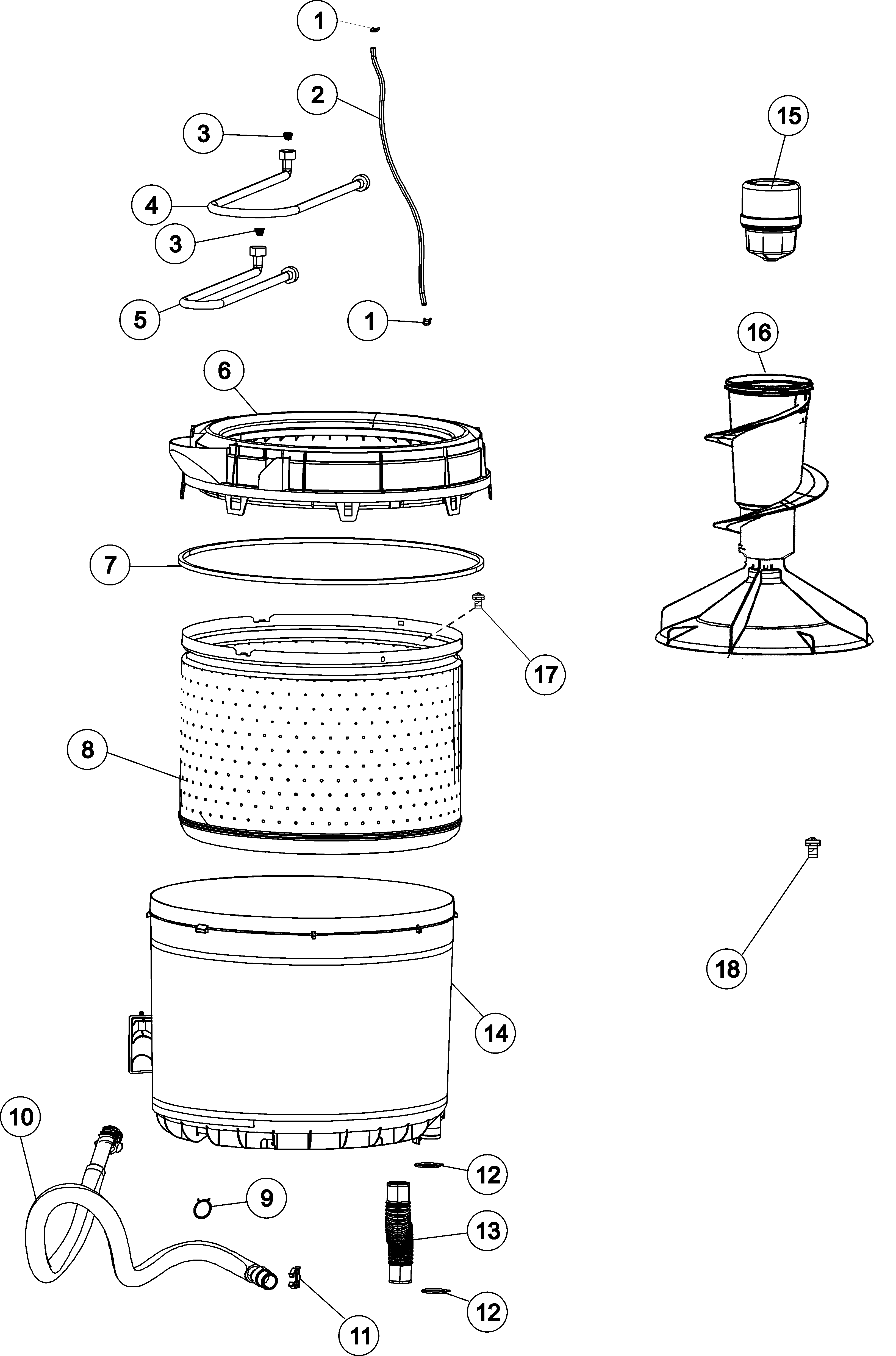

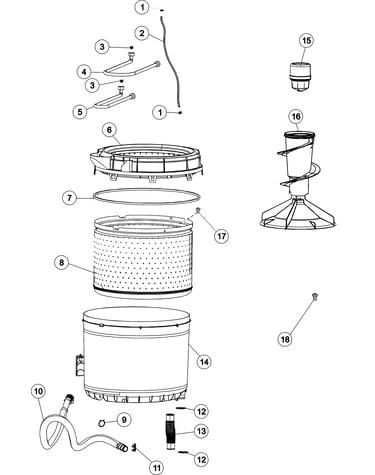

Inner - outer tub diagram
Clamp, pressure switch hose
Part #25-7796
Replaced by #WP596669
?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#19

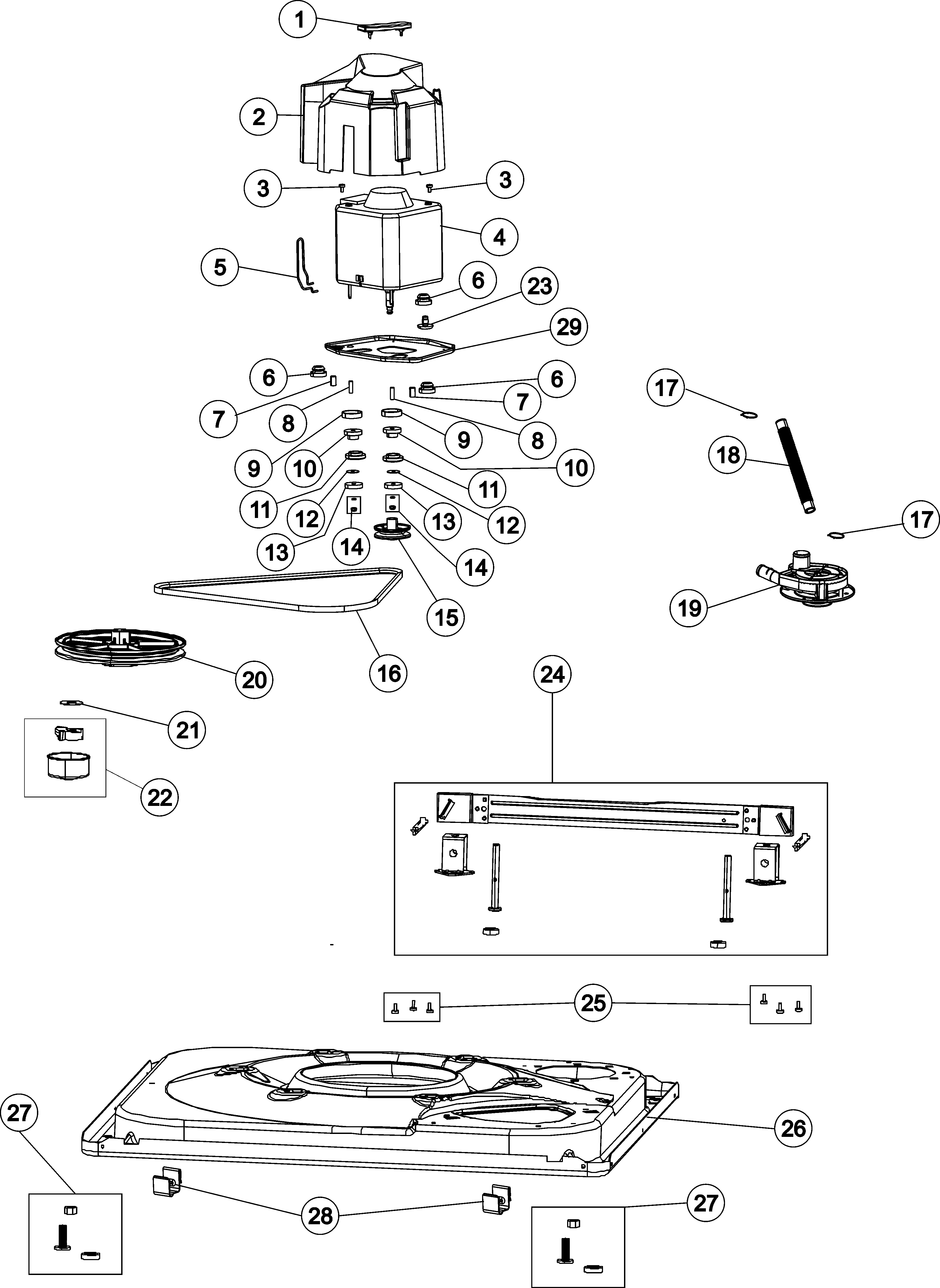

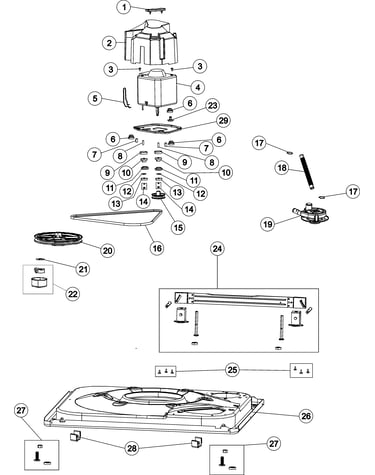

Base & motor diagram
Pump
Part #21001873
Replaced by #WP35-6780
?
Manufacturer substitution
This part replaces 21001873. Substitute parts can look different from the original.
$105.65 |
10% OFF Phone Price : $117.65
In Stock
Washer pulley and thrust bearing kit (replaces 12001797, 12500036, 22004258, 22004259, la-2007)
Part #12002213
$41.09 |
13% OFF Phone Price : $47.09
In Stock
#20
Base & motor diagram
Pulley, driv
Part #21001733
Replaced by #12002213
?
Manufacturer substitution
This part replaces 21001733. Substitute parts can look different from the original.
$41.09 |
13% OFF Phone Price : $47.09
In Stock
#18

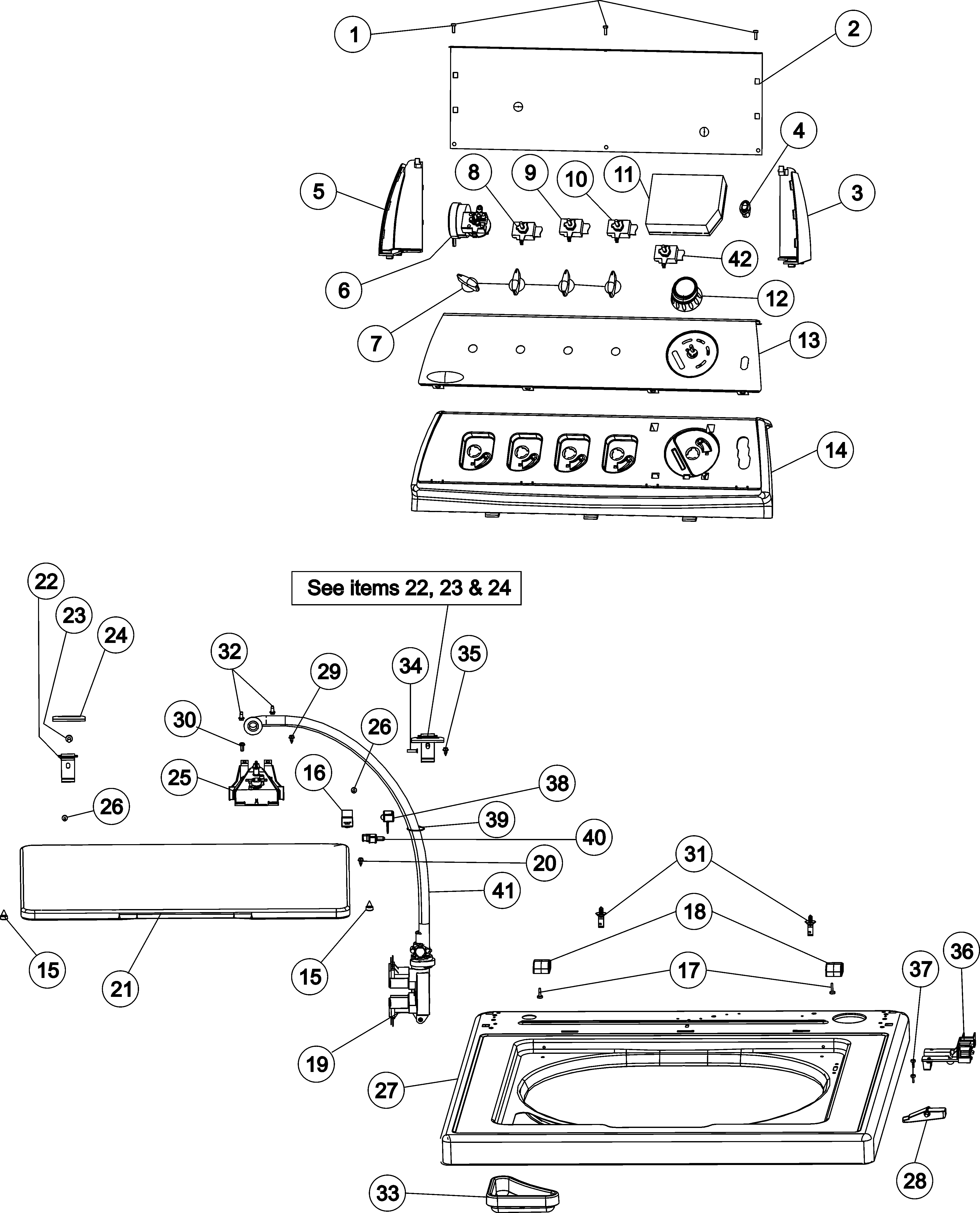

Control panel & top diagram
Washer lid hinge
Part #35-2044
Replaced by #WP35-2044
?
Manufacturer substitution
This part replaces 35-2044. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#3

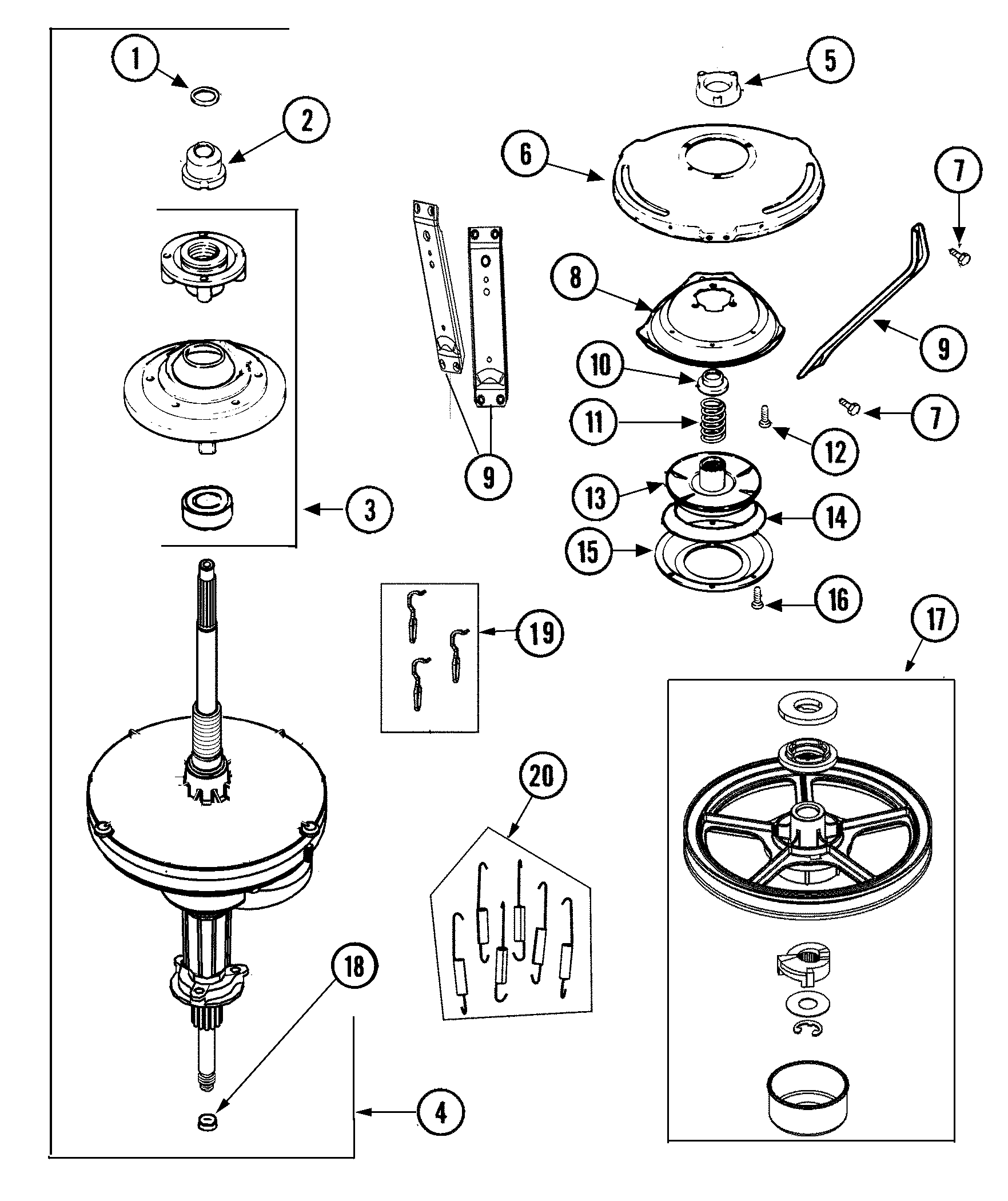

Transmission diagram
Seal hub
Part #21001868
Replaced by #W10219156
?
Manufacturer substitution
This part replaces 21001868. Substitute parts can look different from the original.
$148.42 |
7% OFF Phone Price : $160.42
In Stock
Screw
Part #25-7893
Replaced by #WP25-7893
?
Manufacturer substitution
This part replaces 25-7893. Substitute parts can look different from the original.
This item is not returnable
$33.06
In Stock
#38
Control panel & top diagram
Washer lid switch actuator
Part #43-0057
Replaced by #WP43-0057
?
Manufacturer substitution
This part replaces 43-0057. Substitute parts can look different from the original.
$38.29 |
14% OFF Phone Price : $44.29
In Stock
#41
Control panel & top diagram
Washer tub fill nozzle hose (replaces 35-2378)
Part #12002749
$22.29 |
21% OFF Phone Price : $28.29
In Stock
#5
Base & motor diagram
Spring motor
Part #21001110
Replaced by #WP22004376
?
Manufacturer substitution
This part replaces 21001110. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
