Log Splitter

Model # 24777640-2009 Official Craftsman log splitter

Here are the diagrams and repair parts for Official Craftsman 24777640-2009 log splitter, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for24777640-2009 Log Splitter

  • Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 712-04063
    #48

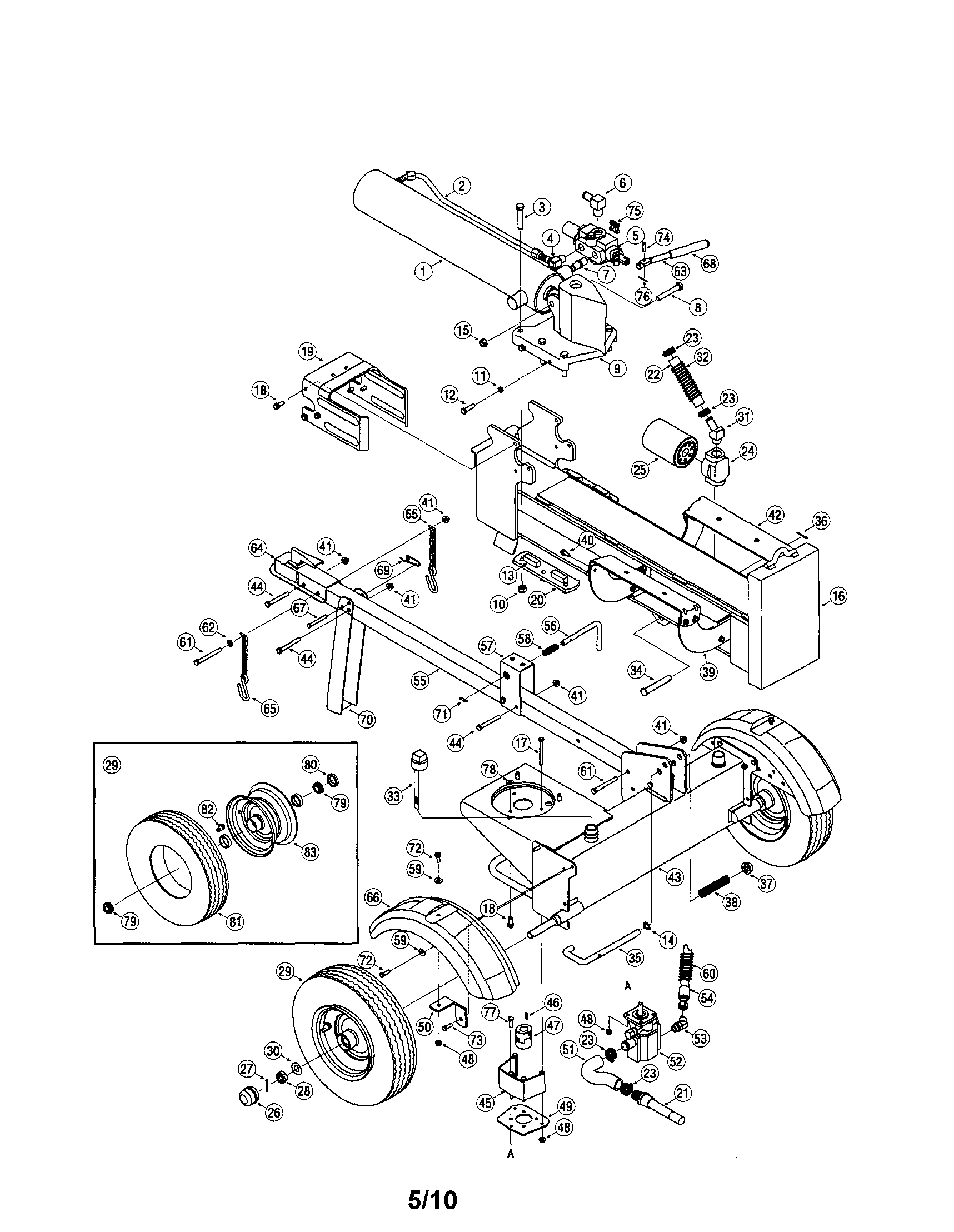

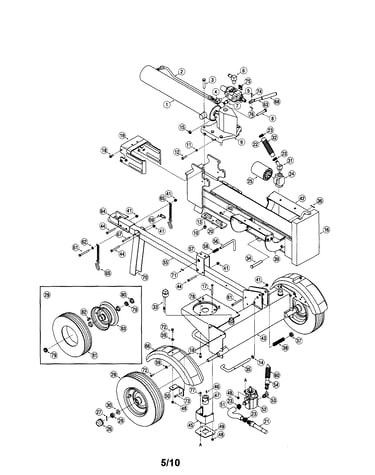

    Log splitter diagram

    Yard machines lawn & garden equipment lock nut, 5/16-18

    Part #712-04063

    BEST SELLER
    This item is not returnable
    $4.81
    17% OFF Phone Price : $5.81
    In Stock
  • Mtd Yard Machines Lawn Tractor Flange Nut 712-04065
    #41

    Log splitter diagram

    Mtd yard machines lawn tractor flange nut

    Part #712-04065

    BEST SELLER
    This item is not returnable
    $5.50
    15% OFF Phone Price : $6.50
    In Stock
  • Lawn Tractor Self-tapping Screw, 5/16-18 X 3/4-in 710-04484
    #40

    Log splitter diagram

    Lawn tractor self-tapping screw, 5/16-18 x 3/4-in

    Part #710-04484

    This item is not returnable
    $5.20
    16% OFF Phone Price : $6.20
    In Stock
  • Lawn Tractor Tire Valve Stem 934-0255
    #82

    Log splitter diagram

    Lawn tractor tire valve stem

    Part #934-0255

    This item is not returnable
    $6.46
    13% OFF Phone Price : $7.46
    In Stock
  • Log Splitter Hydraulic Filter 723-0405
    #25

    Log splitter diagram

    Log splitter hydraulic filter

    Part #723-0405

    Replaced by #723P0405

    ?
    Manufacturer substitution
    This part replaces 723-0405. Substitute parts can look different from the original.
    $47.10
    11% OFF Phone Price : $53.10
    In Stock
  • Mtd Lawn & Garden Equipment Push Cap 726-0214
    #37

    Log splitter diagram

    Mtd lawn & garden equipment push cap

    Part #726-0214

    This item is not returnable
    $16.71
    11% OFF Phone Price : $18.71
    In Stock
  • Log Splitter Wedge Assembly 719-0550A
    #9

    Log splitter diagram

    Log splitter wedge assembly

    Part #719-0550A

    $225.83
    5% OFF Phone Price : $237.83
    In Stock
  • Mtd Log Splitter Pump Flex Coupling 735-04103
    #47C

    Log splitter diagram

    Mtd log splitter pump flex coupling

    Part #735-04103

    This item is not returnable
    $24.02
    20% OFF Phone Price : $30.02
    In Stock
  • Log Splitter Control Valve 918-0481A
    #5

    Log splitter diagram

    Log splitter control valve

    Part #918-0481A

    $352.71
    $12.00 OFF Phone Price : $364.71
    In Stock
  • Log Splitter Log Tray Support Bracket 781-04179-0637
    #42

    Log splitter diagram

    Log splitter log tray support bracket

    Part #781-04179-0637

    $65.51
    8% OFF Phone Price : $71.51
    In Stock
