Model # GSD1821X66BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GSD1821X66BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Dishwasher Tub Corner Baffle, Right (replaces Wd08x0227, Wd8x196) WD8X227
#26A

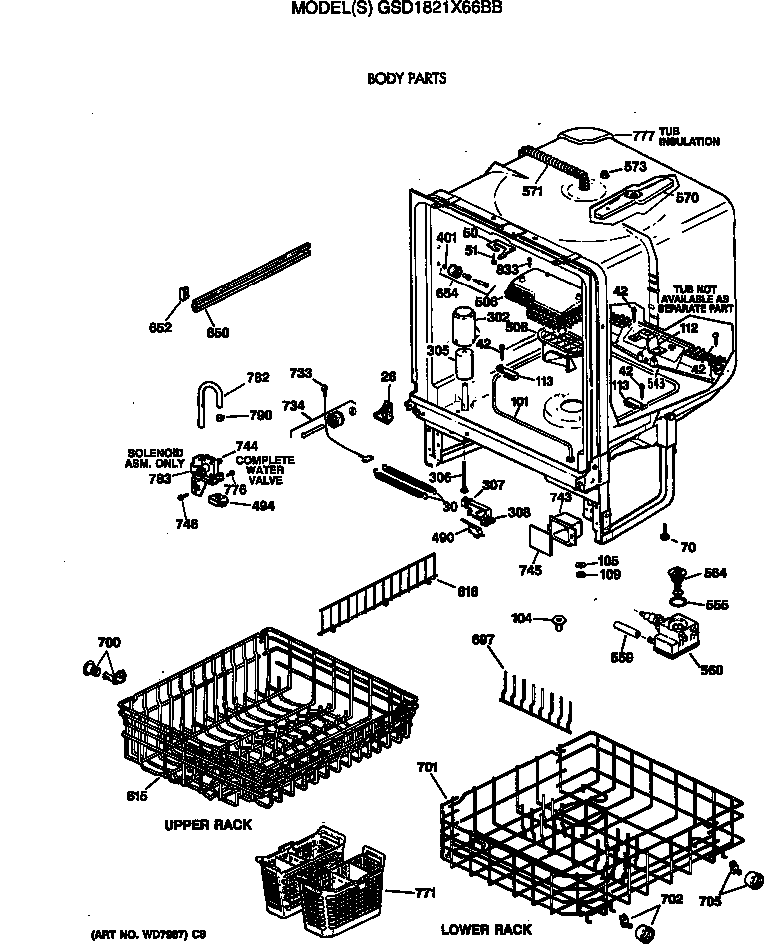

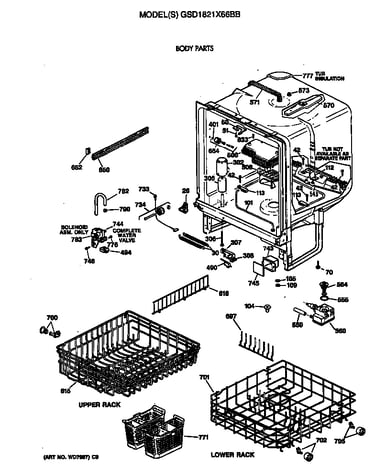

Body parts diagram

Dishwasher tub corner baffle, right (replaces wd08x0227, wd8x196)

Part #WD8X227

BEST SELLER
$19.45 |
9% OFF Phone Price : $21.45
In Stock
Dishwasher Tub Corner Baffle, Left (replaces Wd08x0228, Wd8x195) WD8X228
#26B

Body parts diagram

Dishwasher tub corner baffle, left (replaces wd08x0228, wd8x195)

Part #WD8X228

BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Interlock WD21X557
#803

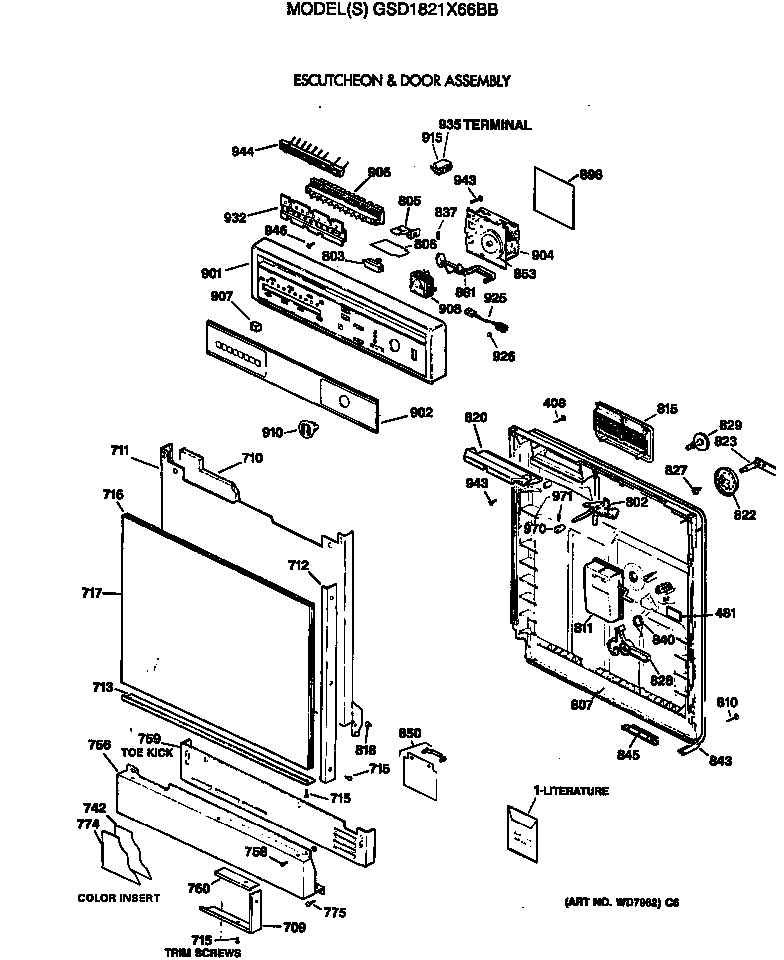

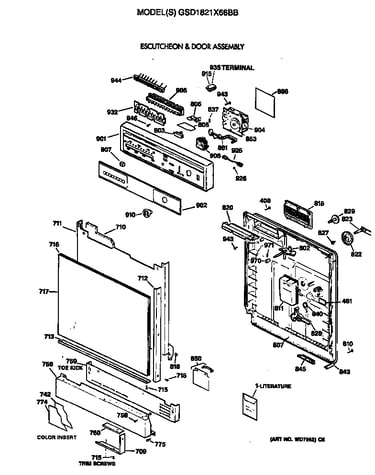

Escutcheon & door assembly diagram

Interlock

Part #WD21X557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X557. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Rack WD28X296
#615

Body parts diagram

Rack

Part #WD28X296

Replaced by #WD28X31820

?
Manufacturer substitution
This part replaces WD28X296. Substitute parts can look different from the original.
BEST SELLER
$112.17 |
10% OFF Phone Price : $124.17
In Stock
Drain Tube WD24X219
#462

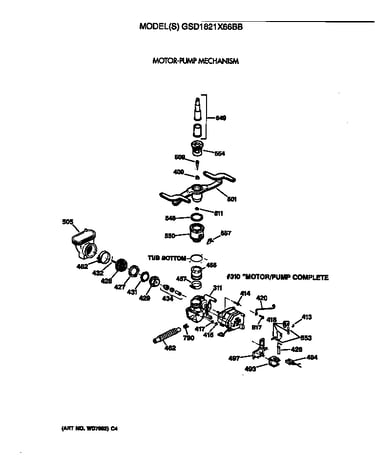

Motor-pump mechanism diagram

Drain tube

Part #WD24X219

Replaced by #WD24X10014

?
Manufacturer substitution
This part replaces WD24X219. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Nut Twr H WD1X1491
#104

Body parts diagram

Nut twr h

Part #WD1X1491

Replaced by #WD01X10070

?
Manufacturer substitution
This part replaces WD1X1491. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Rack Roller WD12X272
#705

Body parts diagram

Rack roller

Part #WD12X272

Replaced by #WD35X21038

?
Manufacturer substitution
This part replaces WD12X272. Substitute parts can look different from the original.
BEST SELLER
$32.91 |
15% OFF Phone Price : $38.91
In Stock
Dishwasher Door Seal (replaces Wd08x0229, Wd8m13, Wd8x193, Wd8x214, Wd8x216, Wd8x220, Wd8x223) WD8X229
#843

Escutcheon & door assembly diagram

Dishwasher door seal (replaces wd08x0229, wd8m13, wd8x193, wd8x214, wd8x216, wd8x220, wd8x223)

Part #WD8X229

BEST SELLER
$43.04 |
12% OFF Phone Price : $49.04
In Stock
Dishwasher Water Inlet Valve (replaces Wd15x0093, Wd15x80) WD15X93
#744

Body parts diagram

Dishwasher water inlet valve (replaces wd15x0093, wd15x80)

Part #WD15X93

BEST SELLER
$29.30 |
17% OFF Phone Price : $35.30
In Stock
Solenoid Assembly WD21X536
#783

Body parts diagram

Solenoid assembly

Part #WD21X536

Replaced by #WD15X93

?
Manufacturer substitution
This part replaces WD21X536. Substitute parts can look different from the original.
BEST SELLER
$29.30 |
17% OFF Phone Price : $35.30
In Stock
