Model # 48GX048090300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48GX048090300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

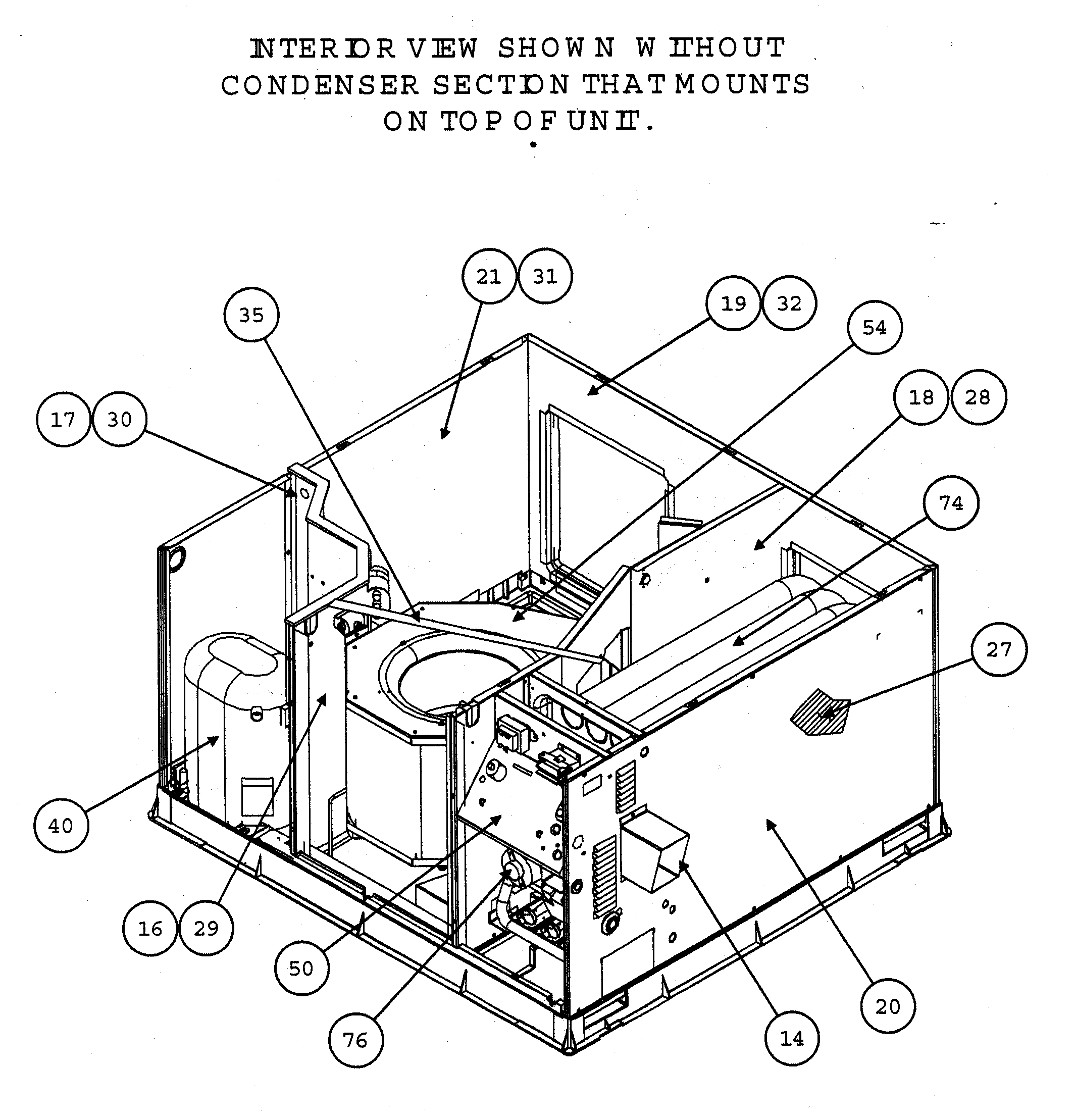

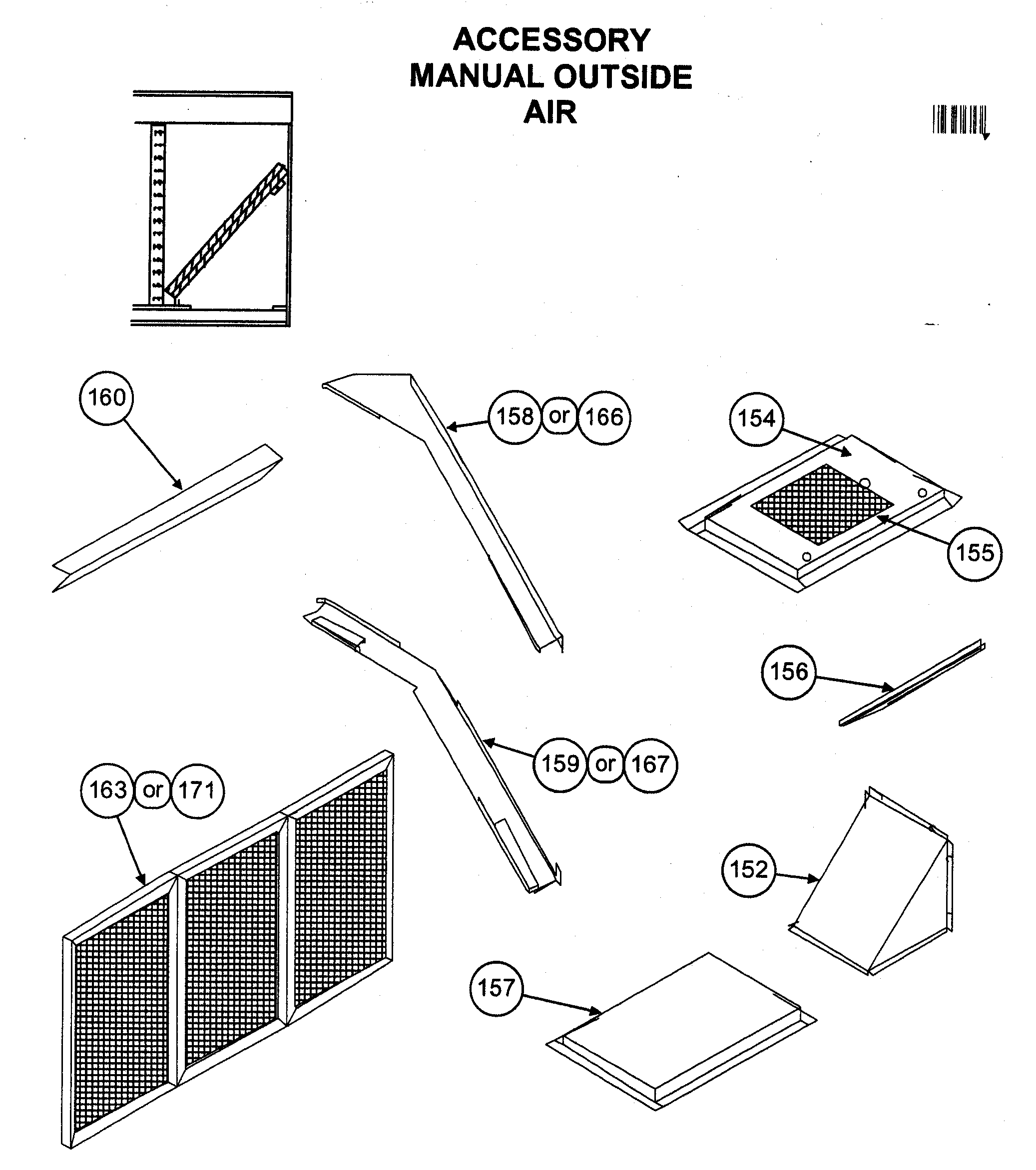

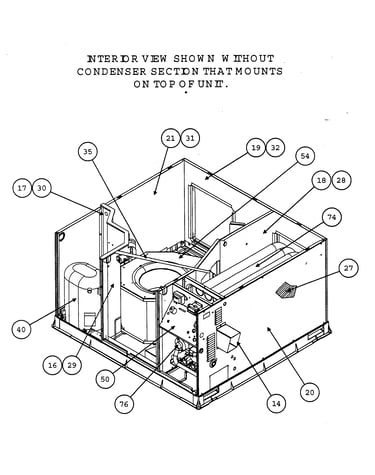

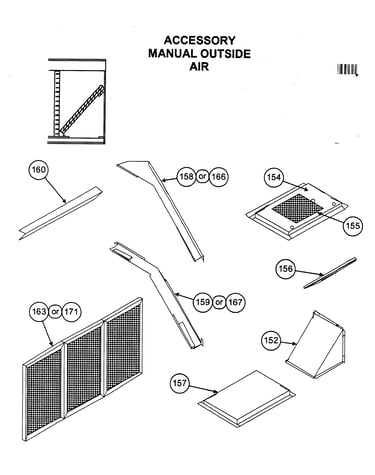

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Contactor HN51JD024
#48

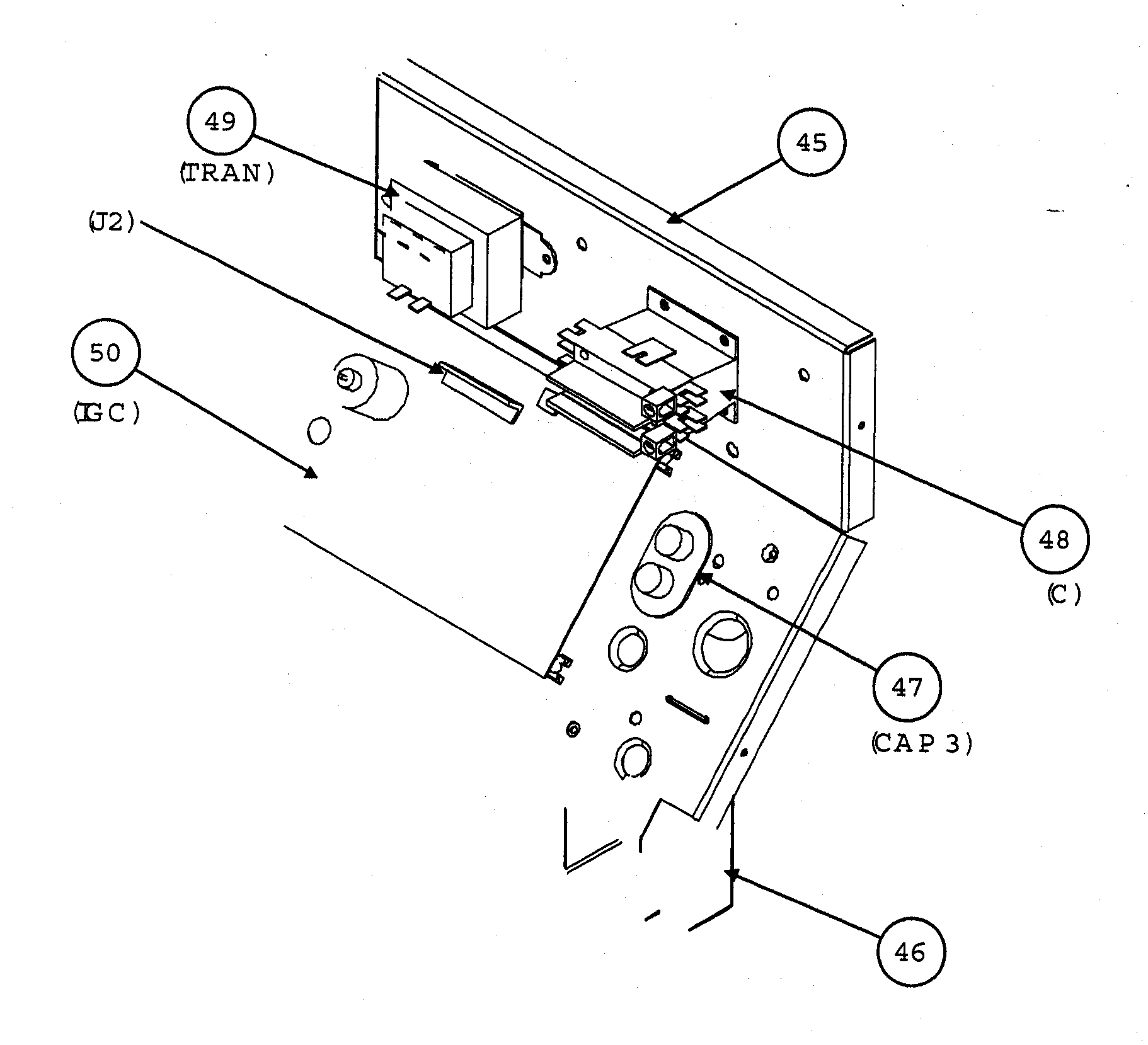

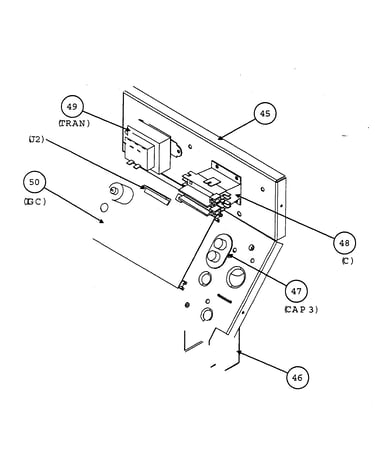

Control box assy diagram

Contactor

Part #HN51JD024

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Wire Harness 9962-0083
#110

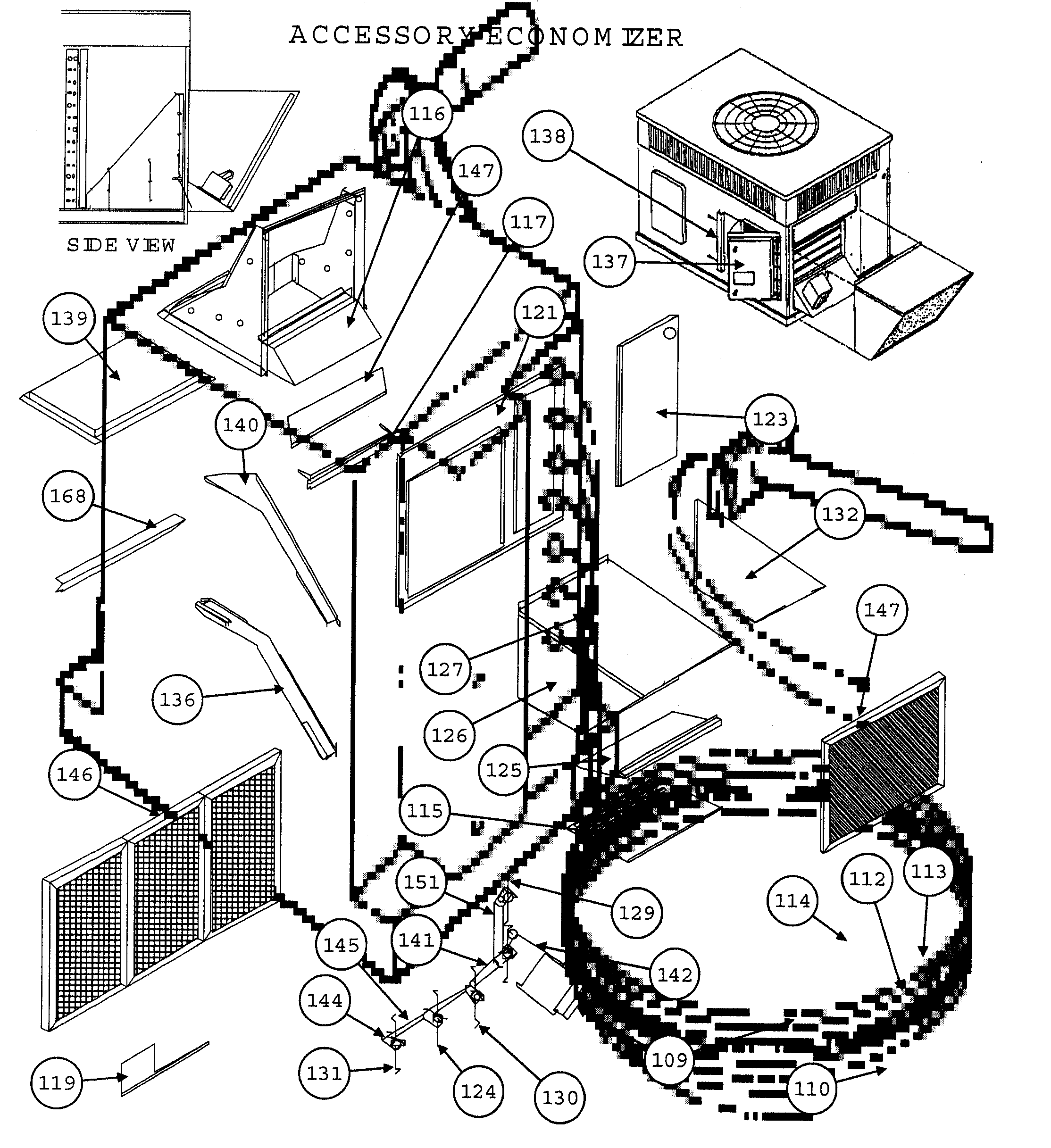

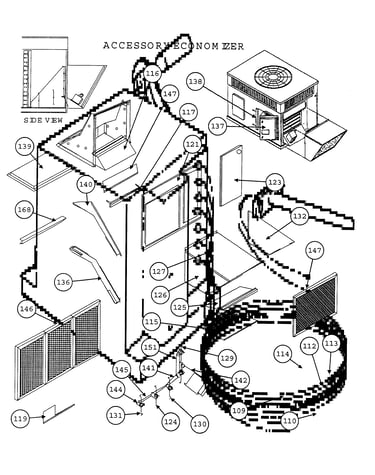

Accessory economizer diagram

Central air conditioner wire harness

Part #9962-0083

$357.73
In Stock
Mtr Mnt Band P251-0078
#62

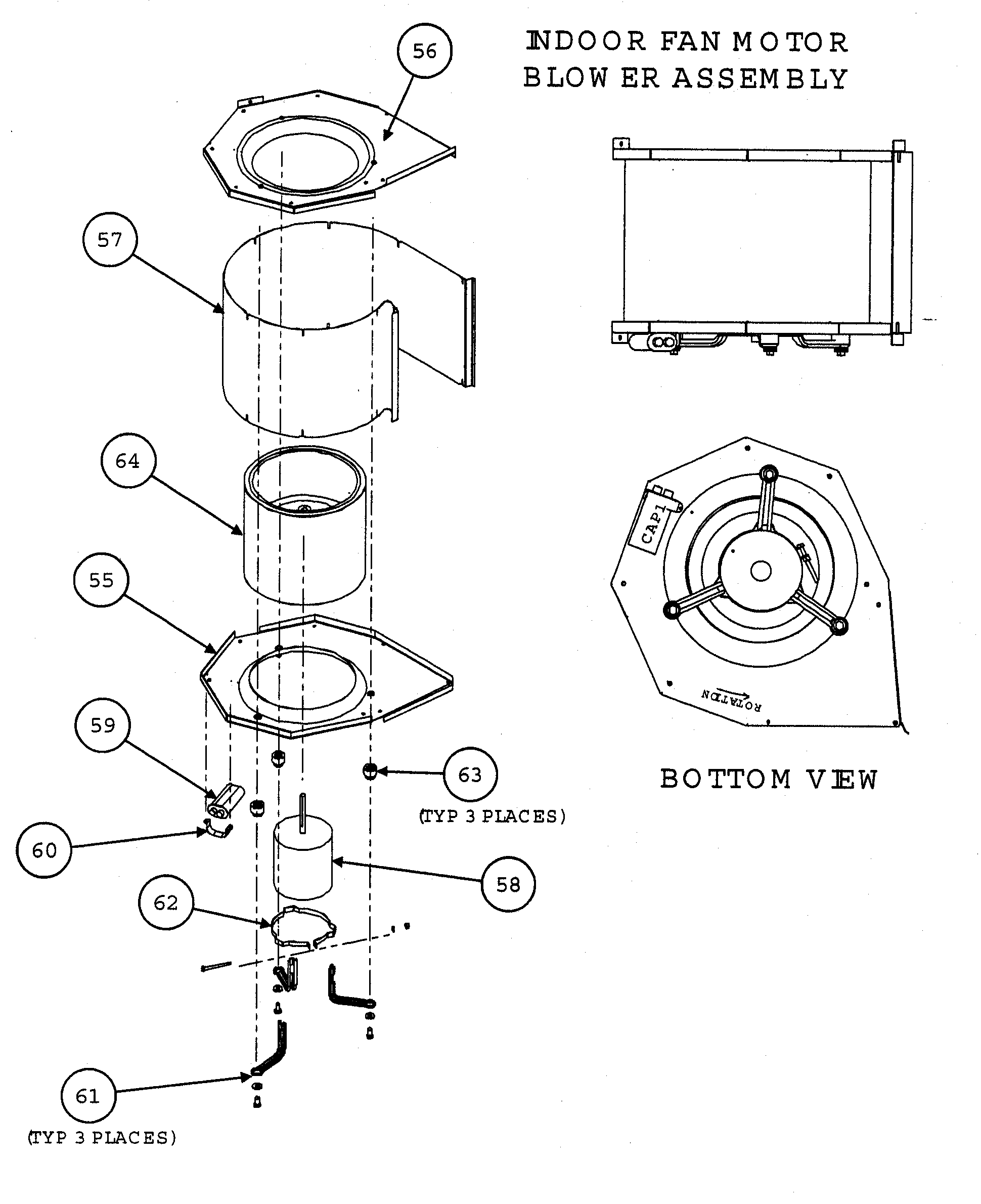

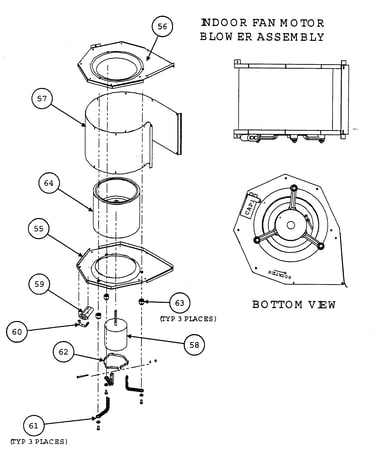

Indoor fan motor/blower assy diagram

Mtr mnt band

Part #P251-0078

$24.58
In Stock
Furnace Heat Exchanger Cover 48GS400108
#81

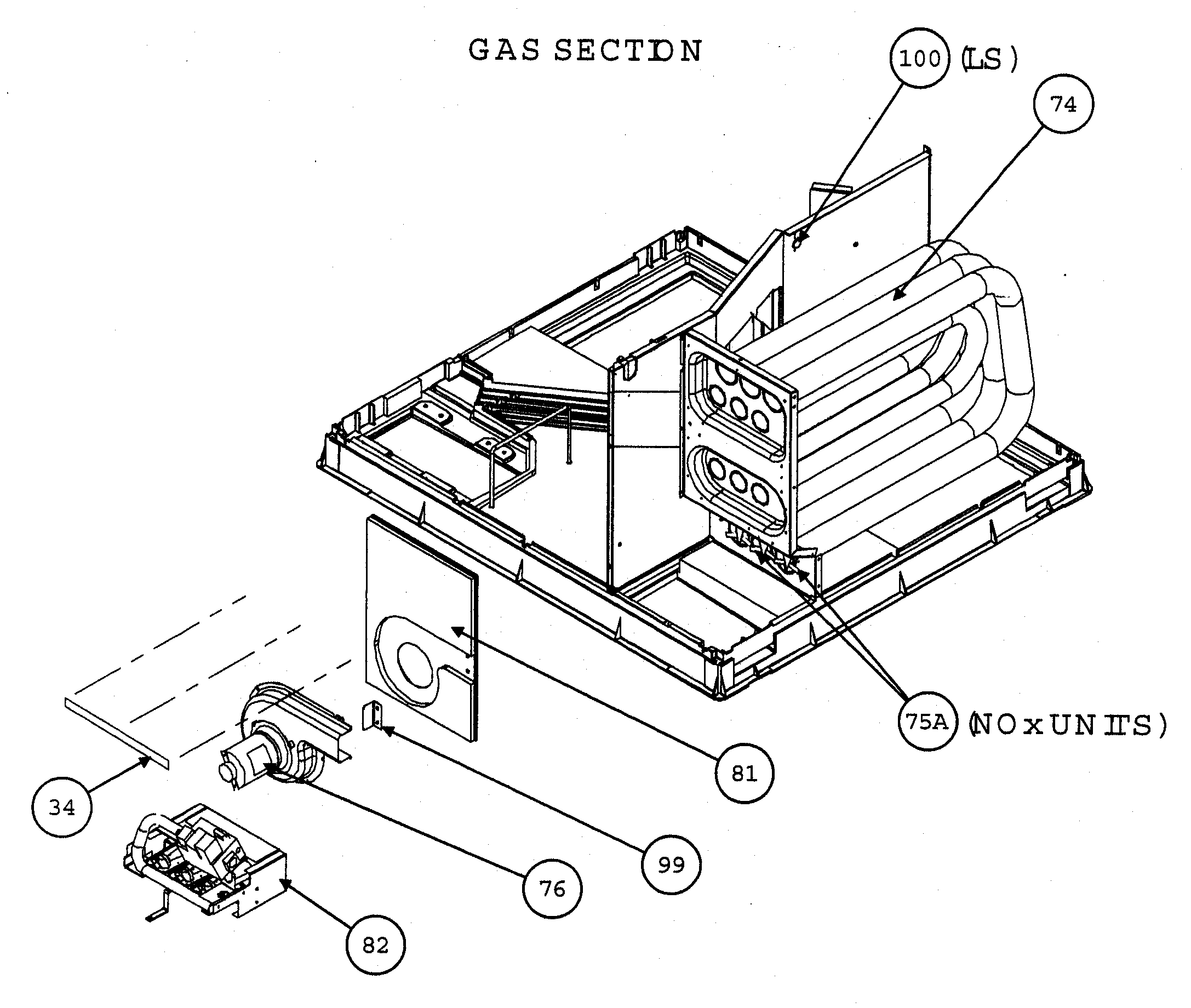

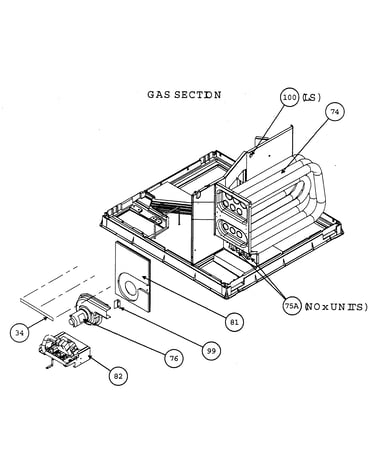

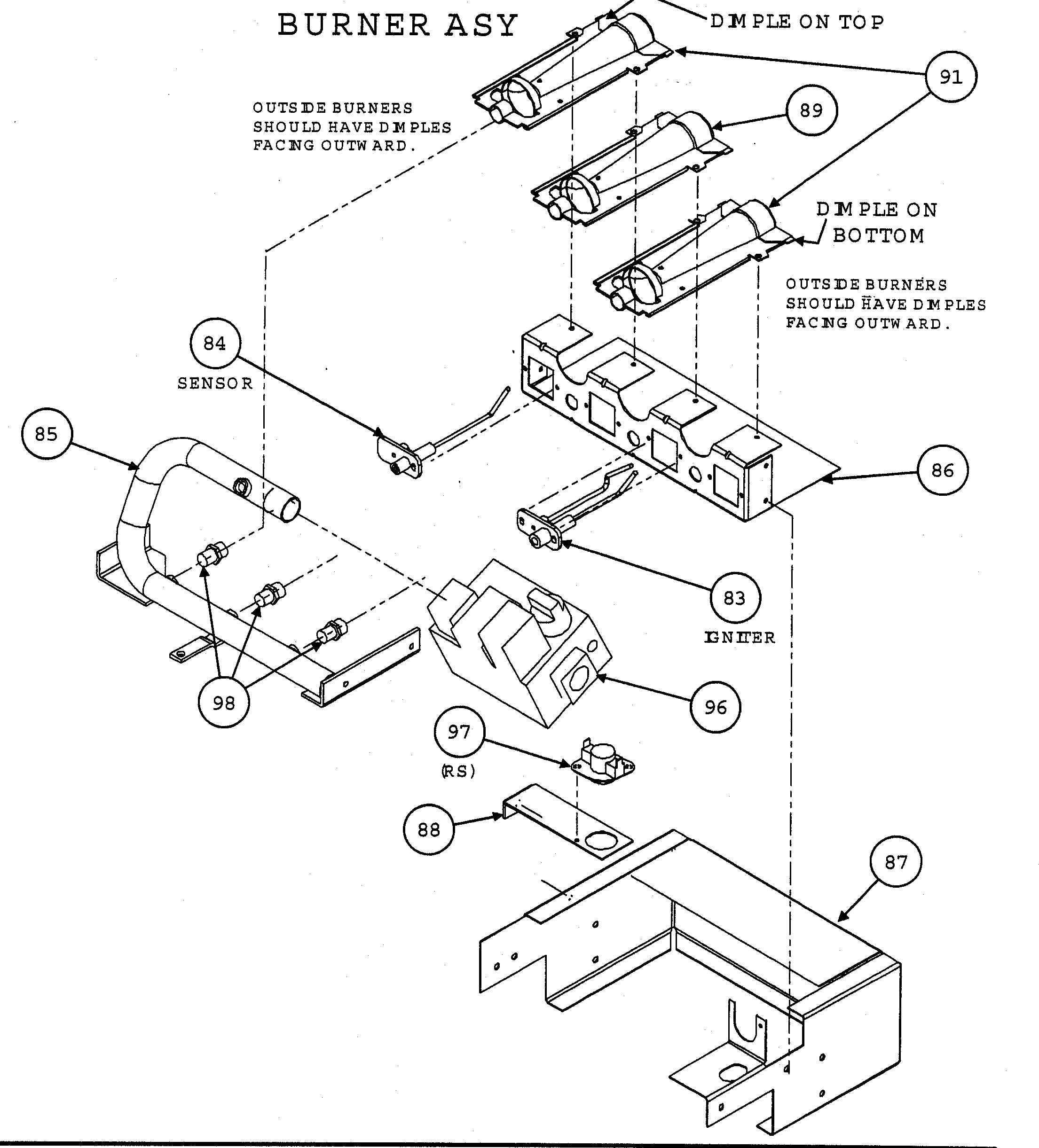

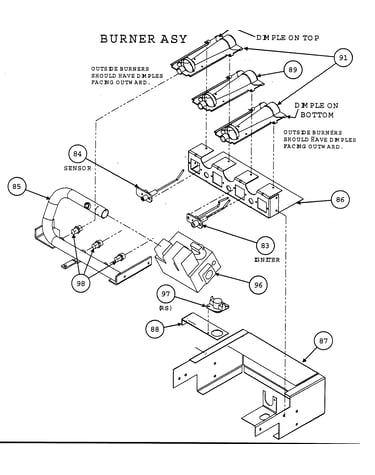

Gas section diagram

Furnace heat exchanger cover

Part #48GS400108

$325.53 |
$12.00 OFF Phone Price : $337.53
In Stock
Grille 50HJ501200
Grille

Part #50HJ501200

$163.72
In Stock
Top, Evap 48GS400244
#12

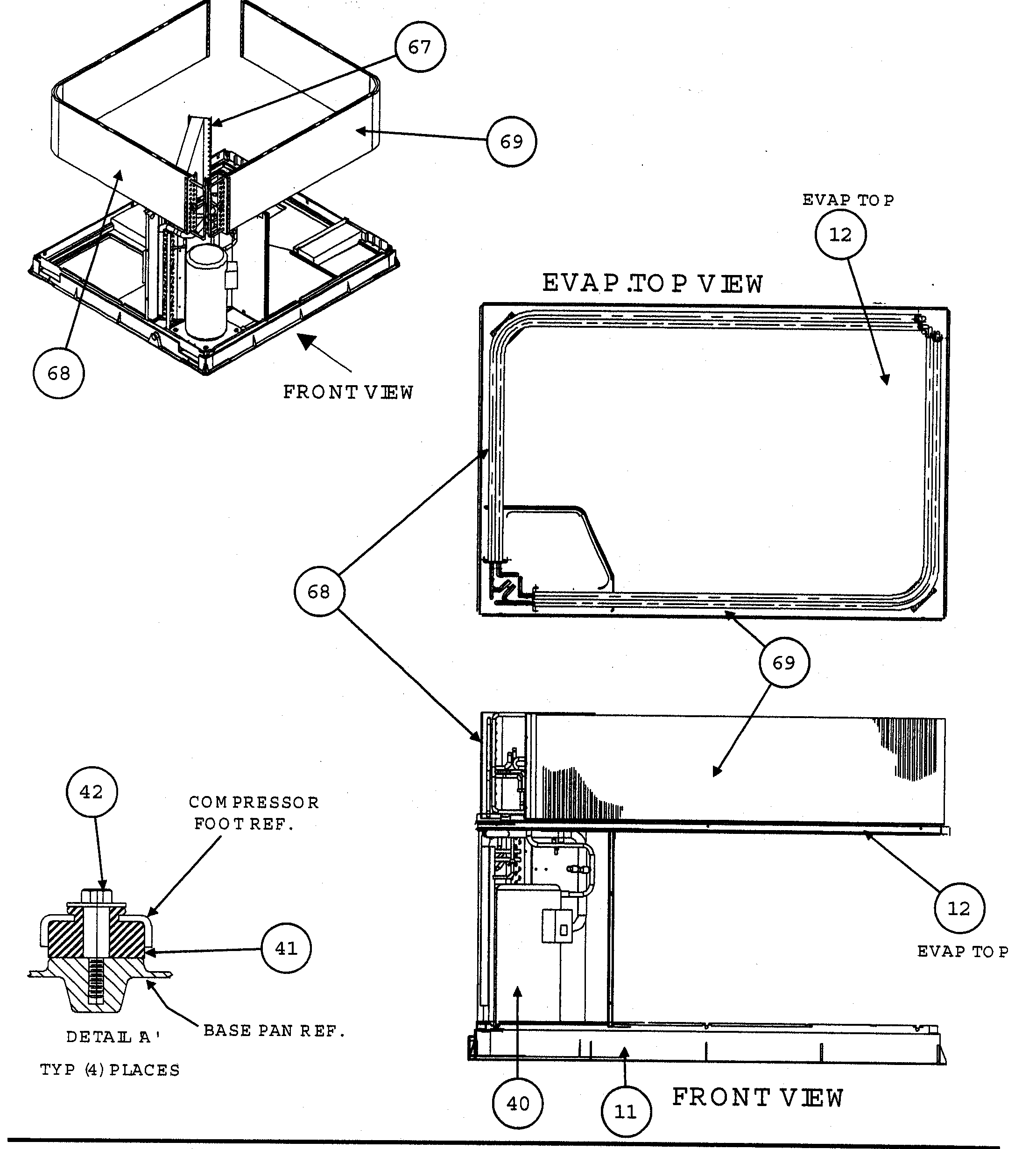

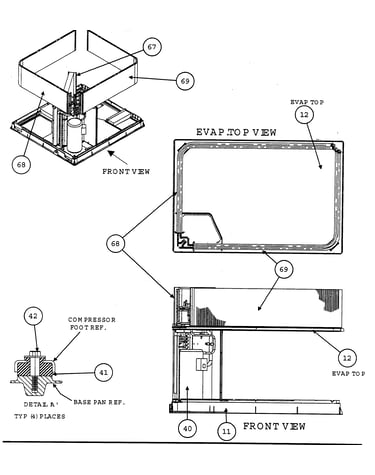

Evap top view diagram

Top, evap

Part #48GS400244

$427.15
In Stock
Plate 50SS500879
#34

Gas section diagram

Plate

Part #50SS500879

$558.65
In Stock
Grille Assembly 48GS400314
#3

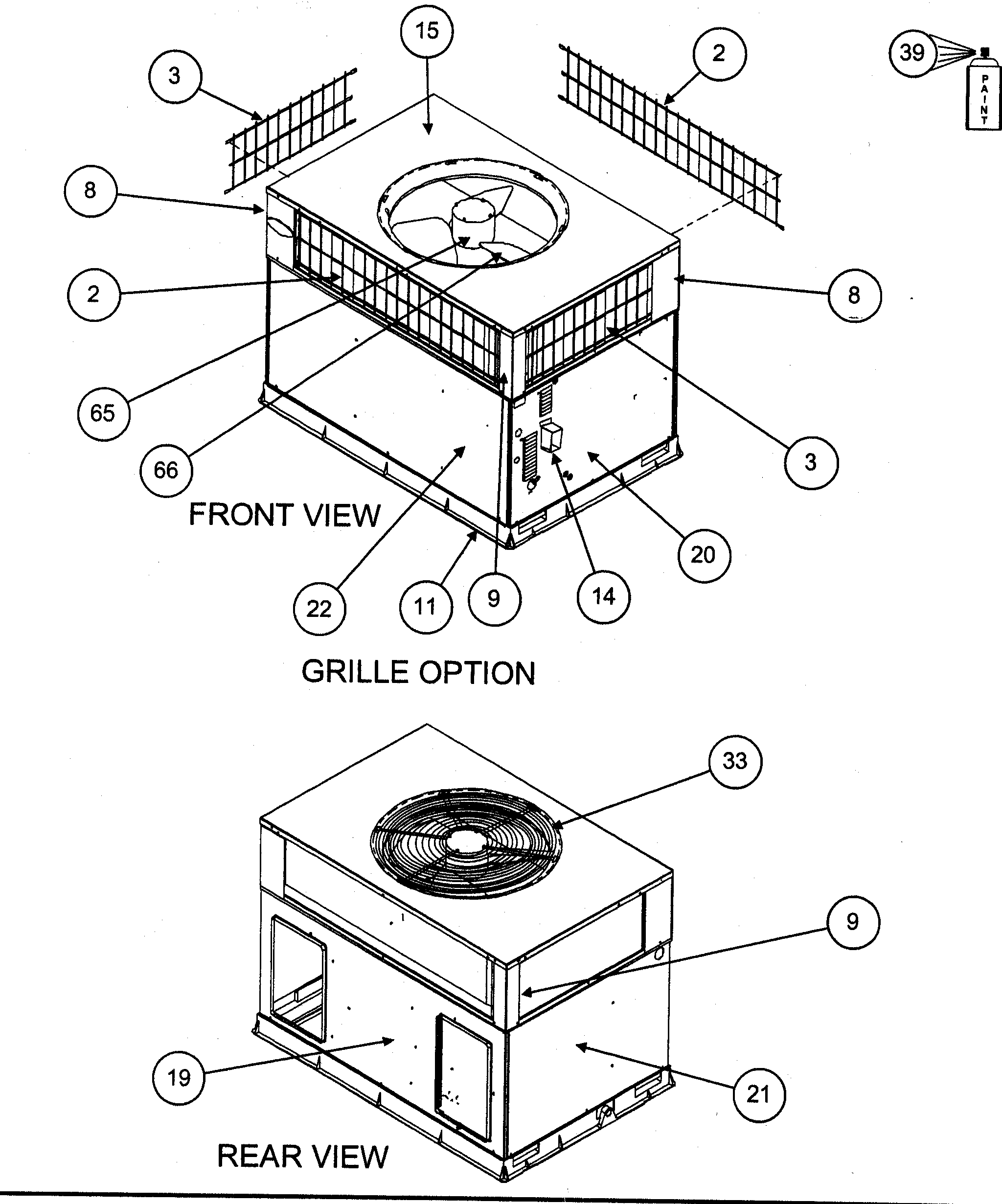

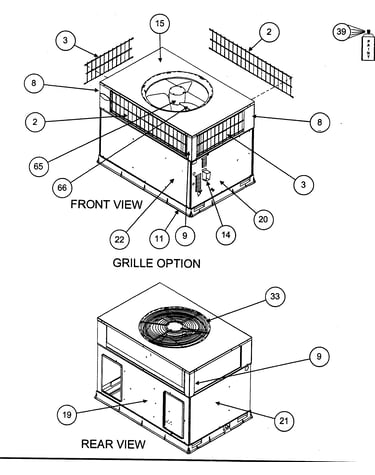

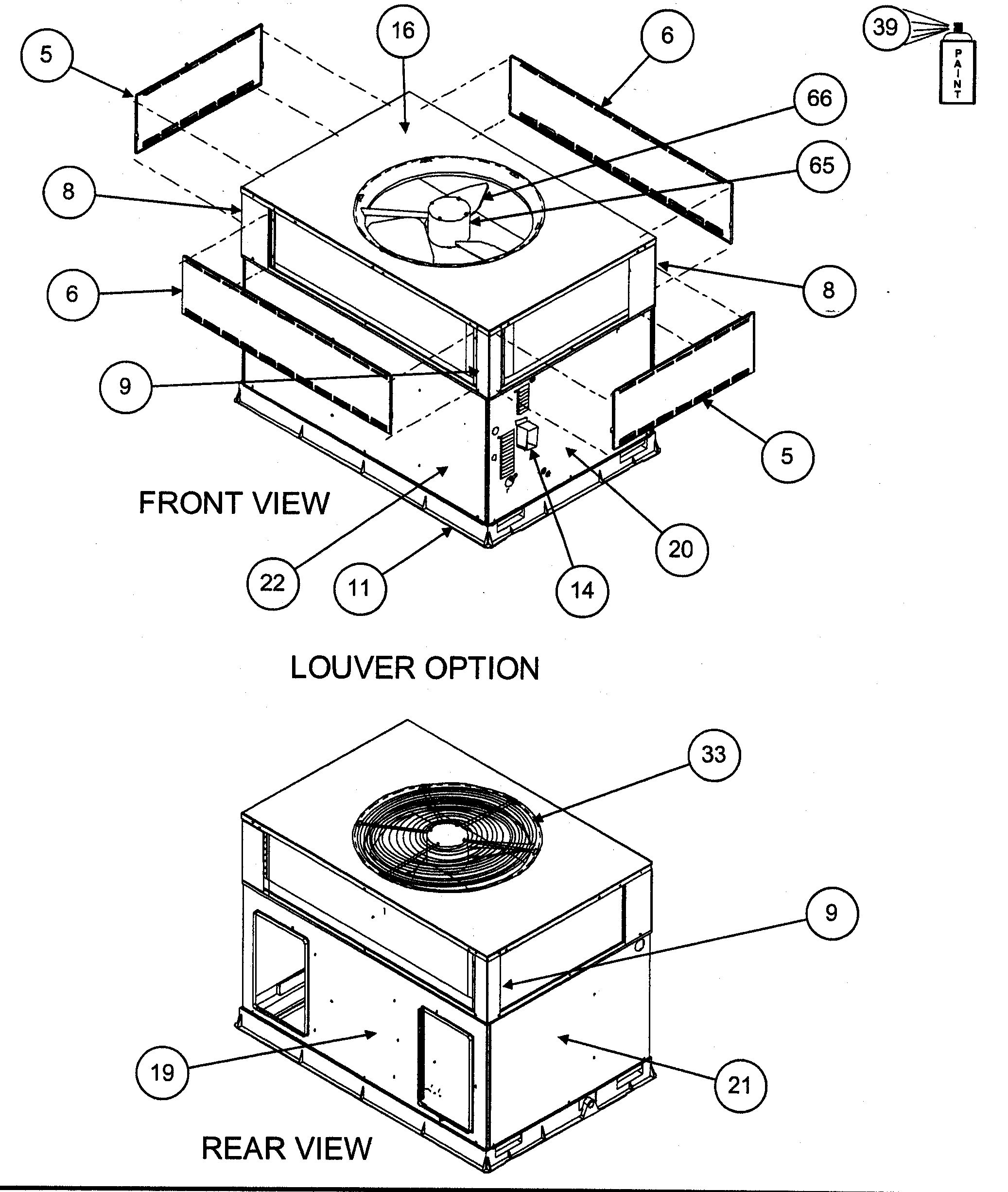

Front view/grille option/rear view diagram
