Model # 587760413 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 587760413 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

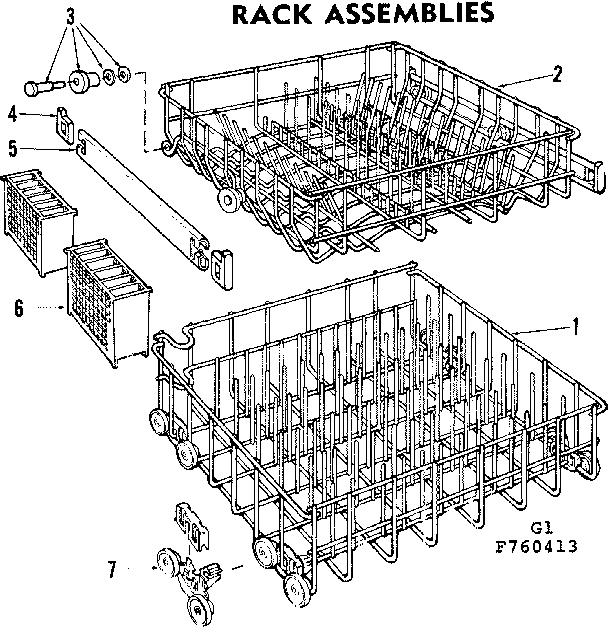

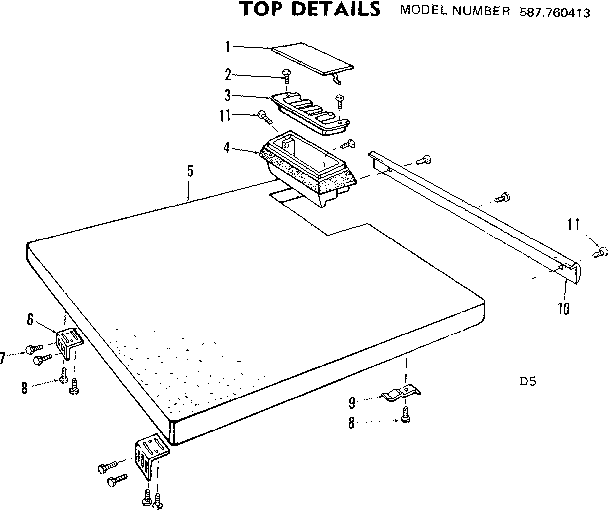

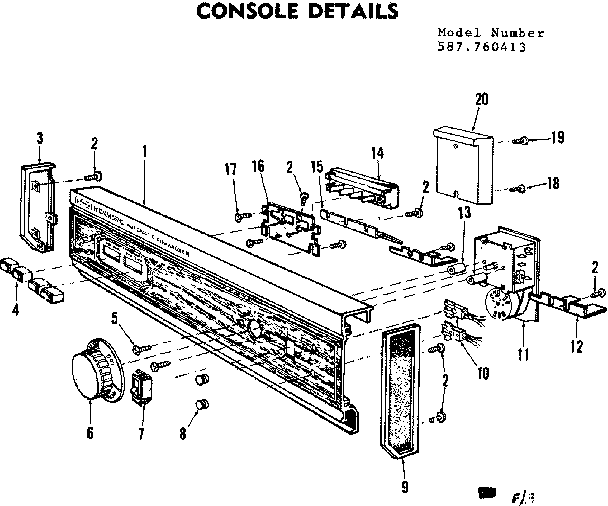

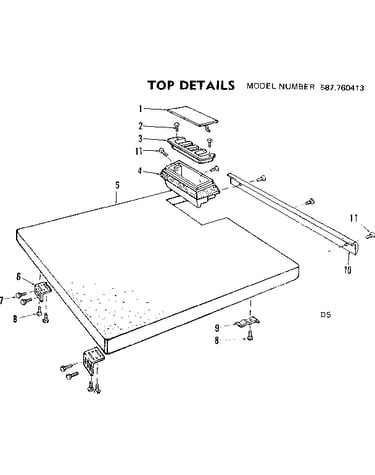

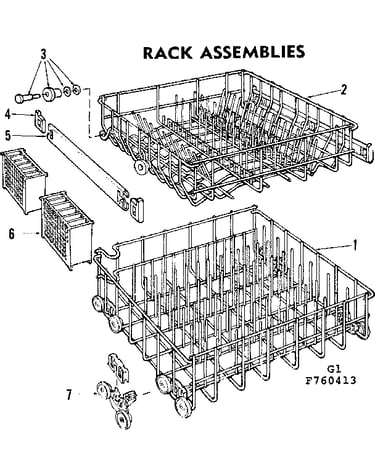

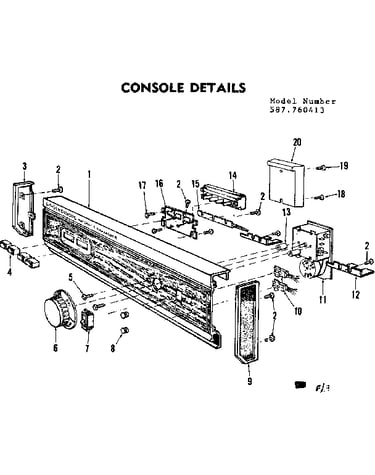

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 231 parts  |
Clamp 806090
#24

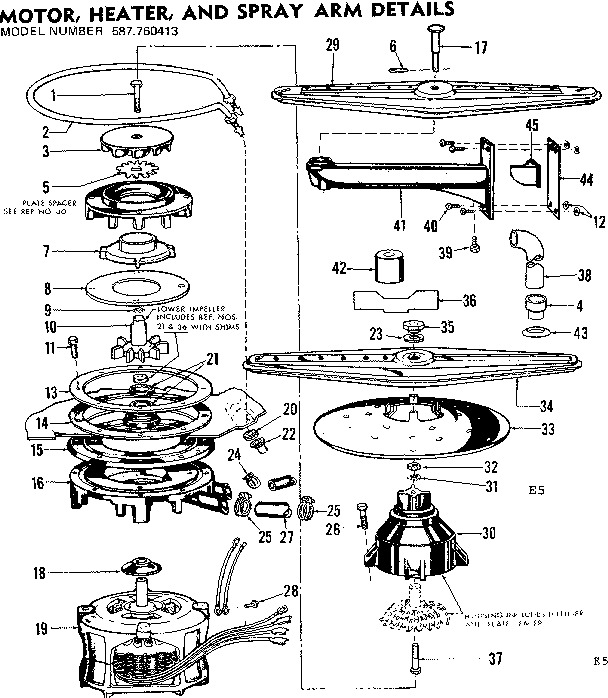

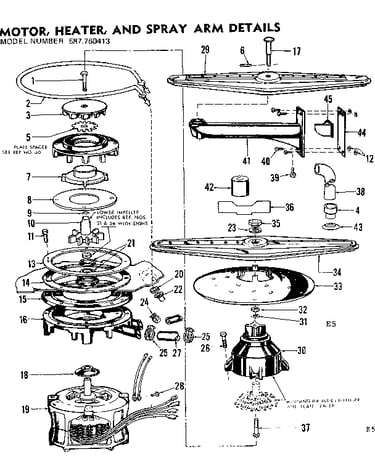

Motor, heater and spray arm details diagram

Clamp

Part #806090

The manufacturer no longer makes this part, and there's no substitute part

Clamp 805495
#25

Motor, heater and spray arm details diagram

Clamp

Part #805495

The manufacturer no longer makes this part, and there's no substitute part

Clamp 806366
#47

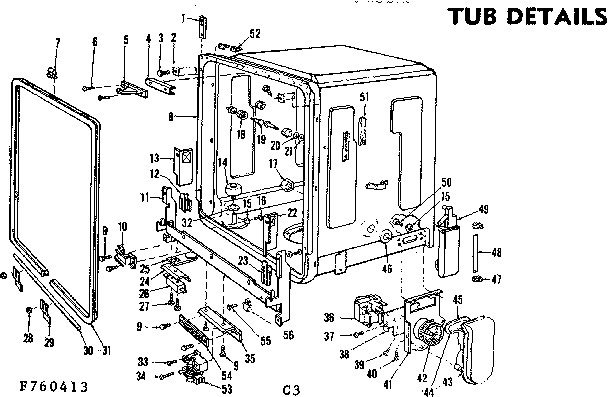

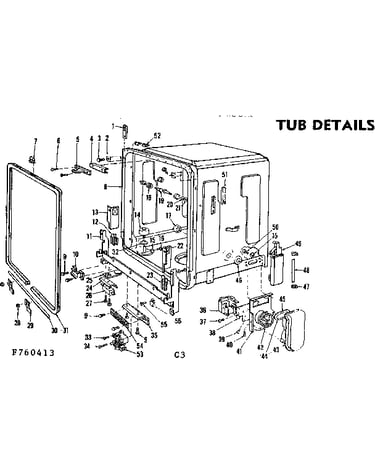

Tub details diagram

Clamp

Part #806366

The manufacturer no longer makes this part, and there's no substitute part

Screw 806890
#6

Tub details diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Cam 806566
#47

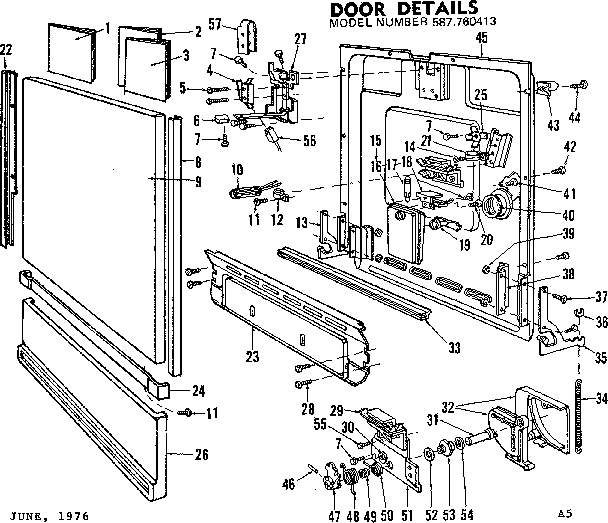

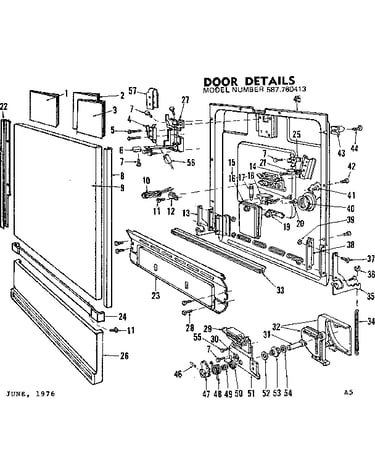

Door details diagram

Cam

Part #806566

Replaced by #154180301

?
Manufacturer substitution
This part replaces 806566. Substitute parts can look different from the original.
$16.20
In Stock
Arm Assembly 805681
#35

Door details diagram

Arm assembly

Part #805681

Replaced by #5300805681

?
Manufacturer substitution
This part replaces 805681. Substitute parts can look different from the original.
$79.52
In Stock
Clamp 805584
#56

Tub details diagram

Clamp

Part #805584

Replaced by #5300808495

?
Manufacturer substitution
This part replaces 805584. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Screw 806967
#42

Door details diagram

Screw

Part #806967

Replaced by #5300806967

?
Manufacturer substitution
This part replaces 806967. Substitute parts can look different from the original.
This item is not returnable
$2.72
In Stock
Cam Spring 806567
#49

Door details diagram

Cam spring

Part #806567

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 806567. Substitute parts can look different from the original.
$29.93
In Stock
Washer 807373
#5

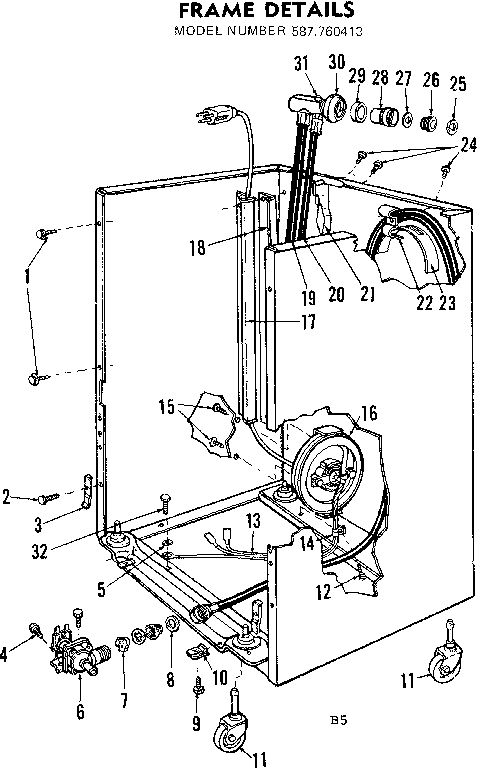

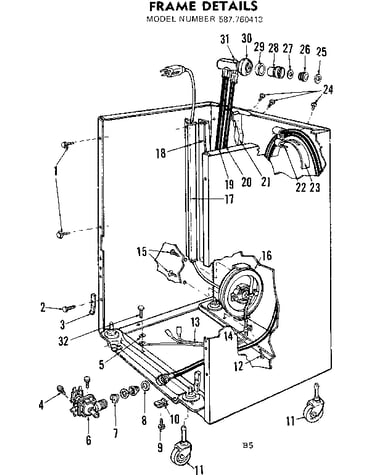

Frame details diagram

Washer

Part #807373

Replaced by #5300807373

?
Manufacturer substitution
This part replaces 807373. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
