Briggs & Stratton
Generator

Model # 1774-0 Official Briggs & Stratton 5500-watt ac generator

Here are the diagrams and repair parts for Official Briggs & Stratton 1774-0 5500-watt ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

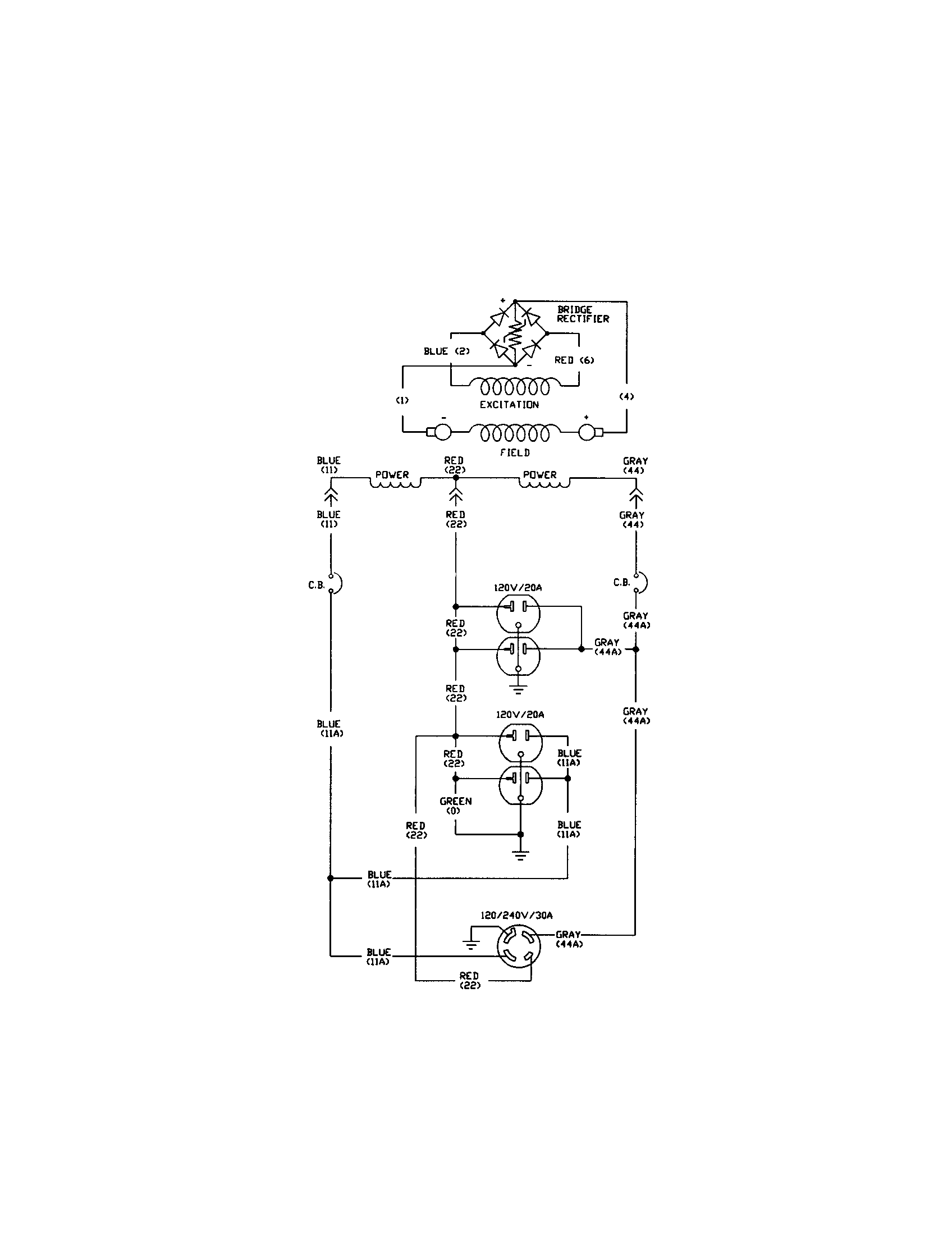

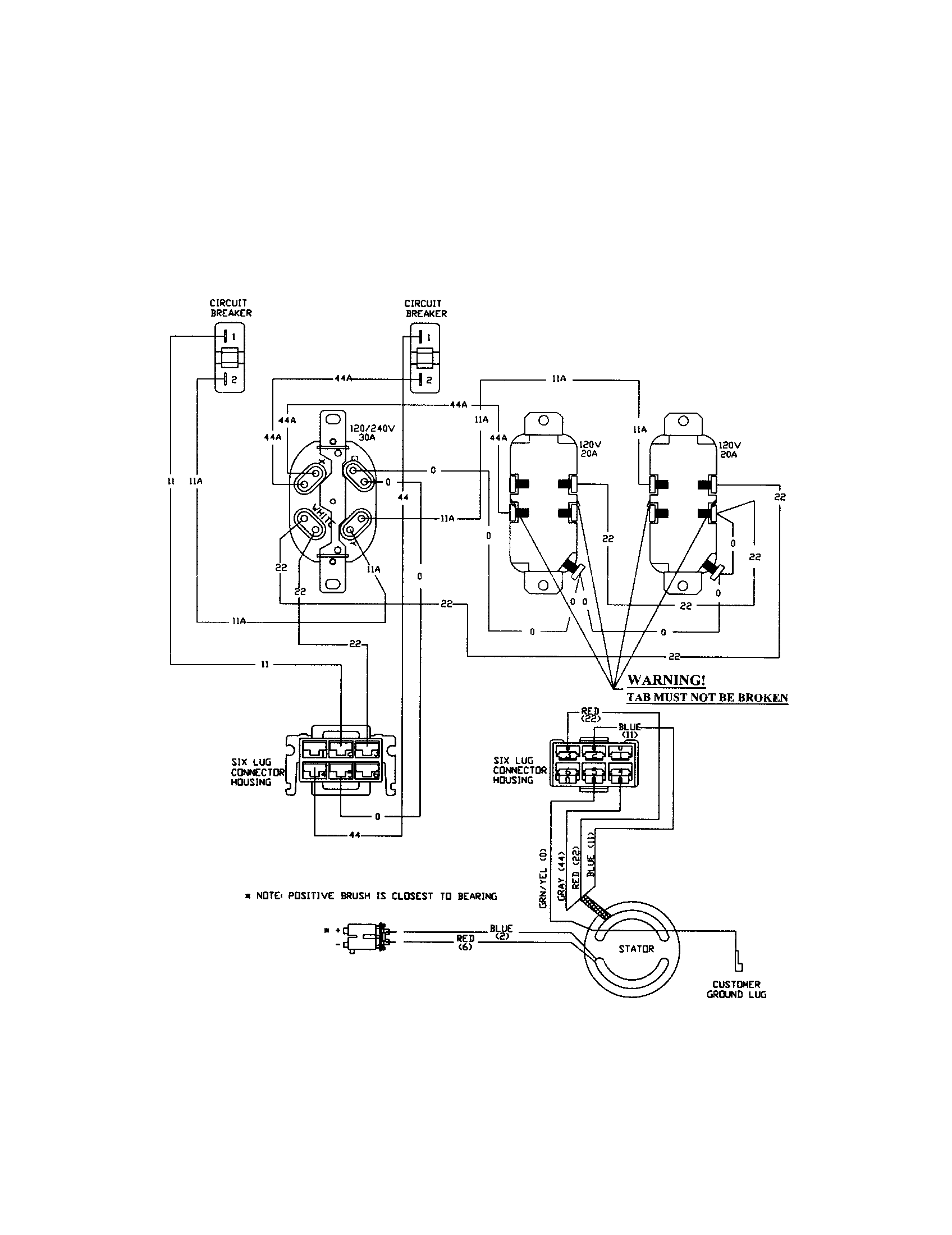

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Snapper Generator Fuel Tank Cap With Gauge (replaces 85134) B4363GS
#45

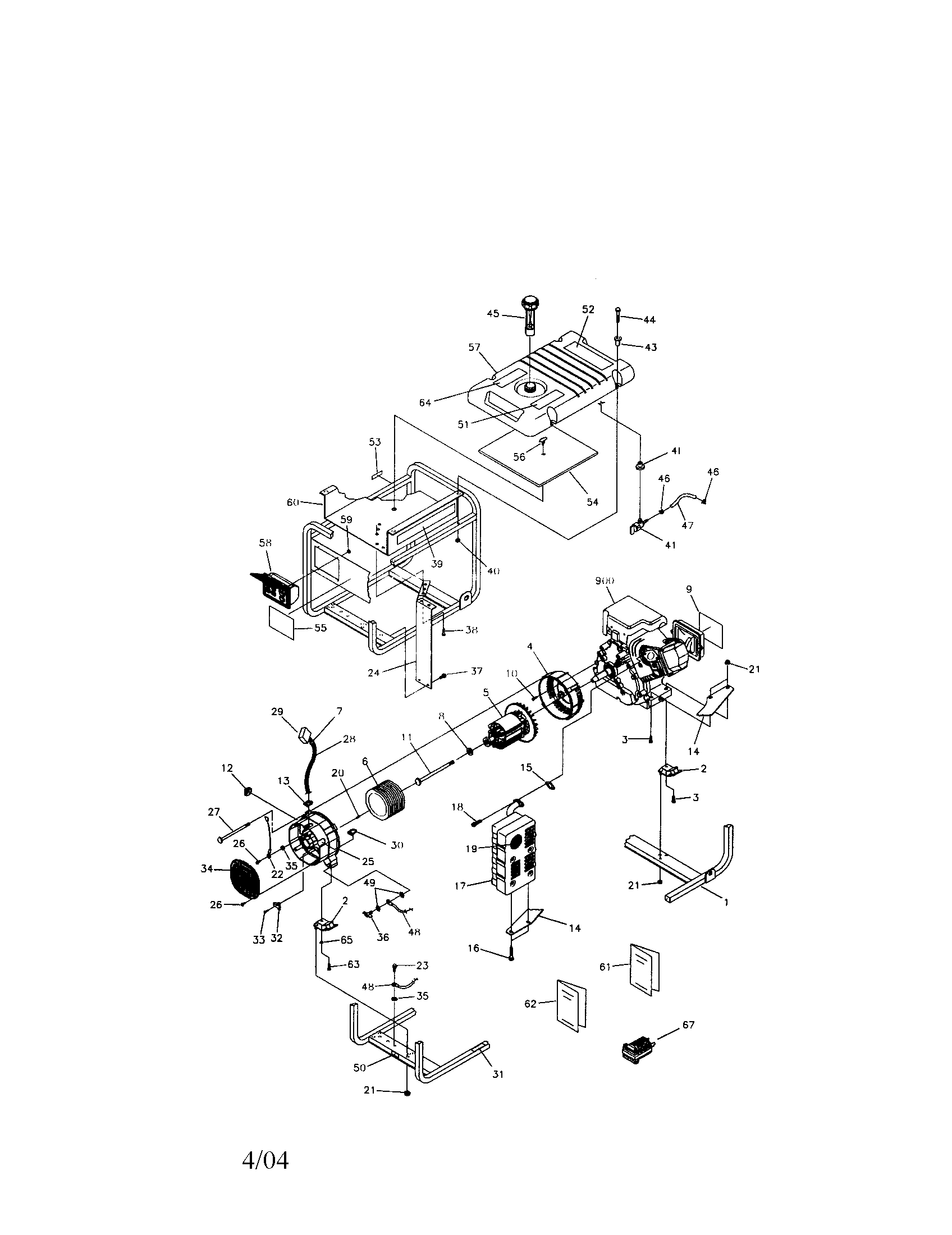

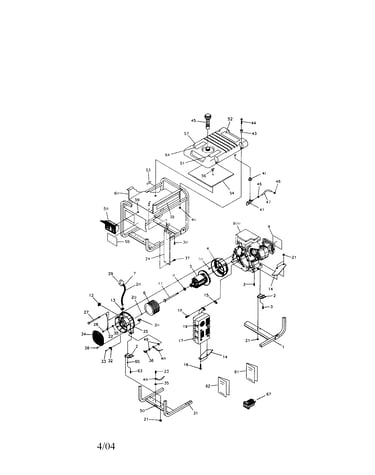

Main unit diagram

Snapper generator fuel tank cap with gauge (replaces 85134)

Part #B4363GS

$55.19 |
10% OFF Phone Price : $61.19
In Stock
Generator Brush Holder And Rectifier Assembly 91825GS
#32

Main unit diagram

Generator brush holder and rectifier assembly

Part #91825GS

$68.63 |
8% OFF Phone Price : $74.63
In Stock
Generator Circuit Breaker, 20-amp 75207GS
#9

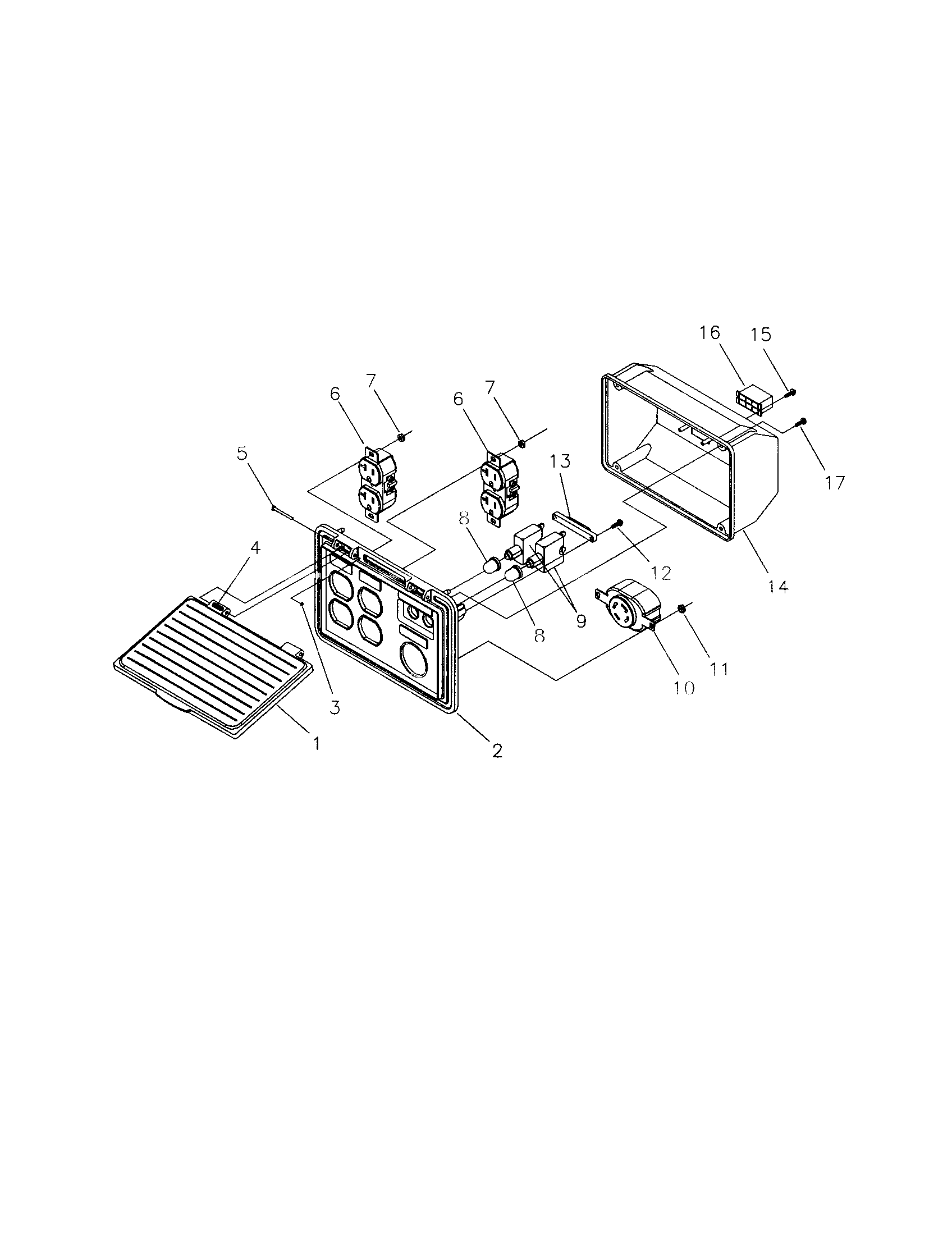

Control panel diagram

Generator circuit breaker, 20-amp

Part #75207GS

Replaced by #209872GS

?
Manufacturer substitution
This part replaces 75207GS. Substitute parts can look different from the original.
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Lawn & Garden Equipment Engine Exhaust Gasket 695398
#15

Main unit diagram

Lawn & garden equipment engine exhaust gasket

Part #695398

This item is not returnable
$14.60
In Stock
Generac Generator Spark Arrestor 83083GS
#19

Main unit diagram

Generac generator spark arrestor

Part #83083GS

This item is not returnable
$13.49 |
13% OFF Phone Price : $15.49
In Stock
Generator Clamp 48031CGS
#46

Main unit diagram

Generator clamp

Part #48031CGS

Replaced by #691038

?
Manufacturer substitution
This part replaces 48031CGS. Substitute parts can look different from the original.
This item is not returnable
$5.43
In Stock
Clip Hinge 189167GS
#3

Control panel diagram

Clip hinge

Part #189167GS

This item is not returnable
$6.06
In Stock
Briggs & Stratton Screw 99383GS
#11

Main unit diagram

Briggs & stratton screw

Part #99383GS

$24.18
In Stock
Snapper Decal 191436GS
#31

Main unit diagram

Snapper decal

Part #191436GS

$15.00
In Stock
Washer 23762GS
#35

Main unit diagram

Washer

Part #23762GS

This item is not returnable
$5.23
In Stock
