Model # U5780-900 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U5780-900 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Vacuum Nozzle Base Assembly 21151010
#7

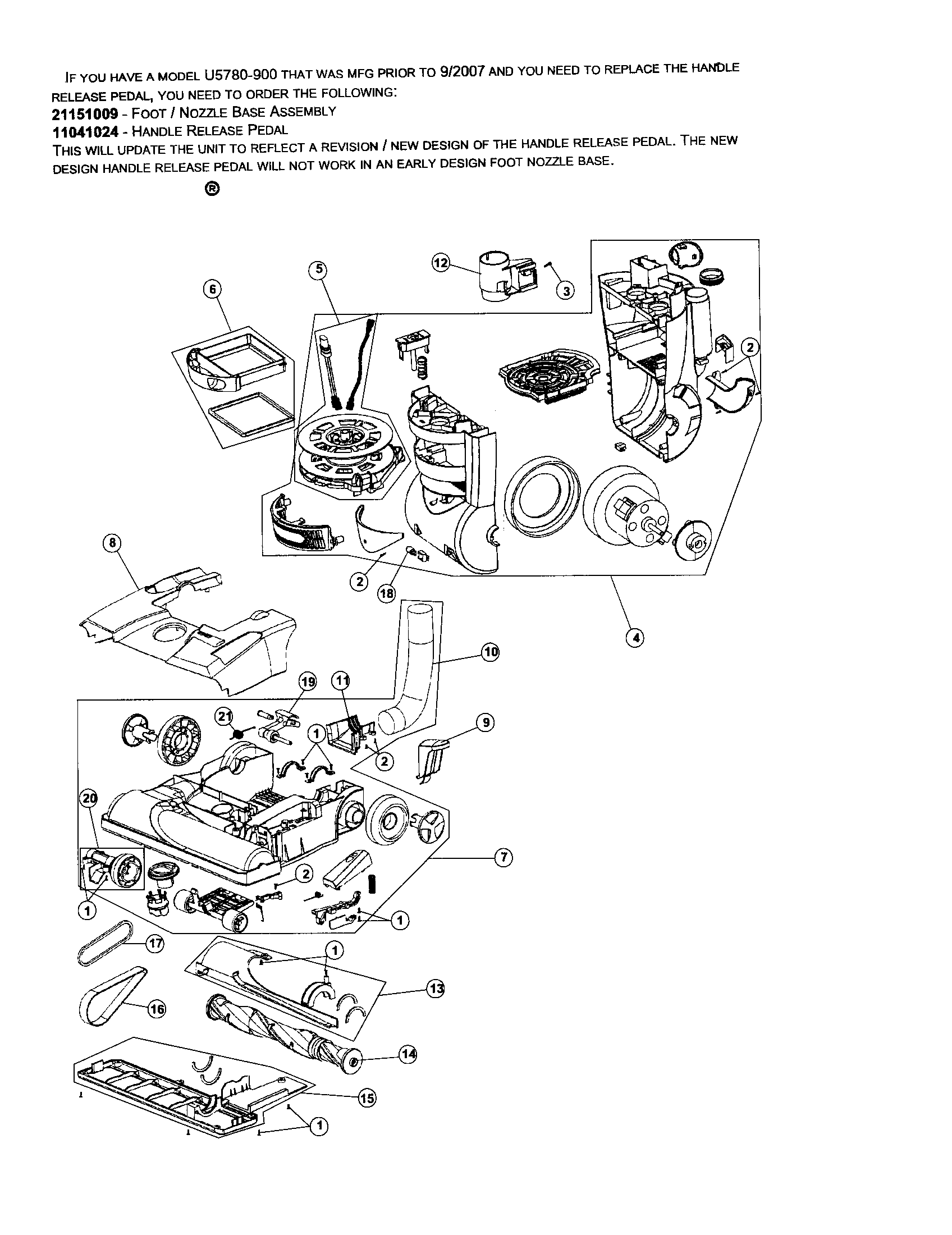

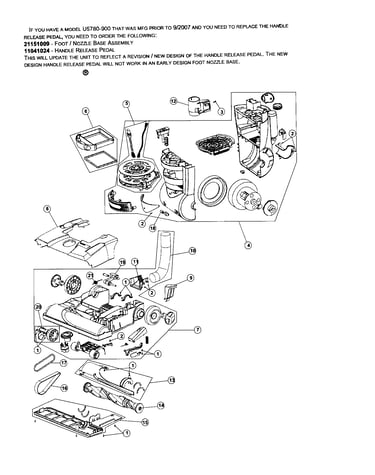

Motor & housing/nozzle base diagram

Vacuum nozzle base assembly

Part #21151010

The manufacturer no longer makes this part, and there's no substitute part

Female Control 93001717
#31

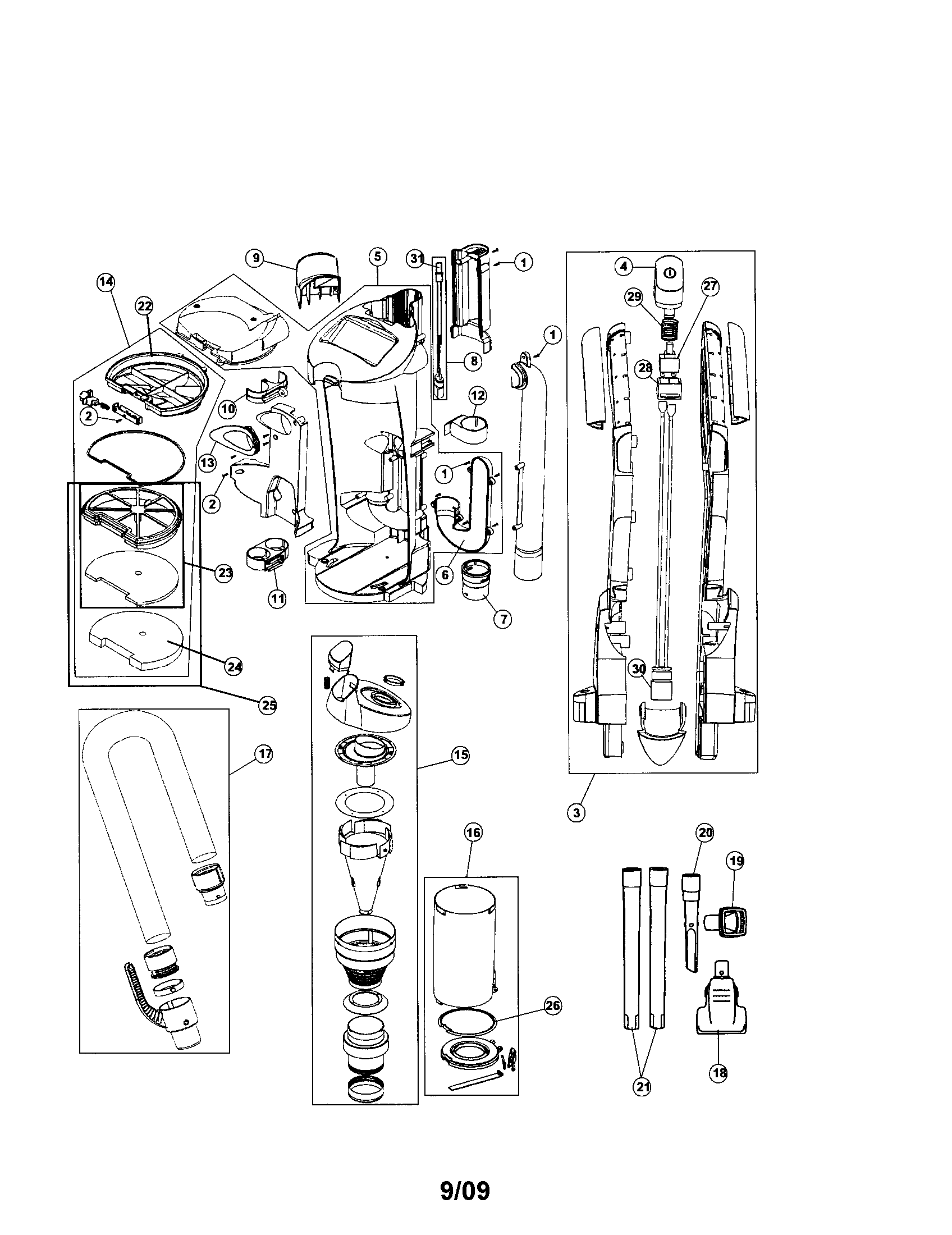

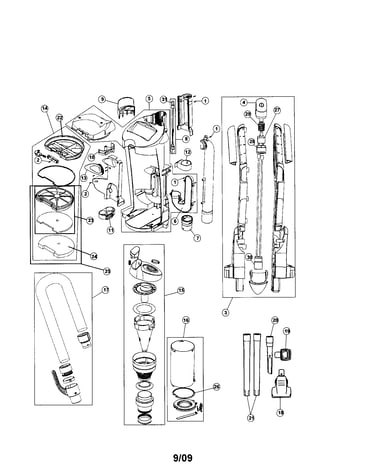

Handle/main housing diagram

Female control

Part #93001717

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Idler Arm Pulley Assembly 93005400
#20

Motor & housing/nozzle base diagram

Vacuum idler arm pulley assembly

Part #93005400

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Secondary Filter 40110012
#25

Handle/main housing diagram

Vacuum secondary filter

Part #40110012

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt (replaces 11041084, 38520835) 38528035
#16A

Motor & housing/nozzle base diagram

Vacuum beater bar belt (replaces 11041084, 38520835)

Part #38528035

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Connector 26401317
#8

Handle/main housing diagram

Connector

Part #26401317

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 21150100
#3

Handle/main housing diagram

Vacuum handle

Part #21150100

The manufacturer no longer makes this part, and there's no substitute part

Cord Reel 93002478
#5

Motor & housing/nozzle base diagram

Cord reel

Part #93002478

The manufacturer no longer makes this part, and there's no substitute part

Hose Holder 11041055
#9

Handle/main housing diagram

Hose holder

Part #11041055

The manufacturer no longer makes this part, and there's no substitute part

Holder Switch 93001703
#28

Handle/main housing diagram

Holder switch

Part #93001703

The manufacturer no longer makes this part, and there's no substitute part
