Model # 14-3038-00-01 Official Tappan cooktop - lt32489510

Here are the diagrams and repair parts for Official Tappan 14-3038-00-01 cooktop - lt32489510, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Module 3200669
#5

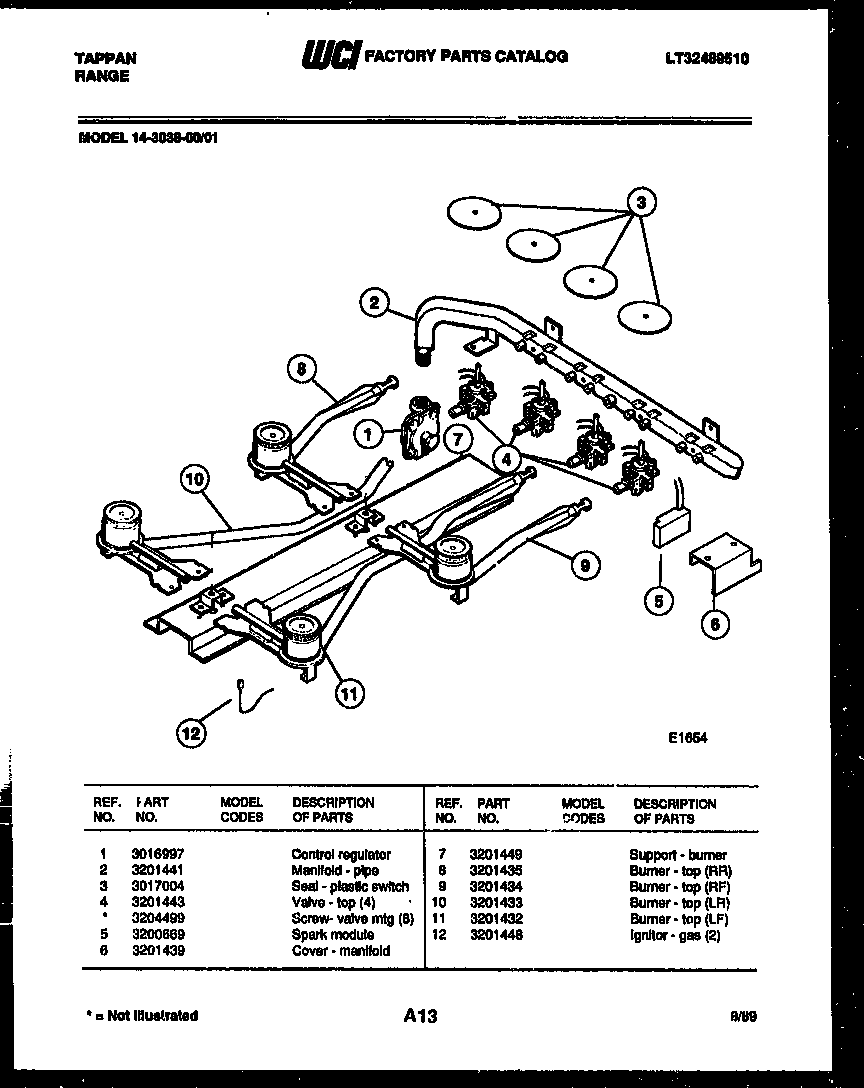

Burner parts diagram

Module

Part #3200669

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 3200669. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Cooktop Burner, Right Rear 3201435
#8

Burner parts diagram

Cooktop burner, right rear

Part #3201435

$249.65
In Stock
Cooking Appliance Power Cord Strain Relief 3201437

#NI

All parts diagram

Cooking appliance power cord strain relief

Part #3201437

Replaced by #5304513507

?
Manufacturer substitution
This part replaces 3201437. Substitute parts can look different from the original.
$9.97
In Stock
Grate 3012700
#7

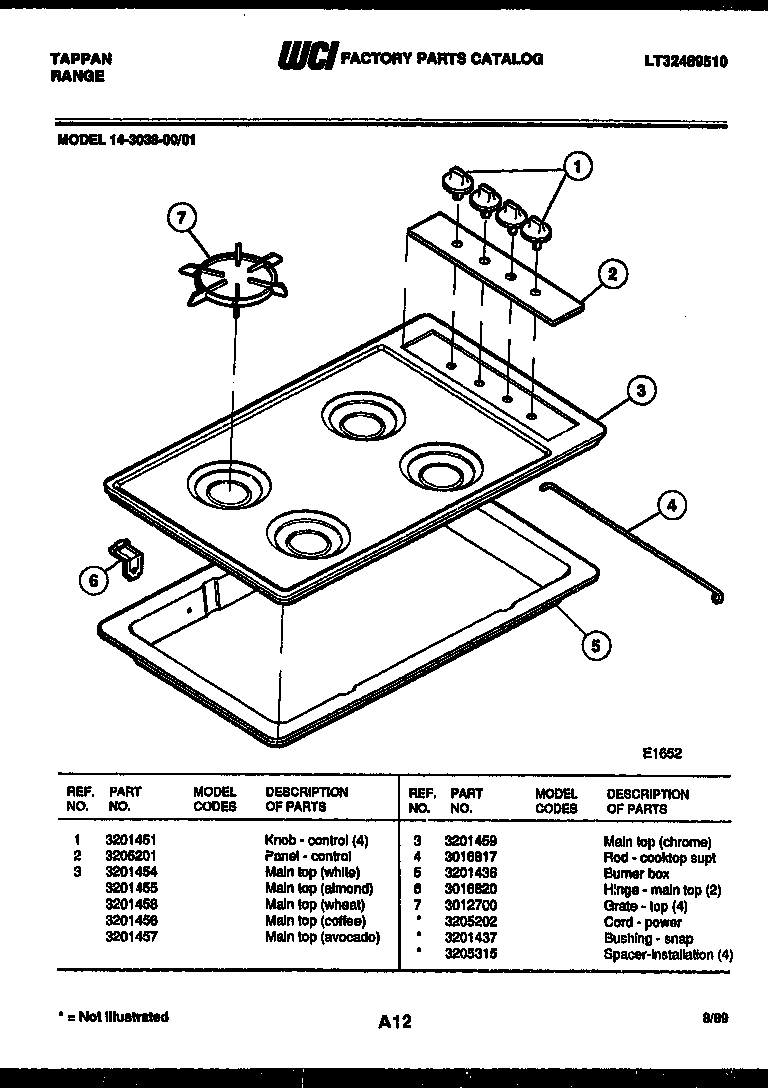

Cooktop parts diagram

Grate

Part #3012700

Replaced by #316055800

?
Manufacturer substitution
This part replaces 3012700. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Control Regulator 3016997
#1

Burner parts diagram

Control regulator

Part #3016997

The manufacturer no longer makes this part, and there's no substitute part

Manifold 3201441
#2

Burner parts diagram

Manifold

Part #3201441

The manufacturer no longer makes this part, and there's no substitute part

Valve 3201443
#4

Burner parts diagram

Valve

Part #3201443

The manufacturer no longer makes this part, and there's no substitute part

Top 3201457
#3

Cooktop parts diagram

Top

Part #3201457

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Igniter 3201448
#12

Burner parts diagram

Cooktop igniter

Part #3201448

The manufacturer no longer makes this part, and there's no substitute part

Top-main Whe 3201458
#3

Cooktop parts diagram

Top-main whe

Part #3201458

The manufacturer no longer makes this part, and there's no substitute part
