Model # CMV1100AAQ Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag CMV1100AAQ microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

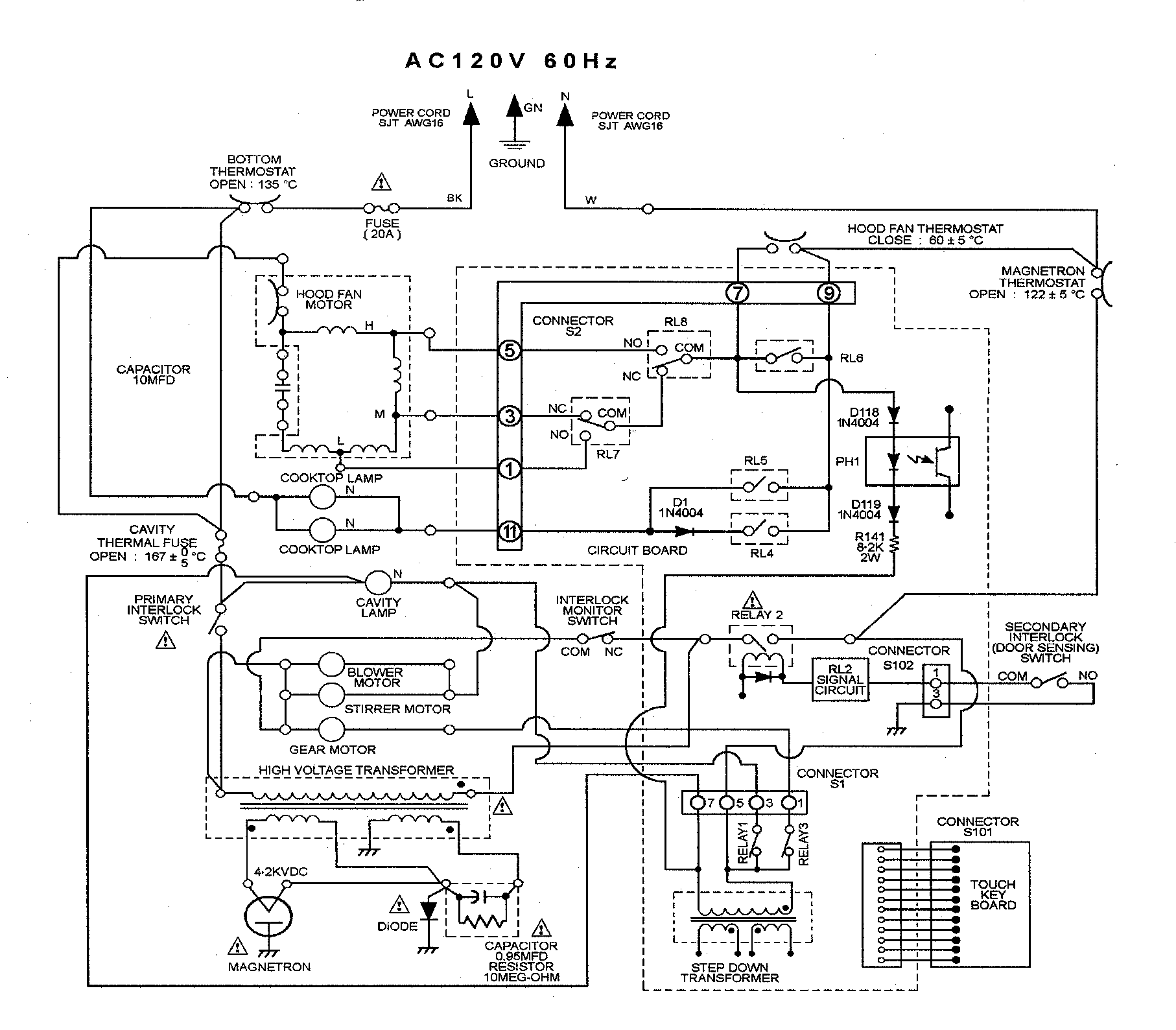

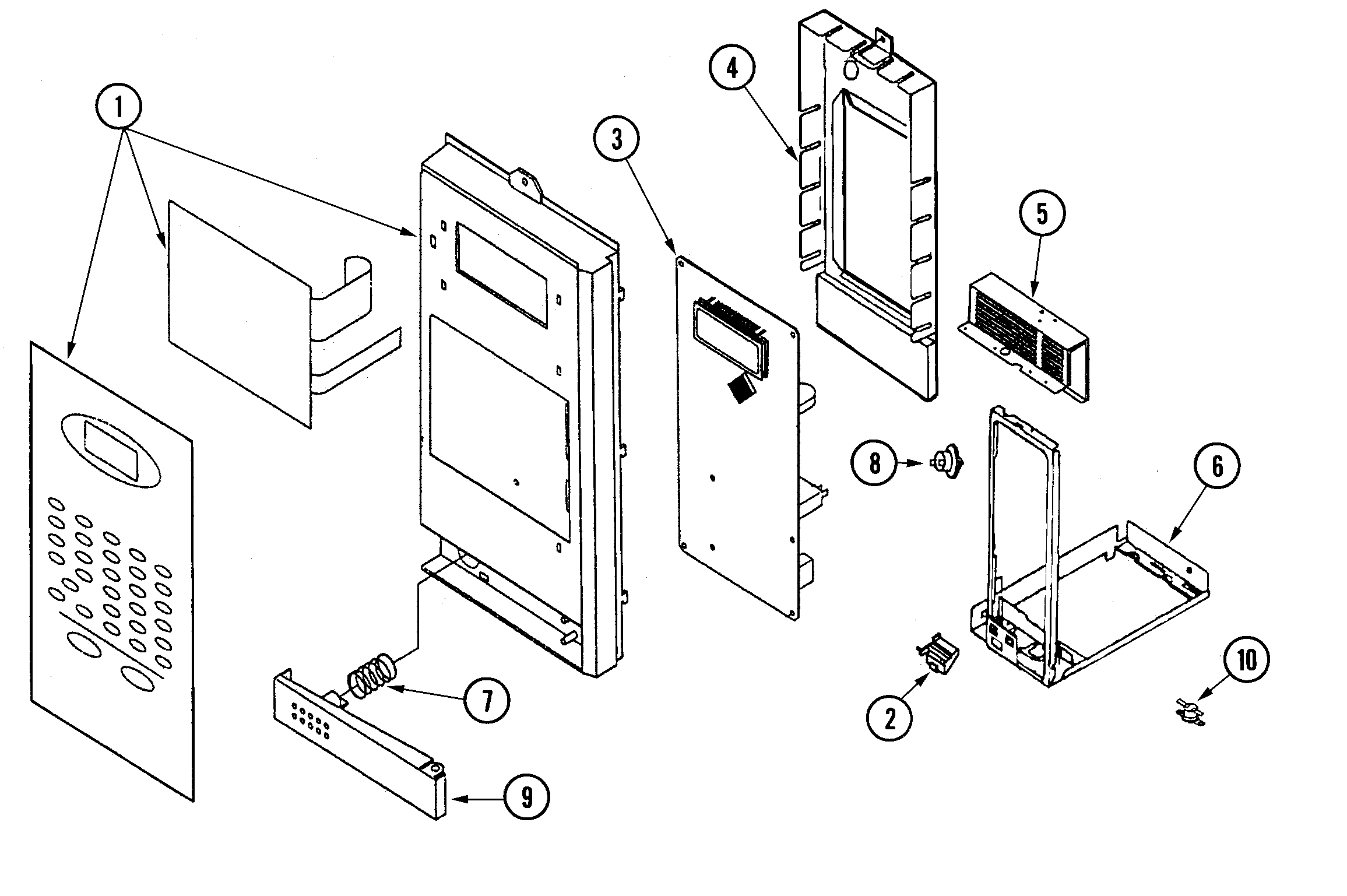

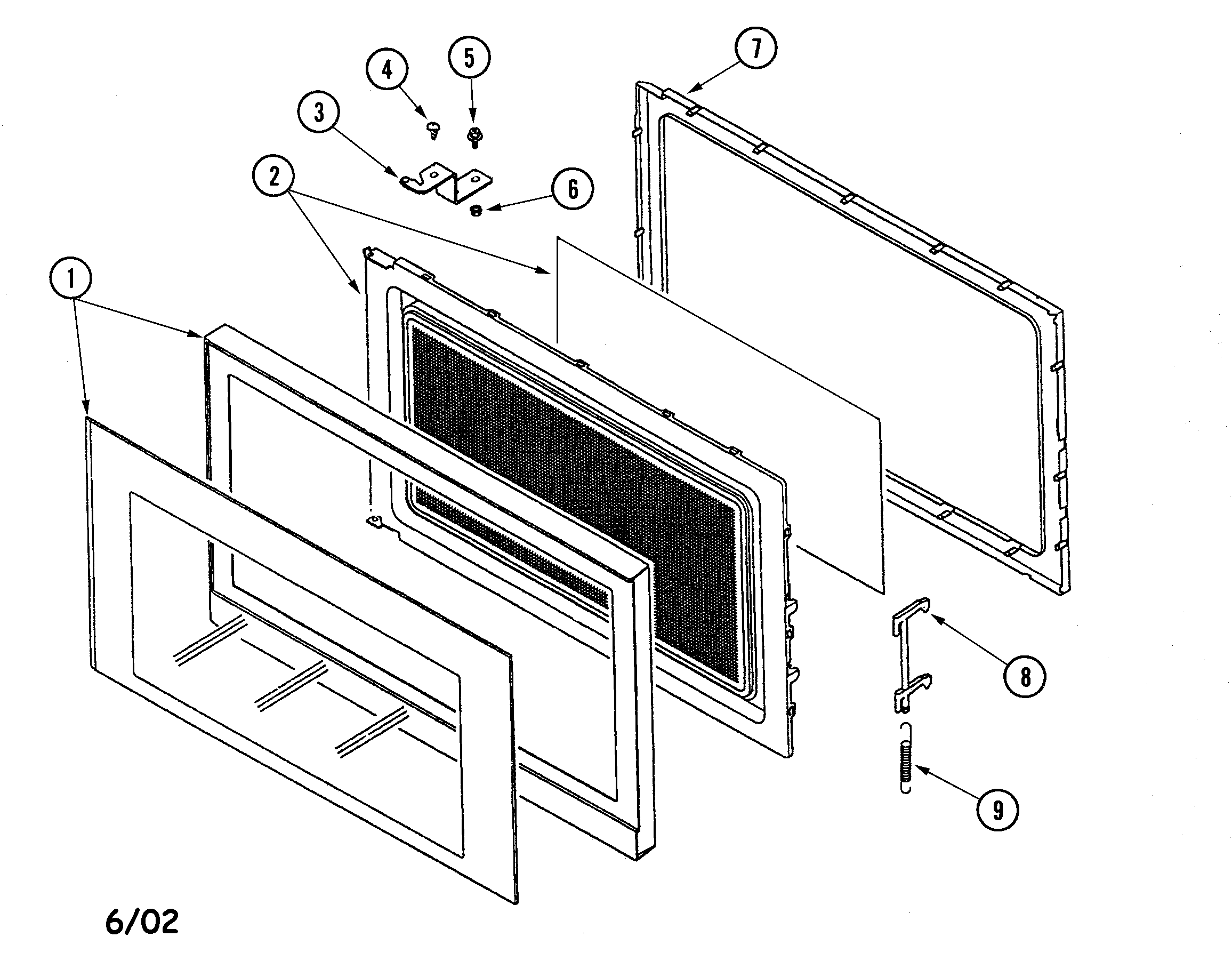

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
120v Lamp 58001101
#12

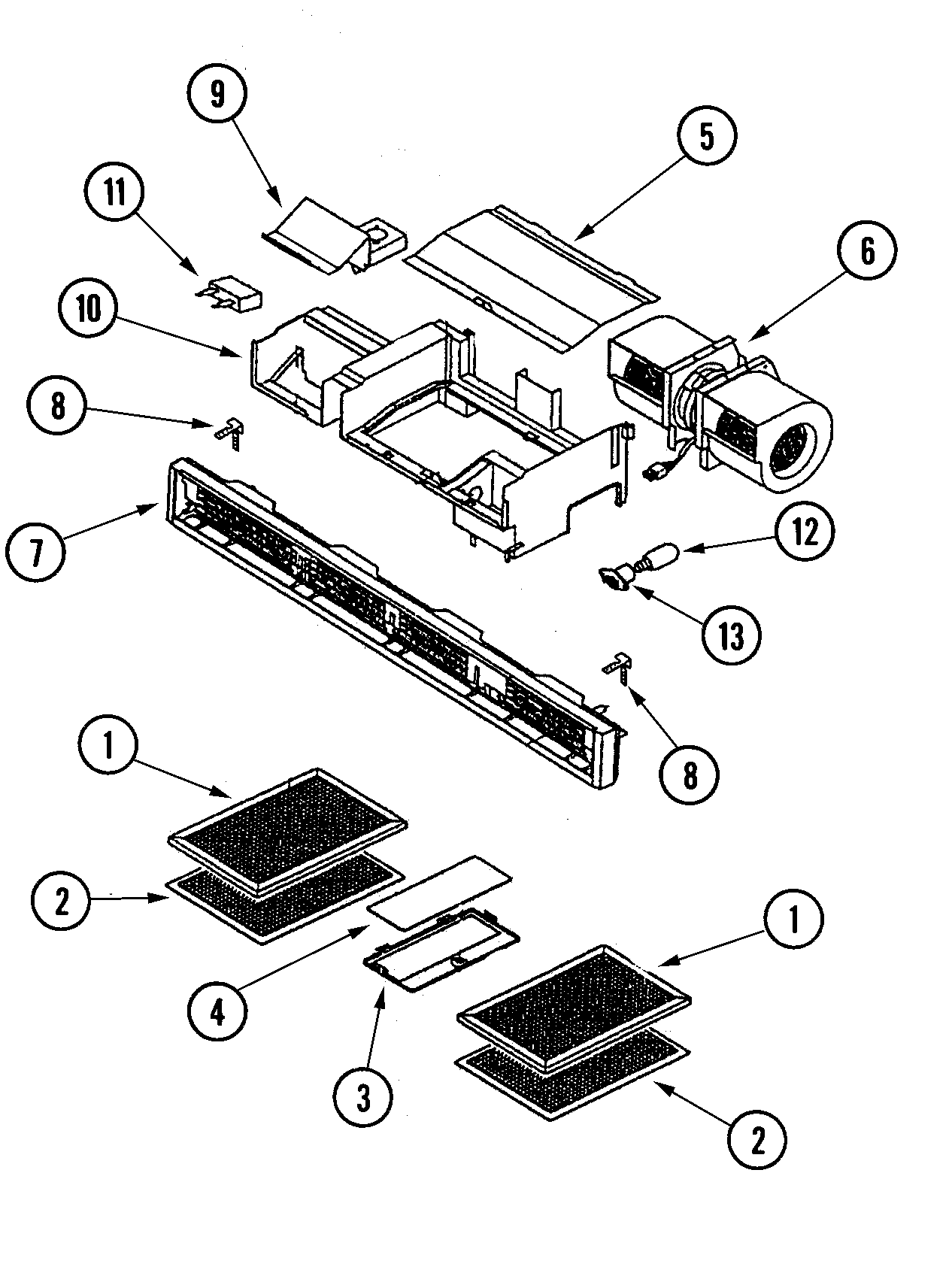

Grille parts diagram

120v lamp

Part #58001101

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 58001101. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
130v Lamp 58001043
#13

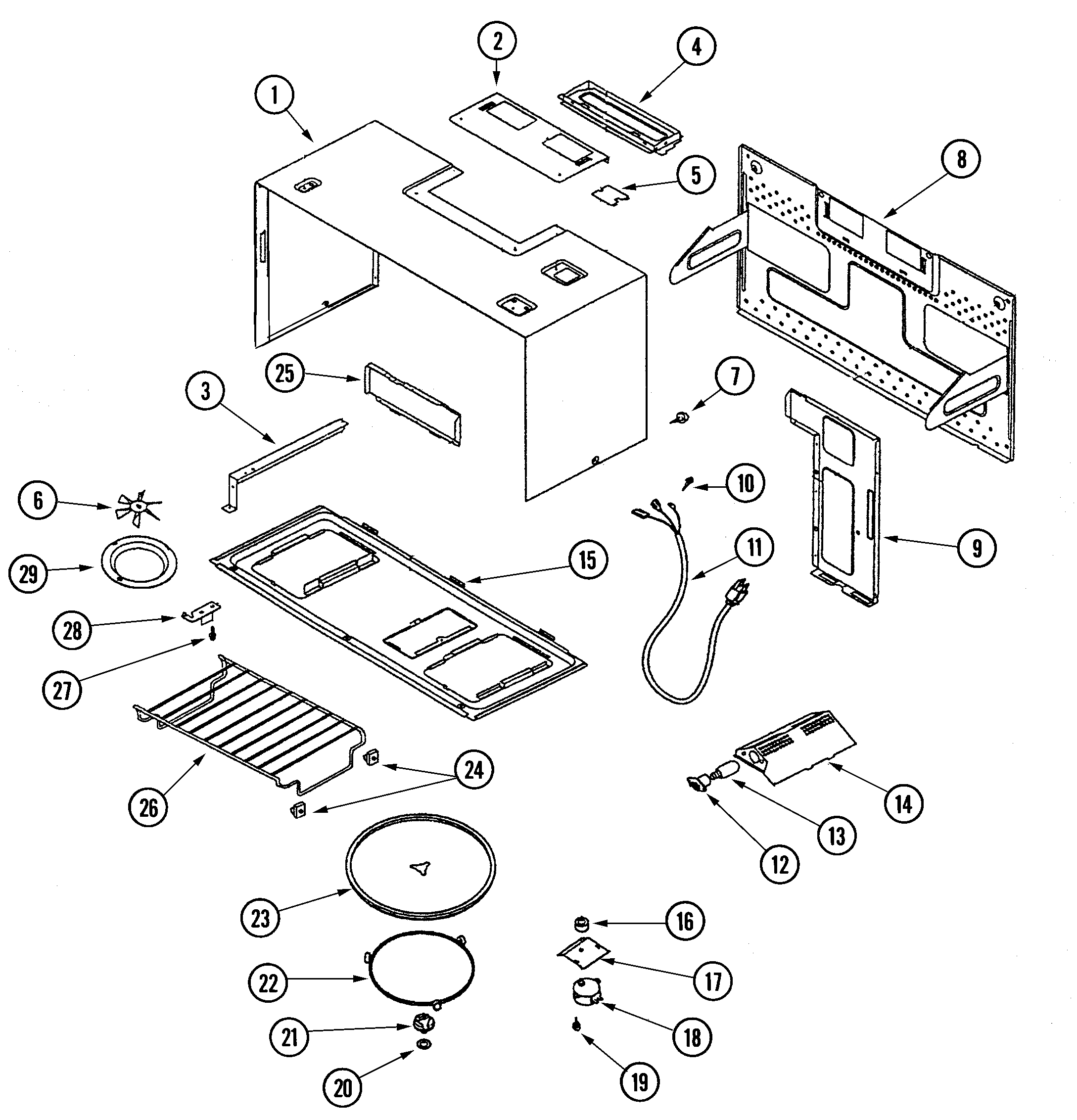

Base & cavity diagram

130v lamp

Part #58001043

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 58001043. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Motor Screw 58001048
Motor screw

Part #58001048

Replaced by #WP693995

?
Manufacturer substitution
This part replaces 58001048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Fuse 58001071
#17

Switches & microwave parts diagram

Fuse

Part #58001071

Replaced by #WP8183507

?
Manufacturer substitution
This part replaces 58001071. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Charcoal Filter 58001086
#1

Grille parts diagram

Charcoal filter

Part #58001086

Replaced by #WP58001086

?
Manufacturer substitution
This part replaces 58001086. Substitute parts can look different from the original.
$23.99 |
20% OFF Phone Price : $29.99
In Stock
Air Filter 58001087
#2

Grille parts diagram

Air filter

Part #58001087

Replaced by #WP58001087

?
Manufacturer substitution
This part replaces 58001087. Substitute parts can look different from the original.
This item is not returnable
$23.99 |
20% OFF Phone Price : $29.99
In Stock
Screw (tpg T 58001036
Screw (tpg t

Part #58001036

Replaced by #WPW10253196

?
Manufacturer substitution
This part replaces 58001036. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Motor 58001082
#15

Switches & microwave parts diagram

Motor

Part #58001082

Replaced by #56001337

?
Manufacturer substitution
This part replaces 58001082. Substitute parts can look different from the original.
$72.49 |
8% OFF Phone Price : $78.49
In Stock
Screw (tpg T 58001004
Screw (tpg t

Part #58001004

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 58001004. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Washer 58001049
#20

Base & cavity diagram

Washer

Part #58001049

The manufacturer no longer makes this part, and there's no substitute part
