Side-By-Side Refrigerator

Model # TFX22QRBBAA Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE TFX22QRBBAA refrigerator - b series, as well as links to manuals and error code tables, if available.

By Schematic
By Part

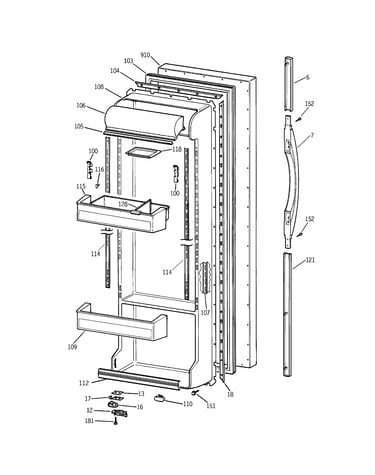

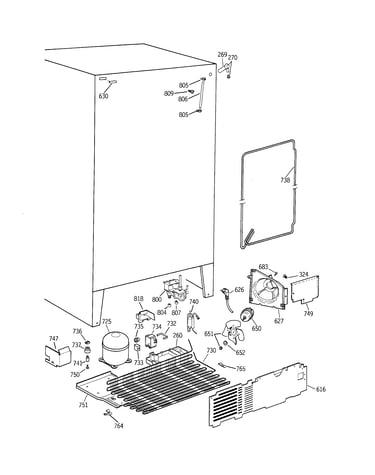

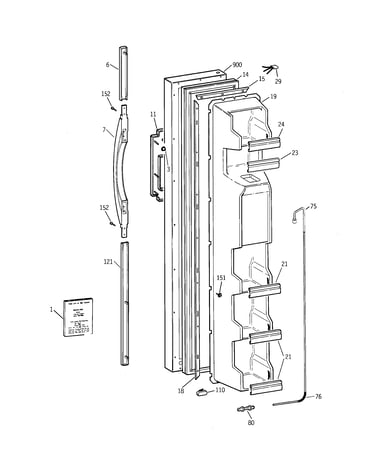

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
TFX22QRBBAA Refrigerators
Refrigerator Reservoir-to-dispenser Water Tubing (replaces Wr17x10732, Wr17x11439, Wr17x3104, Wr17x3140, Wr17x3228) WR17X2891
#812

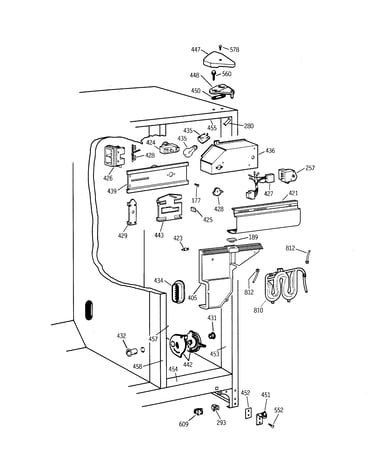

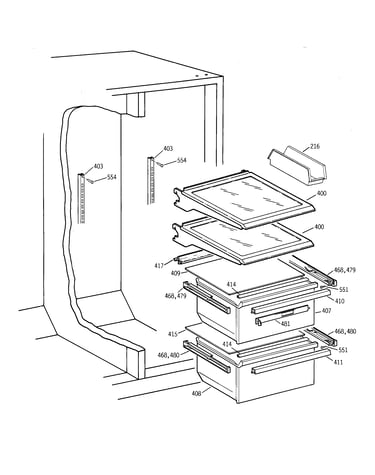

Fresh food section diagram

Refrigerator reservoir-to-dispenser water tubing (replaces wr17x10732, wr17x11439, wr17x3104, wr17x3140, wr17x3228)

Part #WR17X2891

BEST SELLER
$27.91 |
18% OFF Phone Price : $33.91
In Stock
Refrigerator Door Hinge WR13X10020
Refrigerator door hinge

Part #WR13X10020

BEST SELLER
$42.20 |
12% OFF Phone Price : $48.20
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x10822, Wr2x10098) WR02X10098
#615

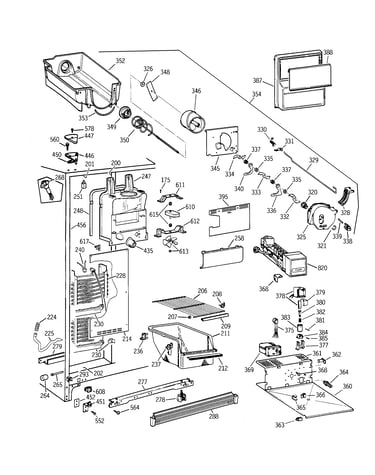

Freezer section diagram

Refrigerator evaporator fan motor grommet (replaces wr02x10822, wr2x10098)

Part #WR02X10098

This item is not returnable
$8.70 |
10% OFF Phone Price : $9.70
In Stock
Refrigerator Ice Container Assembly (replaces Wr17x2899) WR17X4310
#354

Freezer section diagram

Refrigerator ice container assembly (replaces wr17x2899)

Part #WR17X4310

$259.50 |
$12.00 OFF Phone Price : $271.50
In Stock
Refrigerator Dispenser Lever WR17X3089
#67

Dispenser diagram

Refrigerator dispenser lever

Part #WR17X3089

This item is not returnable
$29.56 |
17% OFF Phone Price : $35.56
In Stock
Refrigerator Water Reservoir Assembly (replaces Wr17x3852, Wr17x3895, Wr17x3926, Wr17x3982) WR17X4358
#810

Fresh food section diagram

Refrigerator water reservoir assembly (replaces wr17x3852, wr17x3895, wr17x3926, wr17x3982)

Part #WR17X4358

$98.20 |
11% OFF Phone Price : $110.20
In Stock
Refrigerator Ice Crusher Housing WR17X2061
#325

Freezer section diagram

Refrigerator ice crusher housing

Part #WR17X2061

$31.42 |
16% OFF Phone Price : $37.42
In Stock
Refrigerator Crisper Drawer WR32X1492
#407

Fresh food section diagram

Refrigerator crisper drawer

Part #WR32X1492

$136.29 |
8% OFF Phone Price : $148.29
In Stock
Refrigerator Ice Container Front Cover Door WR17X10273
#388

Freezer section diagram

Refrigerator ice container front cover door

Part #WR17X10273

$35.32 |
15% OFF Phone Price : $41.32
In Stock
Ge Profile Refrigerator Ice Dispenser Rotary Blade WR17X1362
#333

Freezer section diagram

Ge profile refrigerator ice dispenser rotary blade

Part #WR17X1362

$16.71 |
11% OFF Phone Price : $18.71
In Stock
