Model # 113213853 Official Craftsman 15" drill press

Here are the diagrams and repair parts for Official Craftsman 113213853 15" drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

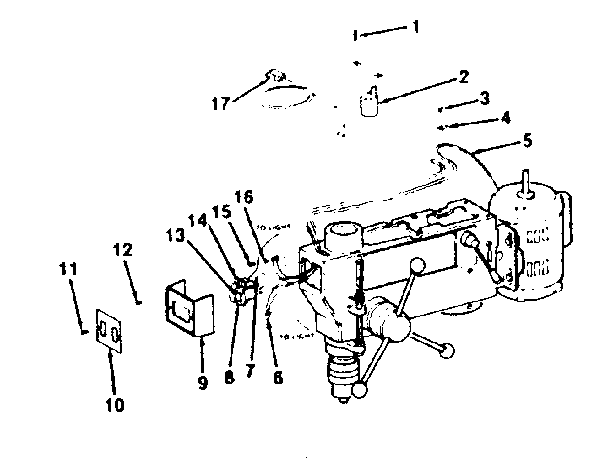

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 128 parts |

#17

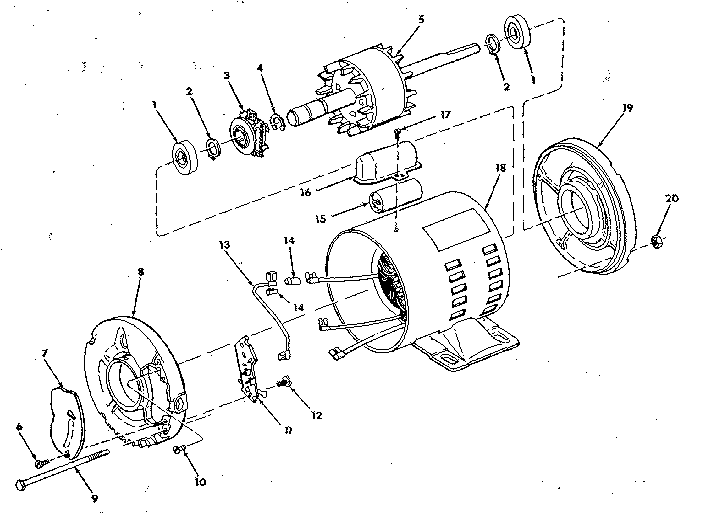

Motor 71426 diagram

Screw

Part #64372

The manufacturer no longer makes this part, and there's no substitute part

#30

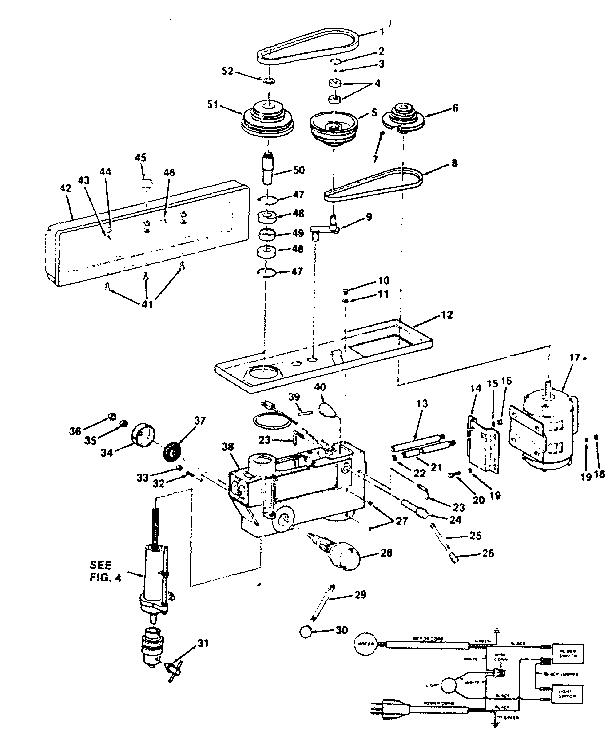

Motor and pulley assembly with guard diagram

Drill press fence knob

Part #71339

The manufacturer no longer makes this part, and there's no substitute part

#10

Motor and pulley assembly with guard diagram

Screw

Part #805517

The manufacturer no longer makes this part, and there's no substitute part

#31

Motor and pulley assembly with guard diagram

Chuck key

Part #71338

The manufacturer no longer makes this part, and there's no substitute part

#17

Motor and pulley assembly with guard diagram

Motor

Part #71426

The manufacturer no longer makes this part, and there's no substitute part

#12

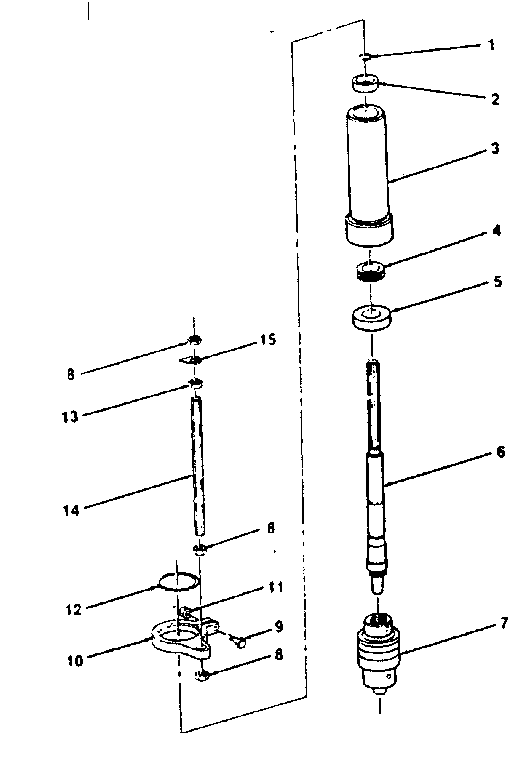

Spindle assembly diagram

Gasket

Part #71331

The manufacturer no longer makes this part, and there's no substitute part

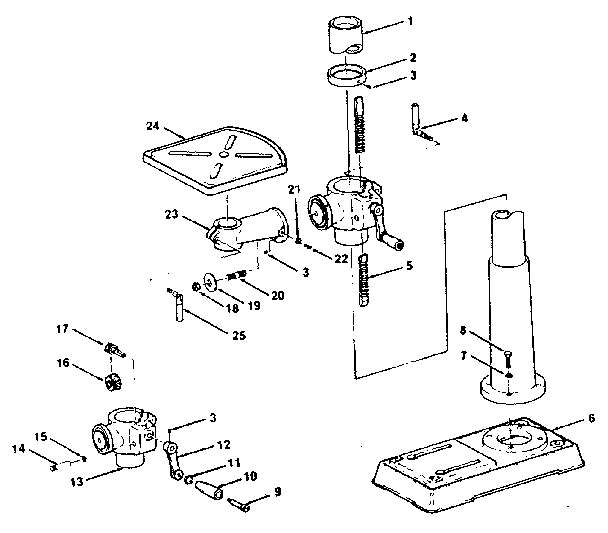

Base assembly diagram

Rack

Part #71365

The manufacturer no longer makes this part, and there's no substitute part

#39

Motor and pulley assembly with guard diagram

Taper pin

Part #60508

The manufacturer no longer makes this part, and there's no substitute part

#14

Spindle assembly diagram

Stop rod

Part #71366

The manufacturer no longer makes this part, and there's no substitute part

#21

Base assembly diagram

Indicator

Part #71264

The manufacturer no longer makes this part, and there's no substitute part
