Model # DE-250C Official Norcold refrigerator

Here are the diagrams and repair parts for Official Norcold DE-250C refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Butter Hold 245122
#8

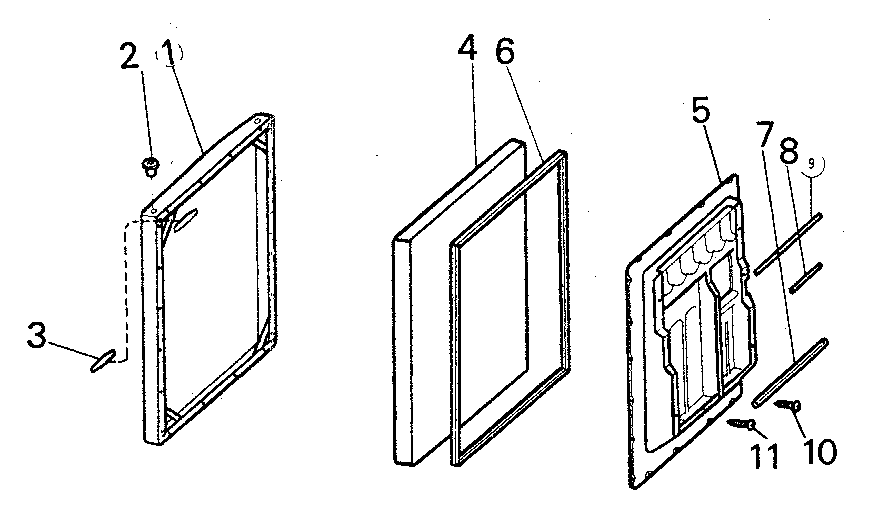

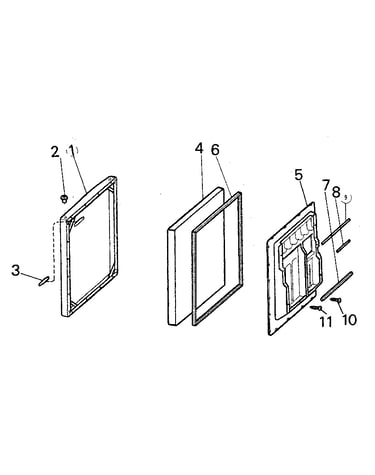

Door assembly diagram

Butter hold

Part #245122

The manufacturer no longer makes this part, and there's no substitute part

Rubber Leg R1-144267
#23

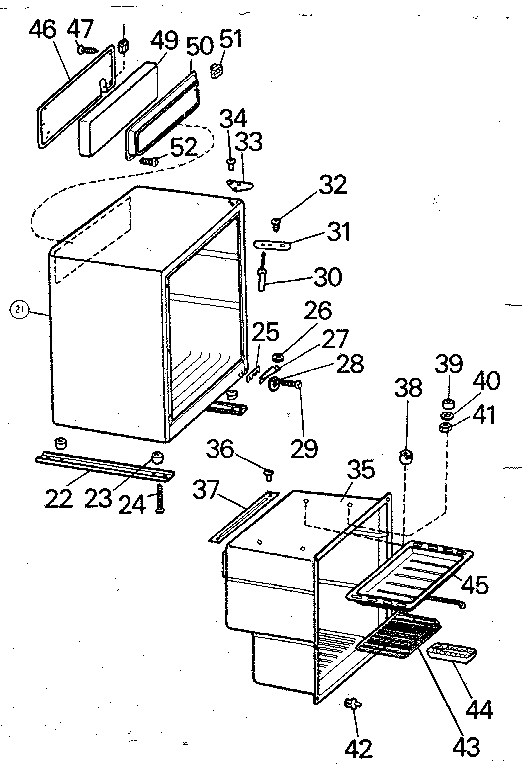

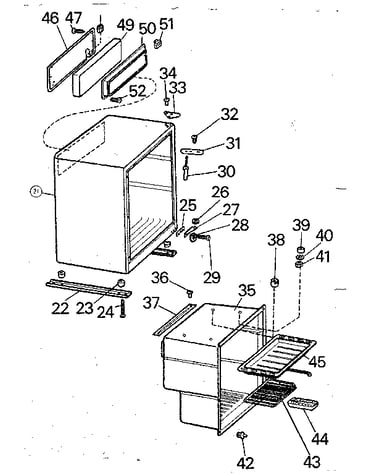

Cabinet diagram

Rubber leg

Part #R1-144267

The manufacturer no longer makes this part, and there's no substitute part

Bottle Hold 245121
#7

Door assembly diagram

Bottle hold

Part #245121

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Lamp Holder 320000900
#82

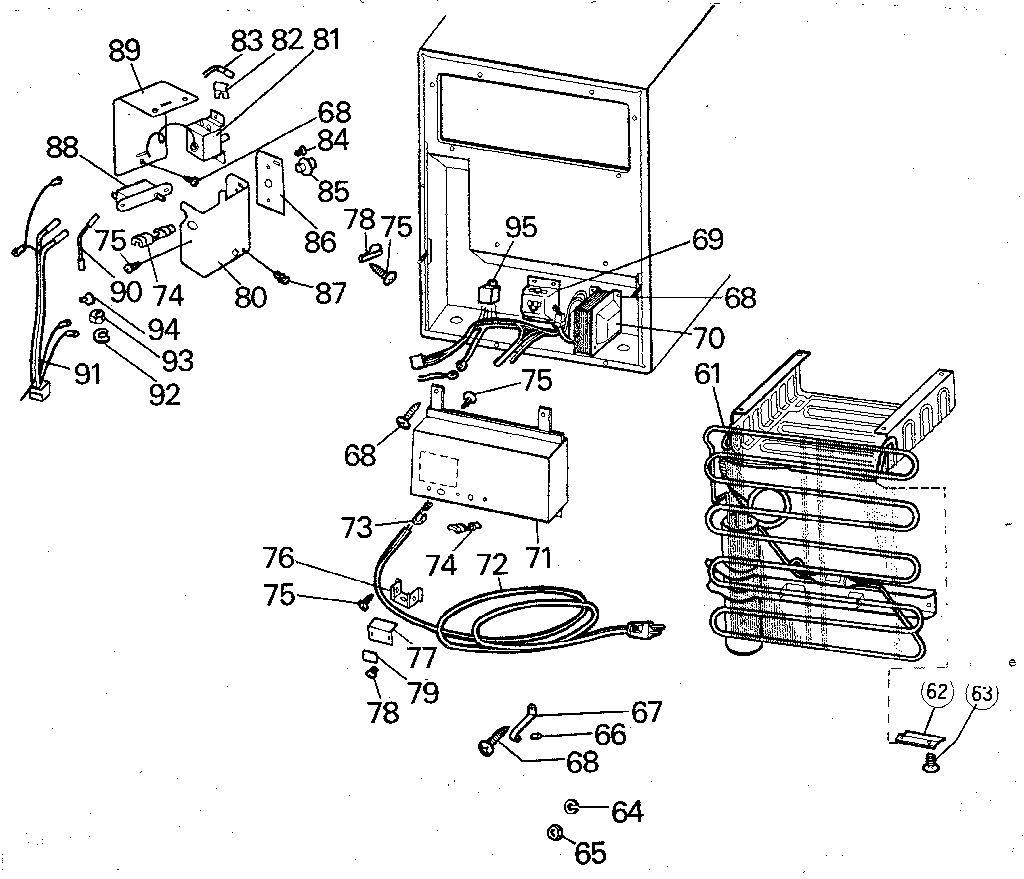

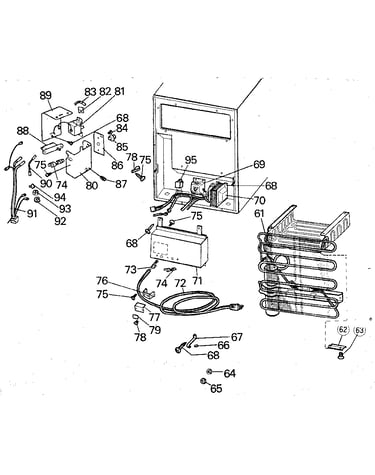

Cooling unit assembly diagram

Refrigerator lamp holder

Part #320000900

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Transformer 251290
#70

Cooling unit assembly diagram

Refrigerator transformer

Part #251290

The manufacturer no longer makes this part, and there's no substitute part

Bushing Outr 416002200
#48

Cabinet diagram

Bushing outr

Part #416002200

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Mark 545002300
#86

Cooling unit assembly diagram

Refrigerator mark

Part #545002300

The manufacturer no longer makes this part, and there's no substitute part

Door Case Ay 346700100
#1

Door assembly diagram

Door case ay

Part #346700100

The manufacturer no longer makes this part, and there's no substitute part

Blind Covr 244712
#50

Cabinet diagram

Blind covr

Part #244712

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 800004008
#78

Cooling unit assembly diagram

Refrigerator screw

Part #800004008

The manufacturer no longer makes this part, and there's no substitute part
