Top-Mount Refrigerator

Model # IPT184300 Official Inglis top-mount refrigerator

Here are the diagrams and repair parts for Official Inglis IPT184300 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

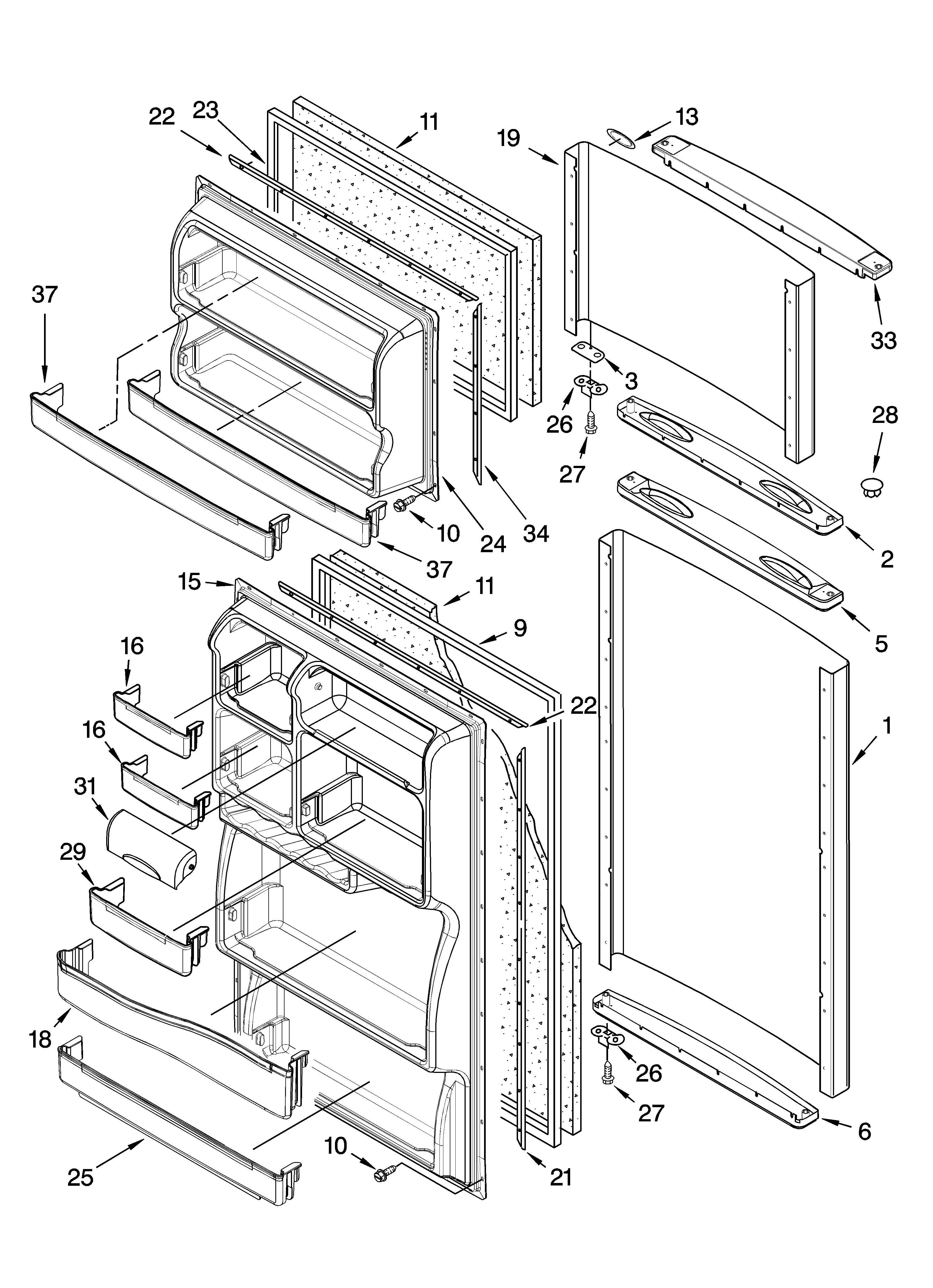

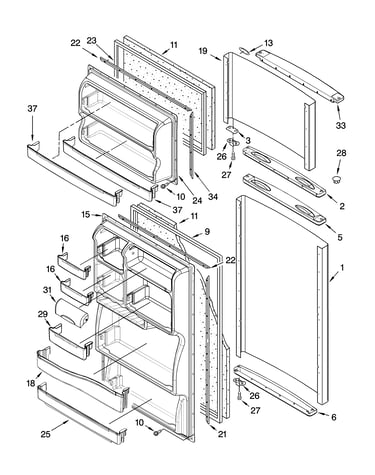

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Bulb-light 2252970
#17

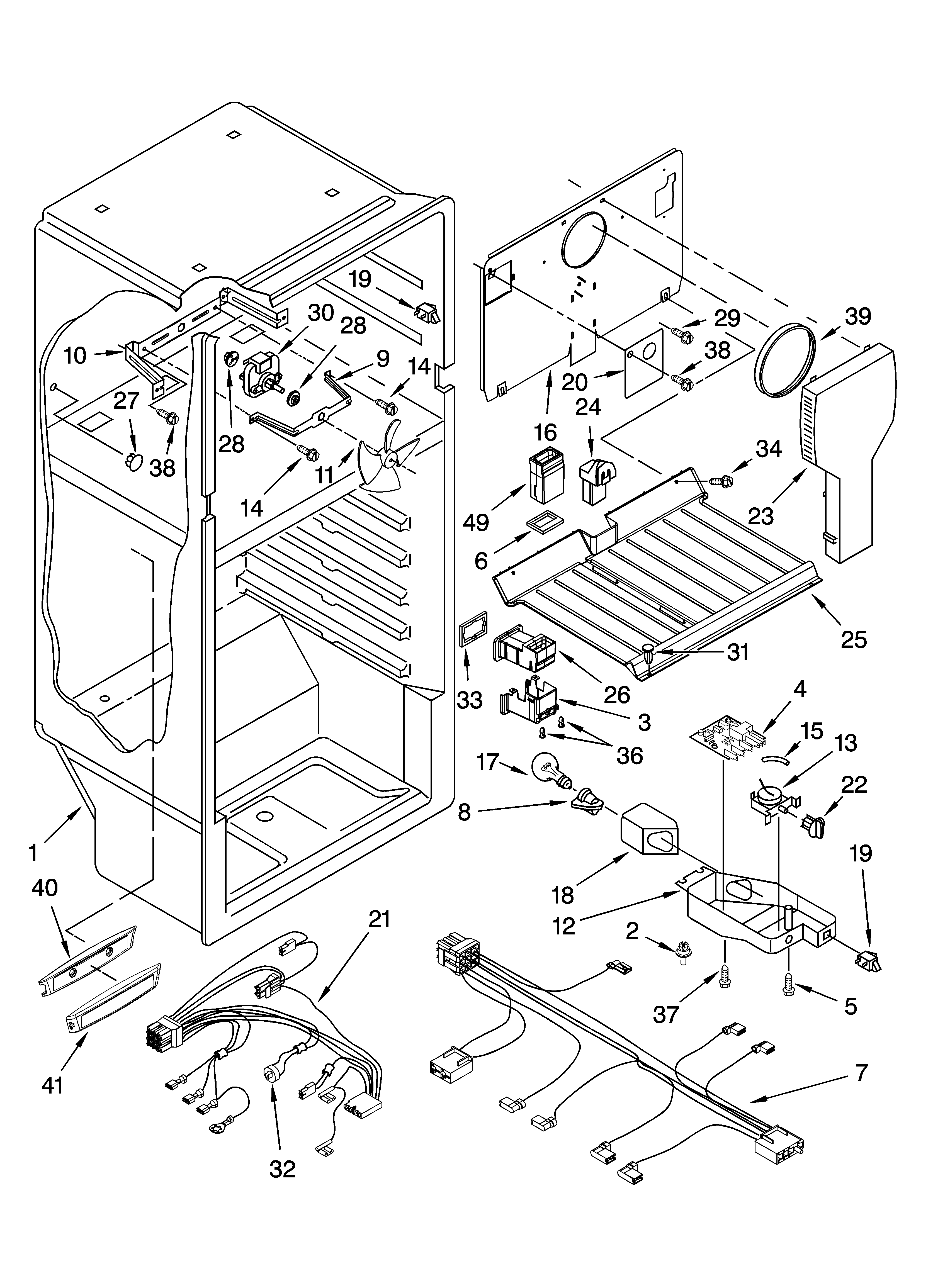

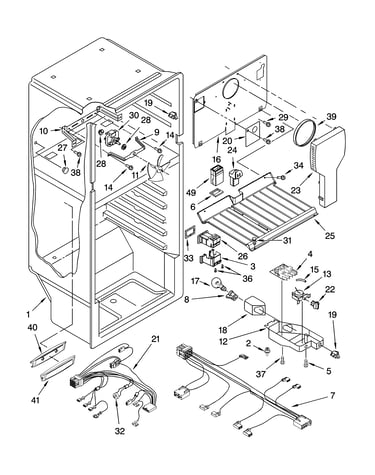

Liner parts diagram

Bulb-light

Part #2252970

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2252970. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 1118894
#19

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Dryer Tube 4387019
#29A

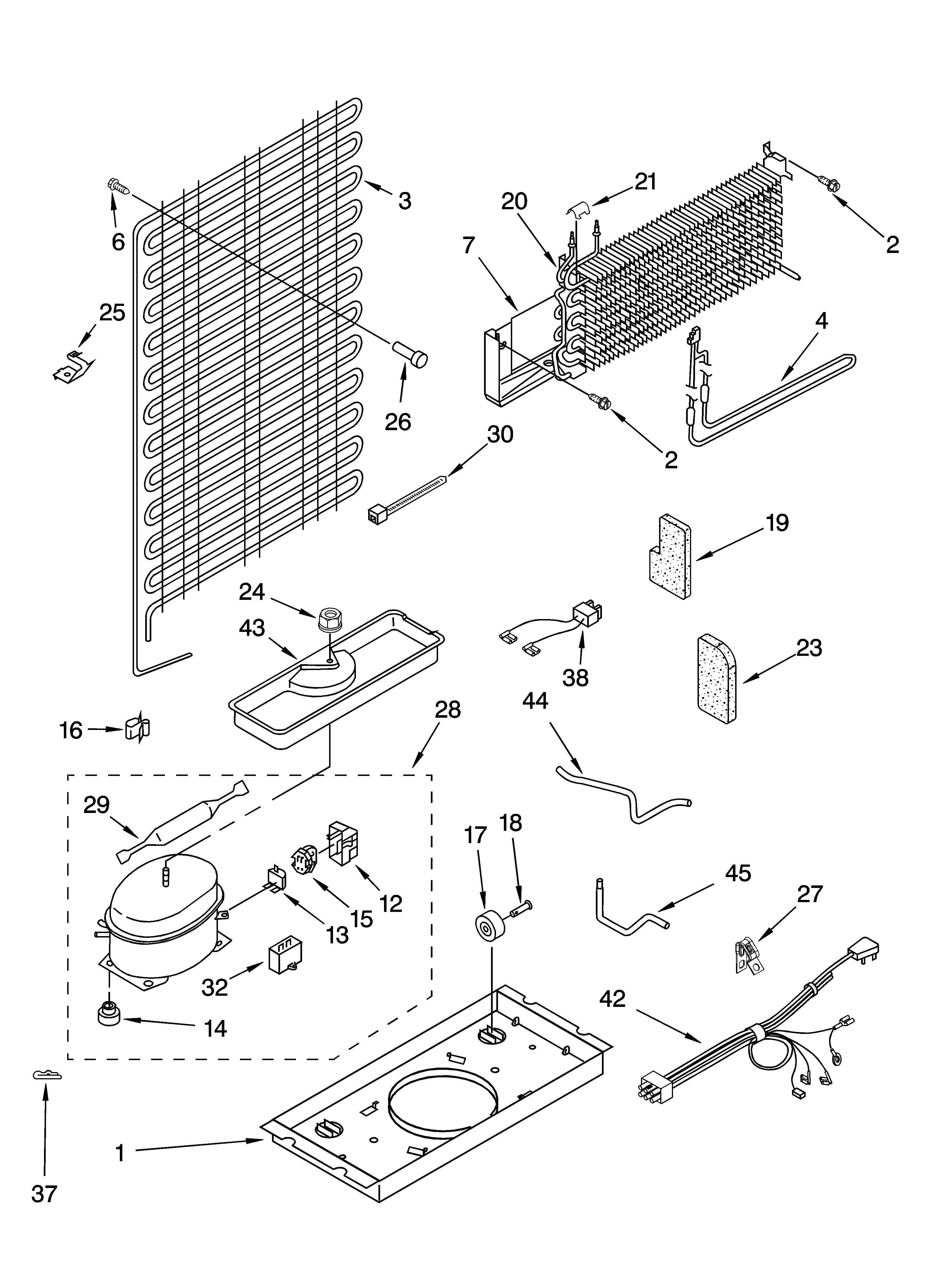

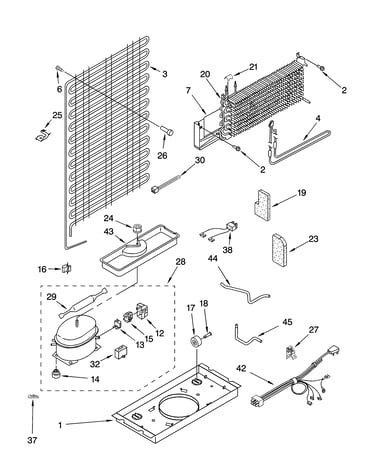

Unit parts diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Drier 2201796
#29

Unit parts diagram

Refrigerator drier

Part #2201796

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2201796. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 2216049
#28

Unit parts diagram

Refrigerator compressor

Part #2216049

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2216049. Substitute parts can look different from the original.
BEST SELLER
$285.83 |
6% OFF Was : $304.56
In Stock
Ice Maker 2155469
#NI

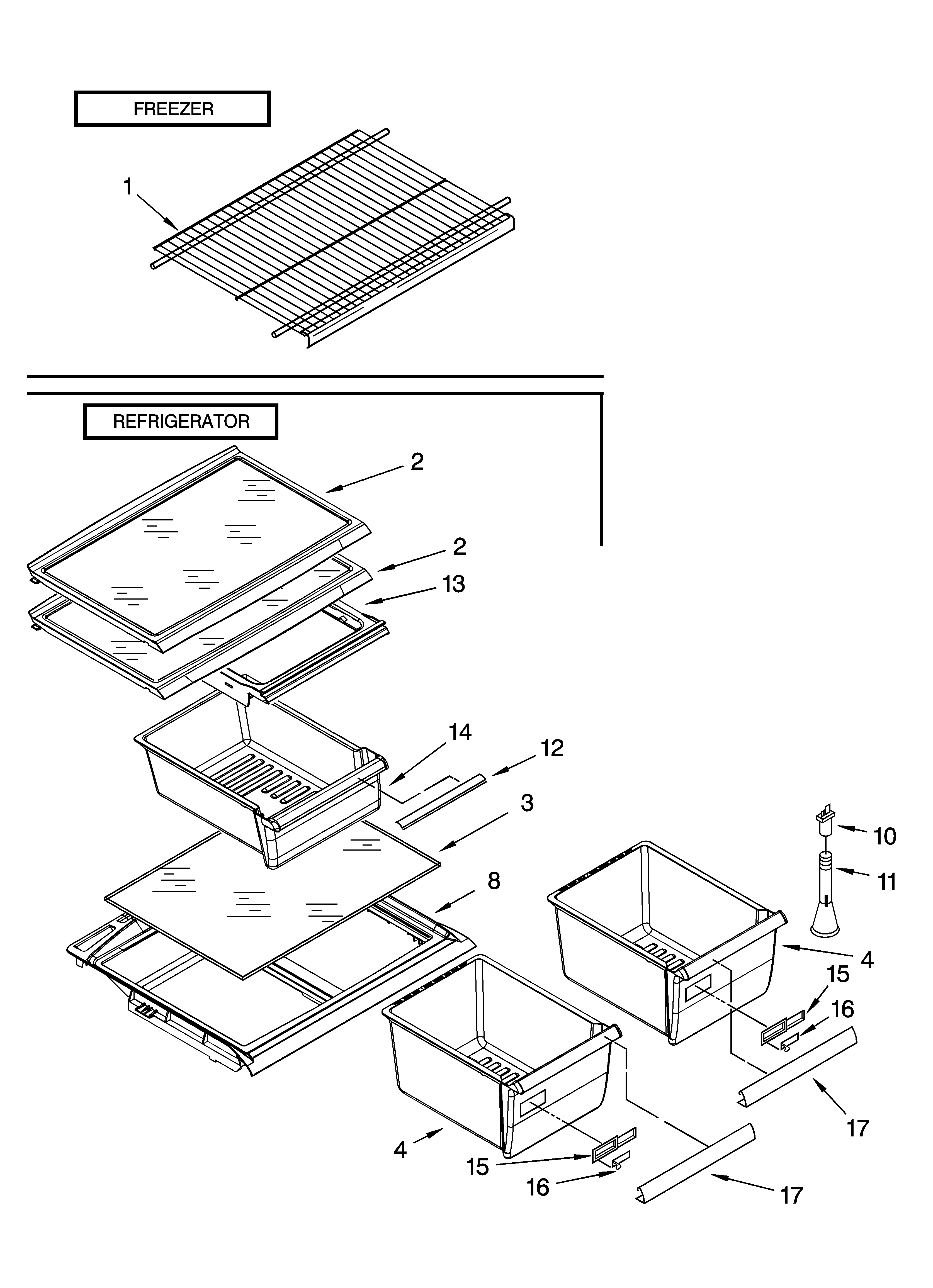

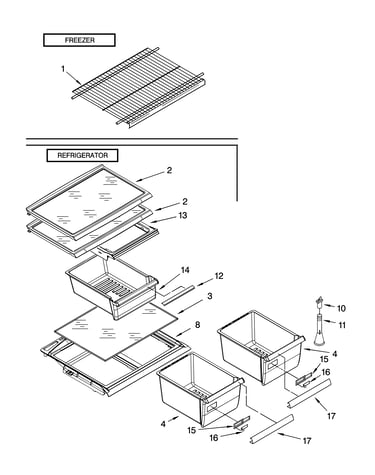

Shelf parts, optional parts diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$108.60 |
10% OFF Phone Price : $120.60
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Shelf parts, optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Fitting 2174760
#24

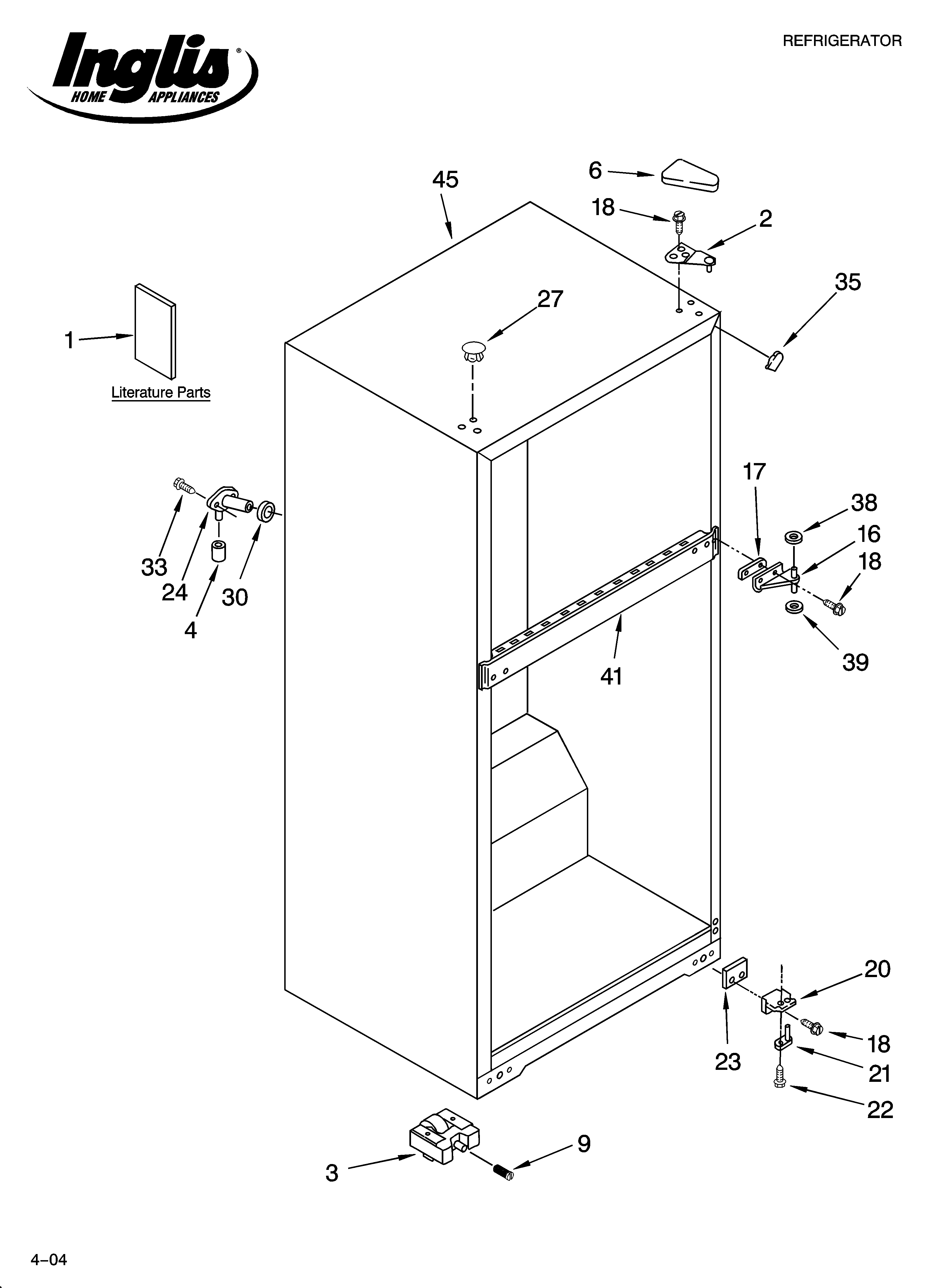

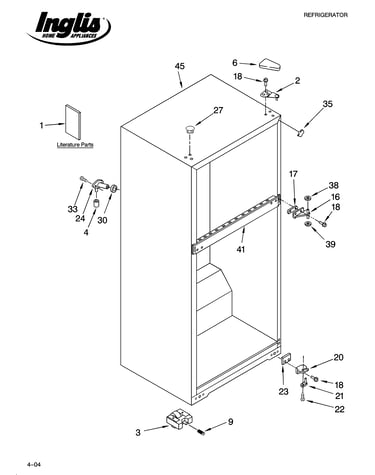

Cabinet parts diagram
