Hotpoint
Electric Wall Oven

Model # RK746GP1 Official Hotpoint electric oven

Here are the diagrams and repair parts for Official Hotpoint RK746GP1 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Sensor WB20X106

#253

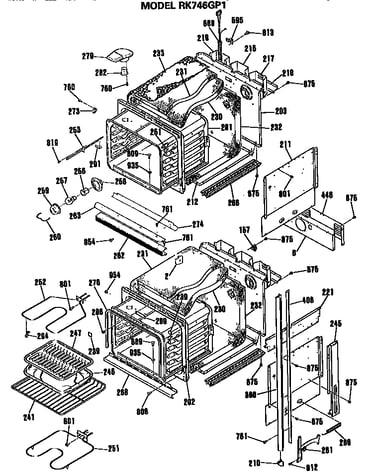

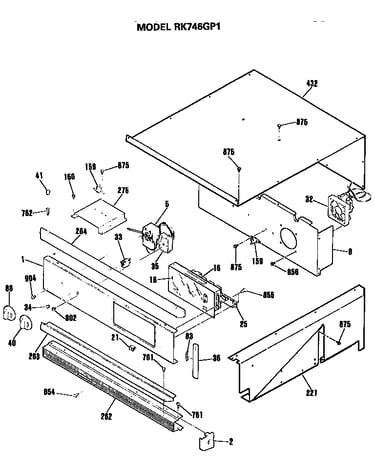

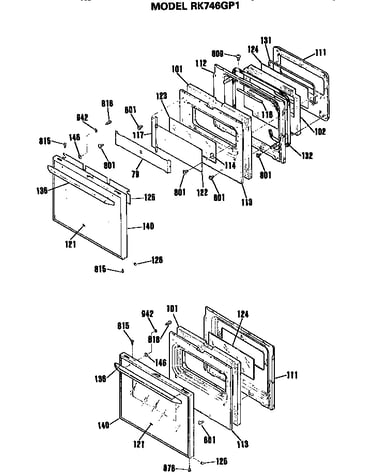

All parts diagram

Sensor

Part #WB20X106

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB20X106. Substitute parts can look different from the original.
BEST SELLER
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Bake Element WB44K5008

#251

All parts diagram

Bake element

Part #WB44K5008

Replaced by #WB44K5013

?
Manufacturer substitution
This part replaces WB44K5008. Substitute parts can look different from the original.
BEST SELLER
$71.33 |
8% OFF Phone Price : $77.33
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719

#294

All parts diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw-4-pk WB1M01

#801

All parts diagram

Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Oven Rack WB48K5006

#241

All parts diagram

Oven rack

Part #WB48K5006

Replaced by #WB48T10093

?
Manufacturer substitution
This part replaces WB48K5006. Substitute parts can look different from the original.
$43.96 |
12% OFF Phone Price : $49.96
In Stock
Wall Oven Cooling Fan Limit Switch WB24K5033

#158

All parts diagram

Wall oven cooling fan limit switch

Part #WB24K5033

$23.29 |
20% OFF Phone Price : $29.29
In Stock
Oven Door Gasket WB2X9683

#132

All parts diagram

Oven door gasket

Part #WB2X9683

Replaced by #WB32K5038

?
Manufacturer substitution
This part replaces WB2X9683. Substitute parts can look different from the original.
$77.17 |
7% OFF Phone Price : $83.17
In Stock
Screw WB1K5028

#760

All parts diagram

Screw

Part #WB1K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Light Lens WB25X94

#34

All parts diagram

Light lens

Part #WB25X94

Replaced by #WB25T10042

?
Manufacturer substitution
This part replaces WB25X94. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Limit Switch WB24K5034

#158

All parts diagram

Limit switch

Part #WB24K5034

Replaced by #WB24K5085

?
Manufacturer substitution
This part replaces WB24K5034. Substitute parts can look different from the original.
$48.47 |
11% OFF Phone Price : $54.47
In Stock
