Whirlpool
Microwave/Hood Combo

Model # MH7140XFQ0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MH7140XFQ0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

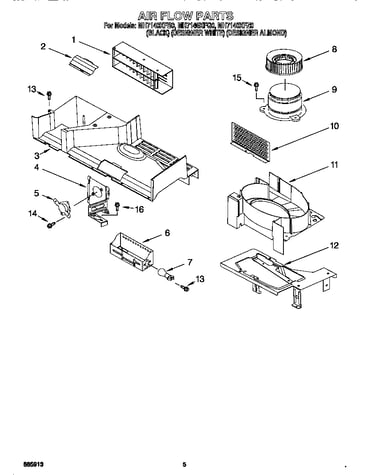

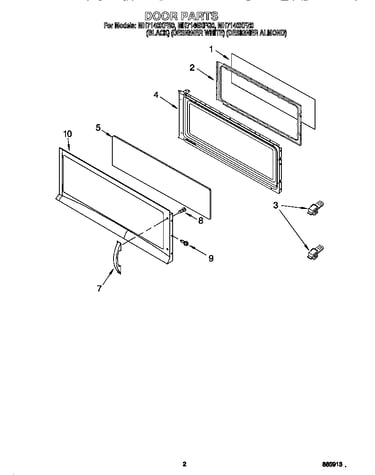

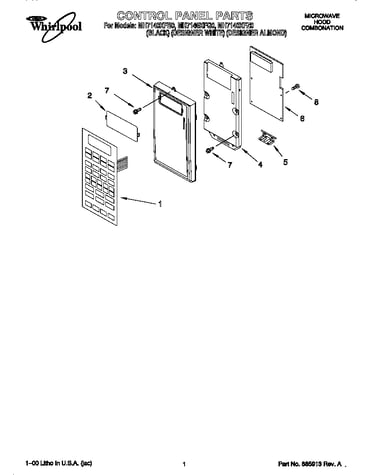

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Diode 4393600
#19

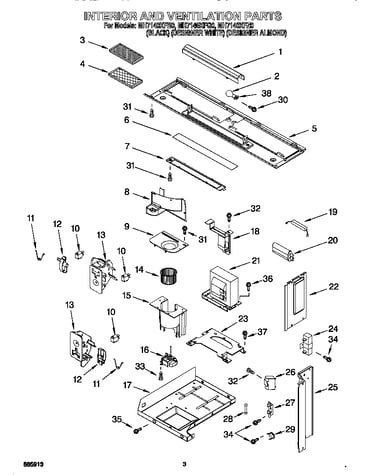

Interior and ventilation diagram

Diode

Part #4393600

Replaced by #W11256462

?
Manufacturer substitution
This part replaces 4393600. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Capacitor 4393703
#20

Interior and ventilation diagram

Capacitor

Part #4393703

Replaced by #W10850446

?
Manufacturer substitution
This part replaces 4393703. Substitute parts can look different from the original.
BEST SELLER
$94.83 |
6% OFF Phone Price : $100.83
In Stock
Primary Switch 4393697
#10

Interior and ventilation diagram

Primary switch

Part #4393697

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4393697. Substitute parts can look different from the original.
BEST SELLER
$31.80 |
16% OFF Phone Price : $37.80
In Stock
Magnetron 4393604
#14

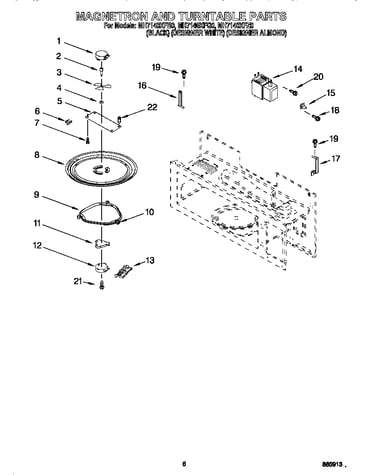

Magnetron and turntable diagram

Magnetron

Part #4393604

The manufacturer no longer makes this part, and there's no substitute part

Turntable Motor 4393755
#12

Magnetron and turntable diagram

Turntable motor

Part #4393755

Replaced by #W10642989

?
Manufacturer substitution
This part replaces 4393755. Substitute parts can look different from the original.
$69.48 |
8% OFF Phone Price : $75.48
In Stock
Ring Turn 4393752
#9

Magnetron and turntable diagram

Ring turn

Part #4393752

Replaced by #W11252182

?
Manufacturer substitution
This part replaces 4393752. Substitute parts can look different from the original.
$38.92 |
13% OFF Phone Price : $44.92
In Stock
Microwave Turntable Tray (replaces 8206226) 4393799
#8

Magnetron and turntable diagram

Microwave turntable tray (replaces 8206226)

Part #4393799

$52.95 |
10% OFF Phone Price : $58.95
In Stock
Support 4393754
#11

Magnetron and turntable diagram

Support

Part #4393754

Replaced by #W10435116

?
Manufacturer substitution
This part replaces 4393754. Substitute parts can look different from the original.
This item is not returnable
$22.09 |
21% OFF Phone Price : $28.09
Back Order
Damper 4393713
#3

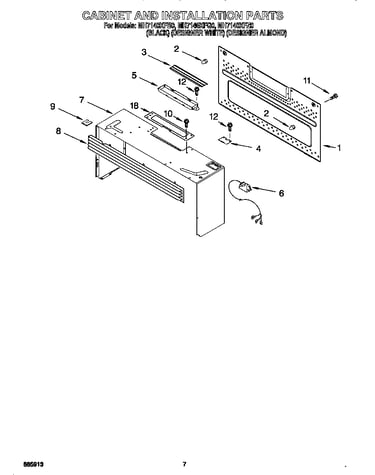

Cabinet and installation diagram

Damper

Part #4393713

Replaced by #W10843943

?
Manufacturer substitution
This part replaces 4393713. Substitute parts can look different from the original.
$57.22 |
9% OFF Phone Price : $63.22
In Stock
Adapter 4393715
#5

Cabinet and installation diagram

Adapter

Part #4393715

Replaced by #W10843943

?
Manufacturer substitution
This part replaces 4393715. Substitute parts can look different from the original.
$57.22 |
9% OFF Phone Price : $63.22
In Stock
