Model # PSB9100SF3SS Official GE microwave

Here are the diagrams and repair parts for Official GE PSB9100SF3SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

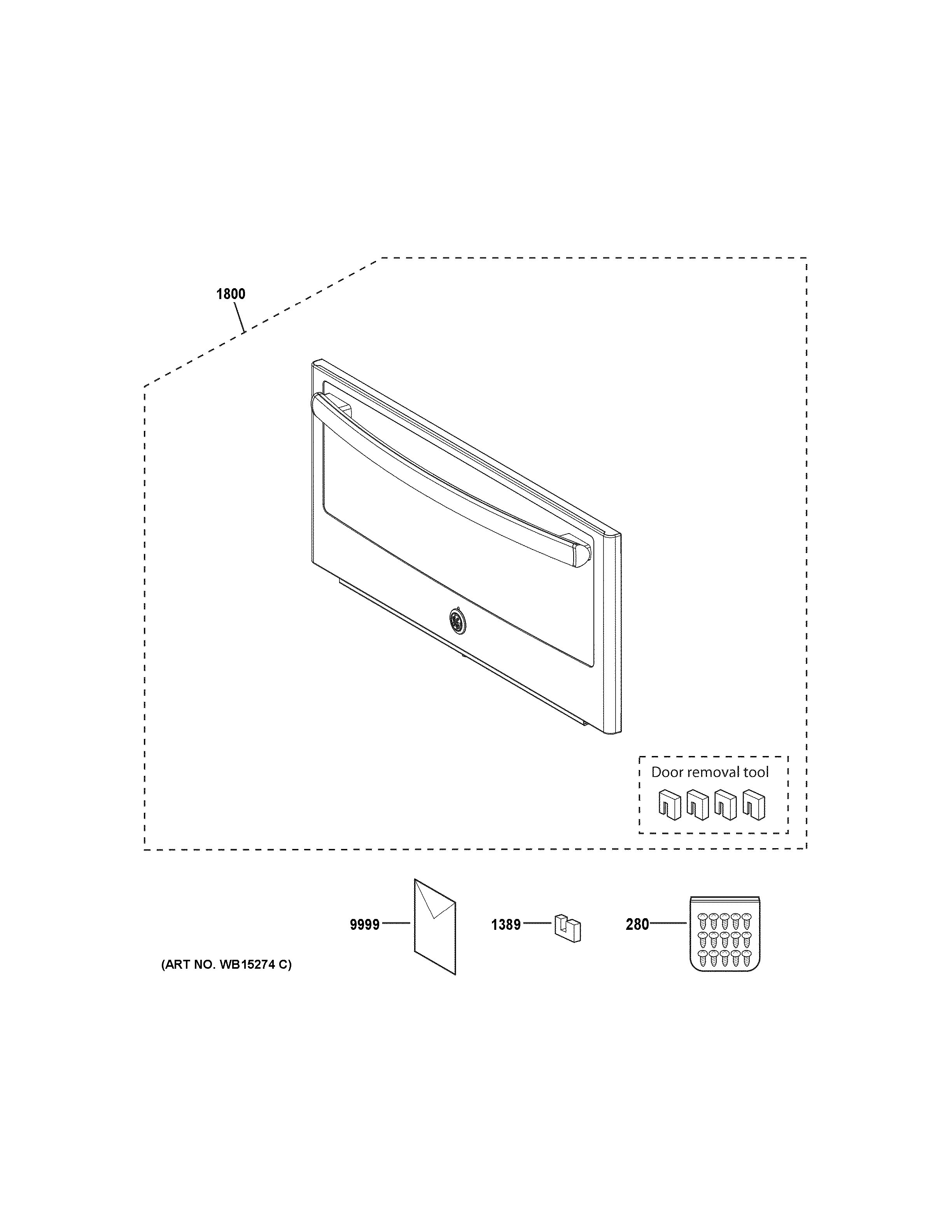

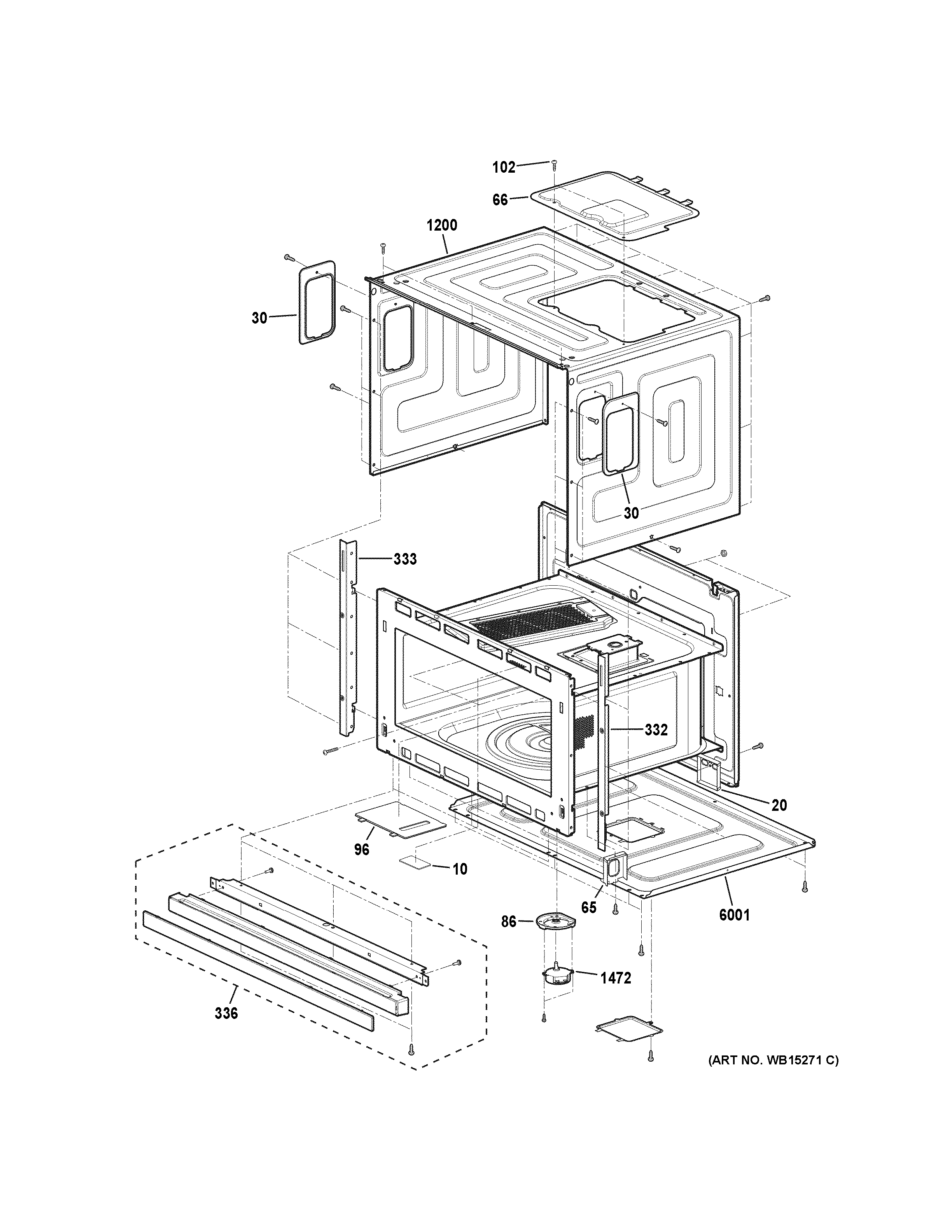

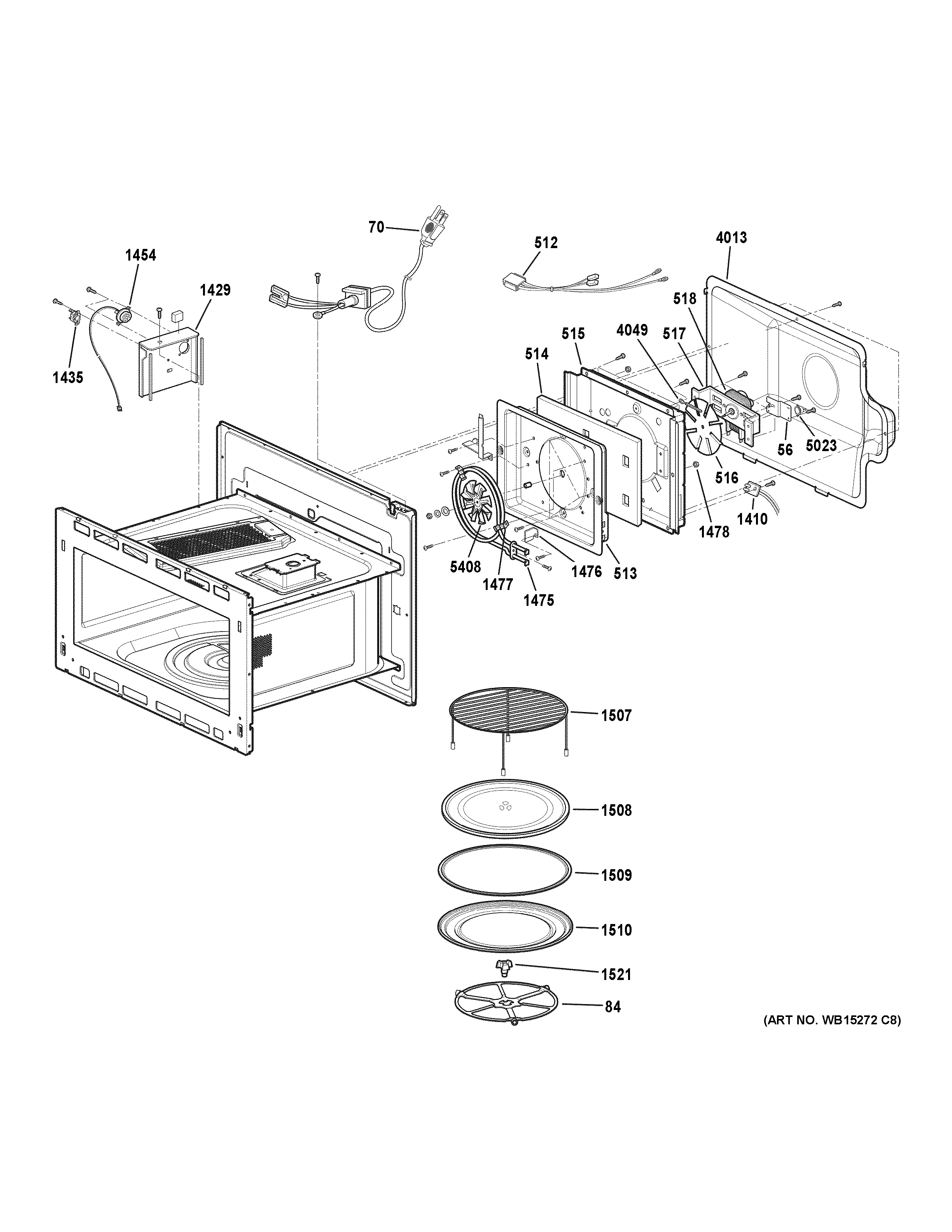

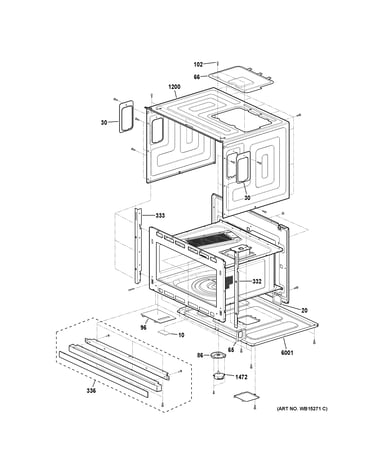

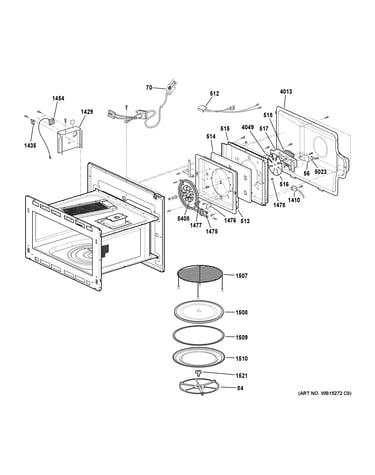

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Microwave Fuse WB27X10388
#47

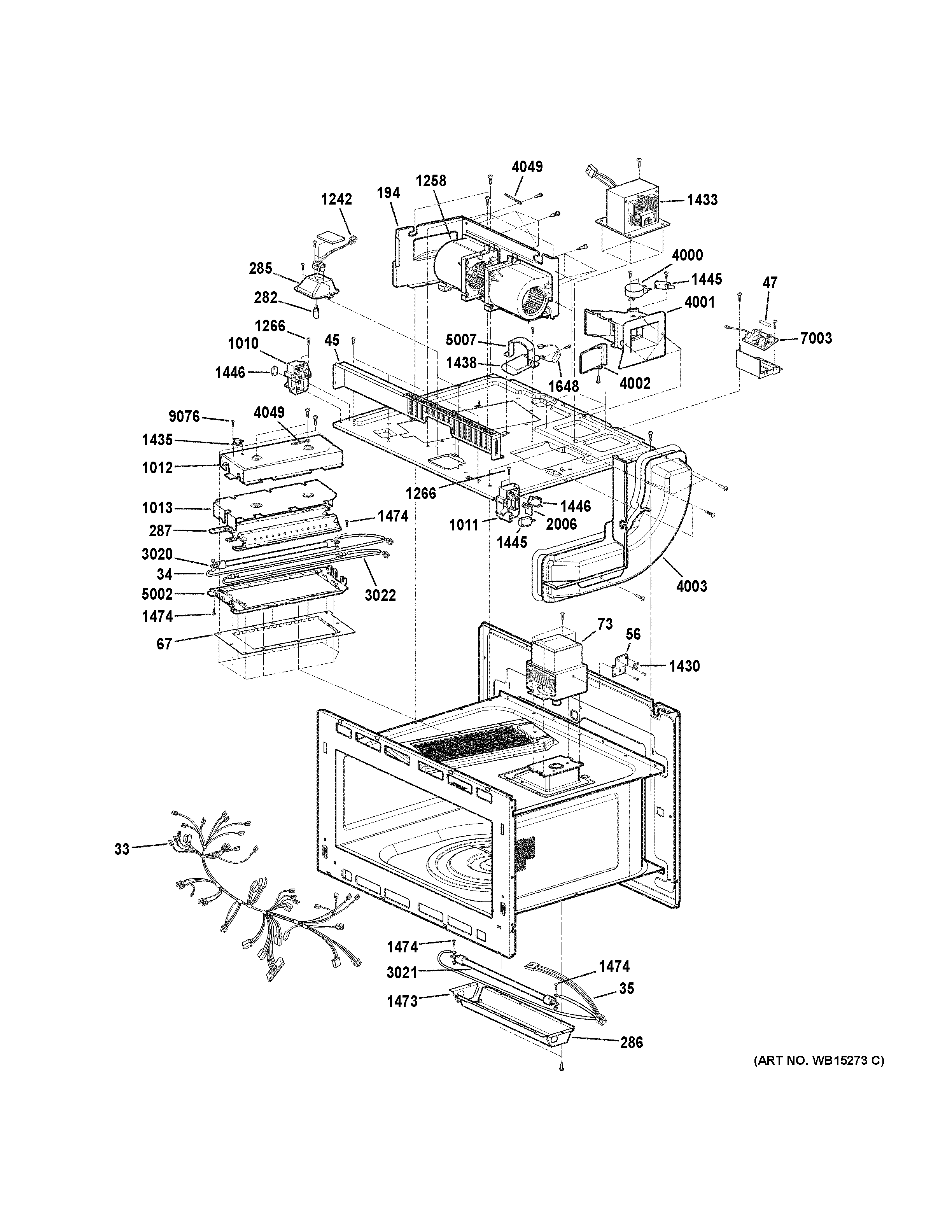

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#73

Interior parts (2) diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Drive Capacitor WB27X10701
#1438

Interior parts (2) diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Cable WB18X10286
#1648

Interior parts (2) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Display Board WB27X10856
#1657

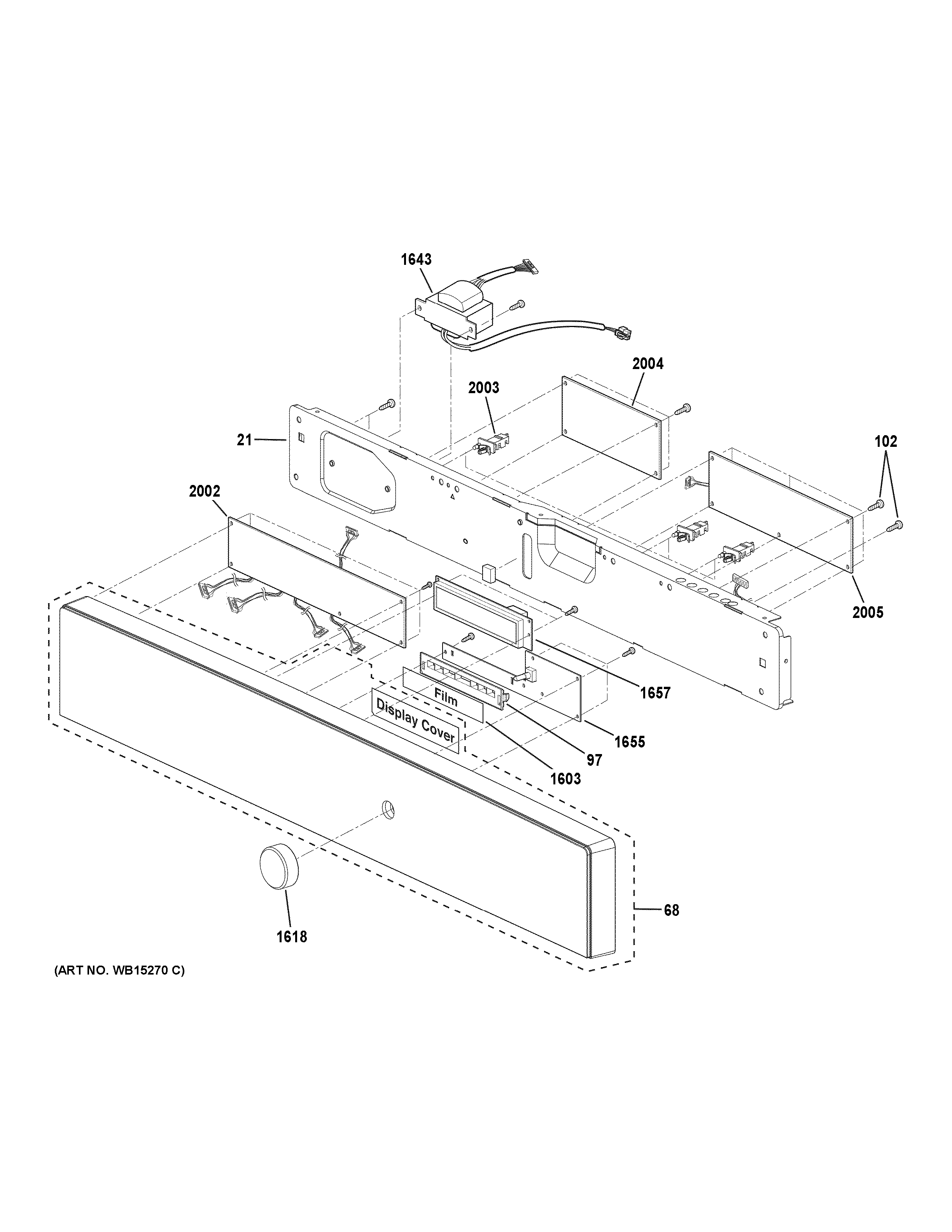

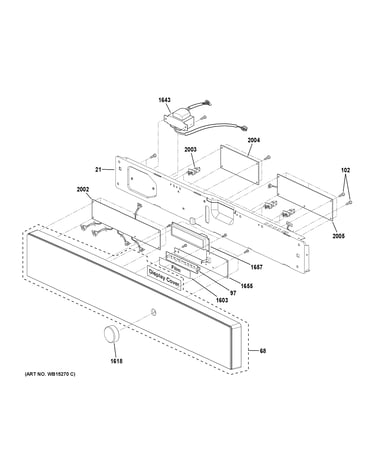

Control parts diagram

Microwave display board

Part #WB27X10856

BEST SELLER
$234.03 |
5% OFF Phone Price : $246.03
In Stock
Microwave Thermal Cut-off (replaces Wb27x10788) WB21X10148
#1430

Interior parts (2) diagram

Microwave thermal cut-off (replaces wb27x10788)

Part #WB21X10148

BEST SELLER
$21.10 |
22% OFF Phone Price : $27.10
In Stock
Microwave Light Bulb (replaces Wb08x10051, Wb25x21248, Wb25x25393) WB08X10057
#282

Interior parts (2) diagram

Microwave light bulb (replaces wb08x10051, wb25x21248, wb25x25393)

Part #WB08X10057

BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Latch Board WB06X10640
#1011

Interior parts (2) diagram

Latch board

Part #WB06X10640

Replaced by #WB10X32577

?
Manufacturer substitution
This part replaces WB06X10640. Substitute parts can look different from the original.
BEST SELLER
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Wall Oven Temperature Knob (replaces Wb03x21104) WB03X21244
#1618

Control parts diagram

Wall oven temperature knob (replaces wb03x21104)

Part #WB03X21244

$36.35 |
14% OFF Phone Price : $42.35
In Stock
Lever WB02X11214
#2006

Interior parts (2) diagram

Lever

Part #WB02X11214

Replaced by #WB02X32588

?
Manufacturer substitution
This part replaces WB02X11214. Substitute parts can look different from the original.
$8.11
In Stock
