Model # 502473990 Official Sears 3-speed lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502473990 3-speed lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

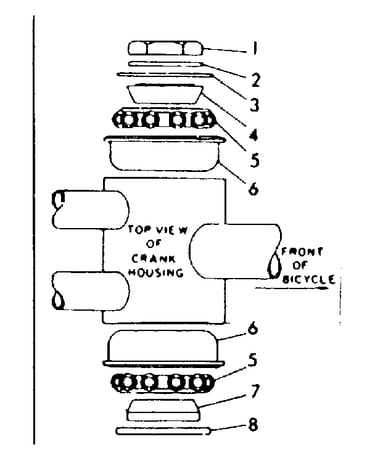

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Sprocket 300424
#48

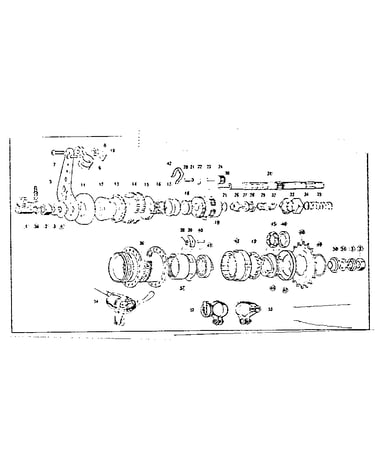

Three-speed hub with coaster brake diagram

Sprocket

Part #300424

The manufacturer no longer makes this part, and there's no substitute part

Tire 26X1-3/8

#NI

All parts diagram

Tire

Part #26X1-3/8

The manufacturer no longer makes this part, and there's no substitute part

Cable/casing 300392
#11A

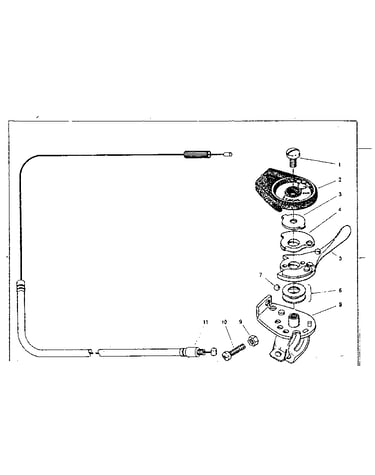

Trigger lever and cable assembly diagram

Cable/casing

Part #300392

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157

#NI

All parts diagram

Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#6

Rear caliper hand brake replacement parts diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Hub Shell 302091
#4

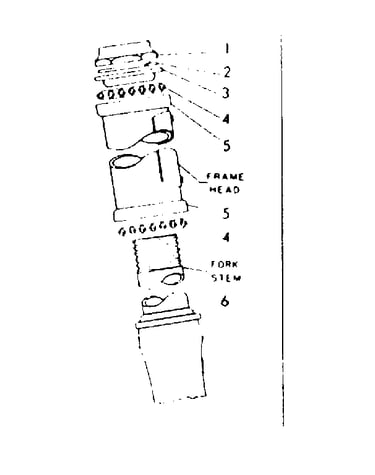

Hub shell (less axle set) diagram

Hub shell

Part #302091

The manufacturer no longer makes this part, and there's no substitute part

Bar Stem 27160

#NI

All parts diagram

Bar stem

Part #27160

The manufacturer no longer makes this part, and there's no substitute part

Spacer 300540
#6

Trigger lever and cable assembly diagram

Spacer

Part #300540

The manufacturer no longer makes this part, and there's no substitute part

Pinion Pin 300721
#23

Three-speed hub with coaster brake diagram

Pinion pin

Part #300721

The manufacturer no longer makes this part, and there's no substitute part

Arm Bolt 300706
#7

Three-speed hub with coaster brake diagram

Arm bolt

Part #300706

The manufacturer no longer makes this part, and there's no substitute part
