Thermador
Electric Cooktop

Model # CR30 Official Thermador electric cooktop

Here are the diagrams and repair parts for Official Thermador CR30 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Bracket 14-39-830
#7

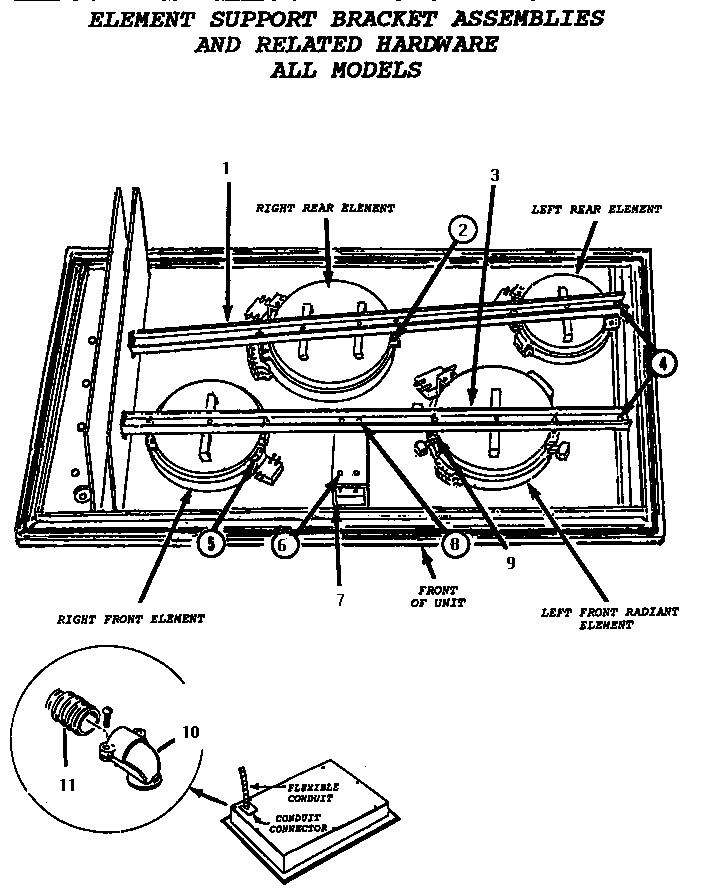

Element support bracket assemblies diagram

Bracket

Part #14-39-830

$13.49
In Stock
Mount 14-09-645
Mount

Part #14-09-645

$7.99
In Stock
Pilot Light 14-29-438
#5

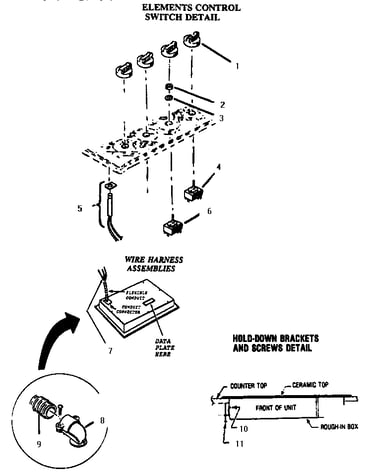

Elements control switch detail diagram

Pilot light

Part #14-29-438

$9.49
In Stock
Indicator 14-39-680
Indicator

Part #14-39-680

$78.99
In Stock
Element 14-39-671-01
Element

Part #14-39-671-01

Replaced by #00487391

?
Manufacturer substitution
This part replaces 14-39-671-01. Substitute parts can look different from the original.
$216.08 |
5% OFF Phone Price : $228.08
In Stock
Top Glued Assembly, White, Glass 14-61-311-10
#1

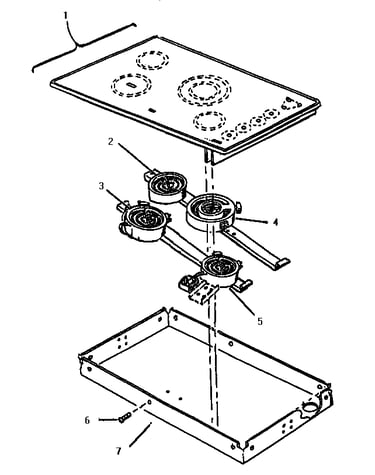

Body and elements (cr30) (cr30w) diagram

Top glued assembly, white, glass

Part #14-61-311-10

The manufacturer no longer makes this part, and there's no substitute part

Screw Spacer To Burner (16) 14-90-018
#2

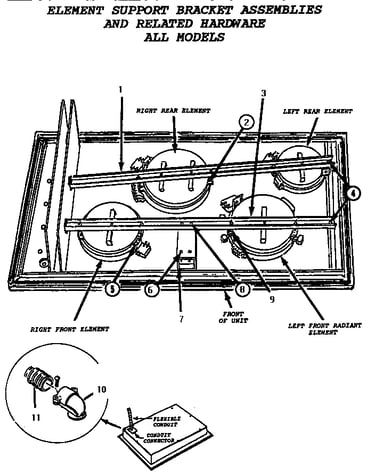

Element support bracket assemblies diagram

Screw spacer to burner (16)

Part #14-90-018

The manufacturer no longer makes this part, and there's no substitute part

Standard Wire Assembly 14-61-328
#7

Elements control switch detail diagram

Standard wire assembly

Part #14-61-328

The manufacturer no longer makes this part, and there's no substitute part

Bottom Cover 14-61-335-04
#7

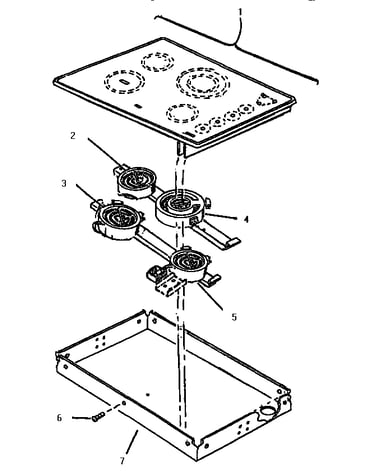

Body and elements (cr36) (cr36w) diagram

Bottom cover

Part #14-61-335-04

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Front Support 14-41-432-01
#3

Element support bracket assemblies diagram

Bracket, front support

Part #14-41-432-01

The manufacturer no longer makes this part, and there's no substitute part
