Gas Line Trimmer

Model # 96172000300 Official Poulan high wheel line trimmer

Here are the diagrams and repair parts for Official Poulan 96172000300 high wheel line trimmer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
96172000300 Line Trimmers
Lock Nut 83923
#27

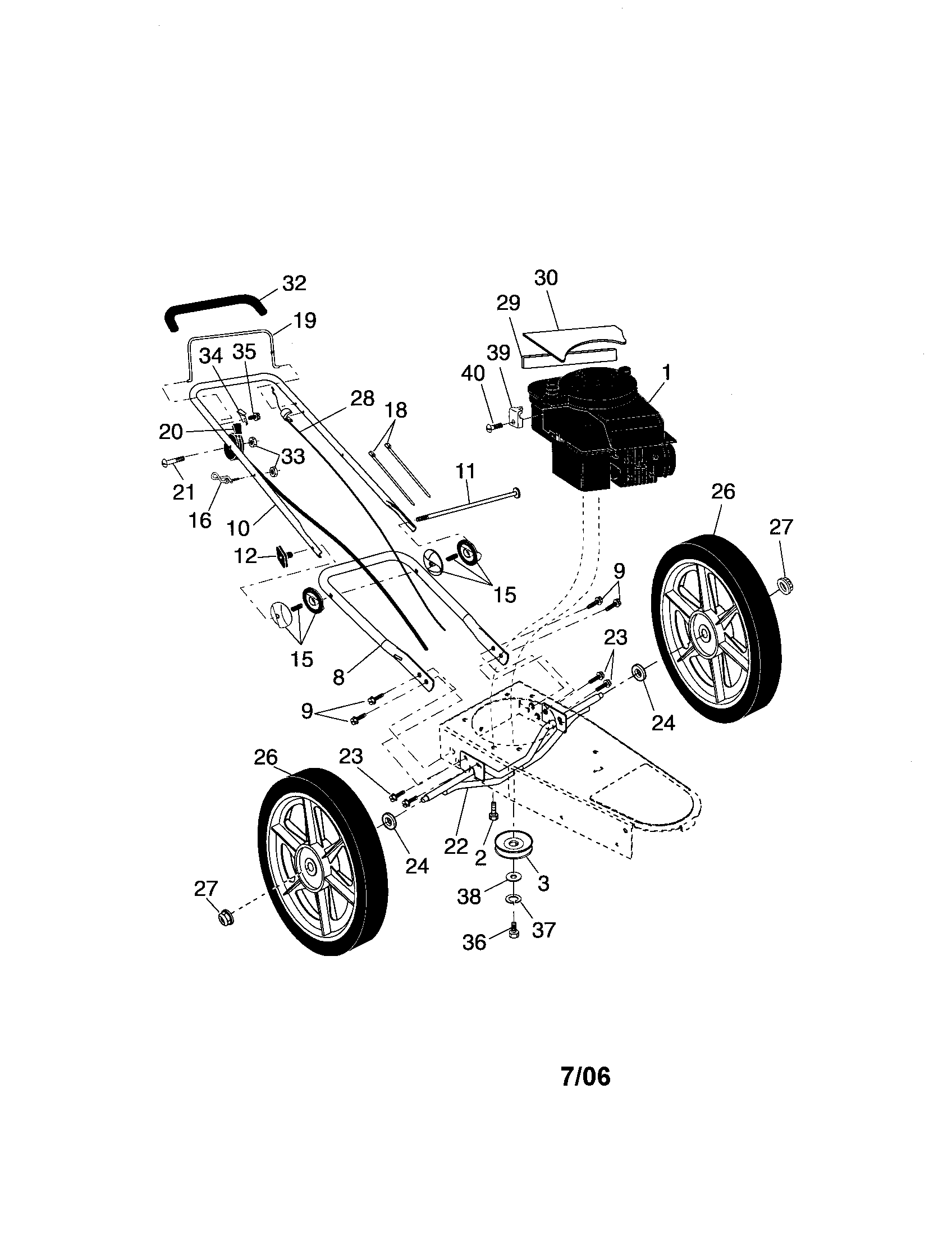

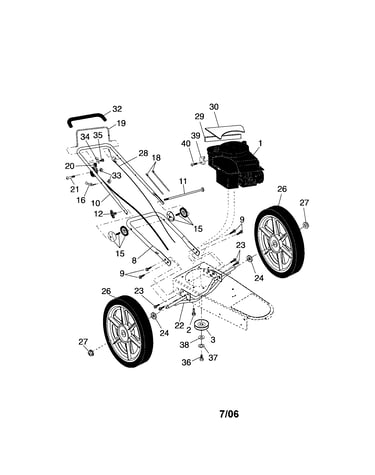

Engine/wheels/handle diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.11
14% OFF Phone Price : $7.11
In Stock
Hex Flange Lock Nut 145212
#14

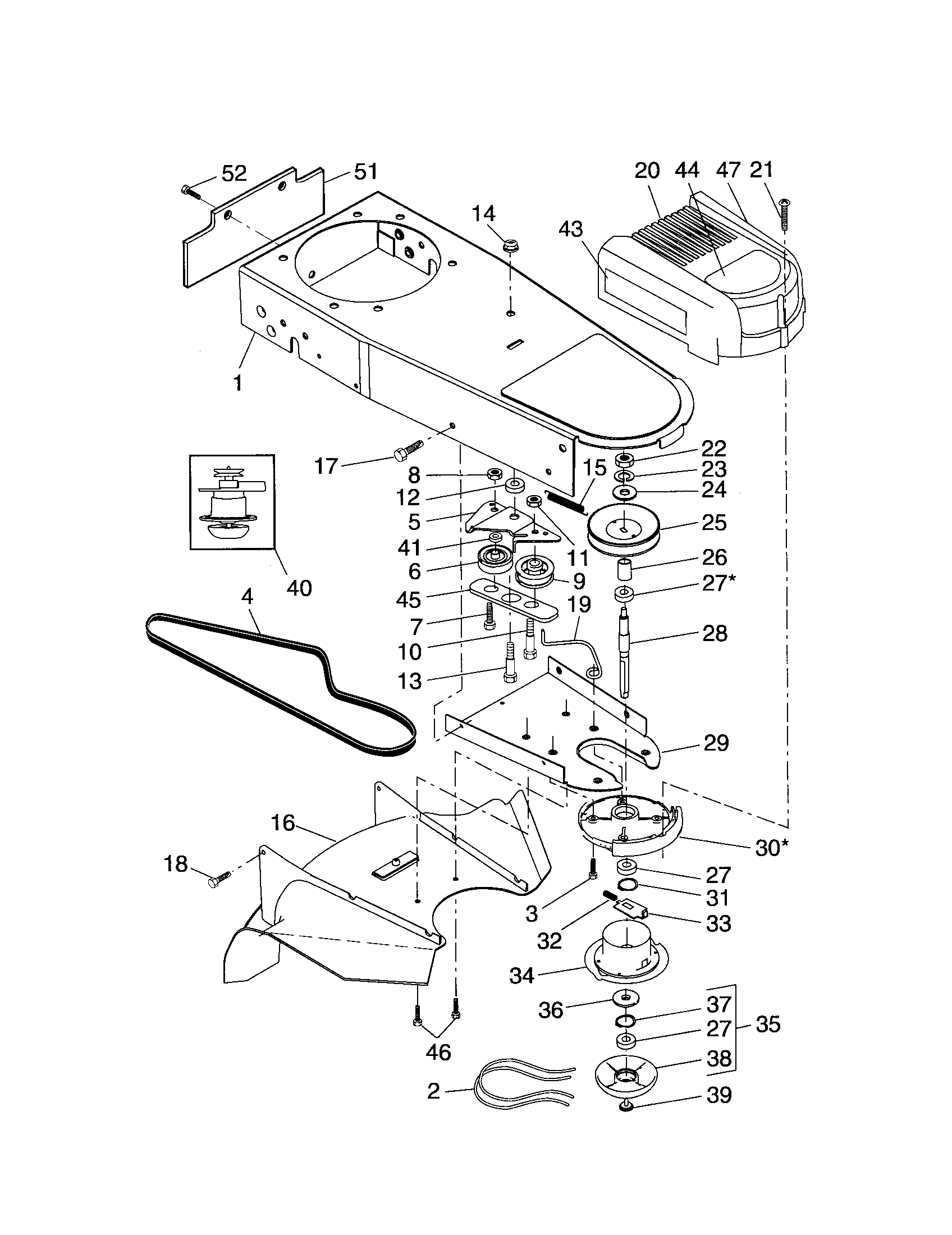

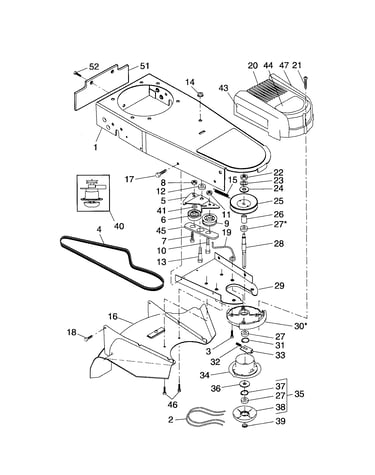

Chassis/deflector diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.11
14% OFF Phone Price : $7.11
In Stock
Hndl.knob.bl 189713X428
#12

Engine/wheels/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$11.88
14% OFF Phone Price : $13.88
In Stock
Line Trimmer Carrier Plate 180338
#34

Chassis/deflector diagram

Line trimmer carrier plate

Part #180338

Replaced by #594935003

?
Manufacturer substitution
This part replaces 180338. Substitute parts can look different from the original.
BEST SELLER
$63.63
9% OFF Phone Price : $69.63
In Stock
Lock Nut 751592
#8

Chassis/deflector diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
High-wheel Trimmer Spindle Assembly 180333
#40

Chassis/deflector diagram

High-wheel trimmer spindle assembly

Part #180333

Replaced by #596878501

?
Manufacturer substitution
This part replaces 180333. Substitute parts can look different from the original.
BEST SELLER
$142.24
8% OFF Phone Price : $154.24
In Stock
Bearing Cover 172516
#36

Chassis/deflector diagram

Bearing cover

Part #172516

Replaced by #532172516

?
Manufacturer substitution
This part replaces 172516. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.09
17% OFF Phone Price : $12.09
In Stock
Throttle 177814
#20

Engine/wheels/handle diagram

Throttle

Part #177814

Replaced by #583084301

?
Manufacturer substitution
This part replaces 177814. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.53
15% OFF Phone Price : $13.53
In Stock
Nut 132004
#33

Engine/wheels/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.87
26% OFF Phone Price : $3.87
In Stock
Retain Ring 174580
#37

Chassis/deflector diagram

Retain ring

Part #174580

Replaced by #532174580

?
Manufacturer substitution
This part replaces 174580. Substitute parts can look different from the original.
This item is not returnable
$5.78
15% OFF Phone Price : $6.78
In Stock
