Model # KEBC107HBL0 Official KitchenAid electric oven
Here are the diagrams and repair parts for Official KitchenAid KEBC107HBL0 electric oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

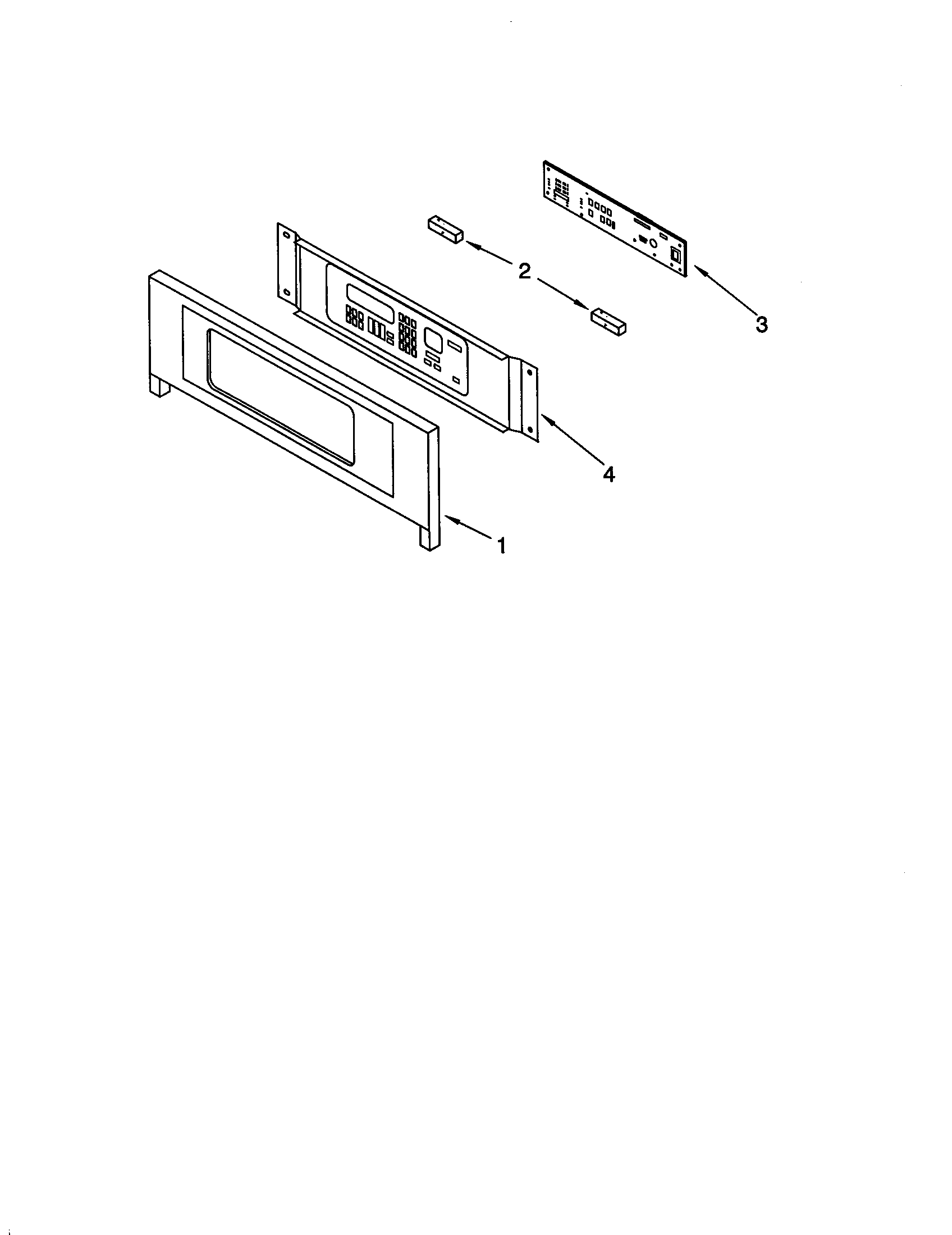

SELECT DIAGRAM
Browse Parts forKEBC107HBL0 Wall Ovens
- #3

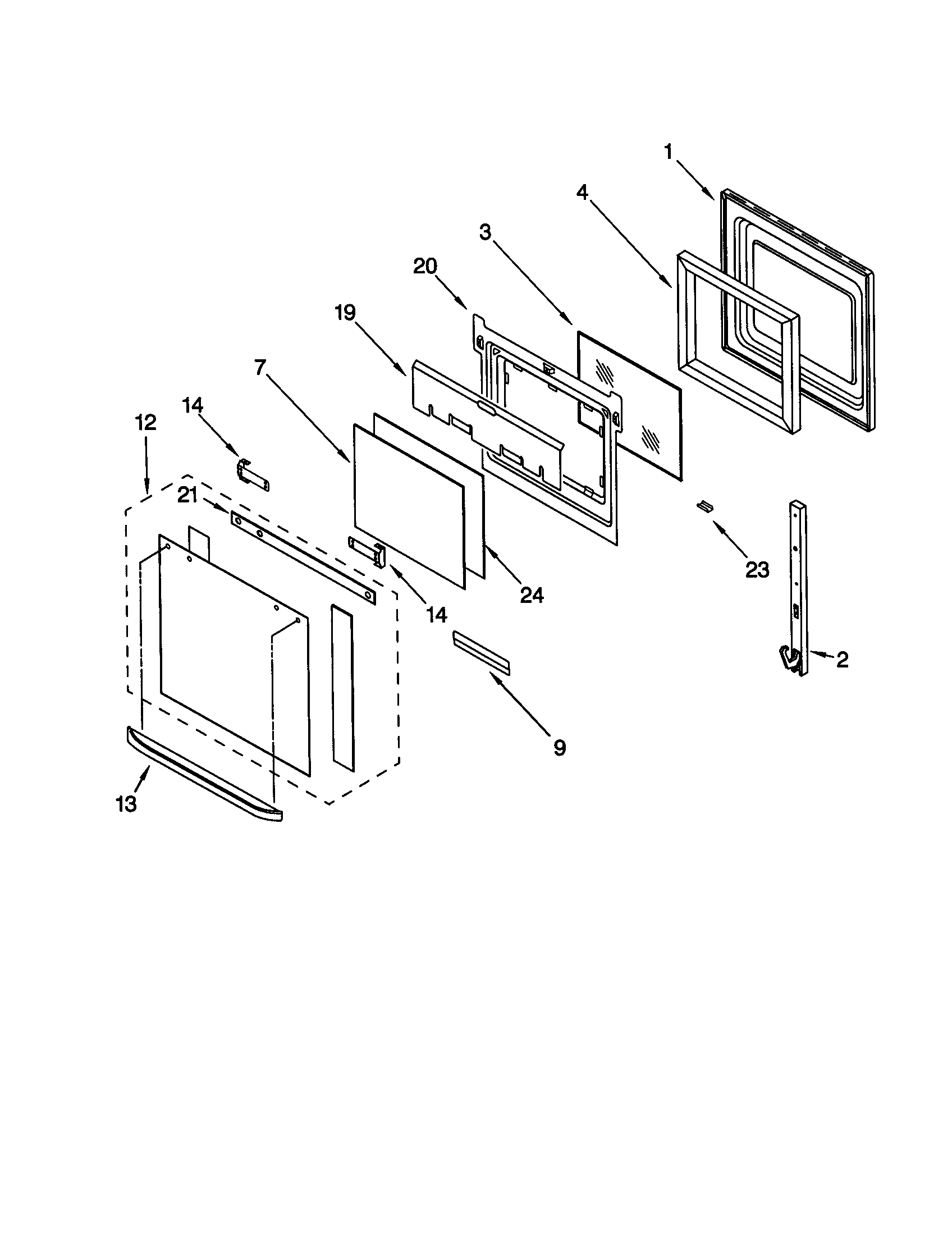

Oven door diagram
Wall oven door inner glassPart #4449259
Replaced by #WP4449259
?Manufacturer substitutionThis part replaces 4449259. Substitute parts can look different from the original.$89.91 |6% OFF Phone Price : $95.91In Stock - #37
Oven diagram
Oven high-limit thermostatPart #4452223
Replaced by #WP9759242
?Manufacturer substitutionThis part replaces 4452223. Substitute parts can look different from the original.$50.21 |11% OFF Phone Price : $56.21In Stock - Screw
Part #3400832
Replaced by #WP3400832
?Manufacturer substitutionThis part replaces 3400832. Substitute parts can look different from the original.This item is not returnable$4.41 |18% OFF Phone Price : $5.41In Stock - #7
Oven door diagram
Wall oven door inner glassPart #4449263
Replaced by #WP4449263
?Manufacturer substitutionThis part replaces 4449263. Substitute parts can look different from the original.$89.74 |6% OFF Phone Price : $95.74In Stock - #7

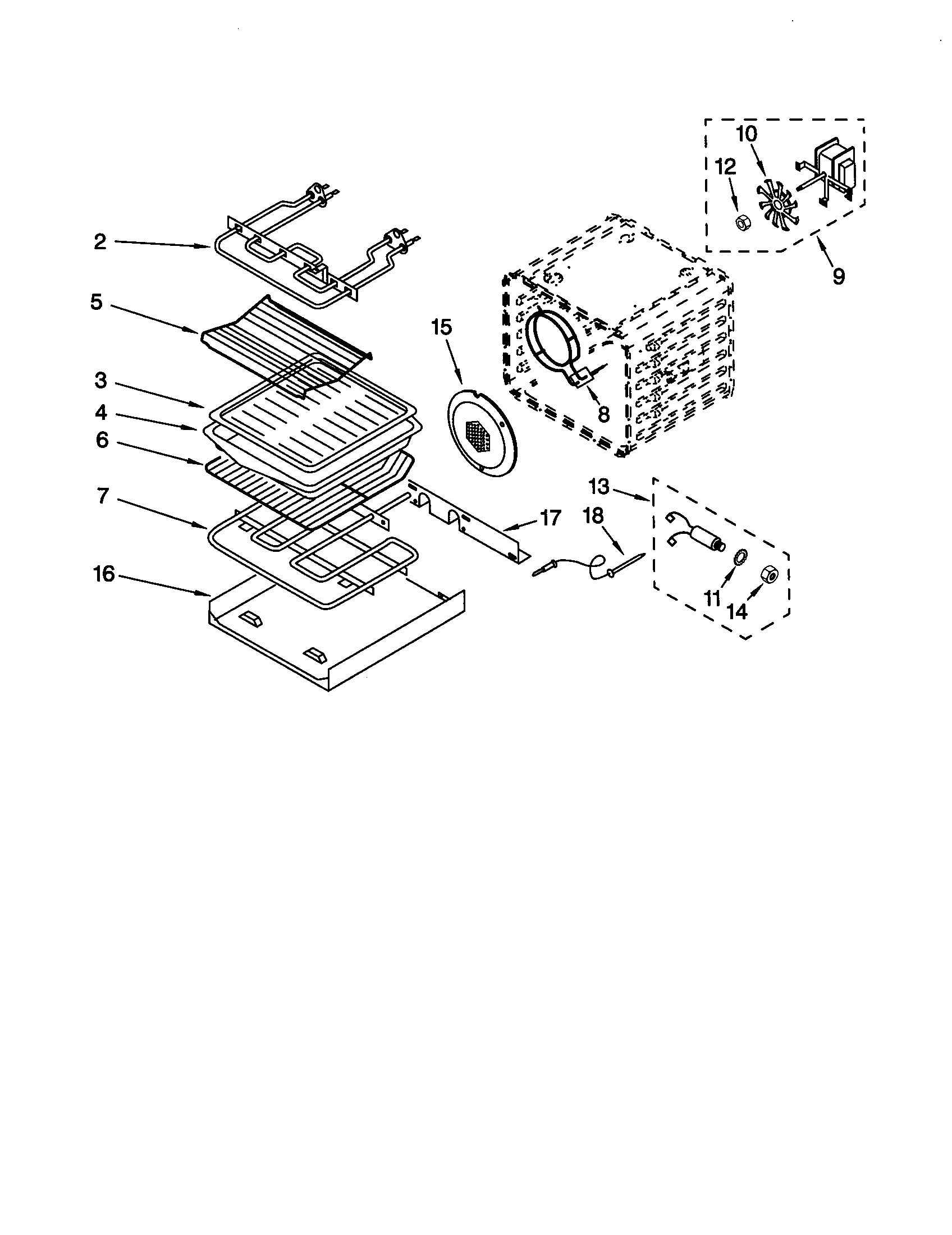

Internal oven diagram
Bake elementPart #4452155
Replaced by #4451175
?Manufacturer substitutionThis part replaces 4452155. Substitute parts can look different from the original.$93.90 |6% OFF Phone Price : $99.90In Stock - #15
Oven diagram
Door gasketPart #4455382
Replaced by #W11675844
?Manufacturer substitutionThis part replaces 4455382. Substitute parts can look different from the original.$33.83 |15% OFF Phone Price : $39.83In Stock - #12
Oven diagram
Wall oven light bulbPart #4452164
Replaced by #WP4452164
?Manufacturer substitutionThis part replaces 4452164. Substitute parts can look different from the original.$40.50 |13% OFF Phone Price : $46.50In Stock #NI
All parts diagram
Wire tiePart #4454842
Replaced by #WPW10339879
?Manufacturer substitutionThis part replaces 4454842. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock- #2
Oven door diagram
Door hinge (black)Part #4452343
Replaced by #WP4455526
?Manufacturer substitutionThis part replaces 4452343. Substitute parts can look different from the original.$67.44 |8% OFF Phone Price : $73.44In Stock - #11A
Top venting diagram
Range screwPart #3400016
Replaced by #WP3400016
?Manufacturer substitutionThis part replaces 3400016. Substitute parts can look different from the original.This item is not returnable$4.09 |20% OFF Phone Price : $5.09In Stock
