Model # 51221400250 Official LXI stereo multiband radio with cassette

Here are the diagrams and repair parts for Official LXI 51221400250 stereo multiband radio with cassette, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

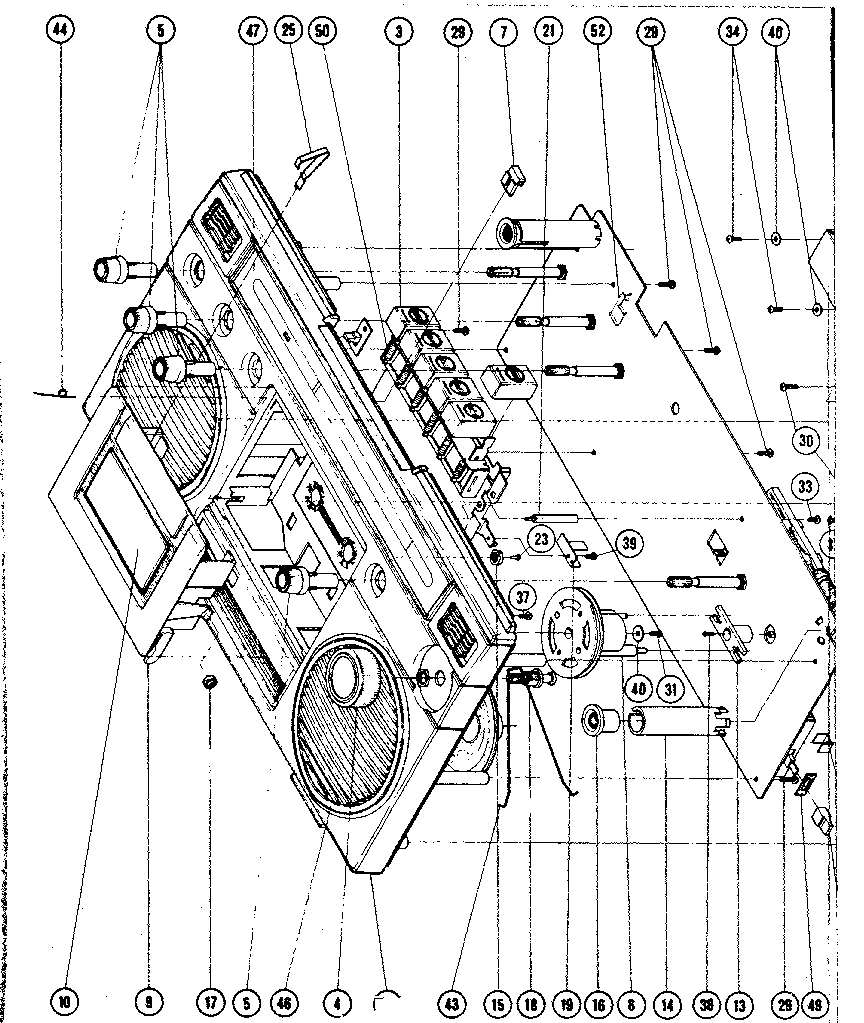

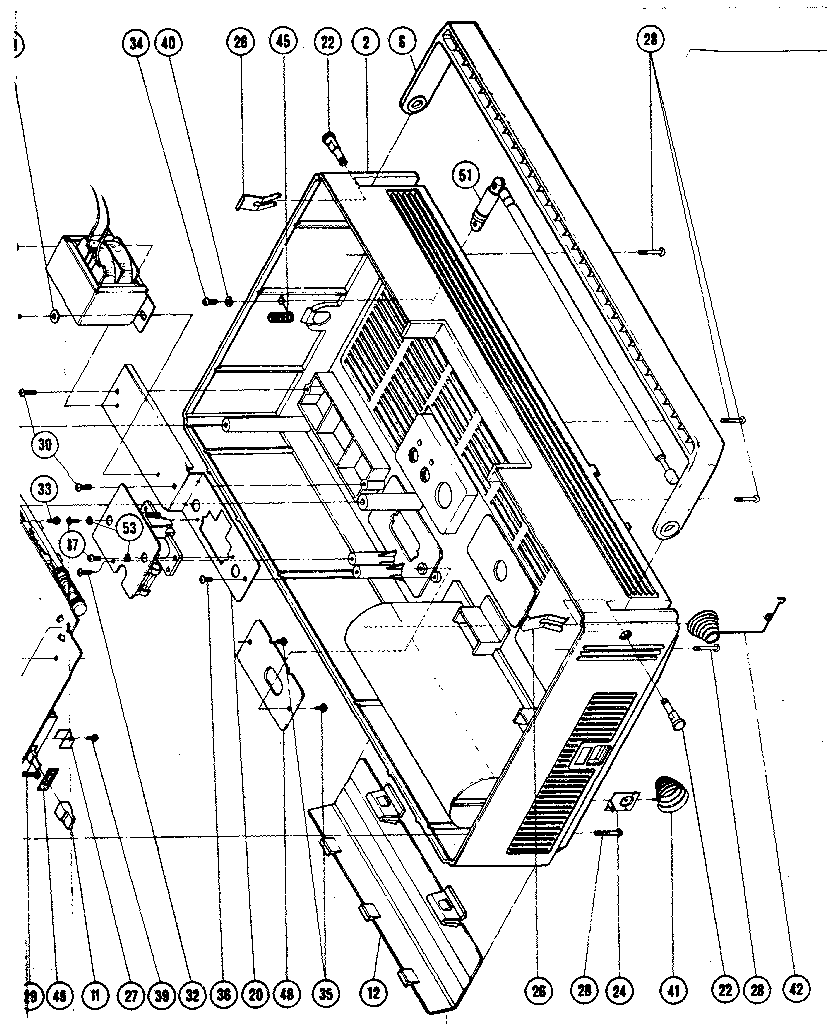

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Battery Lid 01-01859-05

#12

All parts diagram

Battery lid

Part #01-01859-05

The manufacturer no longer makes this part, and there's no substitute part

Screw 04-39050-04

#36

All parts diagram

Screw

Part #04-39050-04

The manufacturer no longer makes this part, and there's no substitute part

Pvc Adaptor 01-01856-01

#13

All parts diagram

Pvc adaptor

Part #01-01856-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 04-35090-08

#32

All parts diagram

Screw

Part #04-35090-08

The manufacturer no longer makes this part, and there's no substitute part

Cushion 01-12054-01

#16

All parts diagram

Cushion

Part #01-12054-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 04-29040-04

#39

All parts diagram

Screw

Part #04-29040-04

The manufacturer no longer makes this part, and there's no substitute part

Pulley 02-80797-01

#23

All parts diagram

Pulley

Part #02-80797-01

The manufacturer no longer makes this part, and there's no substitute part

Stud 02-01093-00

#21

All parts diagram

Stud

Part #02-01093-00

The manufacturer no longer makes this part, and there's no substitute part

Drum 01-01950-01

#6

All parts diagram

Drum

Part #01-01950-01

The manufacturer no longer makes this part, and there's no substitute part

Holder 01-81306-01

#14

All parts diagram

Holder

Part #01-81306-01

The manufacturer no longer makes this part, and there's no substitute part
