Model # DBL333EB4WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DBL333EB4WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Dryer Start Switch WE04X10033
#13

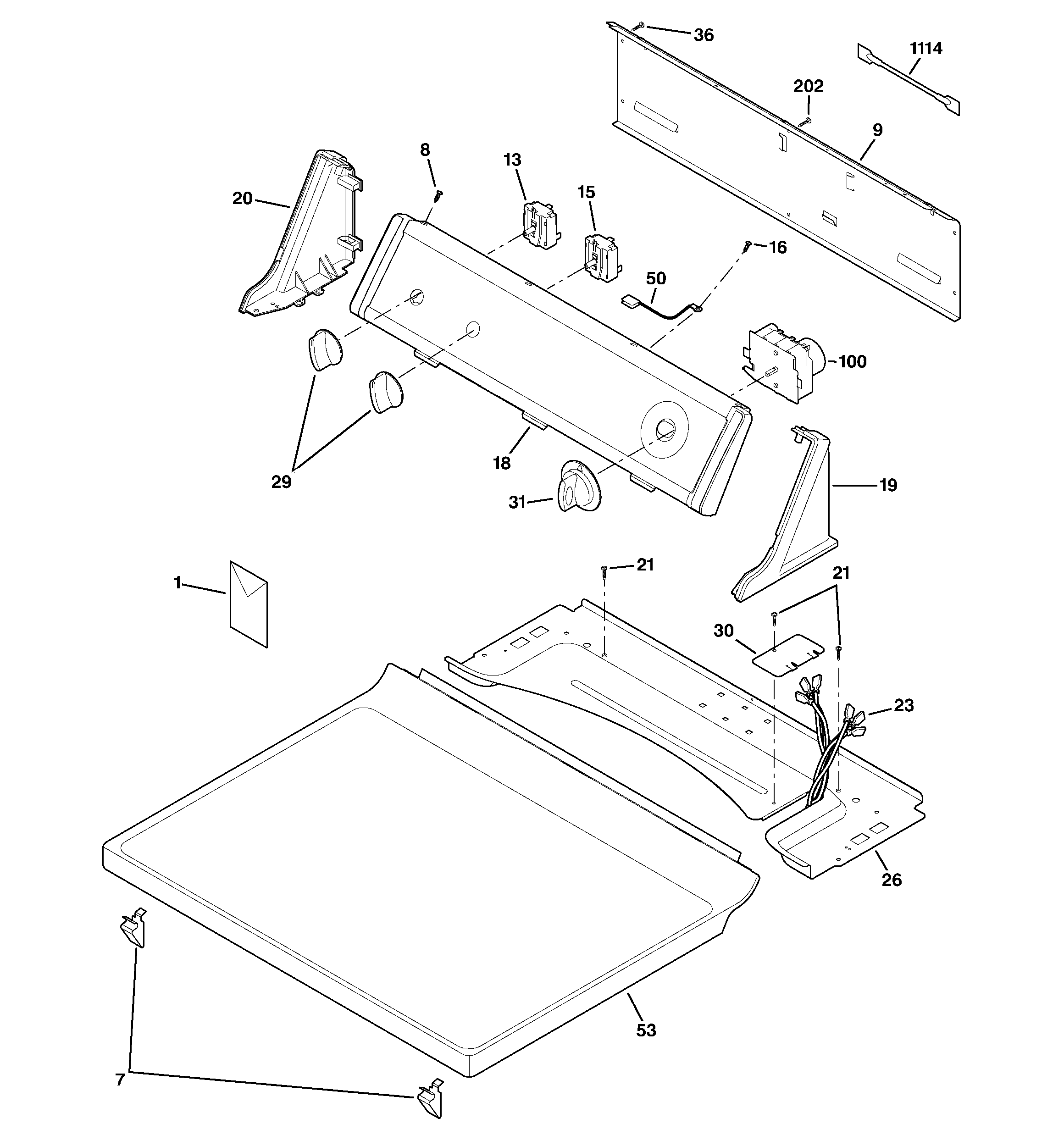

Controls & top panel diagram

Dryer start switch

Part #WE04X10033

Replaced by #WE4X881

?
Manufacturer substitution
This part replaces WE04X10033. Substitute parts can look different from the original.
BEST SELLER
$56.01 |
10% OFF Phone Price : $62.01
In Stock
Dryer Drum Belt (replaces We12x10001, We12x90) WE12X10009
#1325

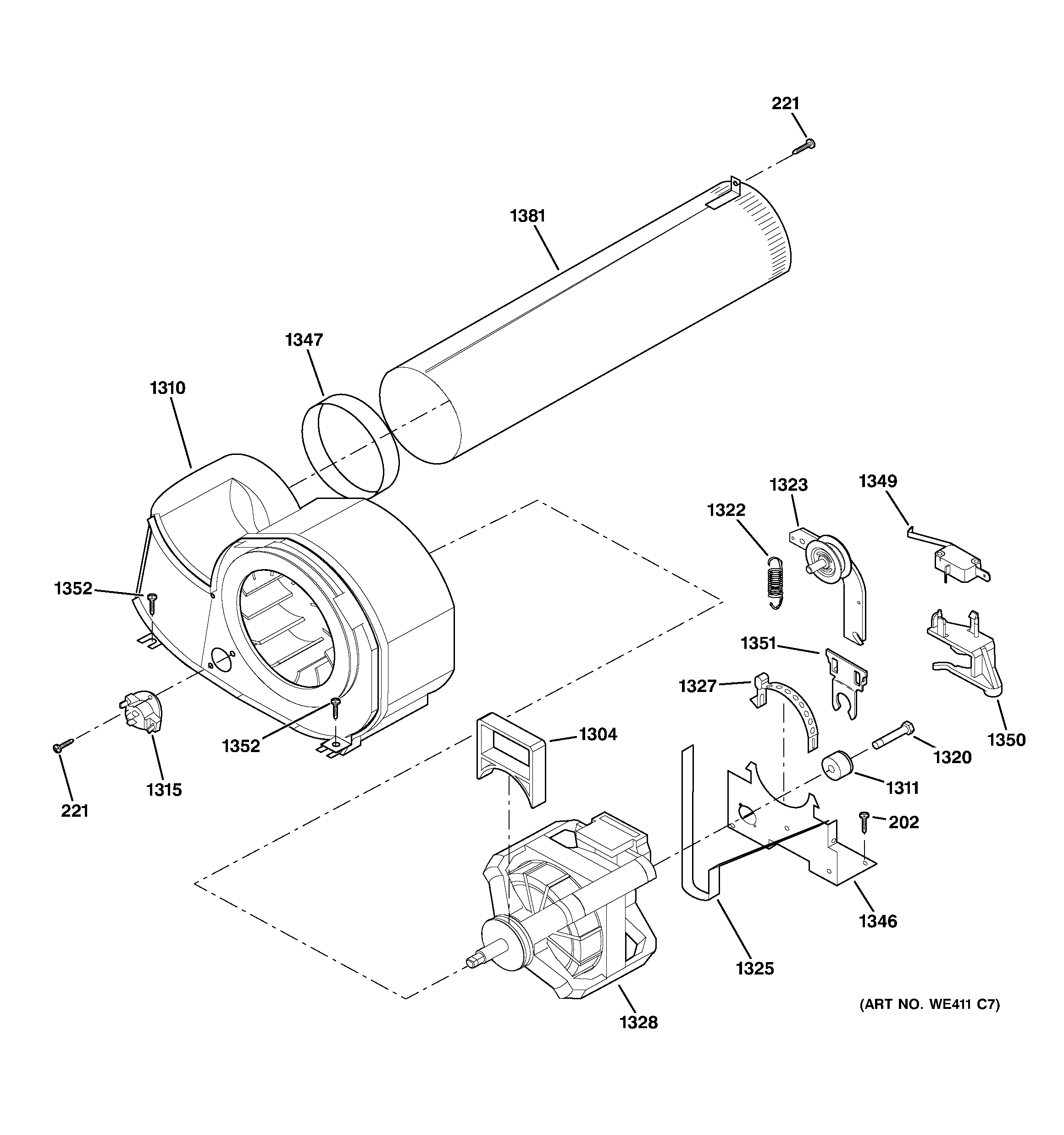

Motor diagram

Dryer drum belt (replaces we12x10001, we12x90)

Part #WE12X10009

$68.77 |
8% OFF Phone Price : $74.77
In Stock
Dryer Drum Felt Seal, Upper WE09X10013
#1220

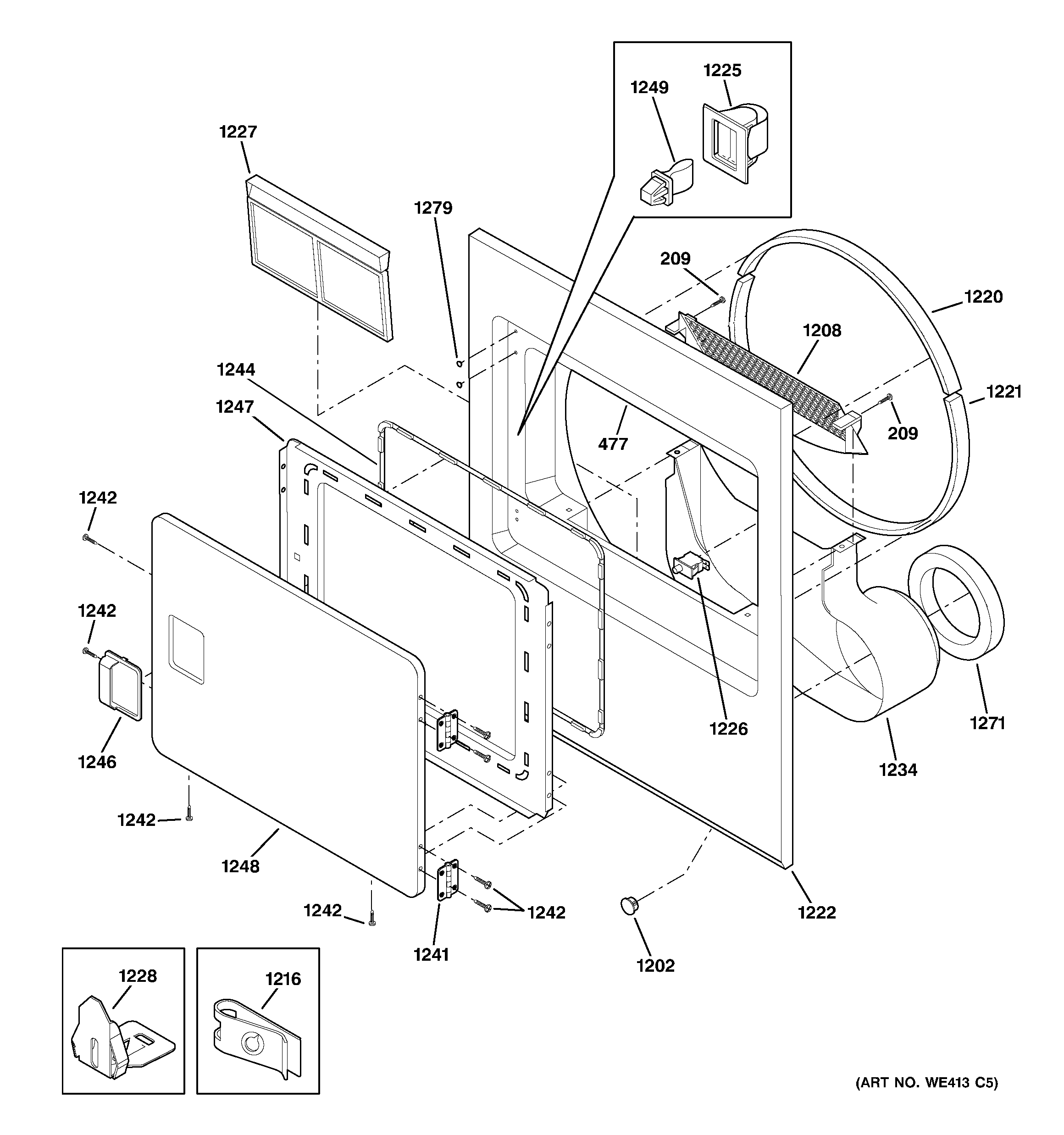

Front panel & door diagram

Dryer drum felt seal, upper

Part #WE09X10013

$76.76 |
7% OFF Phone Price : $82.76
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

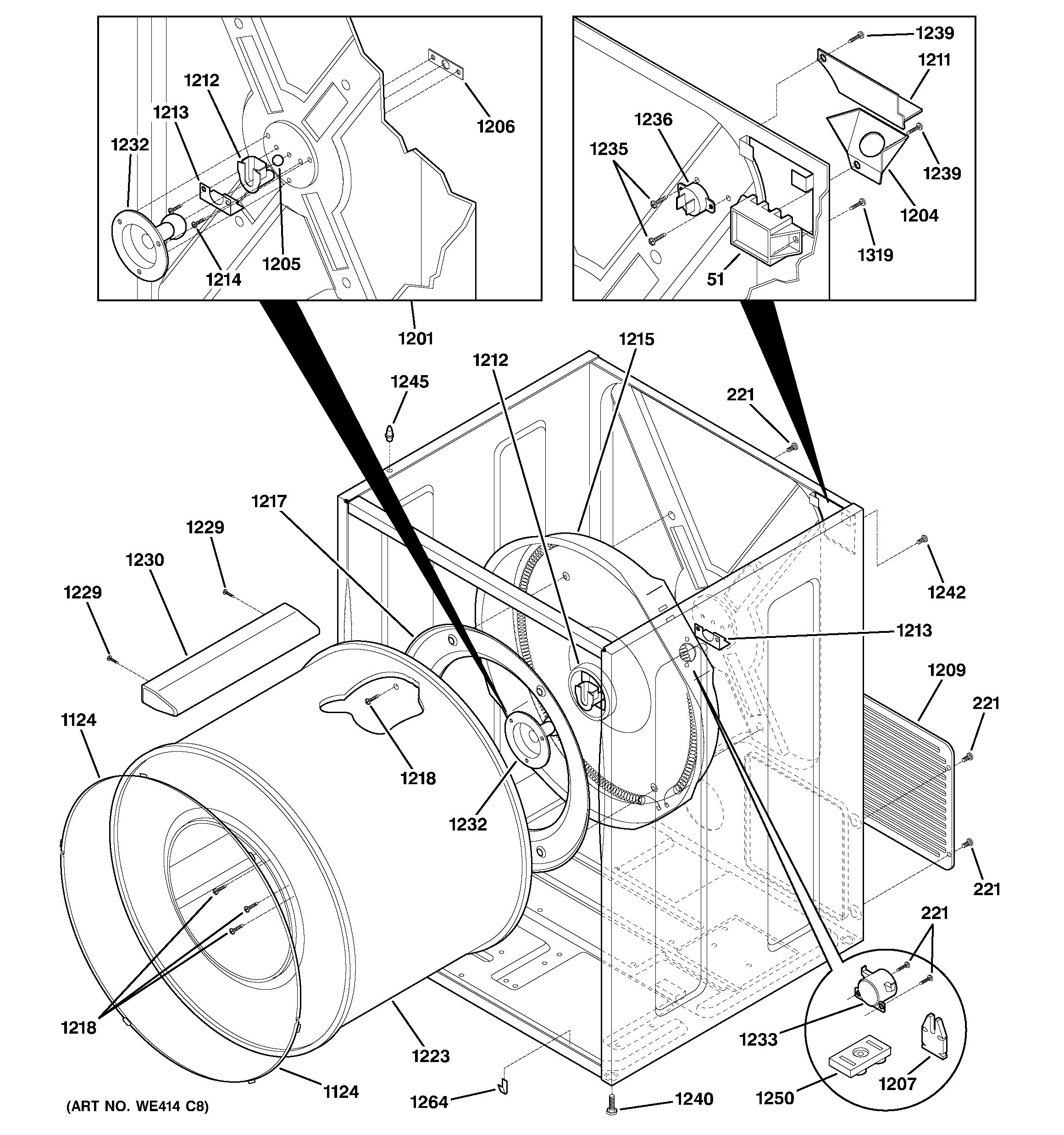

Cabinet & drum diagram
