Broan
Downdraft Ventilation System

Model # HLB6 Official Broan blower

Here are the diagrams and repair parts for Official Broan HLB6 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Broan Instruction Manual 99043700B
#NI

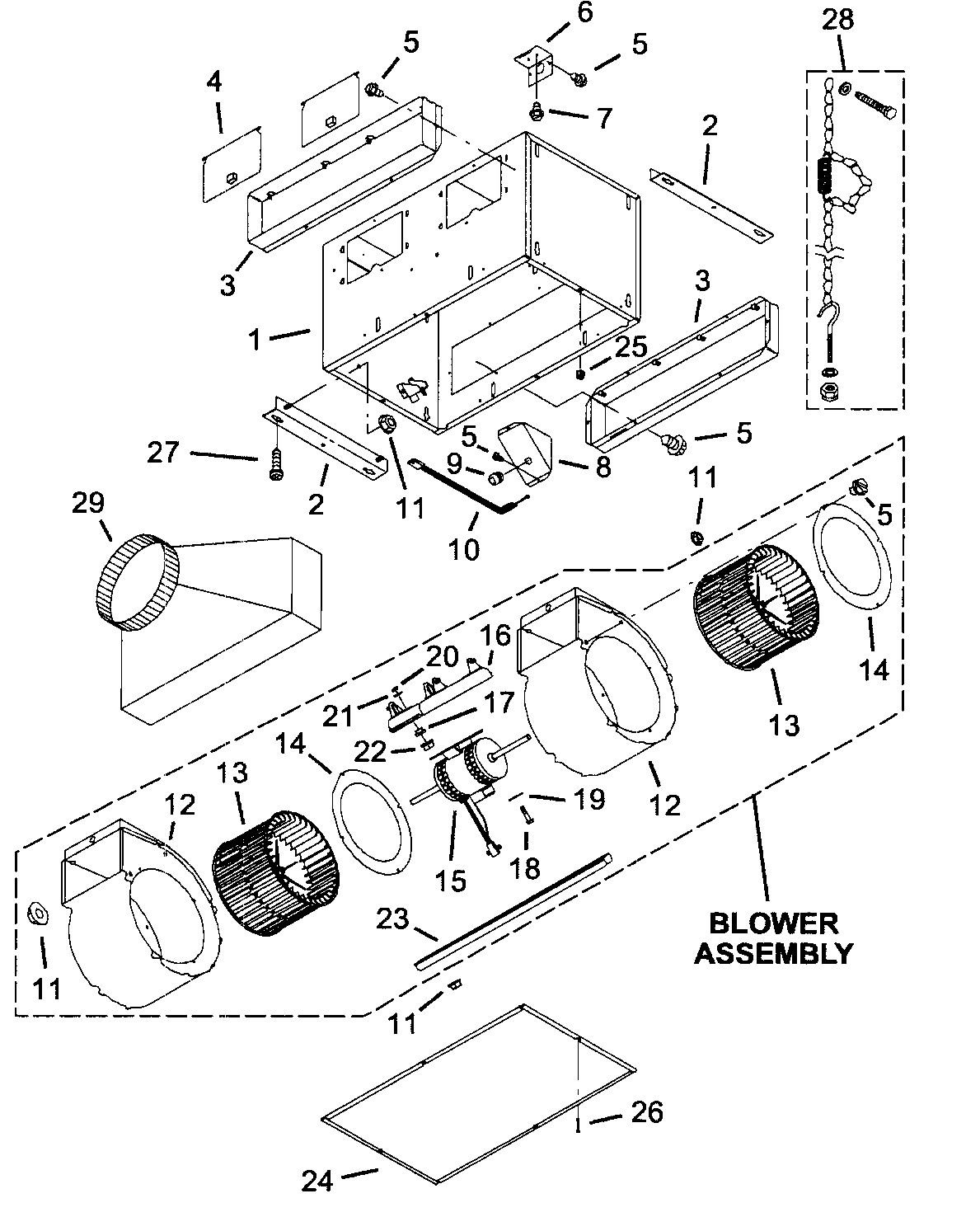

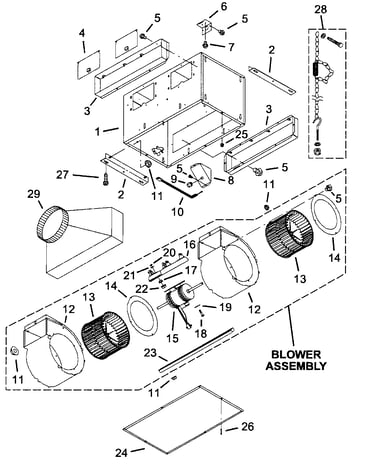

Blower diagram

Broan instruction manual

Part #99043700B

This item is not returnable
$2.16
In Stock
Nut 3/8-16 93260456
#22

Blower diagram

Nut 3/8-16

Part #93260456

This item is not returnable
$4.44
In Stock
Downdraft Vent Blower Motor 99080488
#15

Blower diagram

Downdraft vent blower motor

Part #99080488

$150.49
In Stock
Downdraft Vent Transition S423
#29

Blower diagram

Downdraft vent transition

Part #S423

$91.56
In Stock
Grille Nut 99420470
#25

Blower diagram

Grille nut

Part #99420470

Replaced by #S99420470

?
Manufacturer substitution
This part replaces 99420470. Substitute parts can look different from the original.
This item is not returnable
$6.66
In Stock
Housing Assembly 97014744
#1

Blower diagram

Housing assembly

Part #97014744

Replaced by #S97014744

?
Manufacturer substitution
This part replaces 97014744. Substitute parts can look different from the original.
$105.04
In Stock
Bushing 99400035
#9

Blower diagram

Bushing

Part #99400035

Replaced by #S99400035

?
Manufacturer substitution
This part replaces 99400035. Substitute parts can look different from the original.
This item is not returnable
$6.66
In Stock
Oven Wire Harness 97006039
#10

Blower diagram

Oven wire harness

Part #97006039

Replaced by #S97006039

?
Manufacturer substitution
This part replaces 97006039. Substitute parts can look different from the original.
$8.19
In Stock
Bracket 97014794
#16

Blower diagram

Bracket

Part #97014794

Replaced by #S97014794

?
Manufacturer substitution
This part replaces 97014794. Substitute parts can look different from the original.
$23.42
In Stock
Duct Connector 98009449
#3

Blower diagram

Duct connector

Part #98009449

Replaced by #S98009449

?
Manufacturer substitution
This part replaces 98009449. Substitute parts can look different from the original.
$10.19
In Stock
