Top-Mount Refrigerator

Model # GFS162/MN10 Official Caloric refrigerator

Here are the diagrams and repair parts for Official Caloric GFS162/MN10 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

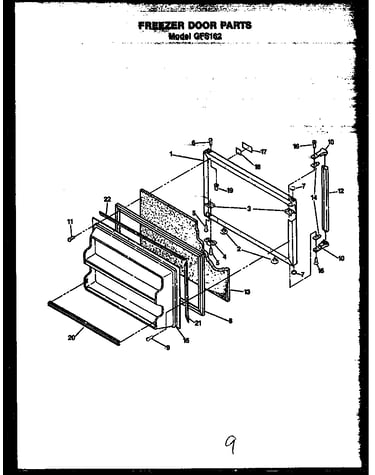

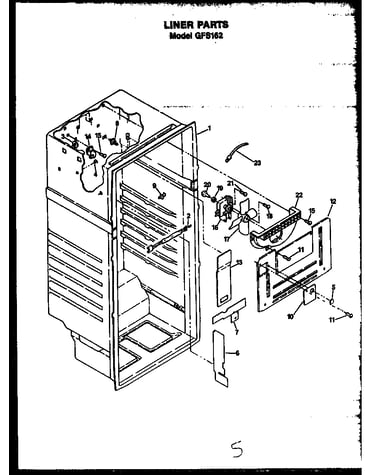

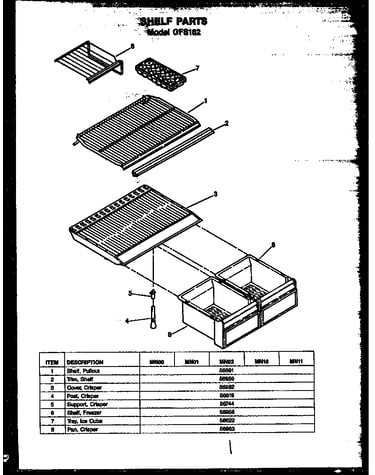

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
GFS162/MN10 Refrigerators
Handle End, Bottom 56635
#11

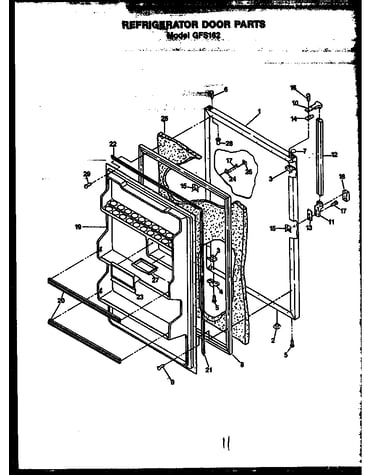

Refrigerator door parts diagram

Handle end, bottom

Part #56635

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Drain Pan 56843
#12

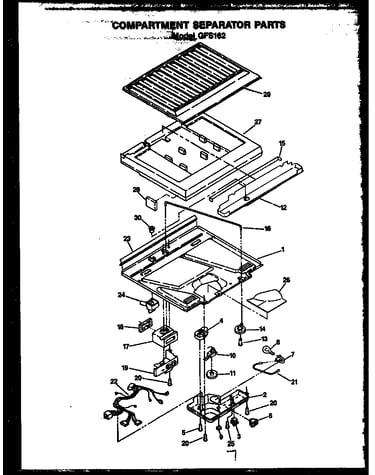

Compartment separator parts diagram

Refrigerator drain pan

Part #56843

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 56564
Refrigerator screw

Part #56564

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Heat Exchanger 56757
#31

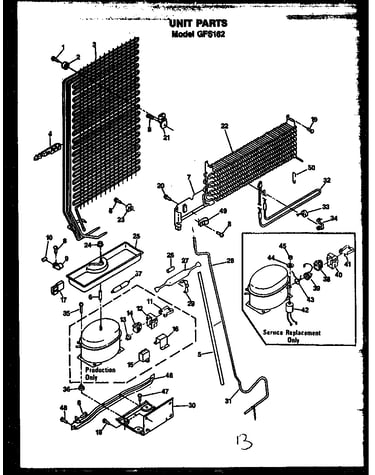

Unit parts diagram

Refrigerator heat exchanger

Part #56757

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cover 56632
#17

Unit parts diagram

Refrigerator cover

Part #56632

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clamp 56573
#9

Unit parts diagram

Refrigerator clamp

Part #56573

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 56234
#4C

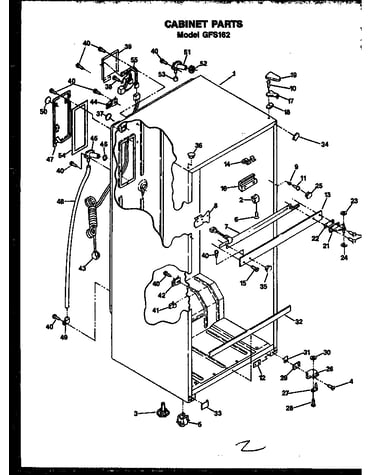

Cabinet parts diagram

Refrigerator screw

Part #56234

The manufacturer no longer makes this part, and there's no substitute part

Screw, 8 X 1/2 311132
Screw, 8 x 1/2

Part #311132

The manufacturer no longer makes this part, and there's no substitute part

Scew 56567
Scew

Part #56567

The manufacturer no longer makes this part, and there's no substitute part

Washer 56509
Washer

Part #56509

The manufacturer no longer makes this part, and there's no substitute part
