Model # 113239400 Official Craftsman wood shaper

Here are the diagrams and repair parts for Official Craftsman 113239400 wood shaper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 95 parts |

#39

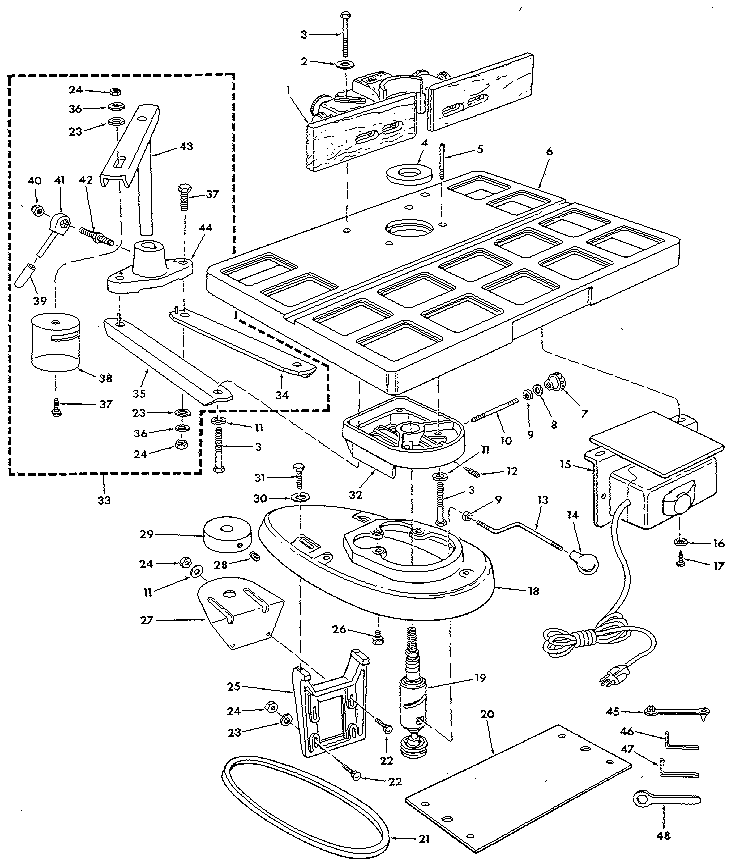

Figure 1 diagram

Lathe lock lever grip

Part #60262

The manufacturer no longer makes this part, and there's no substitute part

#14

Figure 1 diagram

Power tool knob

Part #38546

The manufacturer no longer makes this part, and there's no substitute part

Figure 5 - spindle assembly diagram

Planer spacer

Part #39617

The manufacturer no longer makes this part, and there's no substitute part

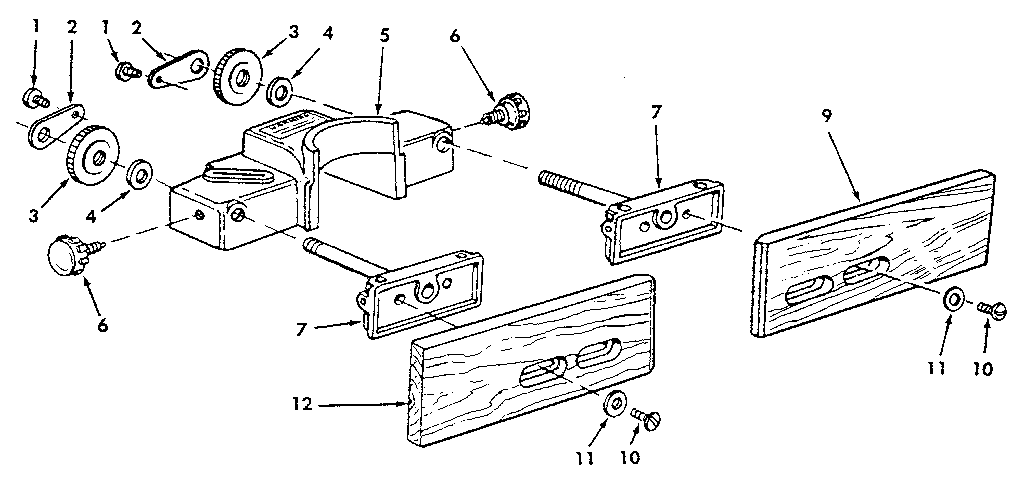

Figure 2 - fence assembly 72008 diagram

Knob

Part #38531

The manufacturer no longer makes this part, and there's no substitute part

Figure 3 - legs diagram

Machine screw

Part #STD610805

This item is not returnable

$2.16

In Stock

Qty

Figure 2 - fence assembly 72008 diagram

Washer

Part #18451

The manufacturer no longer makes this part, and there's no substitute part

Figure 6 - motor diagram

Cord

Part #64258

The manufacturer no longer makes this part, and there's no substitute part

Figure 4 - on/off power outlet 60382 & mounting bracket diagram

Cord

Part #60375

The manufacturer no longer makes this part, and there's no substitute part

#26

Figure 1 diagram

Scr hx wash

Part #453068

The manufacturer no longer makes this part, and there's no substitute part

Figure 3 - legs diagram

Stiffener

Part #62615

The manufacturer no longer makes this part, and there's no substitute part
