Room Air Conditioner

Model # 58075081500 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075081500 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

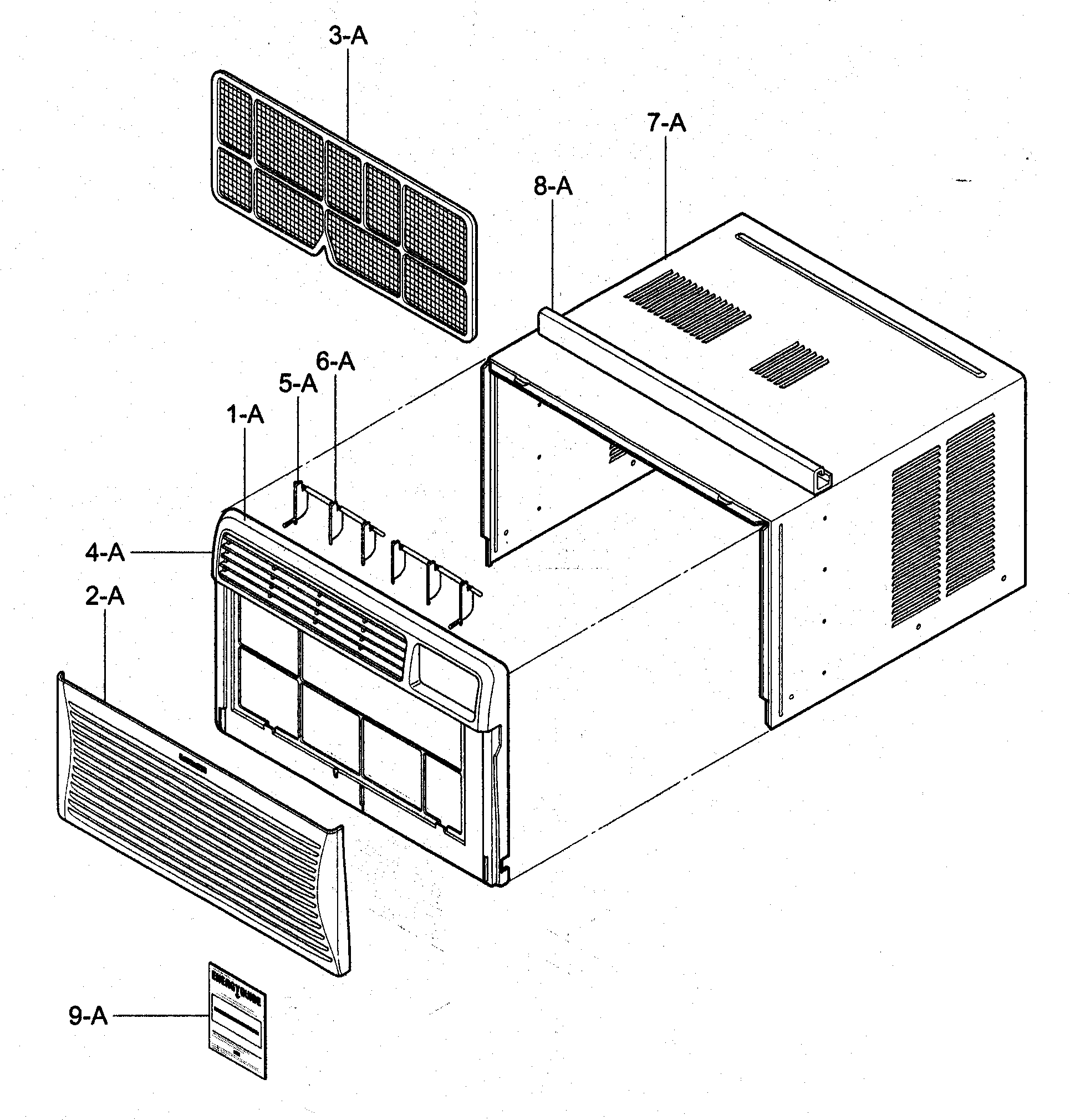

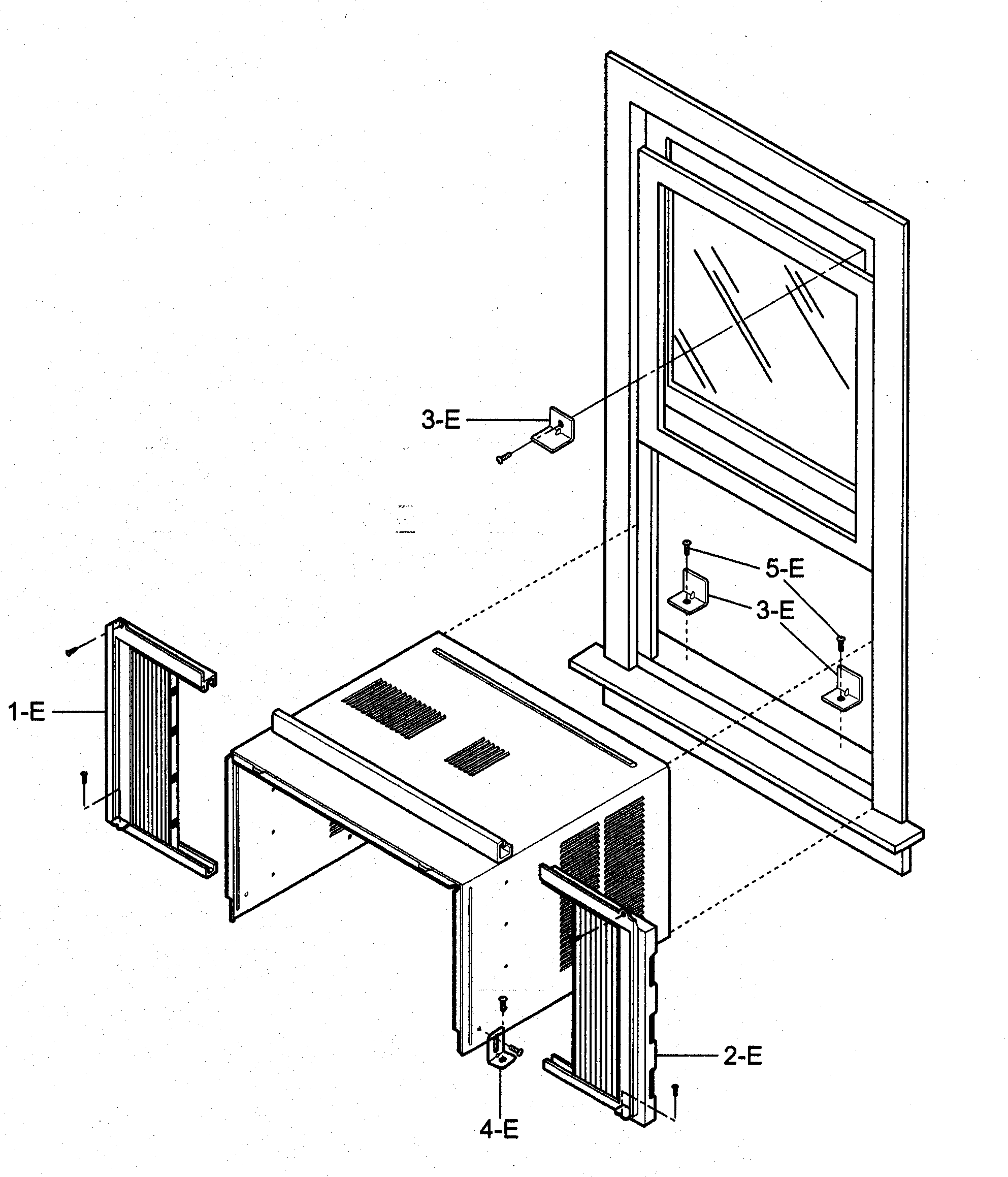

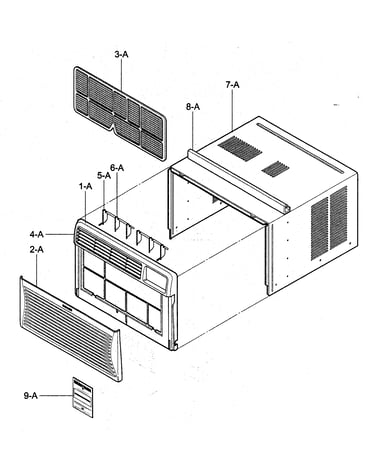

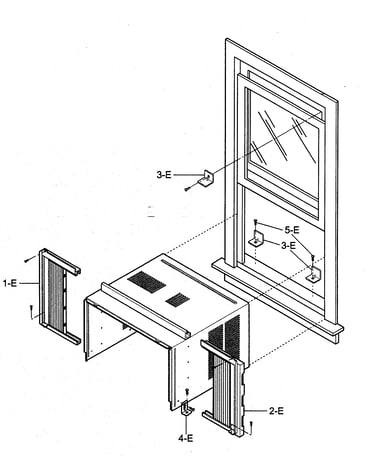

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
58075081500 Room Air Conditioner
Friedrich Room Air Conditioner Thermistor 6323A20004P
#8-B

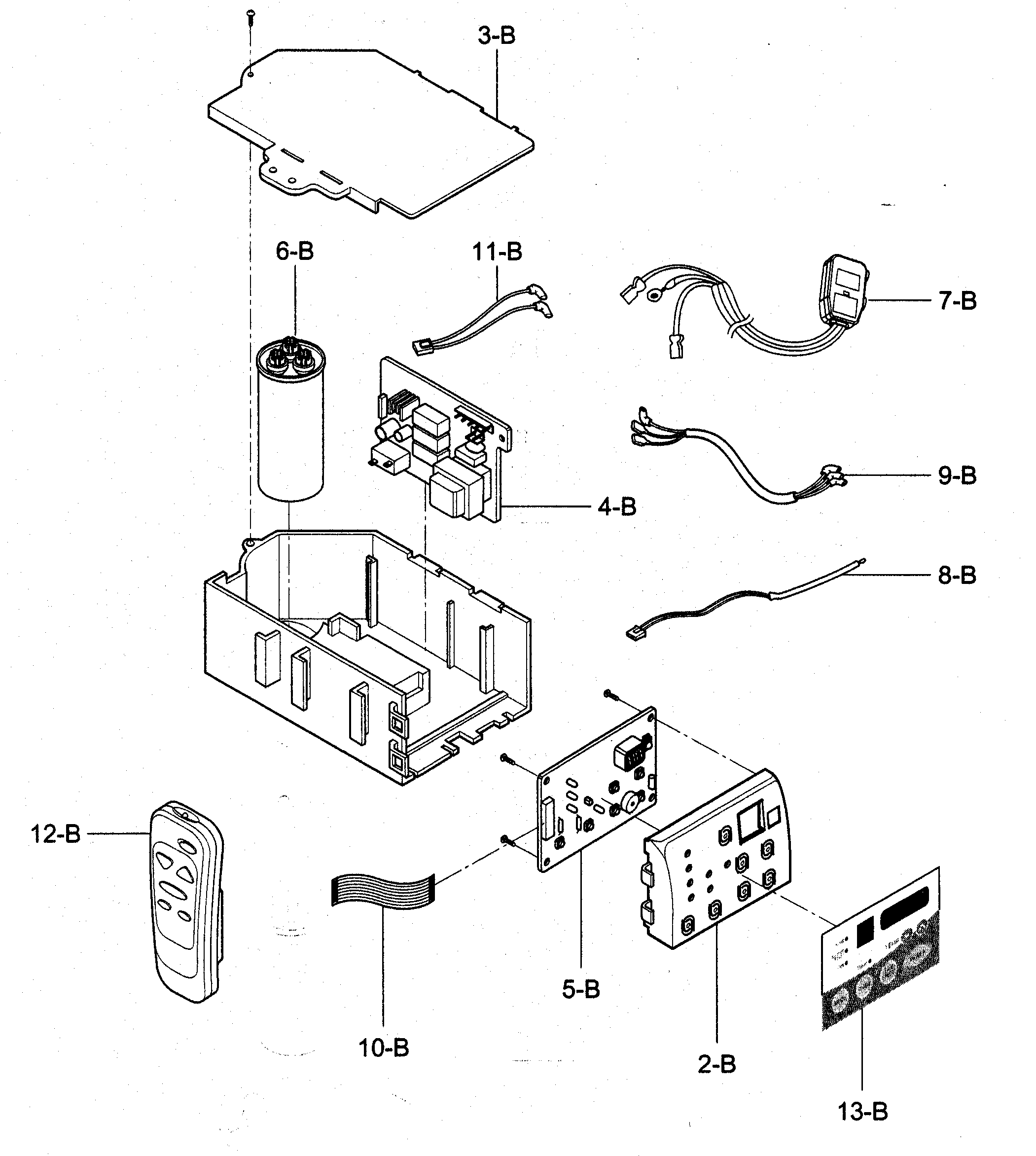

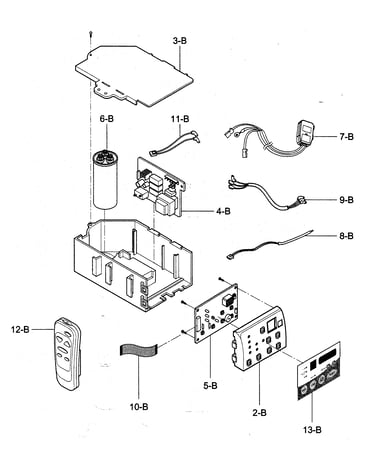

Control box assy diagram

Friedrich room air conditioner thermistor

Part #6323A20004P

This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Nut 4H00947A
#9-D

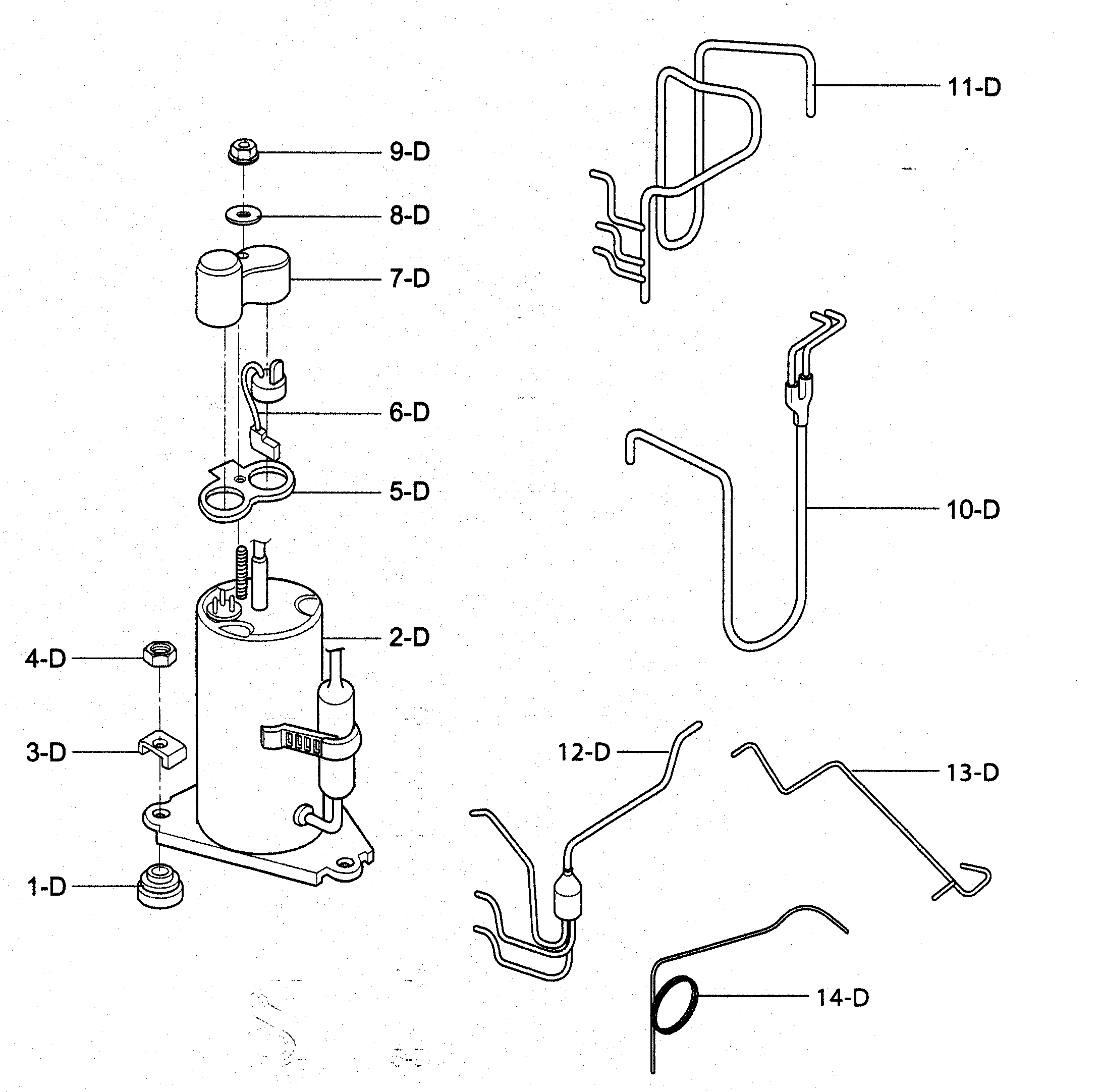

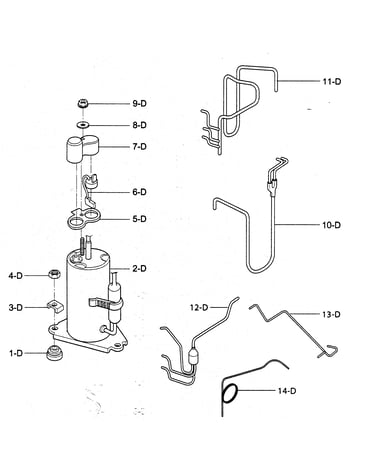

Compressor parts diagram

Nut

Part #4H00947A

This item is not returnable
$5.71
In Stock
Goldstar Room Air Conditioner Compressor Overload Protector 6750U-L048A
#6-D

Compressor parts diagram

Goldstar room air conditioner compressor overload protector

Part #6750U-L048A

This item is not returnable
$23.73
In Stock
Goldstar Room Air Conditioner Electronic Control Wiring Harness 6631A30003A
#11-B

Control box assy diagram

Goldstar room air conditioner electronic control wiring harness

Part #6631A30003A

$8.89
In Stock
Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A
#1-D

Compressor parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$5.60
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#5-C

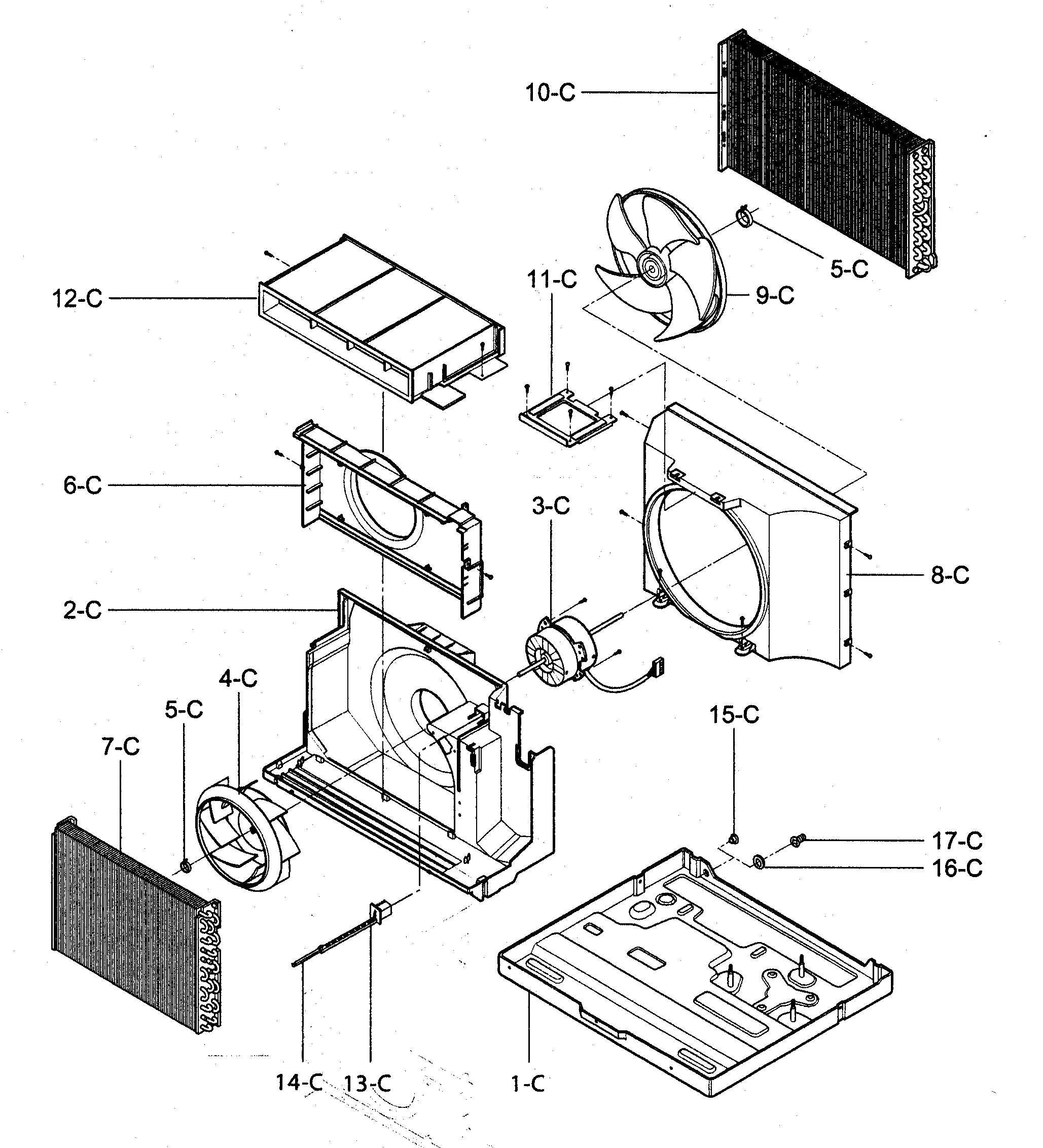

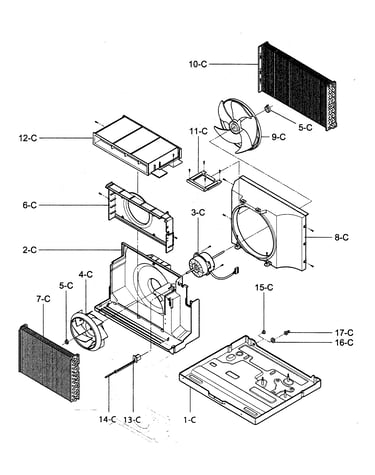

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$4.44 |
18% OFF Phone Price : $5.44
In Stock
Pan Base 3041A10041Q
#1-C

Air handling/cycle parts diagram

Pan base

Part #3041A10041Q

$56.44
In Stock
Friedrich Room Air Conditioner Fan Motor Capacitor (replaces 6120ar2359v) 0CZZA20005B
#6-B

Control box assy diagram

Friedrich room air conditioner fan motor capacitor (replaces 6120ar2359v)

Part #0CZZA20005B

$34.17 |
15% OFF Phone Price : $40.17
In Stock
Hex Nut 1NHA0801206
#4-D

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$5.71
In Stock
Connector 6631A20123A
#9-B

Control box assy diagram

Connector

Part #6631A20123A

$23.86
In Stock
