Model # 315101270 Official Craftsman 1/2" one-speed reversible drill

Here are the diagrams and repair parts for Official Craftsman 315101270 1/2" one-speed reversible drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

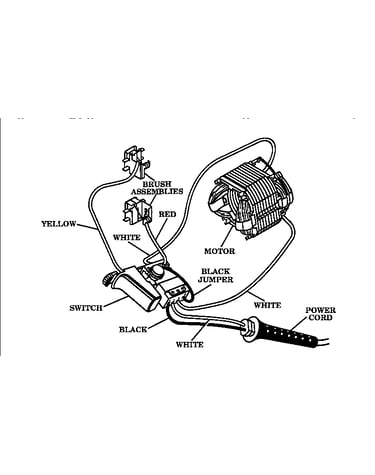

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Sl Brg 972717-001
#8

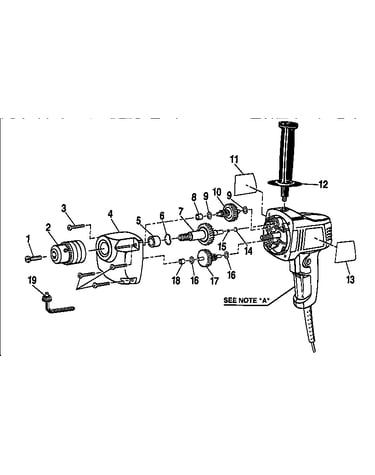

Gear and spindle assembly diagram

Sl brg

Part #972717-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 613150-003
#1

Gear and spindle assembly diagram

Screw

Part #613150-003

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 972892-001
#5

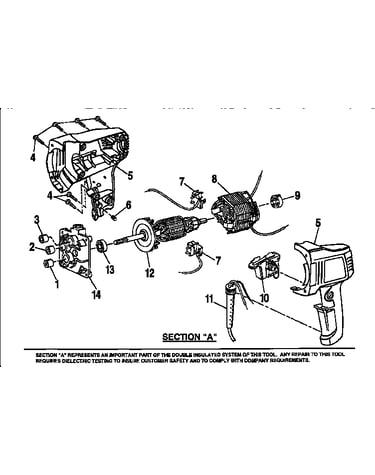

Section "a" diagram

Housing assembly

Part #972892-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 968703-013
#3

Gear and spindle assembly diagram

Screw

Part #968703-013

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 990494-013
#11

Section "a" diagram

Cord assembly

Part #990494-013

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 975874-001
#13

Gear and spindle assembly diagram

Logo plate

Part #975874-001

The manufacturer no longer makes this part, and there's no substitute part

Field 972891-001
#8

Section "a" diagram

Field

Part #972891-001

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 620789-003
#6

Gear and spindle assembly diagram

Spring washer

Part #620789-003

The manufacturer no longer makes this part, and there's no substitute part

Pinion Gear 990952-001
#10

Gear and spindle assembly diagram

Pinion gear

Part #990952-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 990963-001
#5

Gear and spindle assembly diagram

Bearing

Part #990963-001

The manufacturer no longer makes this part, and there's no substitute part
