Kenmore
Gas Range

Model # 7903261331B Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 7903261331B gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

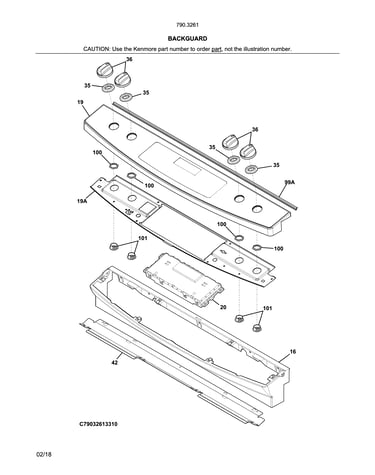

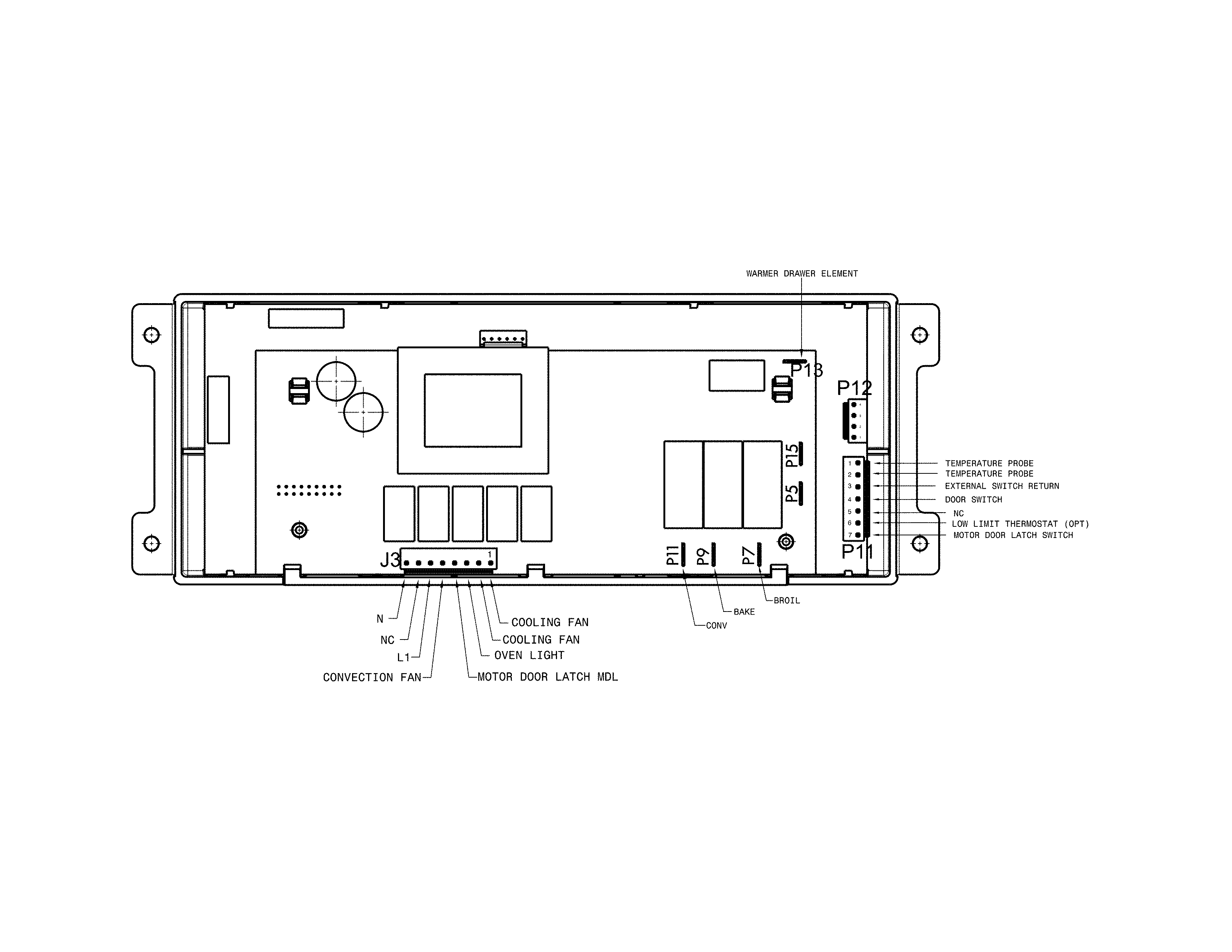

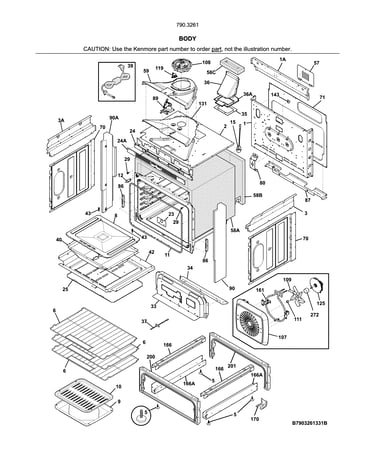

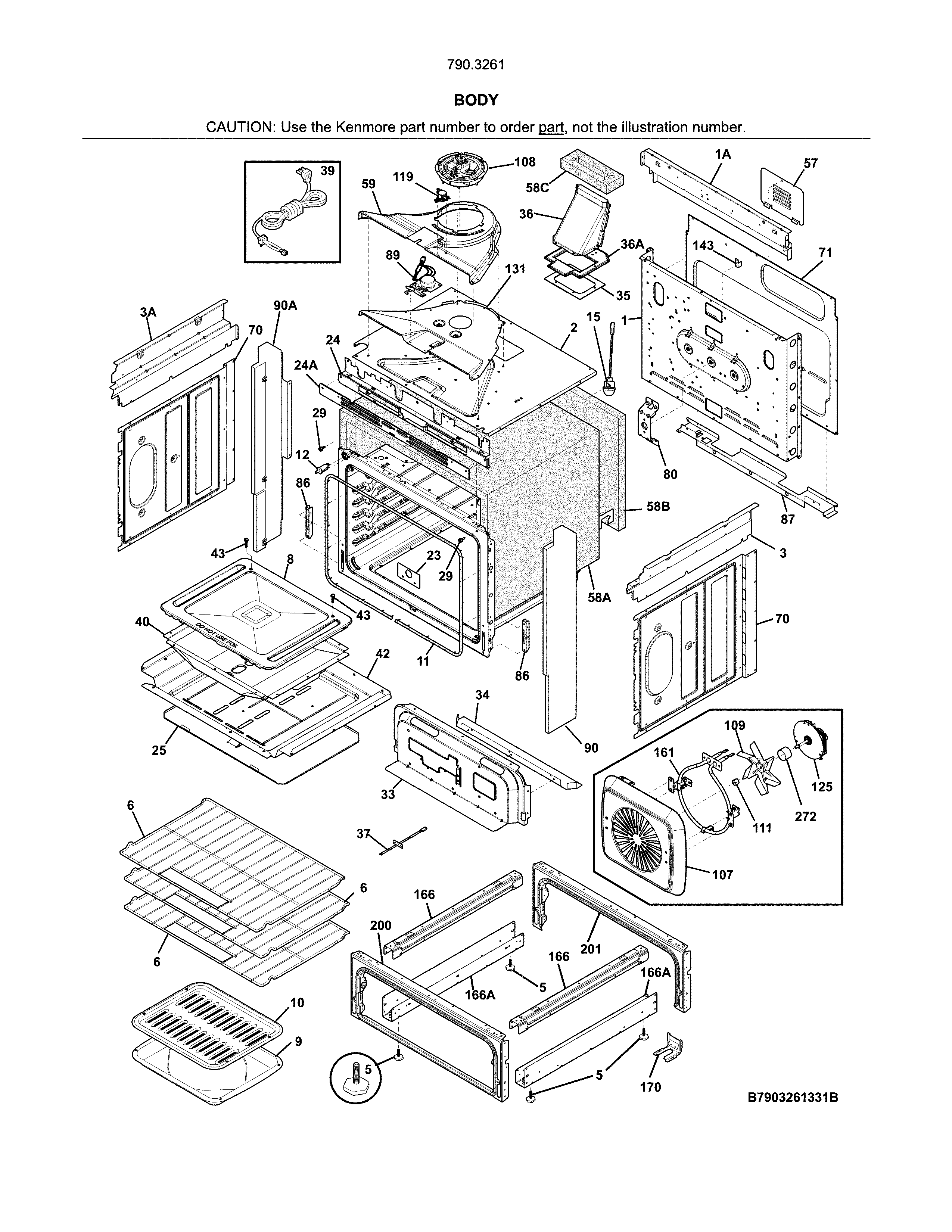

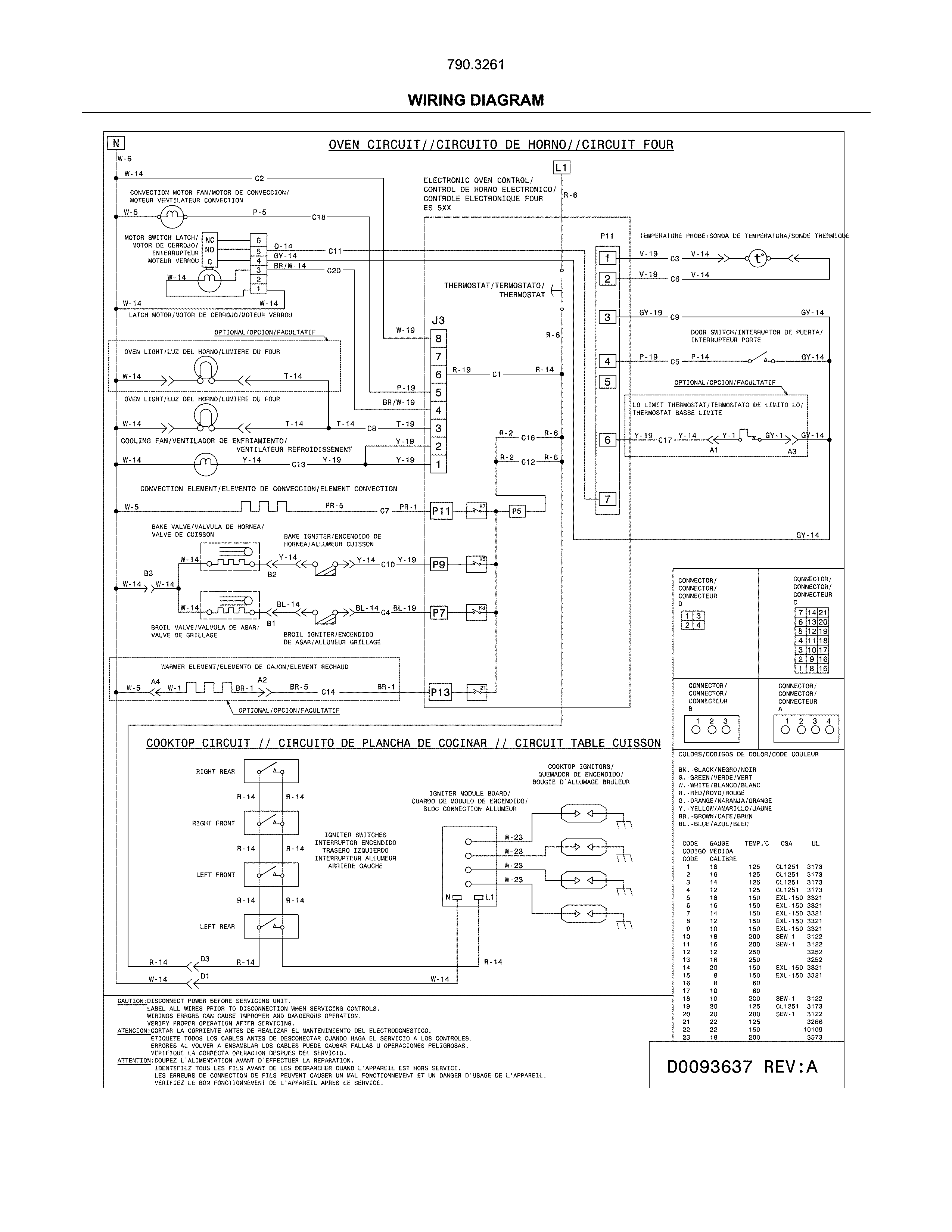

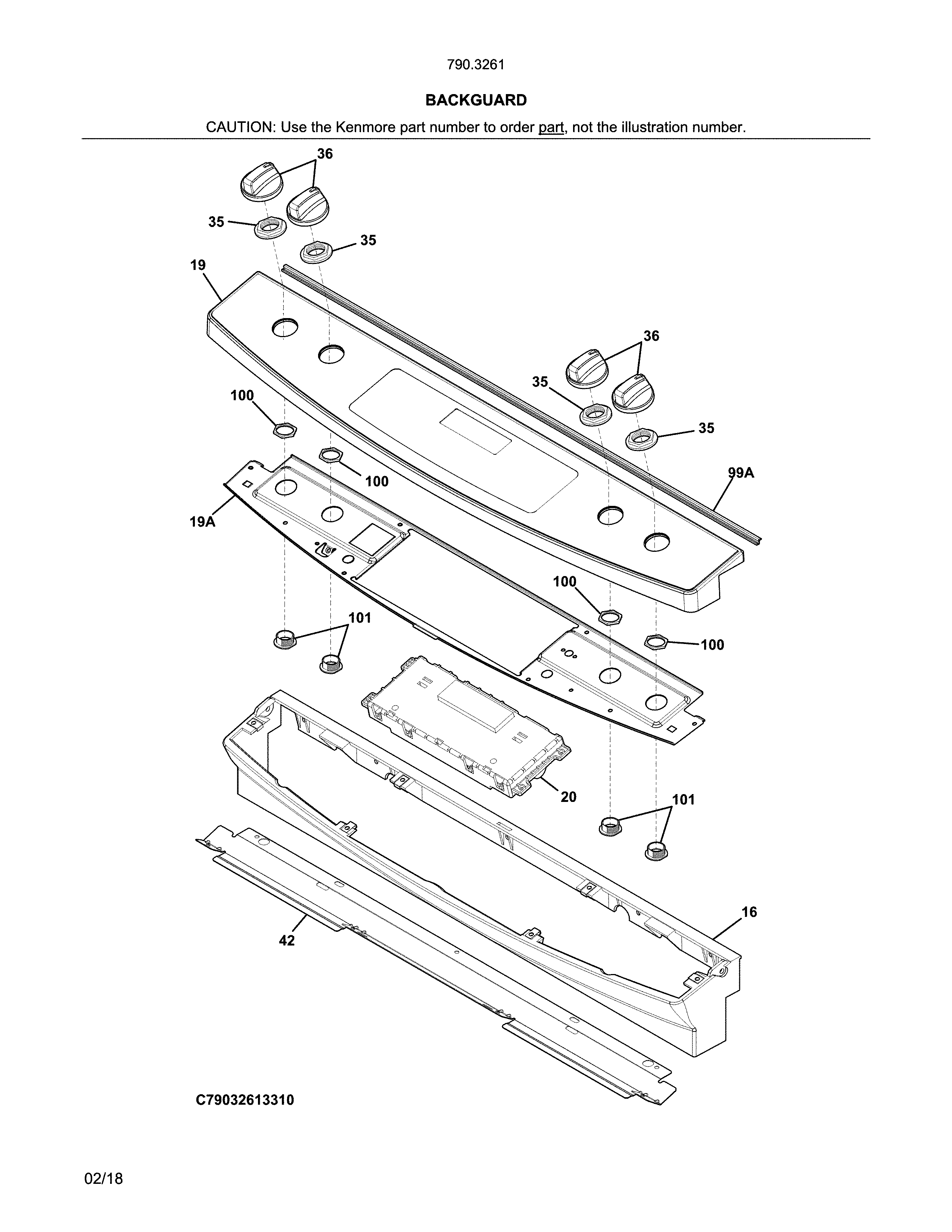

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Range Screw 5304472956
#4

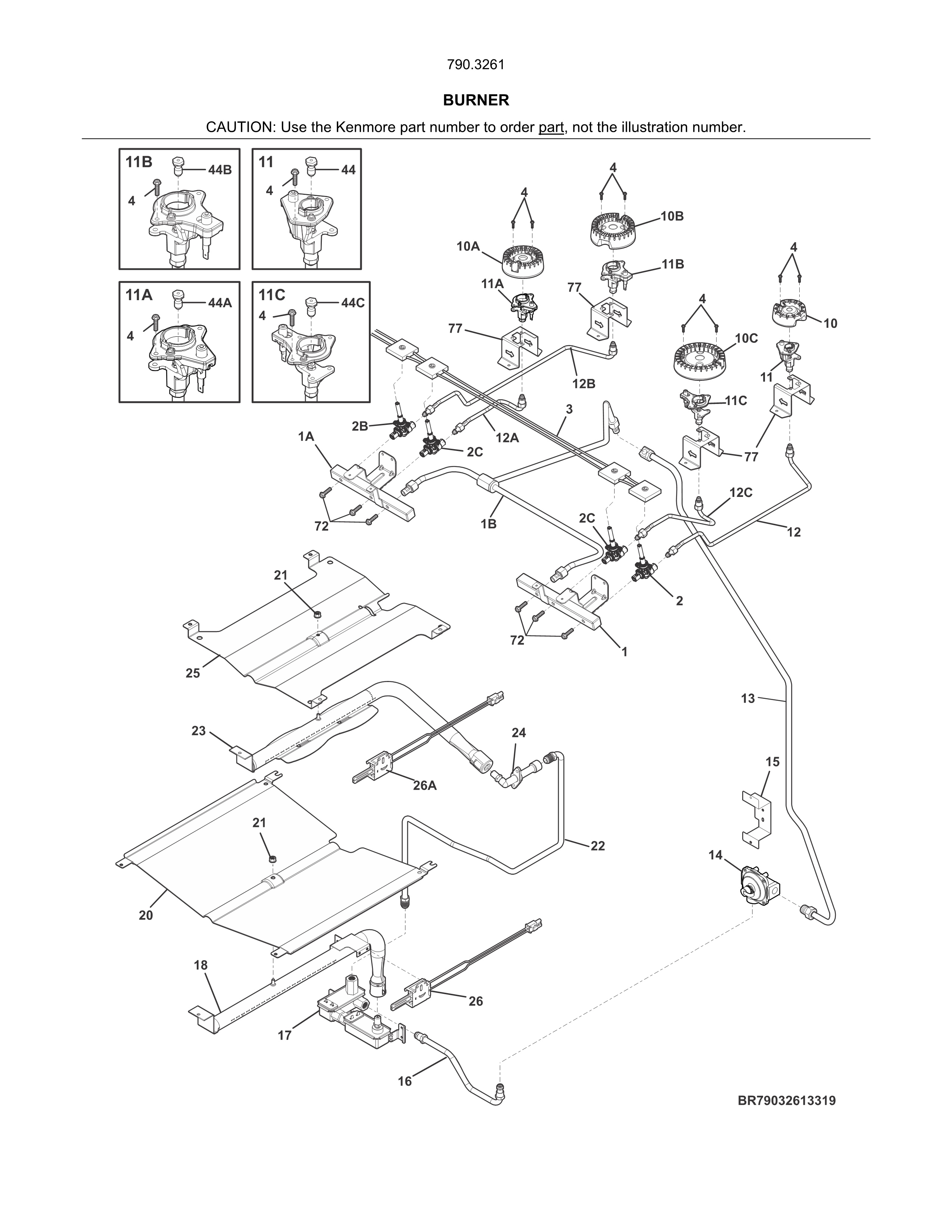

Burner diagram

Range screw

Part #5304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 5304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Oven Door Inner Glass 316117503
#8

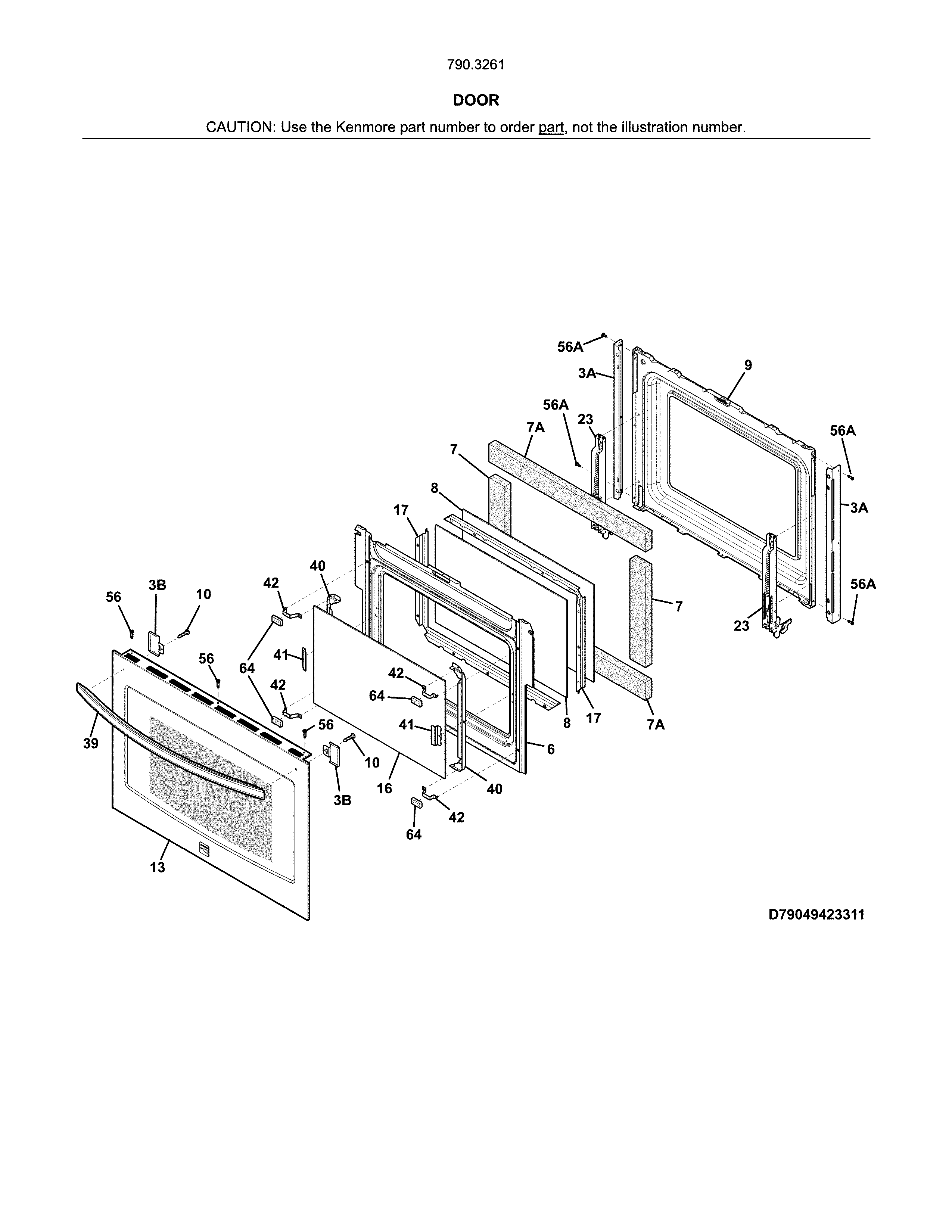

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22A

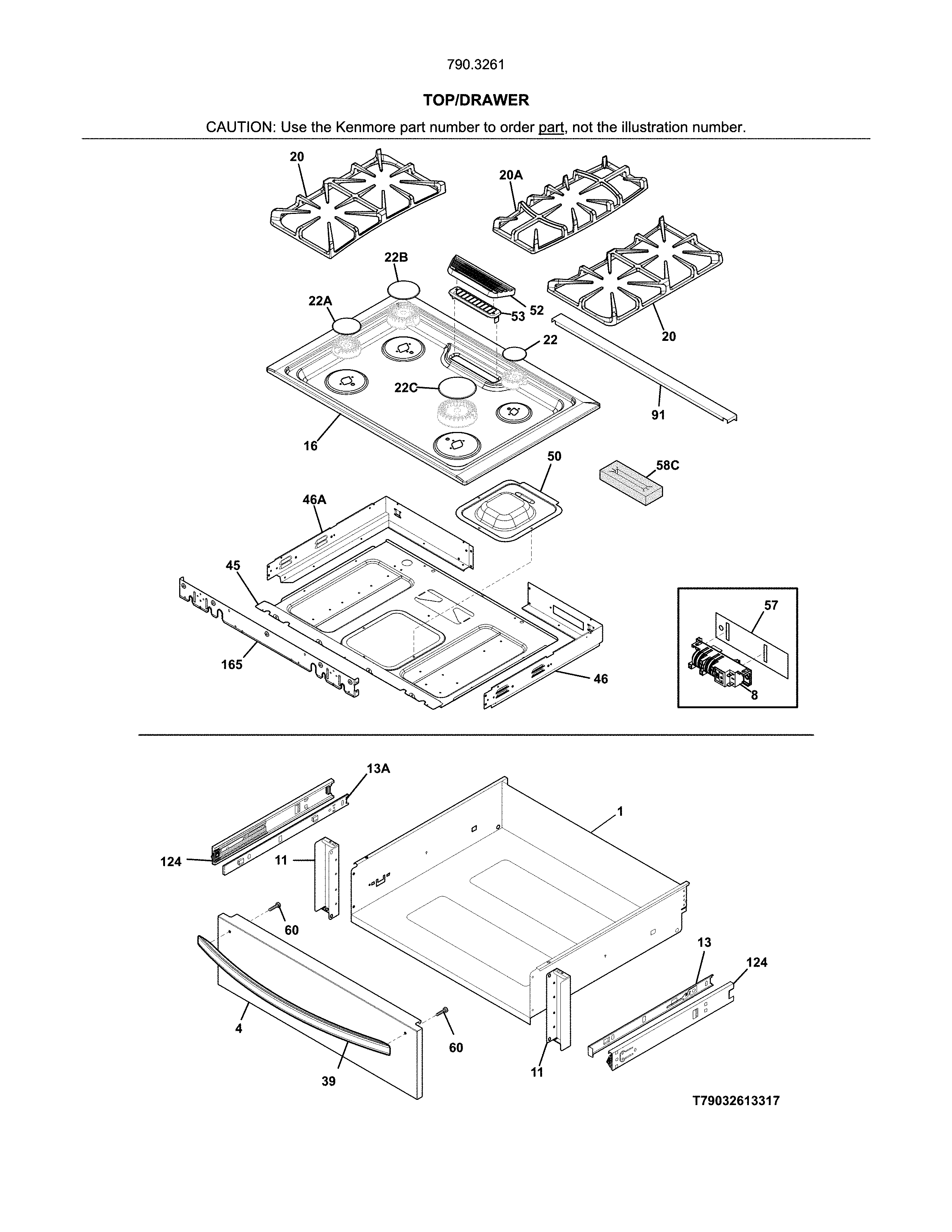

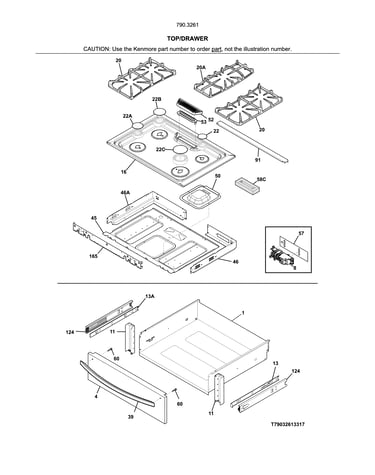

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$27.10 |
18% OFF Phone Price : $33.10
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22

Top/drawer diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.22 |
19% OFF Phone Price : $31.22
In Stock
Range Surface Burner Head (replaces 7316438400) 316438400
#10C

Burner diagram

Range surface burner head (replaces 7316438400)

Part #316438400

BEST SELLER
$59.89 |
9% OFF Phone Price : $65.89
In Stock
Tappan Range Surface Burner Head (replaces 7316438600) 316438600
#10B

Burner diagram

Tappan range surface burner head (replaces 7316438600)

Part #316438600

BEST SELLER
$66.51 |
8% OFF Phone Price : $72.51
In Stock
Range Spark Module (replaces 316262405) 808608802
#8

Top/drawer diagram

Range spark module (replaces 316262405)

Part #808608802

BEST SELLER
$69.05 |
8% OFF Phone Price : $75.05
In Stock
Range Bake Igniter 139013700
#26

Burner diagram

Range bake igniter

Part #139013700

BEST SELLER
$100.80 |
11% OFF Phone Price : $112.80
In Stock
Range Oven Gas Valve 316031501
#17

Burner diagram

Range oven gas valve

Part #316031501

BEST SELLER
$199.98 |
6% OFF Phone Price : $211.98
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#NI

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
