Model # HTWP1400F2WW Official Hotpoint washer

Here are the diagrams and repair parts for Official Hotpoint HTWP1400F2WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

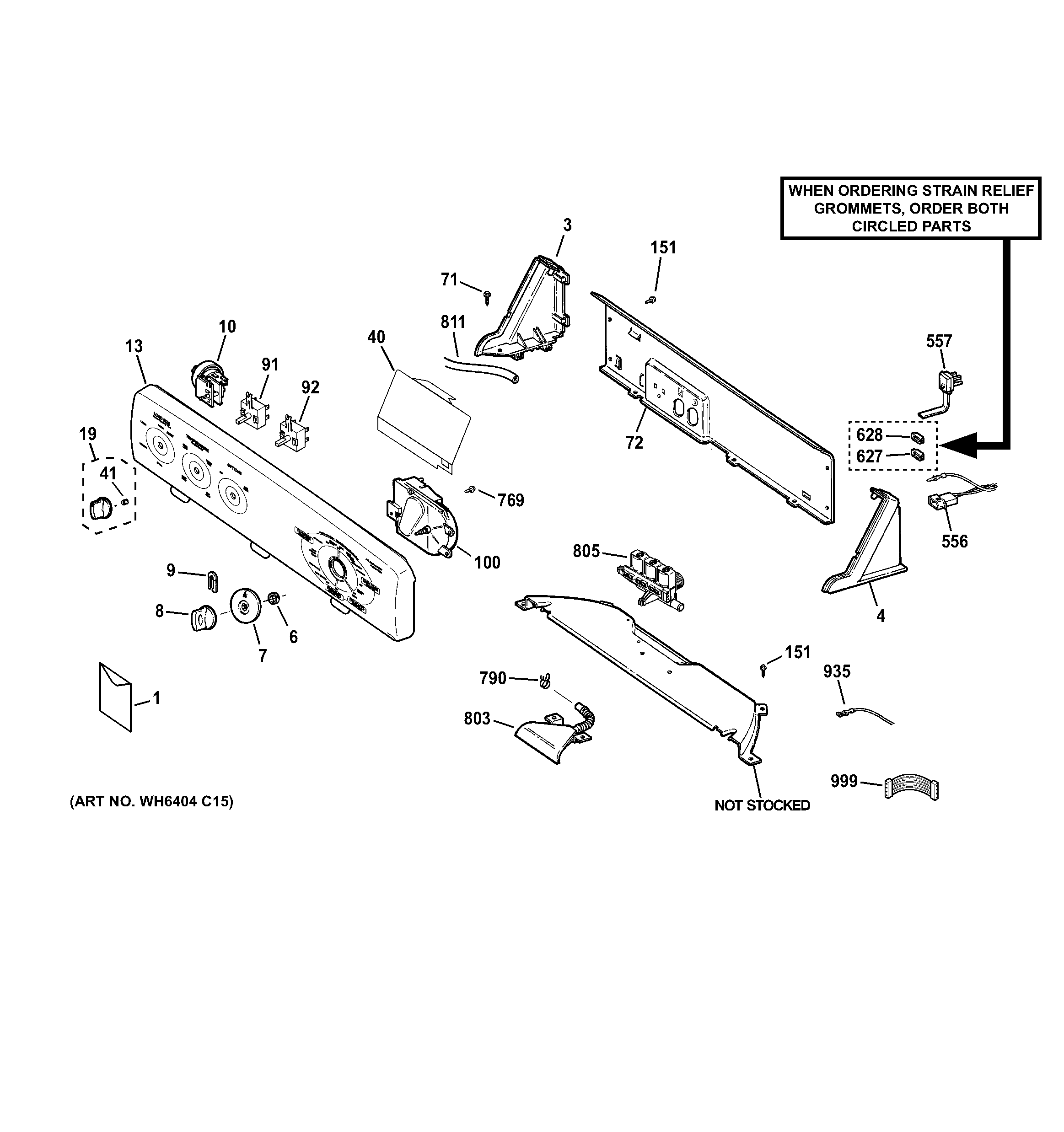

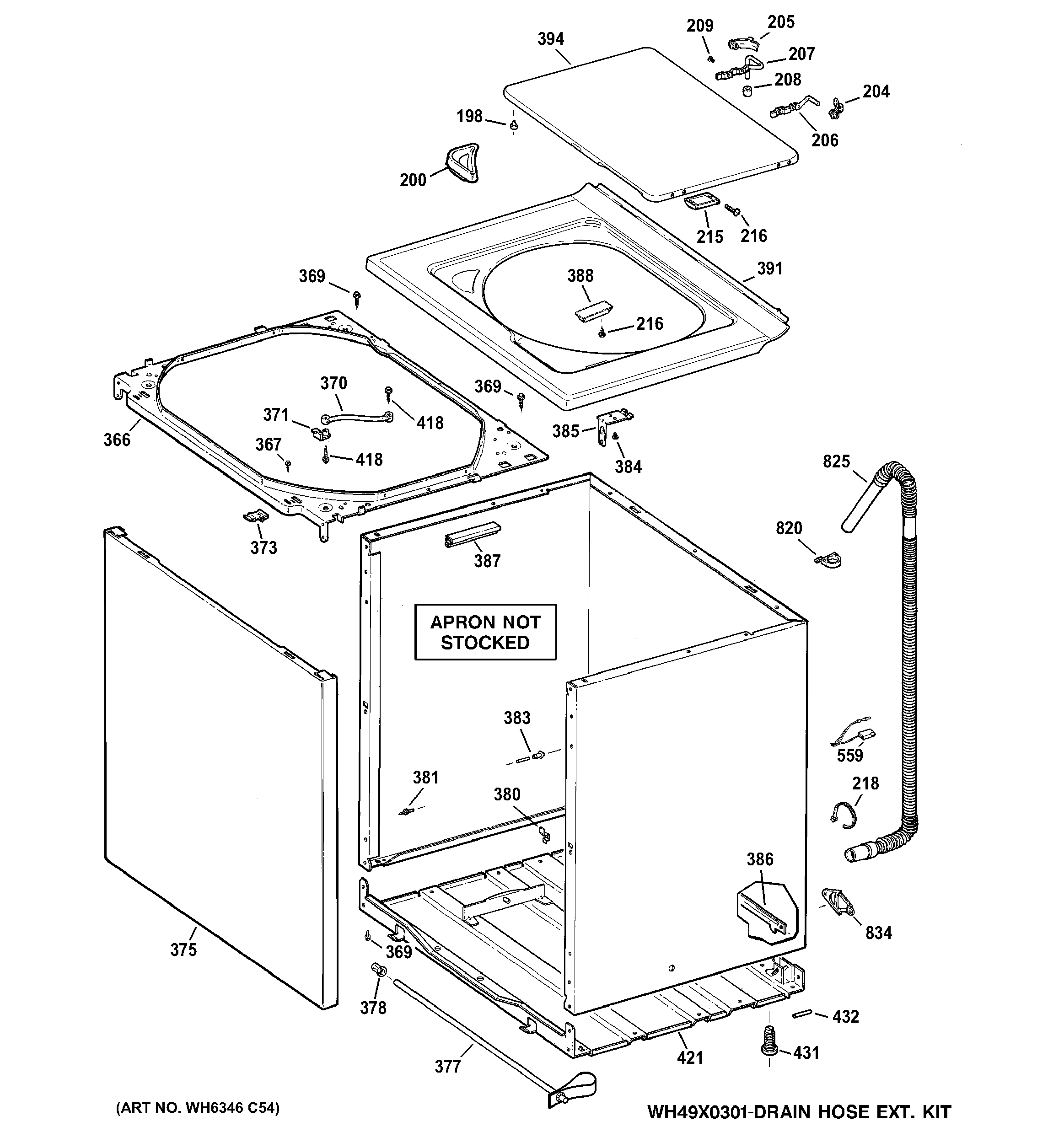

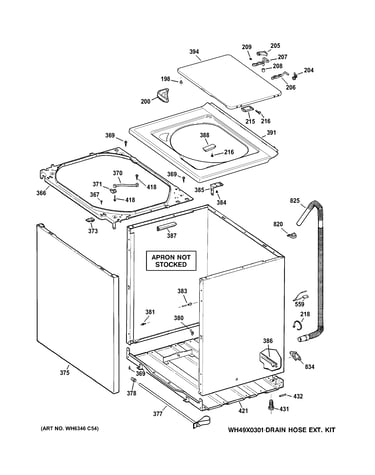

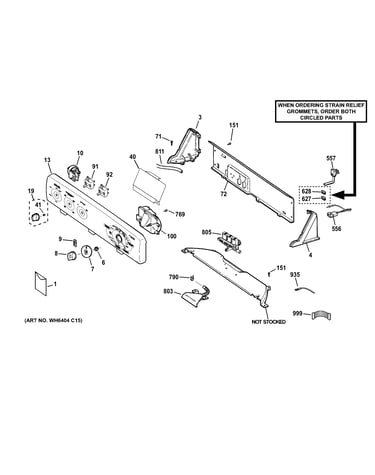

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Hub Nut WH02X1193
#325

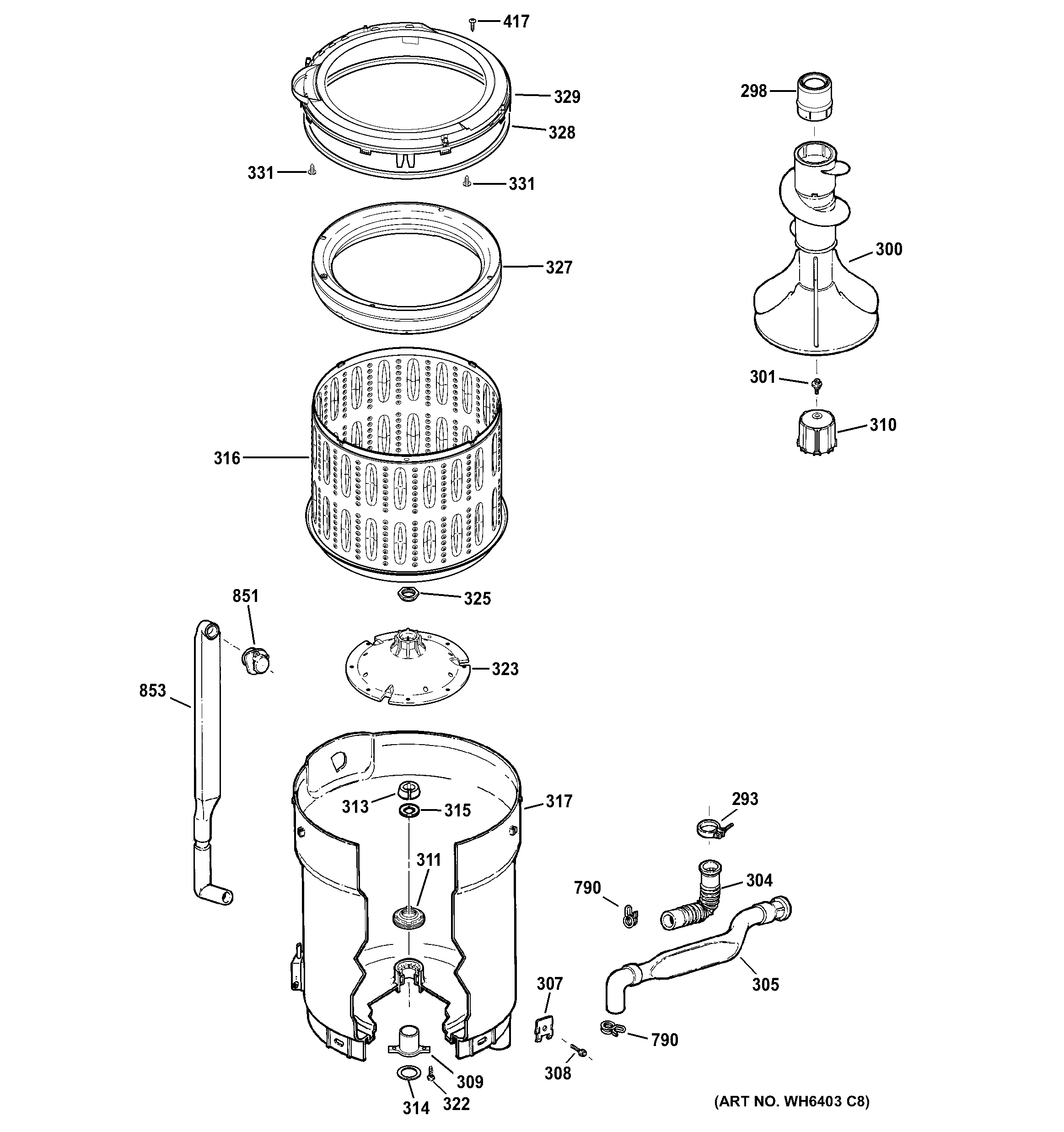

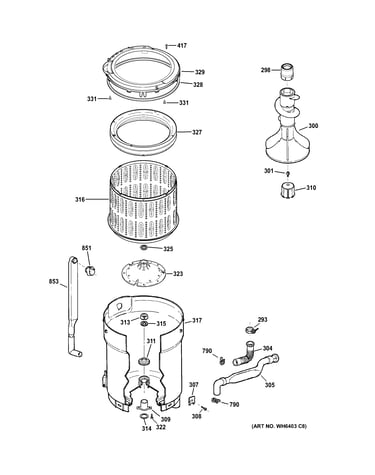

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Split Ring WH02X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH02X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Tub Seal Assembly (replaces Wh02x10032) WH02X10383
#311

Tub, basket & agitator diagram

Washer tub seal assembly (replaces wh02x10032)

Part #WH02X10383

BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Washer Suspension Rod And Spring Assembly WH16X10158
#414

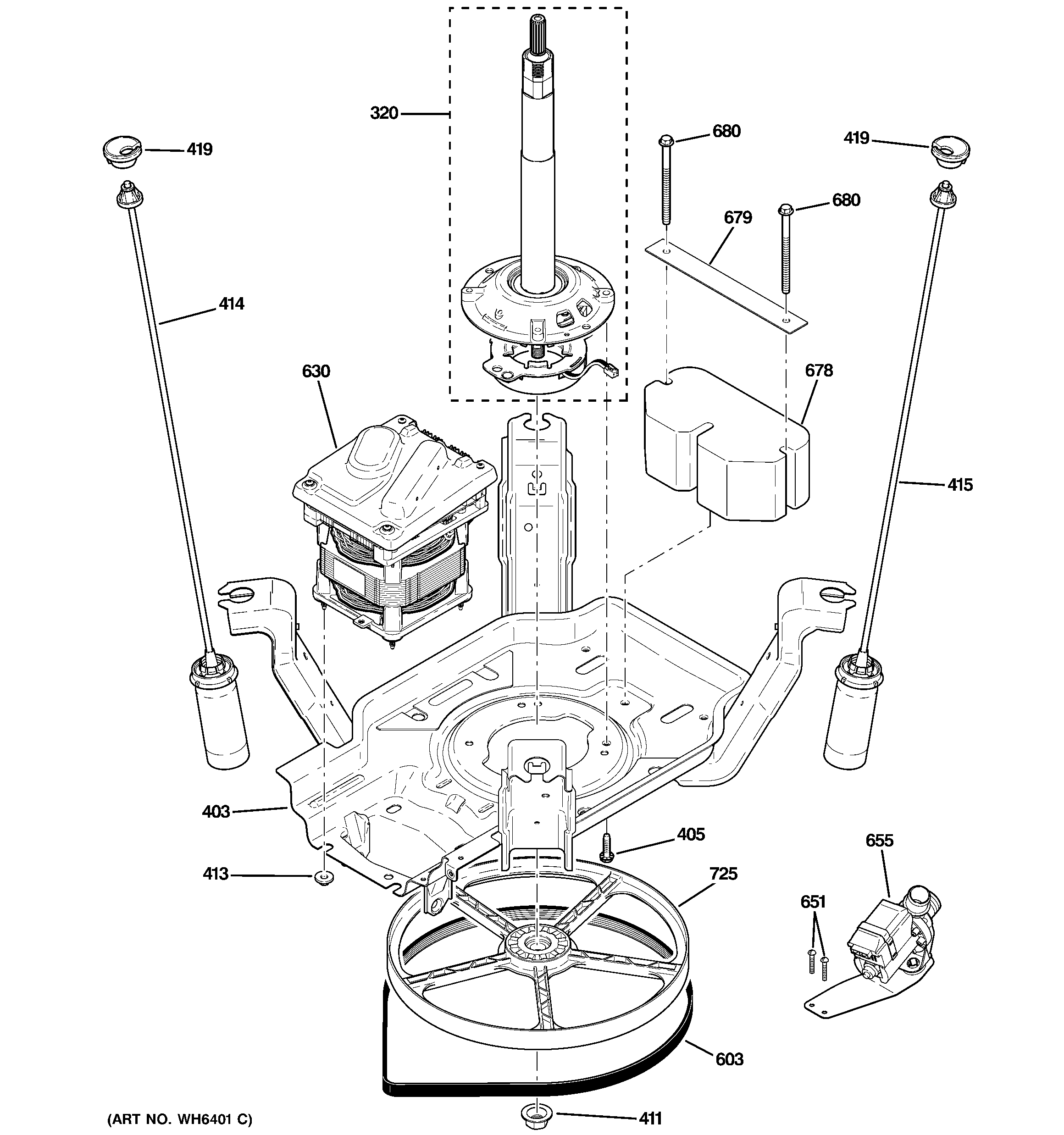

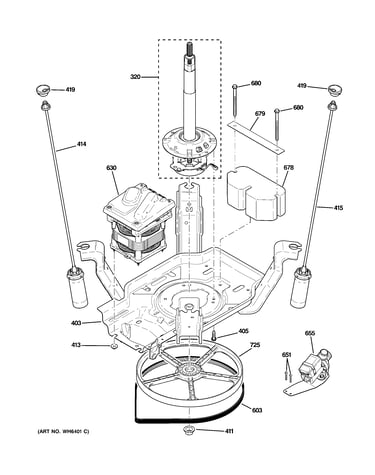

Suspension, pump & drive components diagram
