Model # 867823011 Official Kenmore evaporator blower coil
Here are the diagrams and repair parts for Official Kenmore 867823011 evaporator blower coil, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867823011 Evaporator Blower Coil
#67

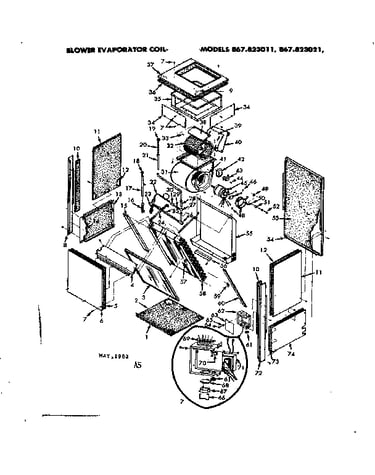

Unit parts diagram
Relay
Part #709376
The manufacturer no longer makes this part, and there's no substitute part
#32B
Unit parts diagram
Furnace blower fan wheel
Part #600586
$127.13 |
9% OFF Phone Price : $139.13
In Stock
#61
Unit parts diagram
Bushing wire
Part #504096
$11.00
In Stock
#50A
Unit parts diagram
Support
Part #86023
Replaced by #1050254
?
Manufacturer substitution
This part replaces 86023. Substitute parts can look different from the original.
$125.18
In Stock
#45B
Unit parts diagram
Motor
Part #704657
Replaced by #45461
?
Manufacturer substitution
This part replaces 704657. Substitute parts can look different from the original.
$297.33
In Stock
#45A
Unit parts diagram
Motor
Part #705292
Replaced by #1055083
?
Manufacturer substitution
This part replaces 705292. Substitute parts can look different from the original.
$461.75
In Stock
#32A
Unit parts diagram
Wheel fan
Part #61762
Replaced by #1001184
?
Manufacturer substitution
This part replaces 61762. Substitute parts can look different from the original.
$196.49
In Stock
#26
Unit parts diagram
Valve check
Part #709749
Replaced by #1052910
?
Manufacturer substitution
This part replaces 709749. Substitute parts can look different from the original.
$84.67
In Stock
#44
Unit parts diagram
Screw
Part #92637
The manufacturer no longer makes this part, and there's no substitute part
#1
Unit parts diagram
Plate end
Part #704606
The manufacturer no longer makes this part, and there's no substitute part
